Overview

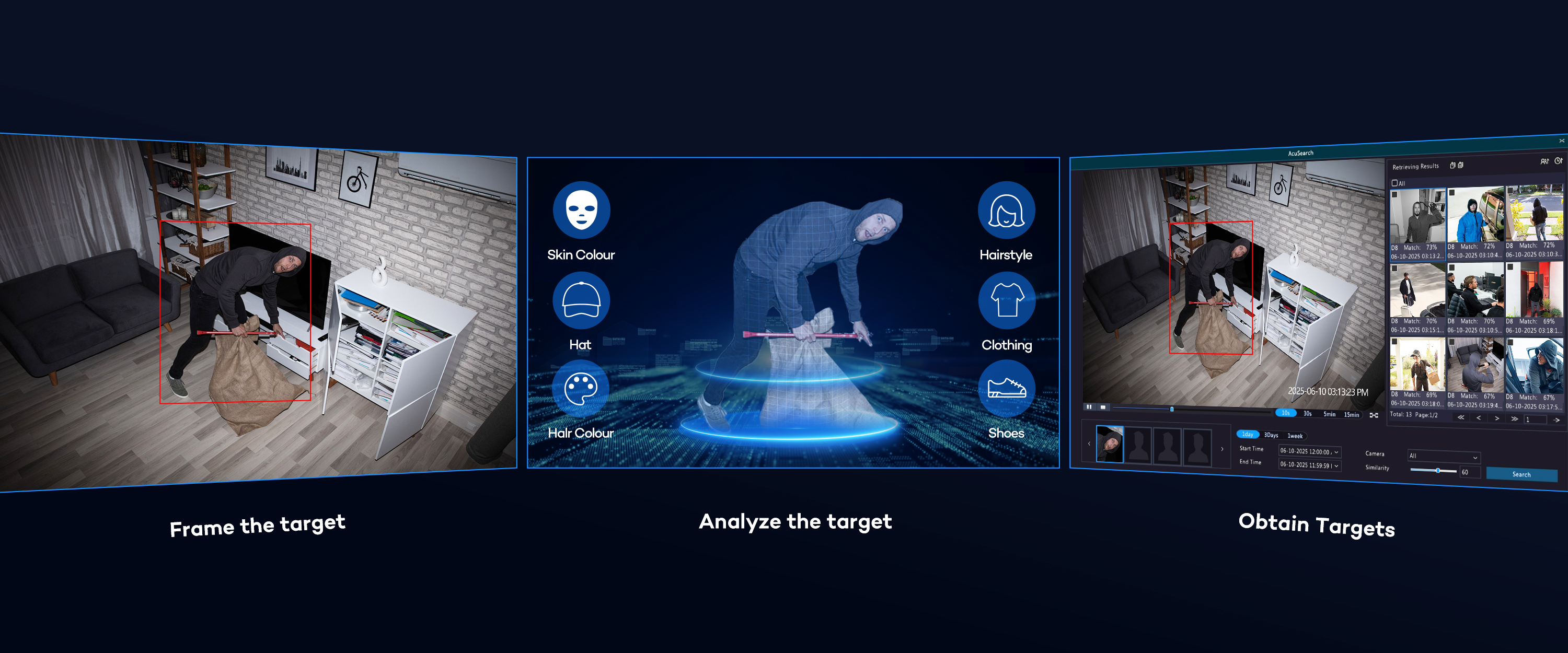

AcuSearch Technology

Precise suspect location. Instant video search. Rapid criminal tracking

Smart Detection & Analysis

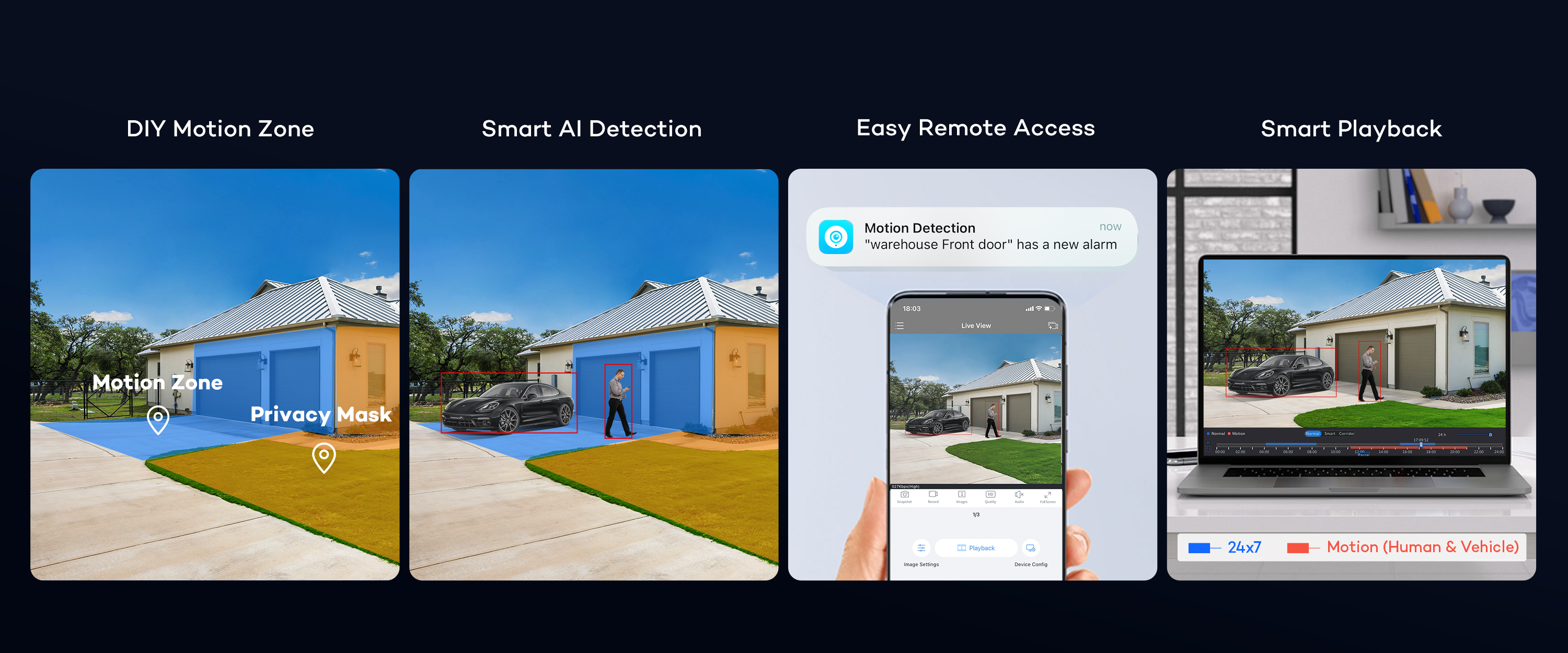

From Discovery to Playback

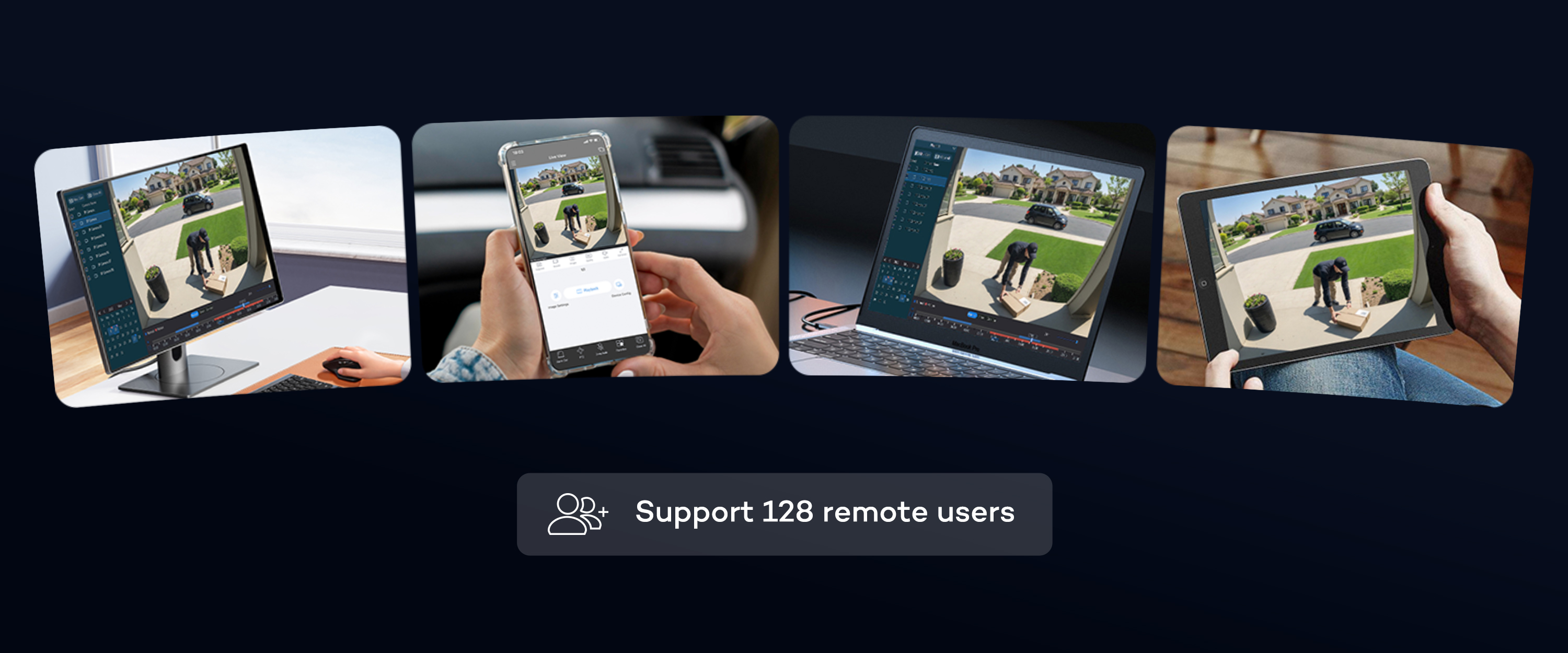

Access Anywhere Anytime

Wide Field of View

The camera features a 134° diagonal / 111° horizontal / 59° vertical field of view (FOV).

IP66-Rated Weatherproof Reliability

IP66-rated aluminum housing offers 1400x better heat dissipation than plastic ABS.

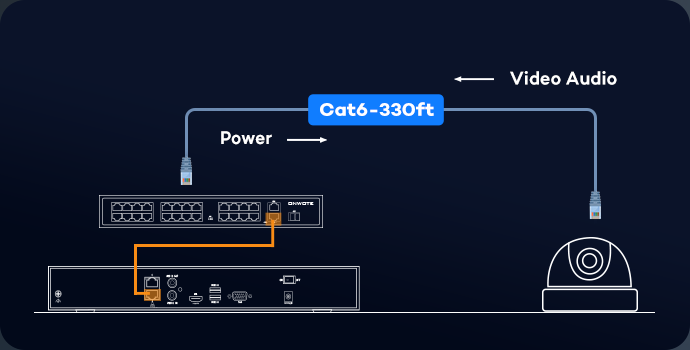

Power over Ethernet

All-in-one cable:‌ Transmits video, audio, and power over a single Cat5 cable.
True plug & play:‌ Simpler wiring than traditional DVR systems.

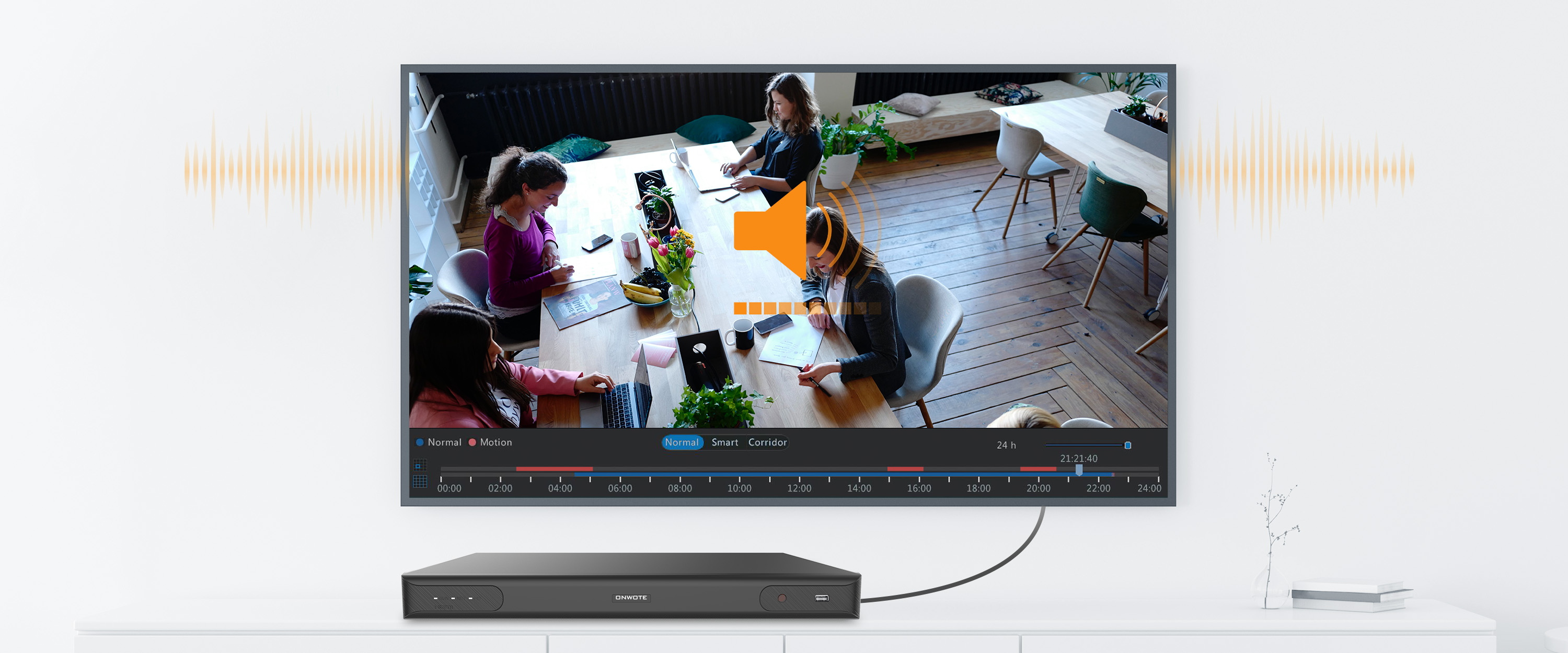

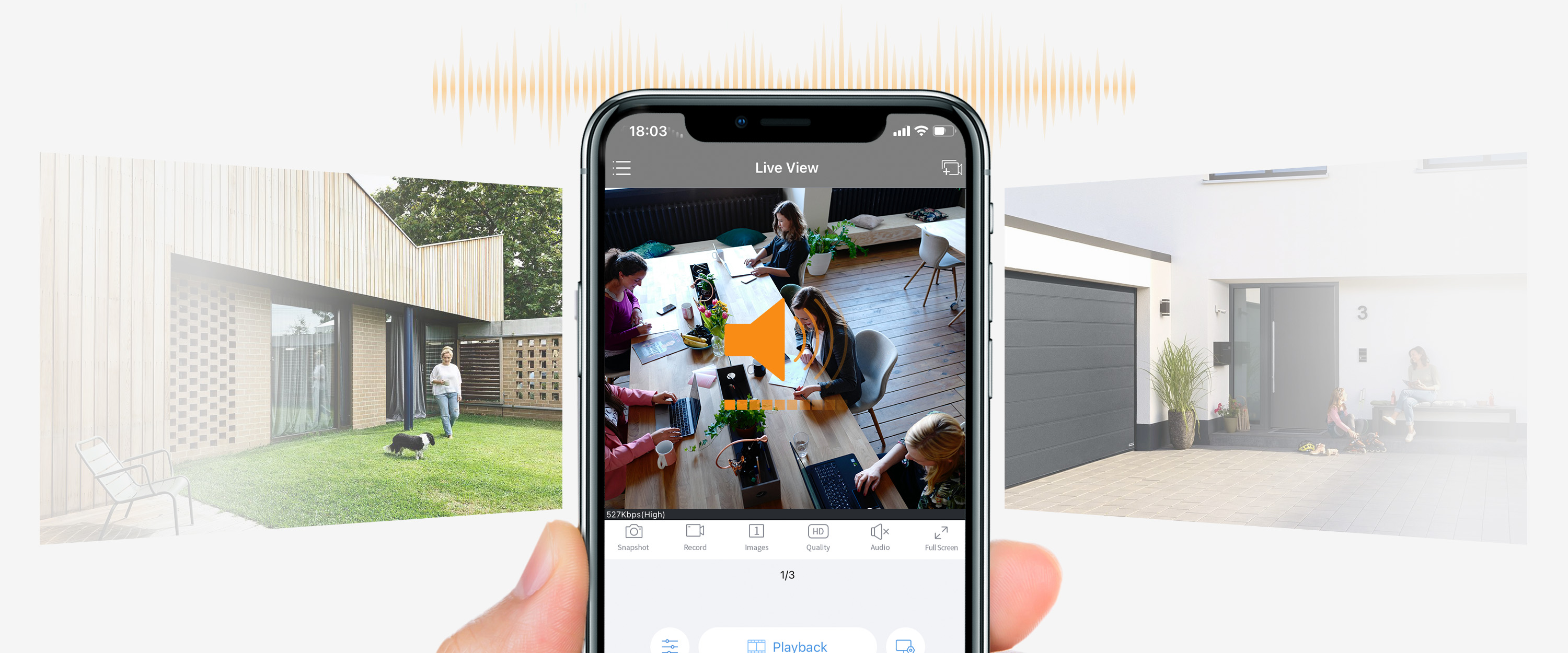

Capture & Record Audio

Cameras capture audio, recorded by the NVR for playback on an HD TV or mobile app.

Audio Capture Mobile App Playback HD TV Output

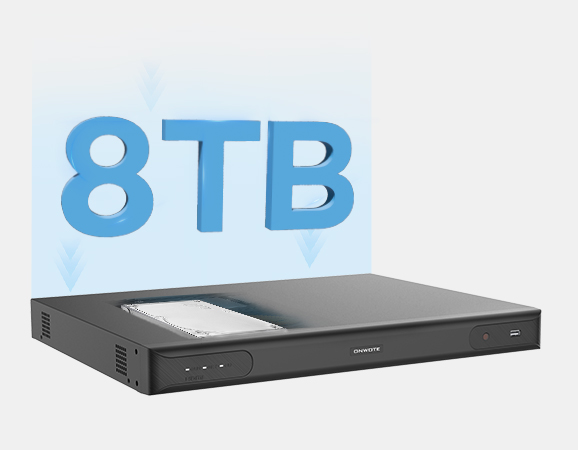

8TB Storage Pre-Installed

8TB hard drive is pre-installed in the nvr for free local storage.

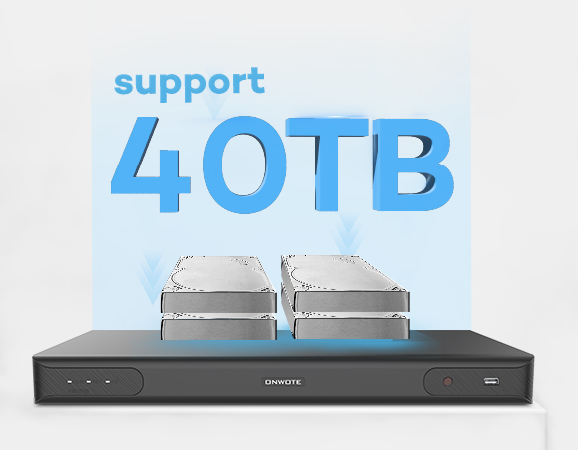

Expandable Up to 40TB

4pcs 3.5" SATA hard drive ports, 10TB for each, storage capacity up to 40TB.

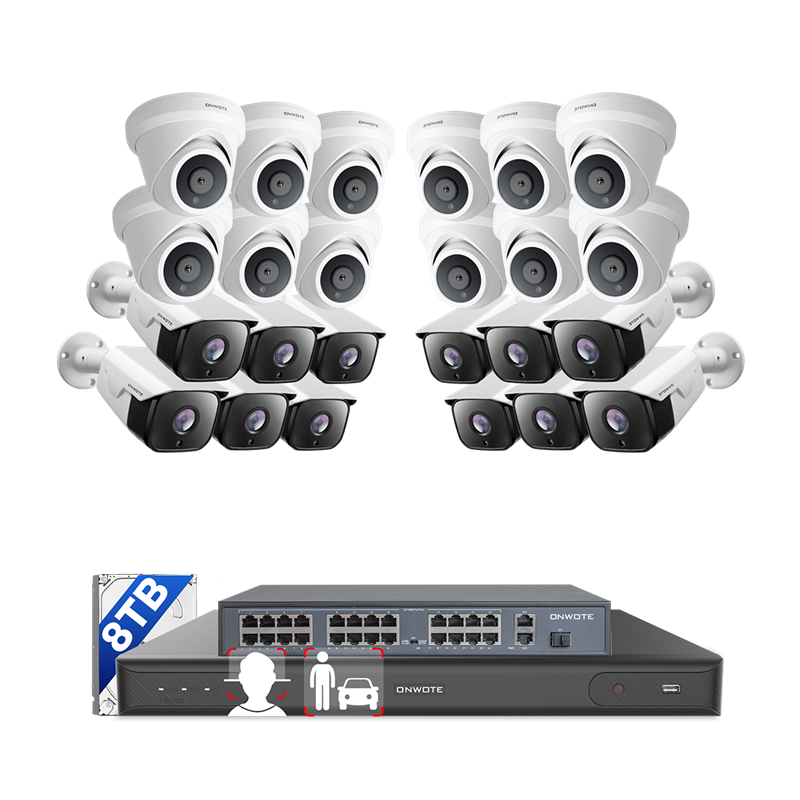

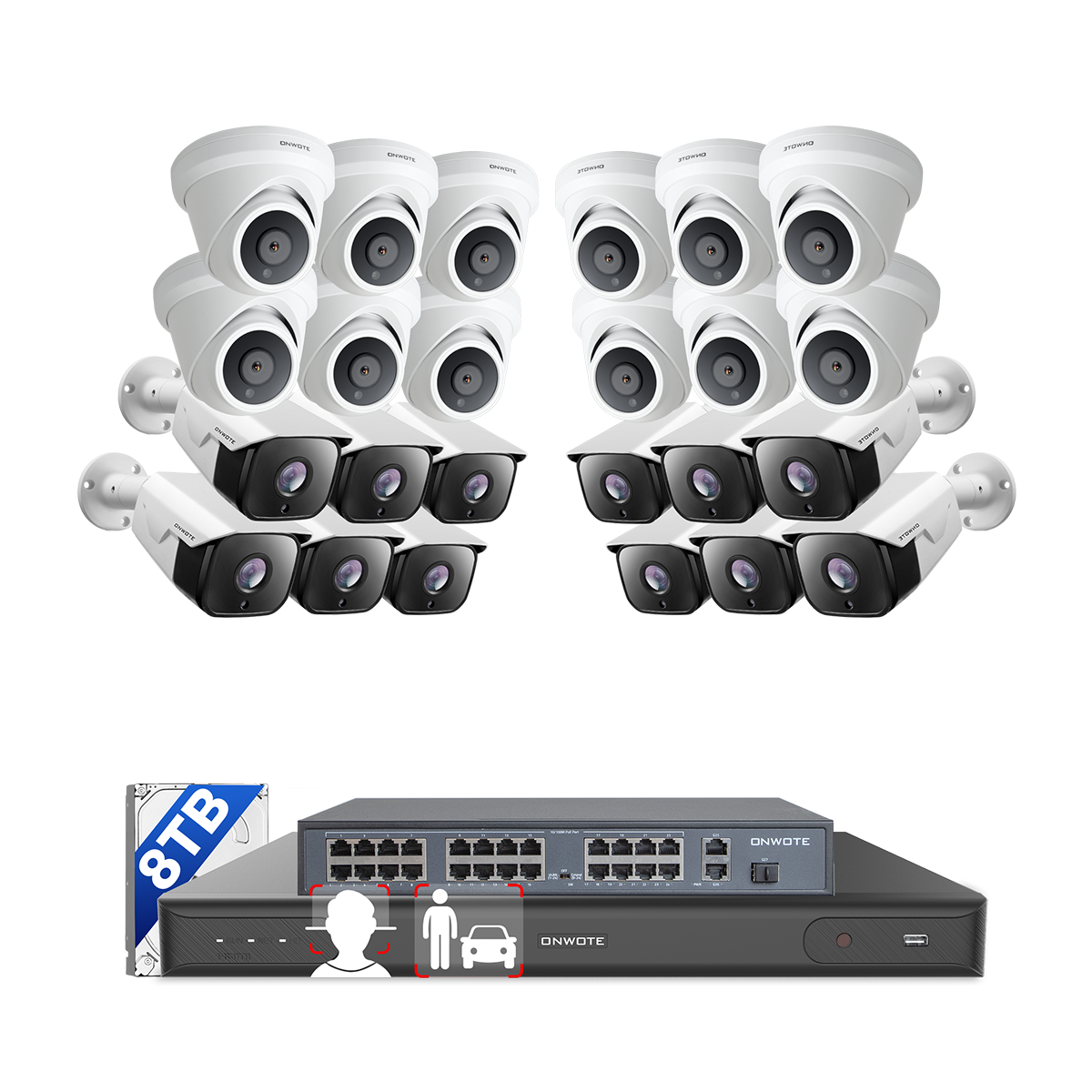

One-Stop DIY Solution

The NVR supports up to 16 cameras, with resolution options of 6K (12MP) or 4K (8MP). A variety of add-ons are available, including pan-tilt-zoom and two-way audio cameras.

Specification

Camera NVR POE Switch

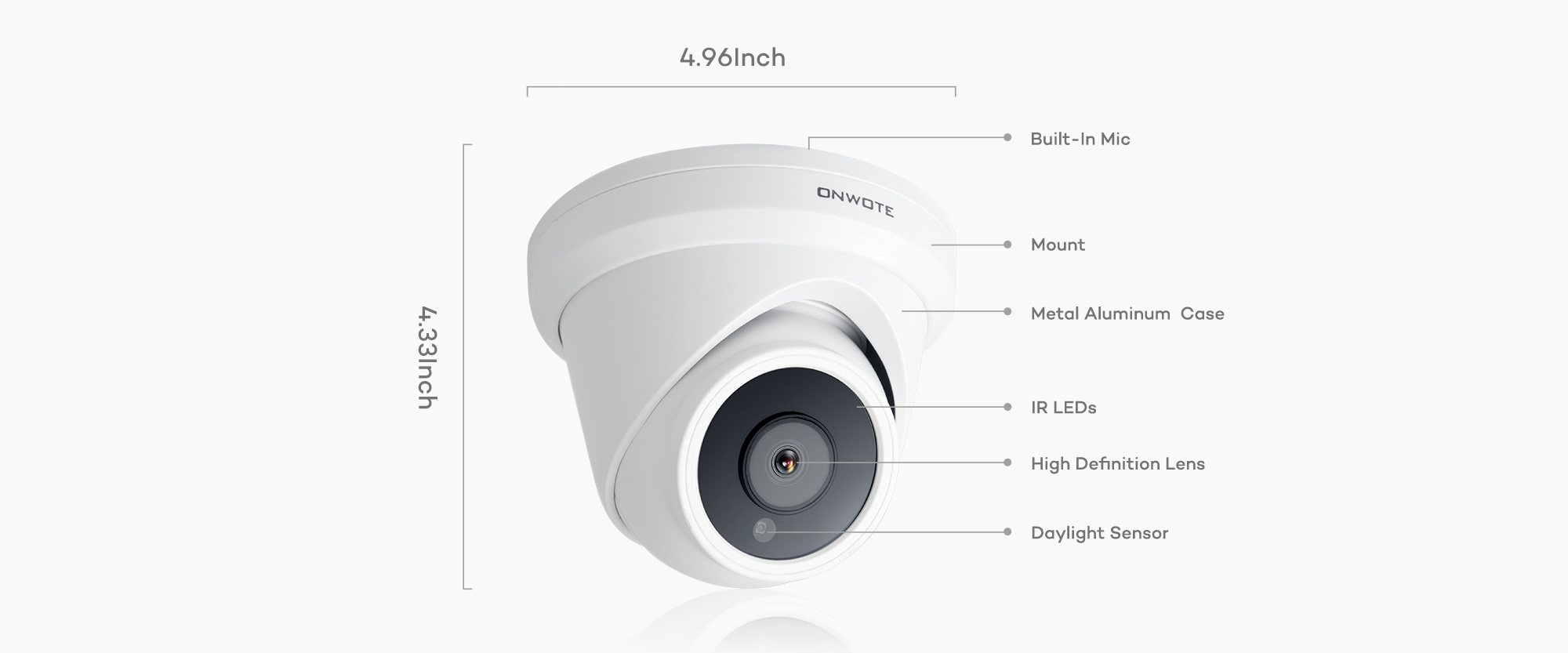

SA80-P36 & BA4K-P28

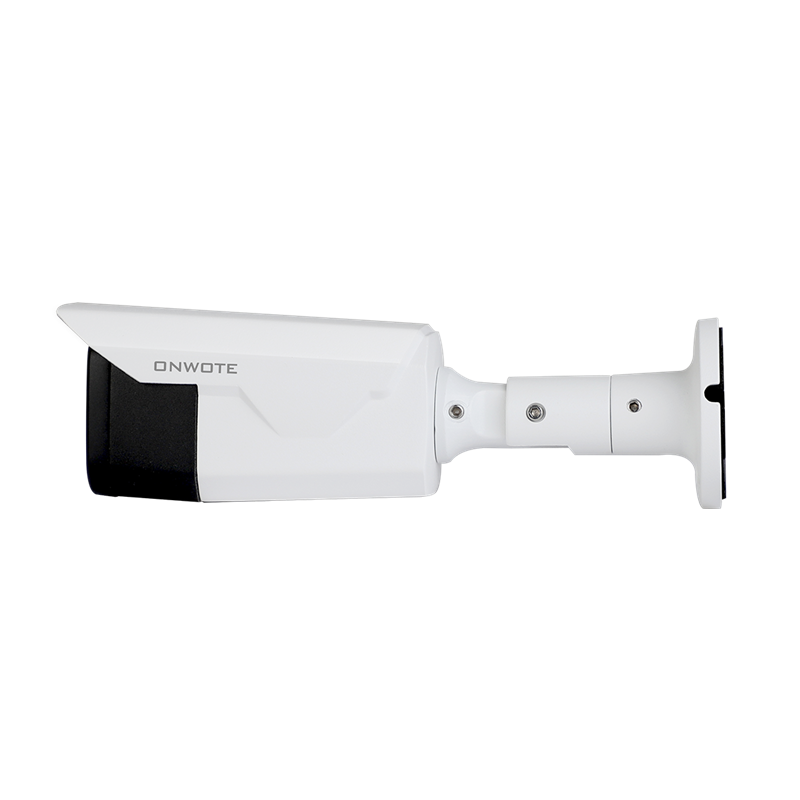

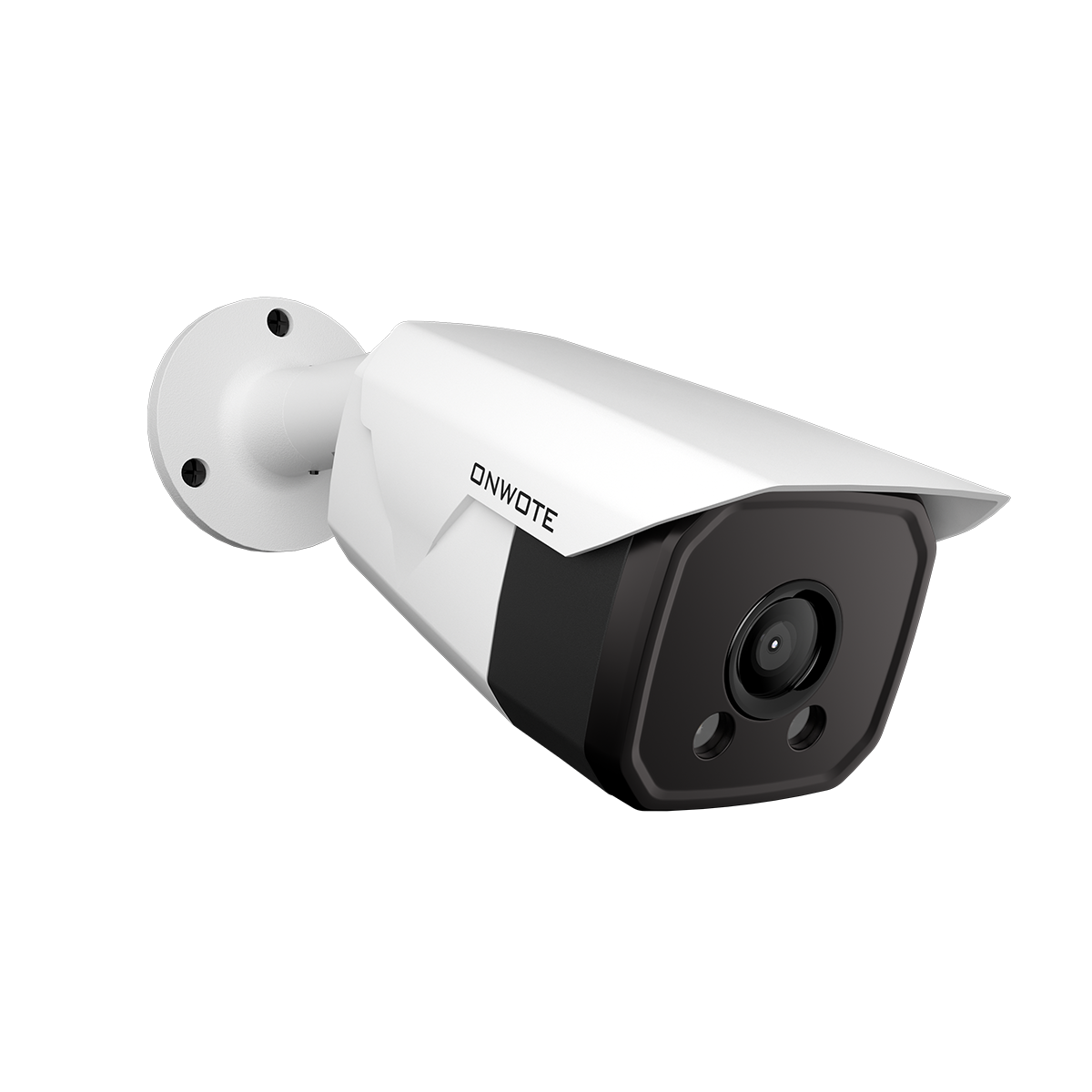

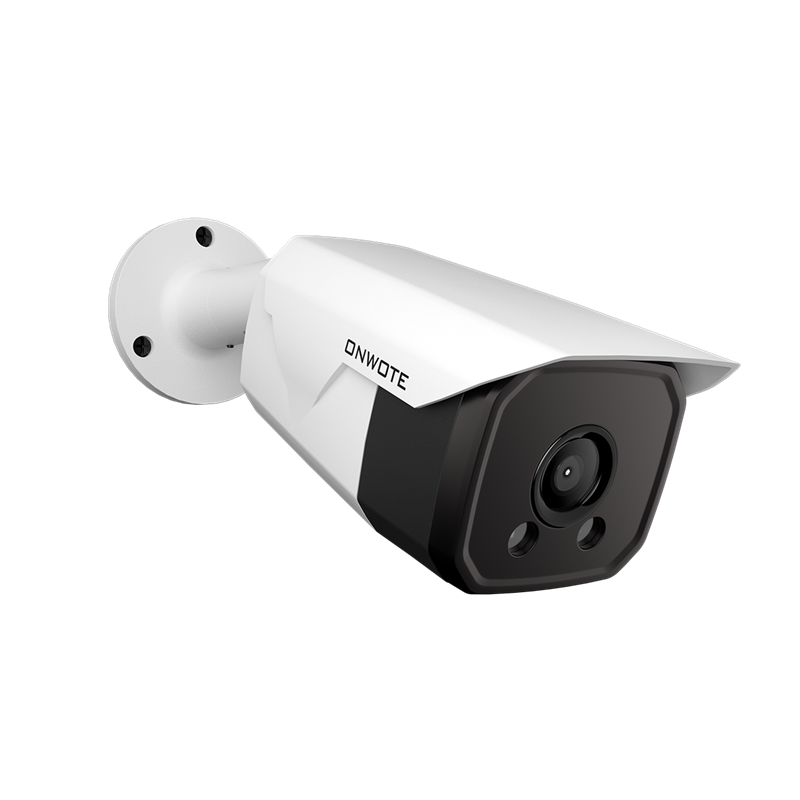

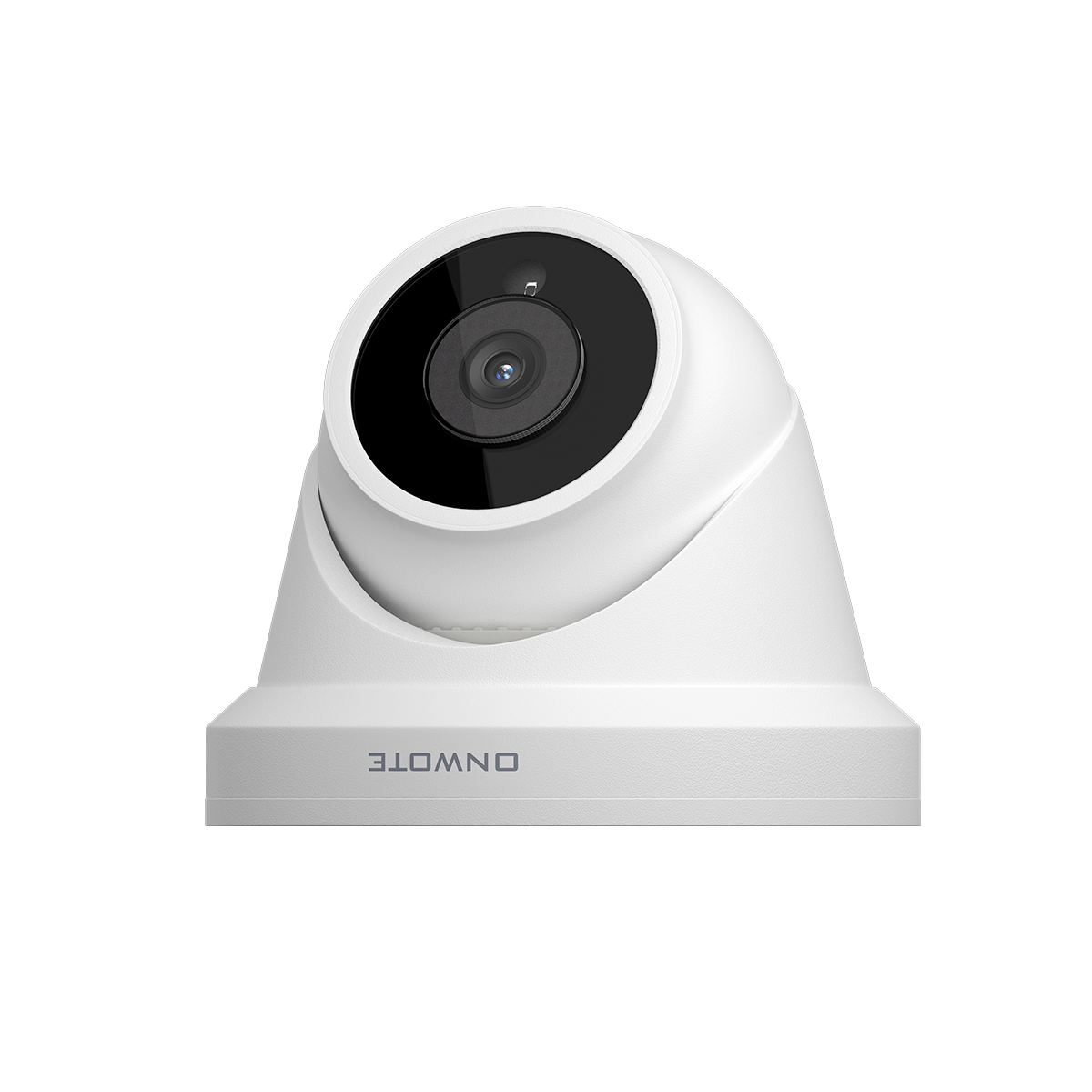

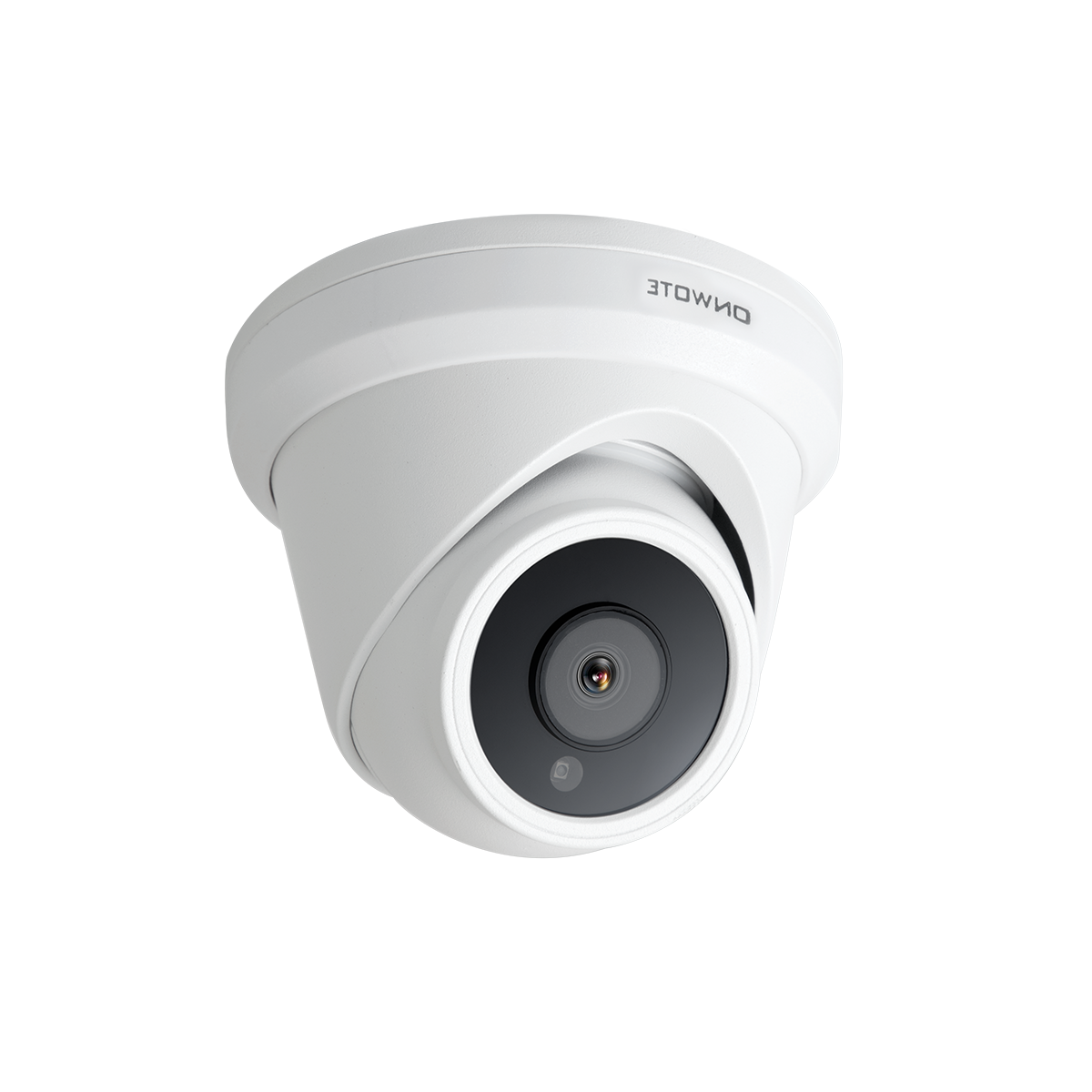

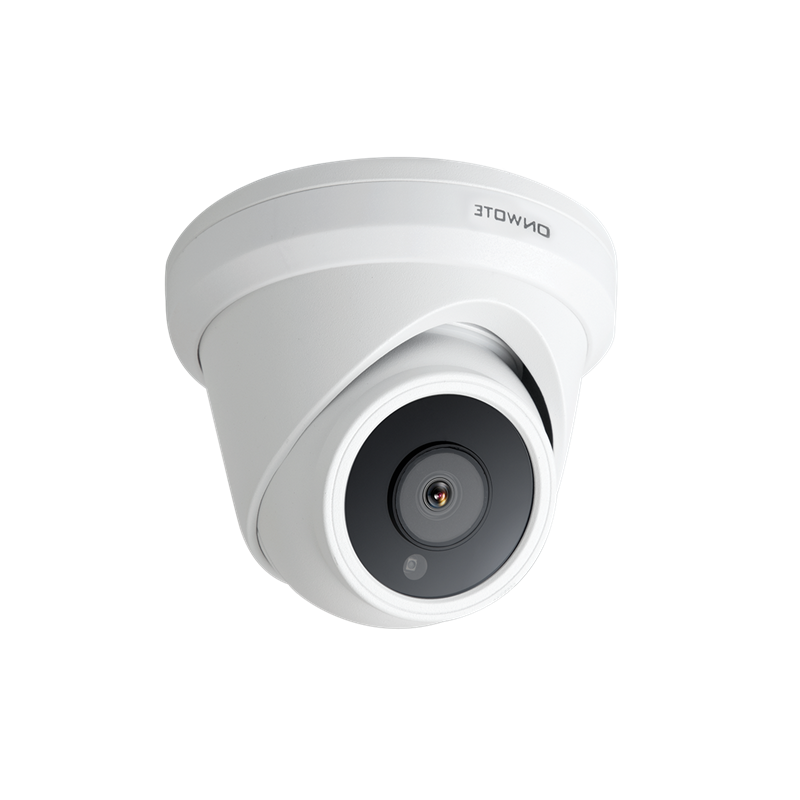

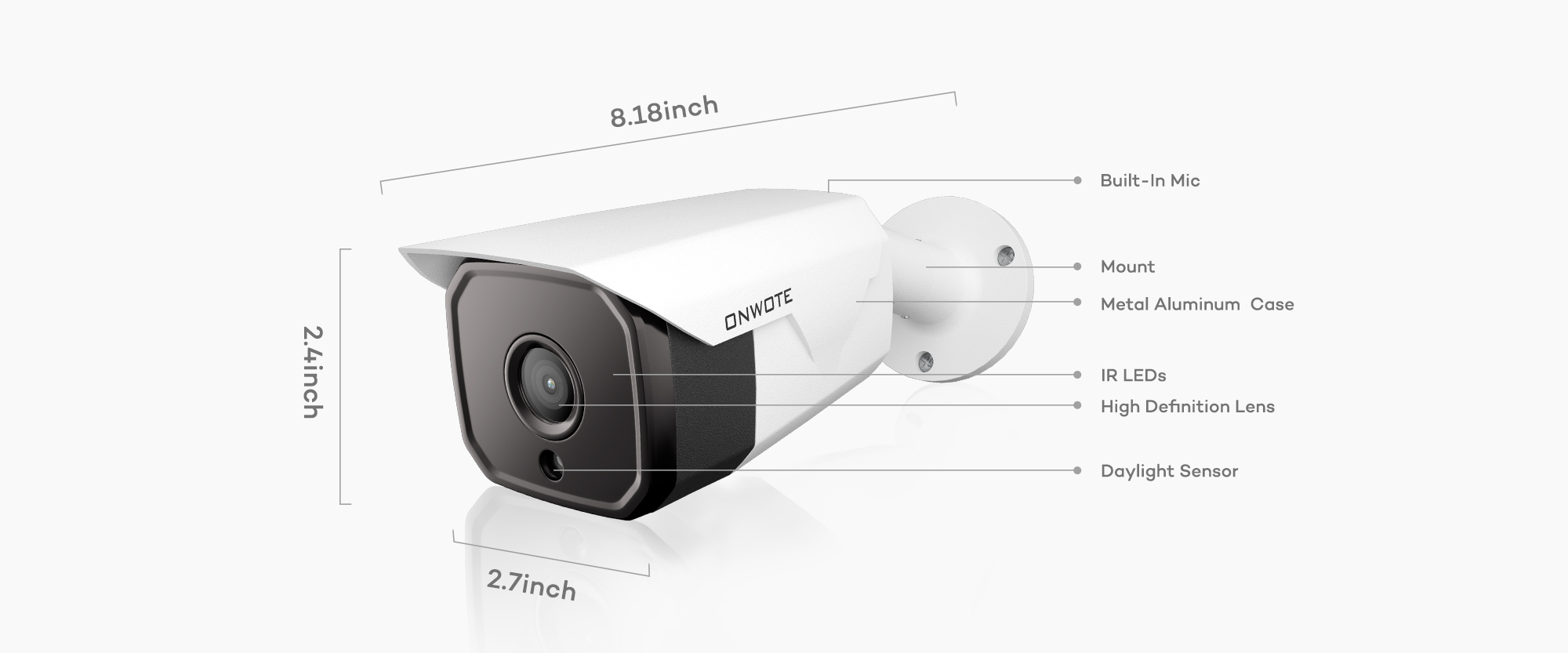

4K Ultra HD Camera

8 Megapixels-3840(H) x 2160(V) @20FPS

Viewing Angle

134°(Diagonal), 111°(Horizontal), 59°(Vertical)

AI Function

Smart AI Human Vehicle Detection

Audio

Built-in Microphone (10-15ft)

Night Vision

IR distance up to 100ft (depends on environment)

IP66 Metal Housing

Aluminum Alloy, Indoors & Outdoors

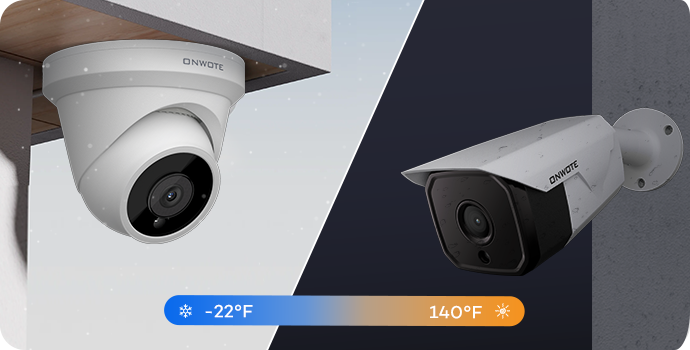

Operating Temperature

-22°F~140°F, 10%-90%RH

Power Supply

PoE 802.3af/at 48V; 12V DC ± 10%

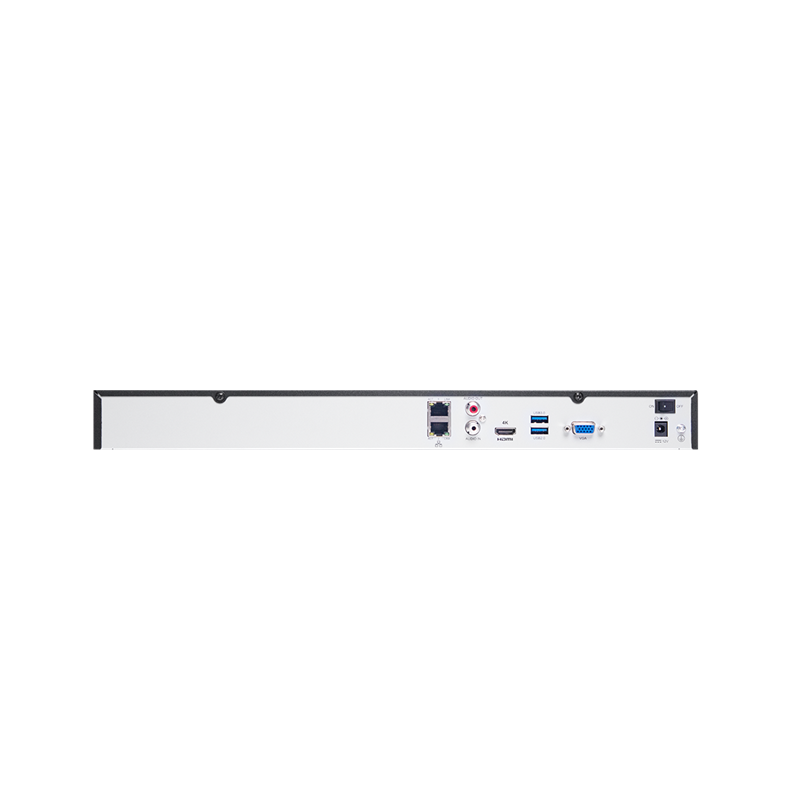

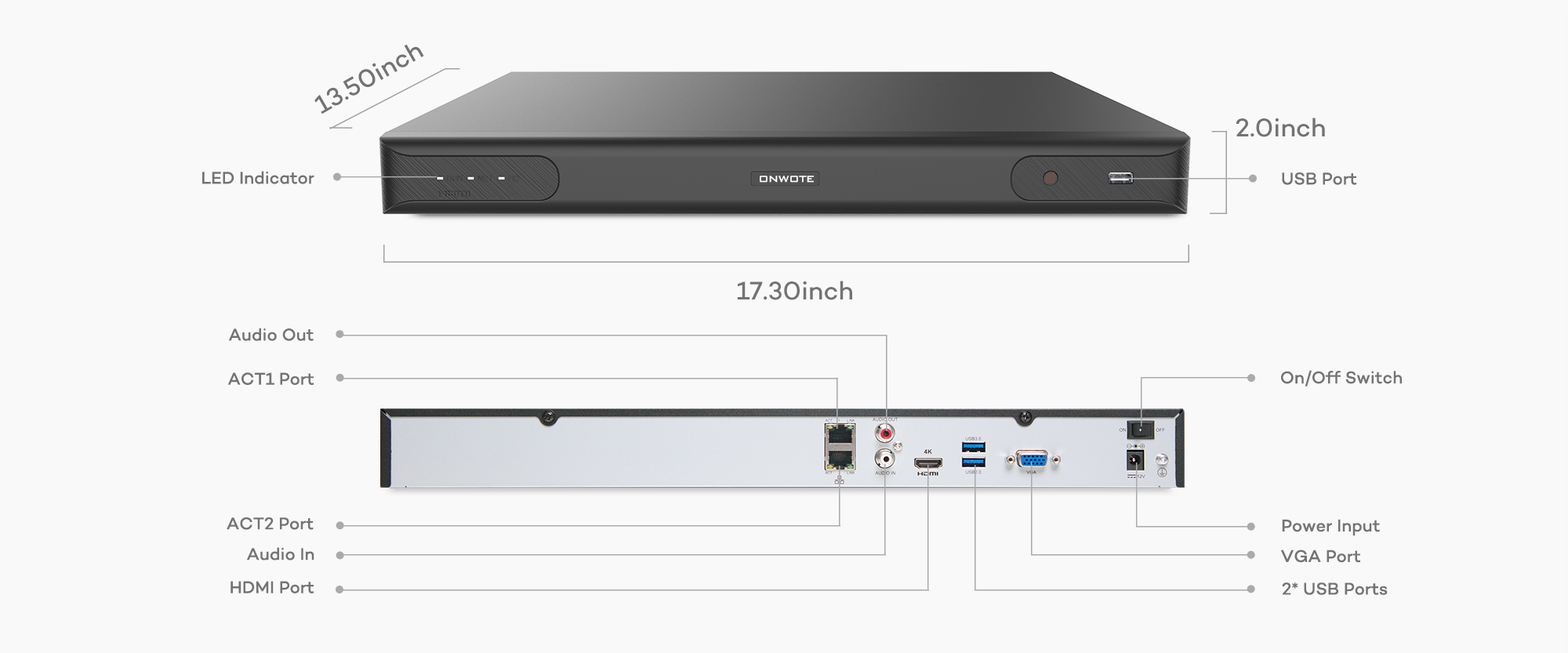

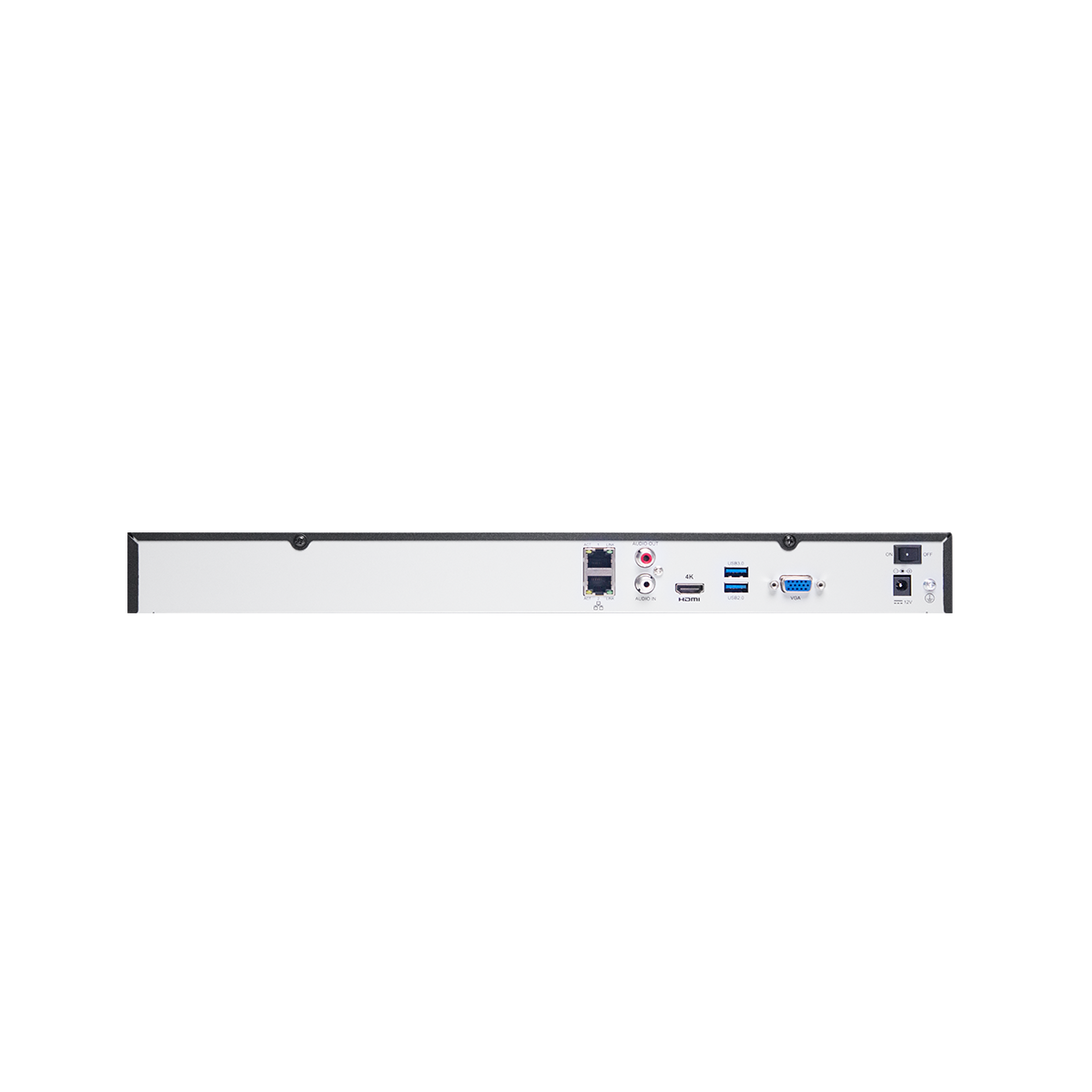

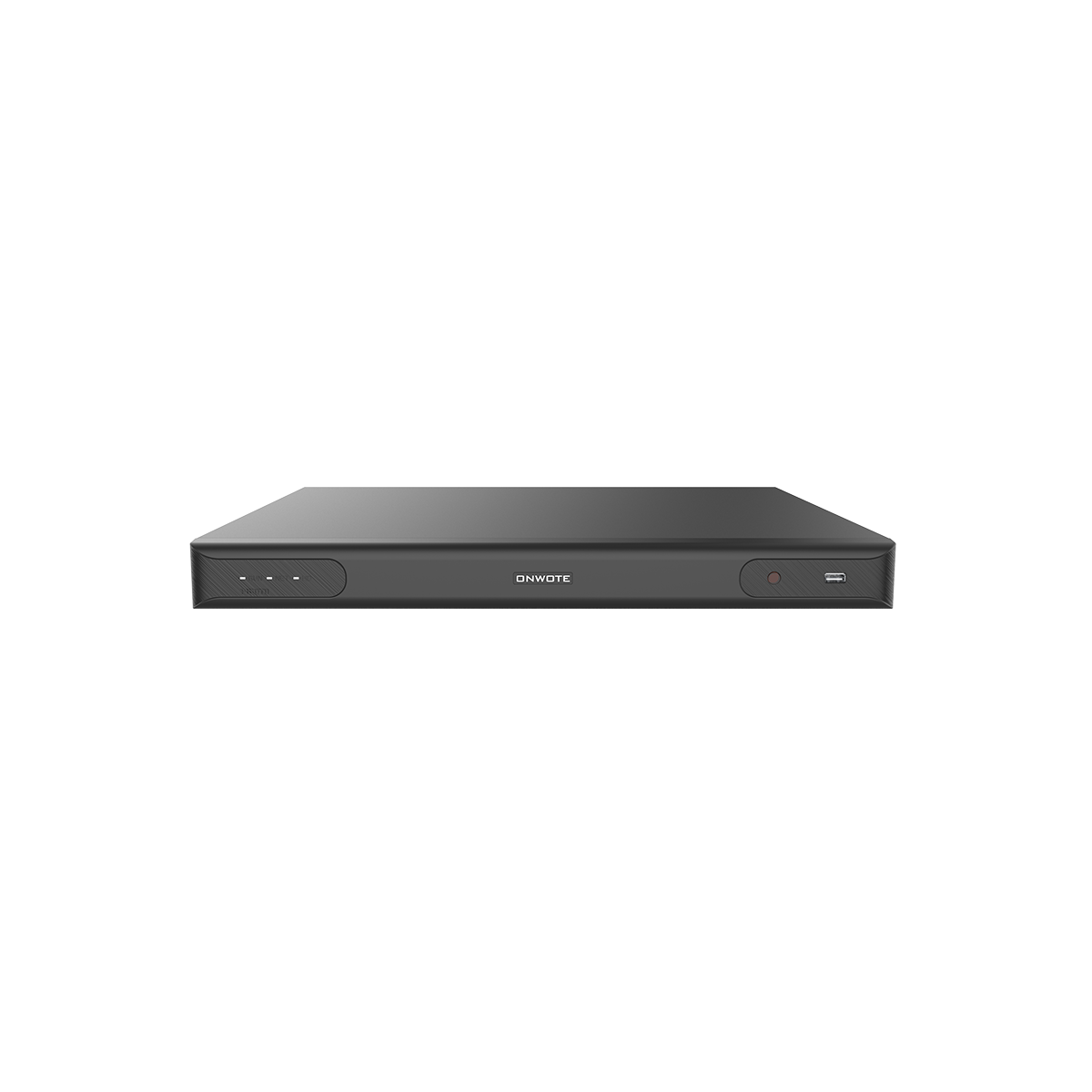

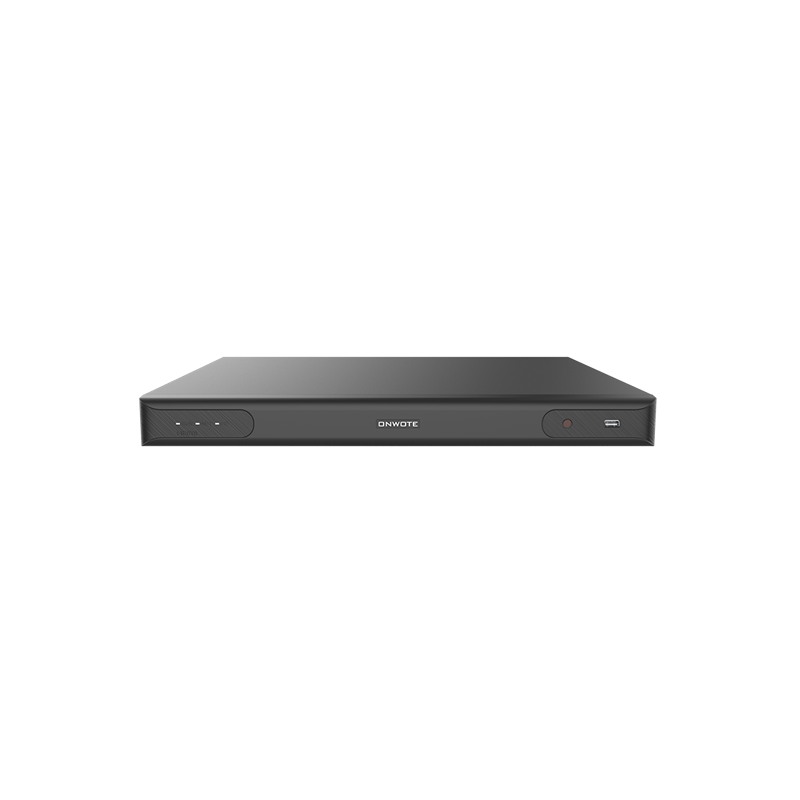

PNA-1232

32CH 6K 12MP NVR

Incoming-160Mbps; outgoing-128Mbps

Video Audio Input

32CH IPC, 20CH 12MP, 26CH 8MP/6MP/5MP, 32CH 4MP

Video Audio Output

AI Function

Smart by NVR: Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) VCA Search: Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch

Remote Access

128 remote users; Mobile (iPhone/ Android); PC (Windows/ Mac)

Storage Capacity

Built-in 8TB HDD, 4 SATA interfaces support up to 40TB

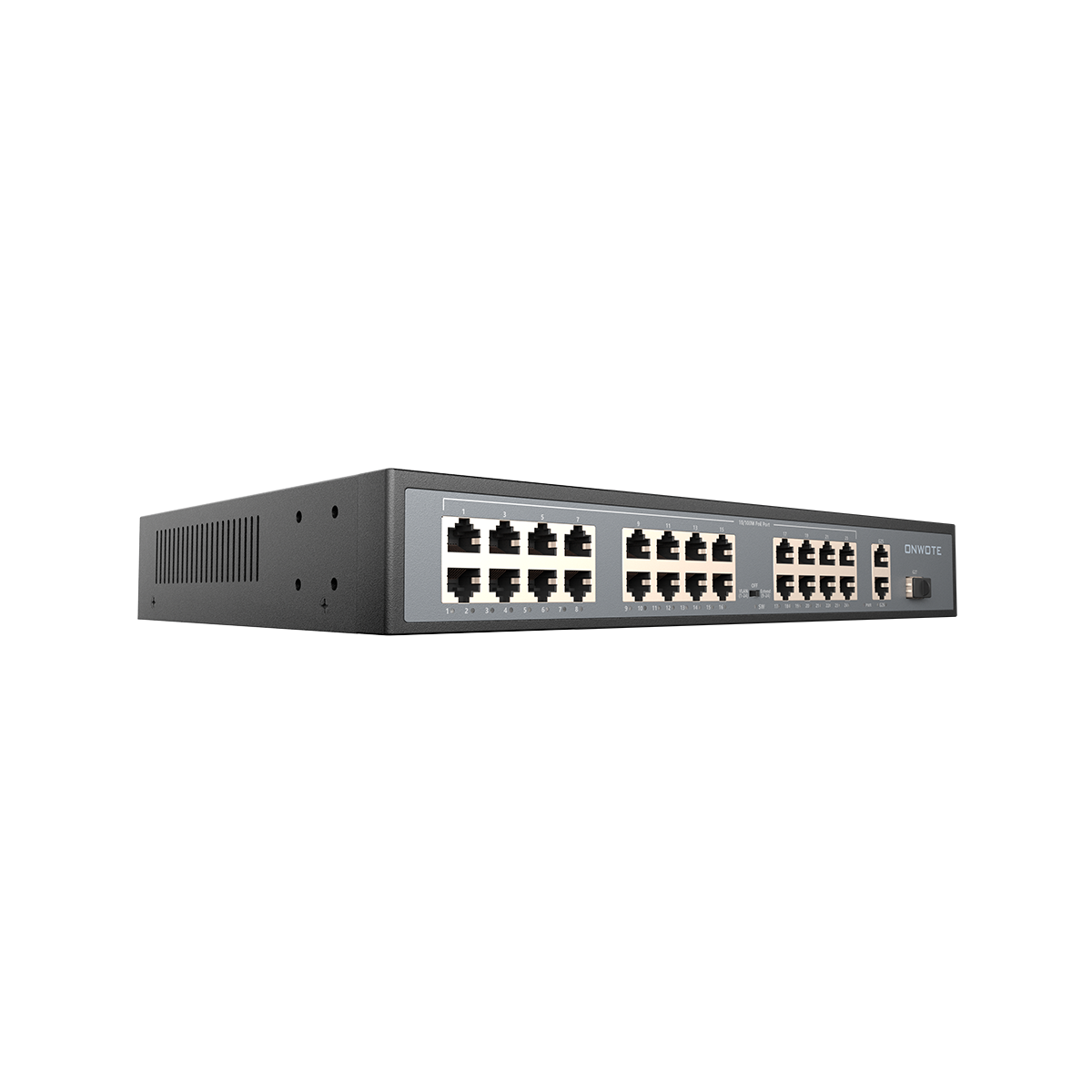

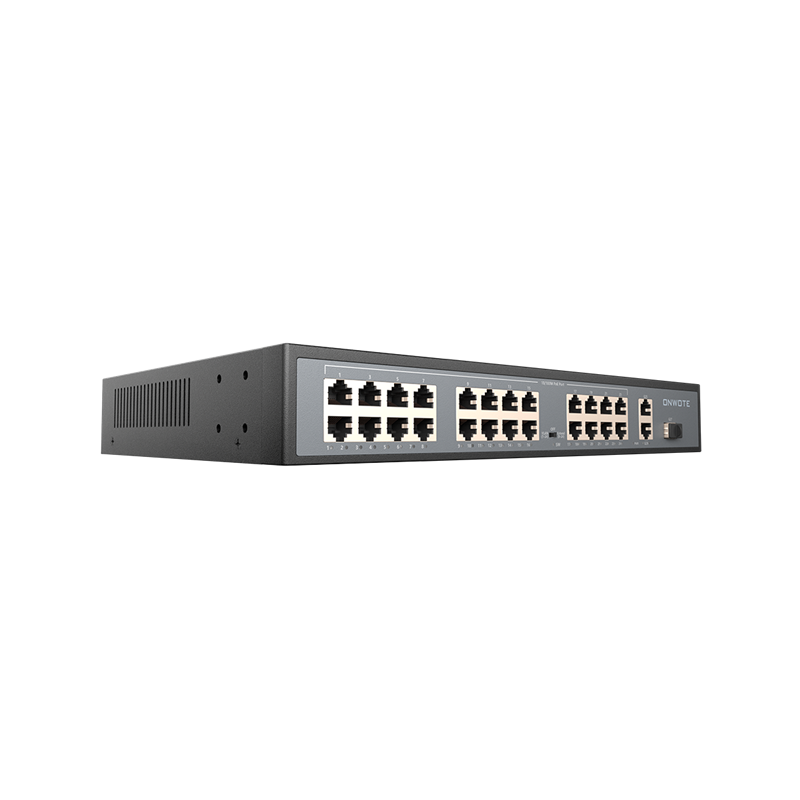

24 Ports & 8 Ports PoE Switch

24 Ports: 24* 100M ports+ 2* gigabit ports+ 2* combo SFP Slots; 8 Ports: 8* 100M ports+ 2* gigabit ports

Operating Temperature

'-10°C～ 55°C, 14°F~131°F, 10% ～ 90%RH(non-condensing)

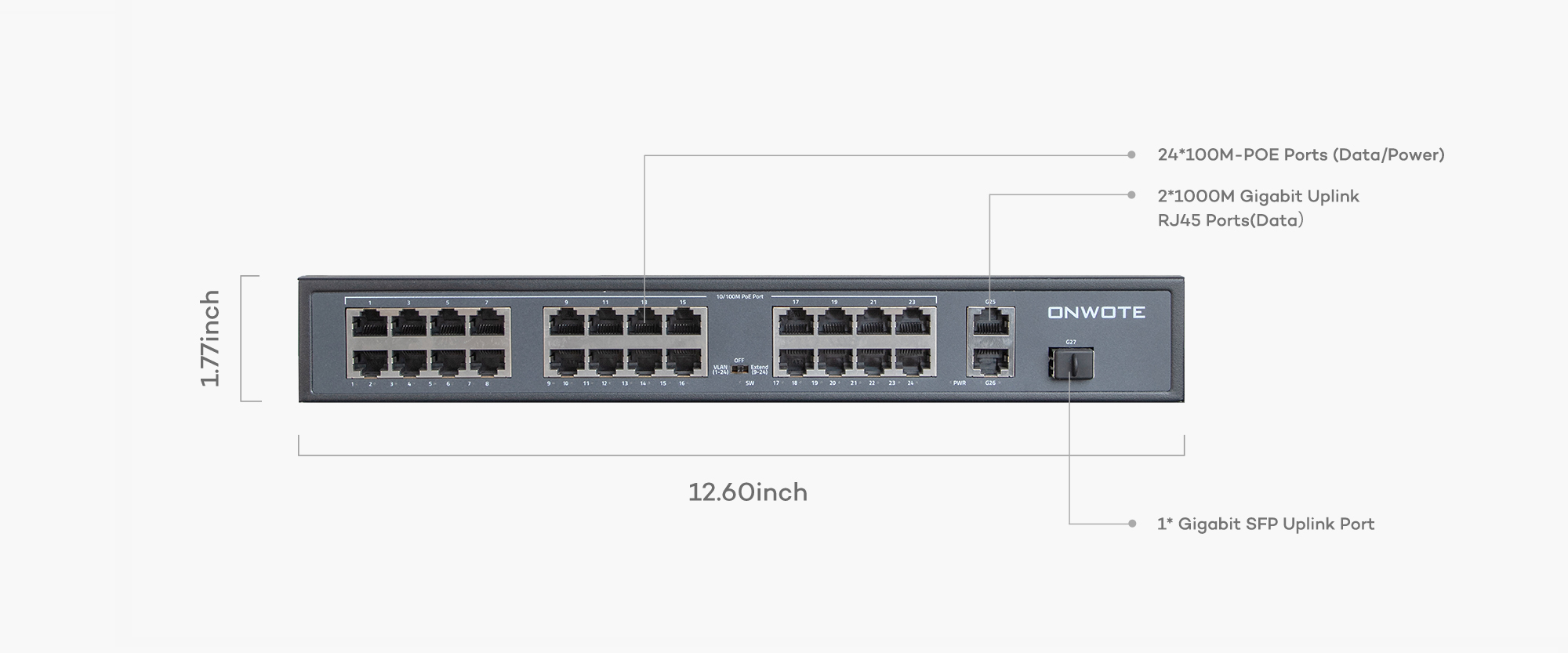

PS-24M2G1S

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

300W

PoE Protocol

IEEE802.3af(15.4W); IEEE802.3at(30W)

PoE Ports

24 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports; 1* Gigabit SFP Uplink Port

Transfer Mode

Store and forward

Switching Capacity

10.8Gbps

Forwarding Rate

8.03Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting:Powered; Un-Light:No Power

Switch Mode

Lighting: VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-27 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

Product Dimensions

12.60*8.15*1.77inch

Net Weight

3.95lbs

Package List

1x 24 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

PS-8M2G

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

120W

PoE Protocol

IEEE802.3af (15.4W); IEEE802.3at (30W)

PoE Ports

8 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports

Transfer Mode

Store and forward

Switching Capacity

5.6Gbps

Forwarding Rate

4.166Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting: Powered; Un-Light: No Power

Switch Mode

Lighting:VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-10 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

Product Dimensions

7.87*4.65*1.73inch

Net Weight

1.36lbs

Package List

1x 8 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

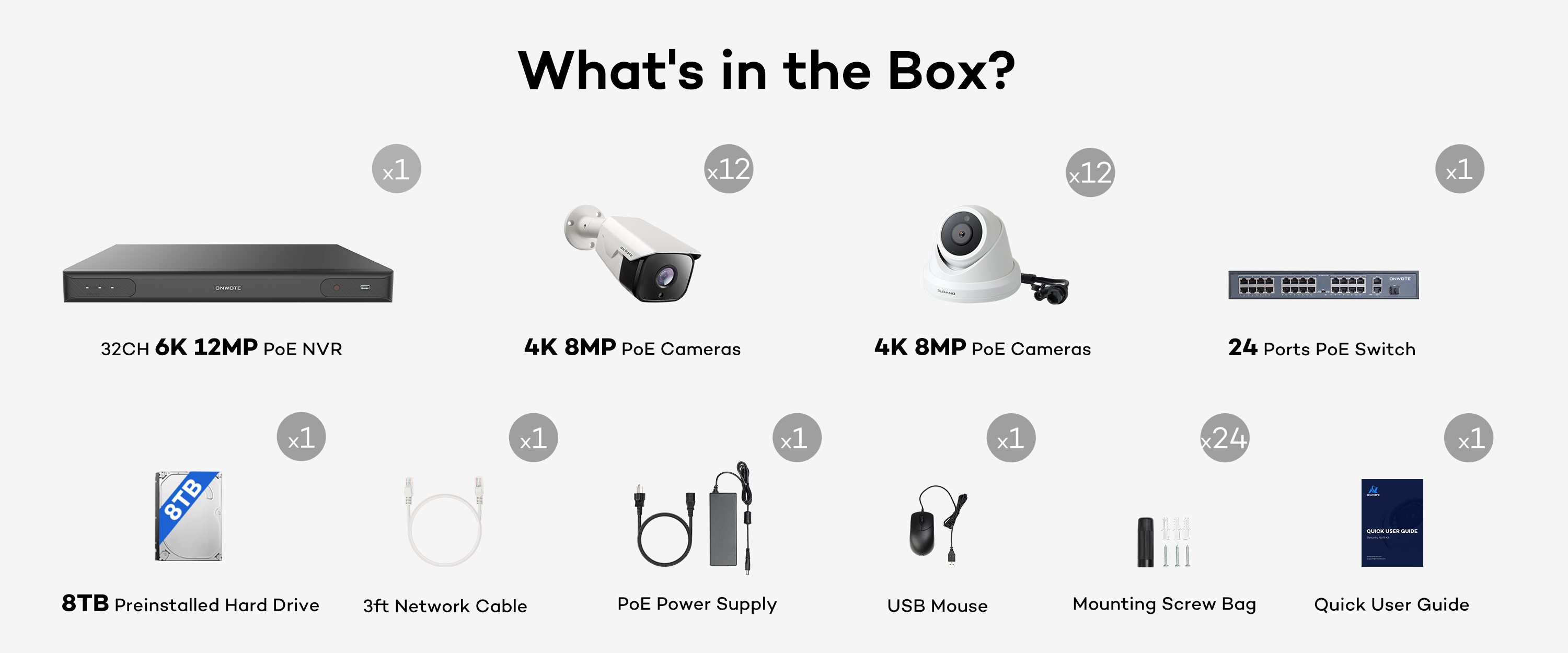

Packing List

Videos

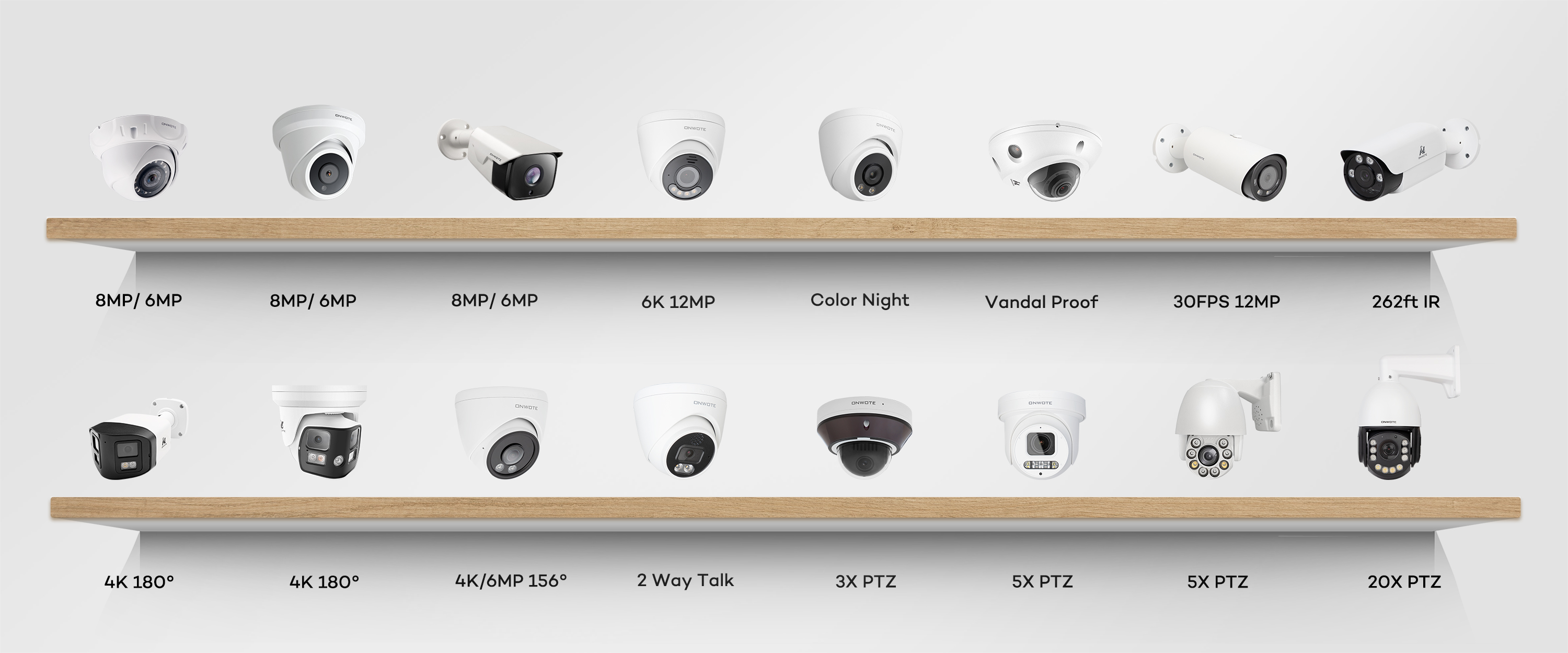

Add-on

PTZ20X 4K/8MP PoE Camera

$275.99 Save 8%
PTZ5X 4K/8MP PoE PTZ Camera

$169.99
PTZ 5X 4K 8MP PoE Camera

$137.99 Save $12.00
PTZ 5X 4K 8MP PoE Camera

$147.19 Save 8%
$112.99
180° Dual-Lens 4K 8MP PoE Camera

$165.59 Save 8%
180° Dual-Lens 4K 8MP PoE Camera

$165.59 Save 8%
4K/8MP PoE Camera

$76.99 Save $13.00
156° 4K 8MP PoE Camera

$112.99
6K/12MP PoE Camera

$153.99
6K/12MP PoE Camera

$141.67 Save 8%
4K/8MP PoE Camera (Black)

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00

Comparison

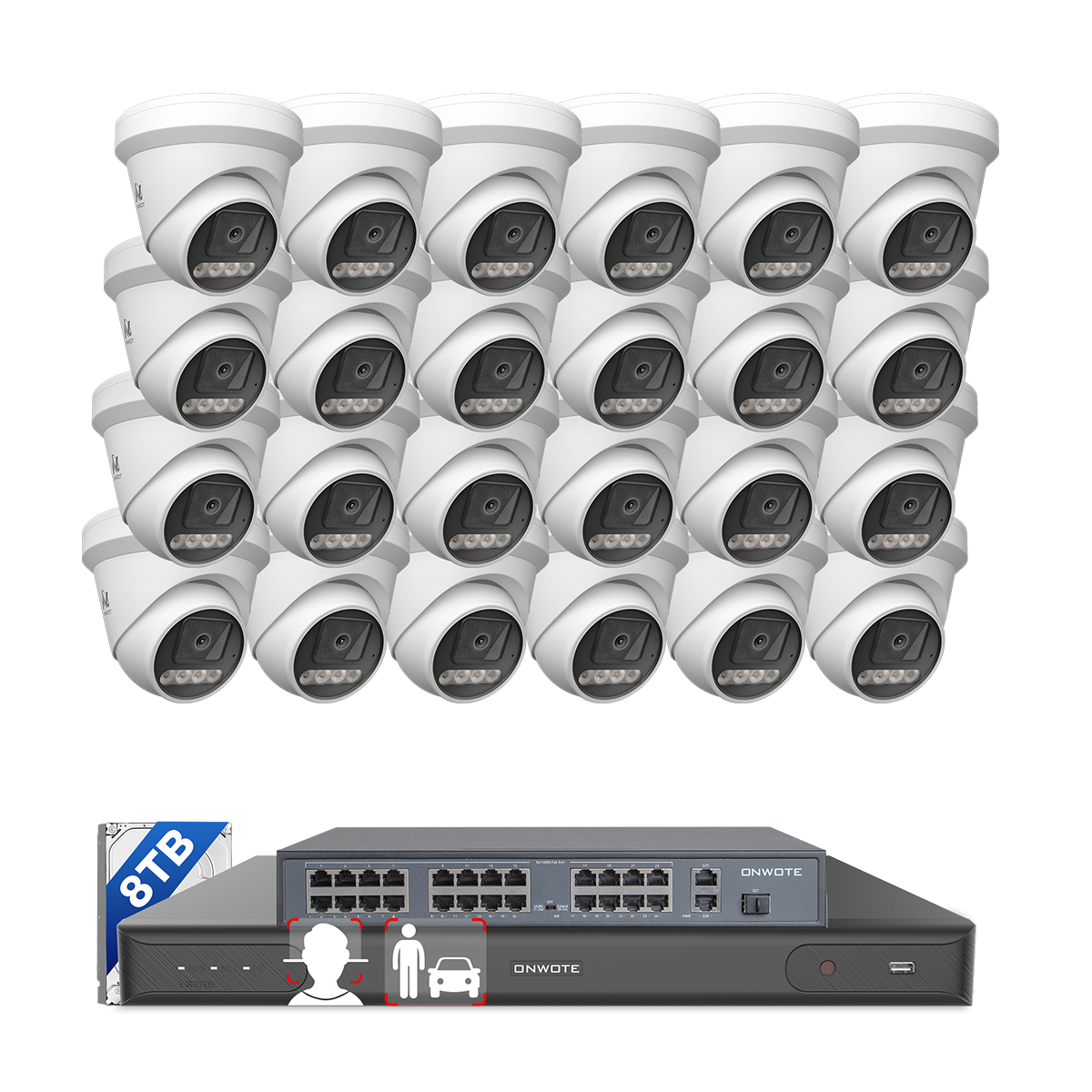

	32CH 4K PoE System $ 2469.99	32CH 4K PoE System $ 2489.99	32CH 4K PoE System $ 2499.99	32CH 4K PoE System $ 2903.99	32CH 4K PoE System $ 2815.99
Resolution	8MP@20FPS	8MP@20FPS	8MP@20FPS	8MP@20FPS	8MP@20FPS
Field of View	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)
Audio	Built-in Microphone	Two Way Audio	Two Way Audio	Two Way Audio	Built-in Microphone
AI Function	Face Recognition& AcuSearch	Face Recognition& AcuSearch	Face Recognition& AcuSearch	Face Recognition& AcuSearch	Face Recognition& AcuSearch
NVR Channels	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR
HDD Pre-installed	8TB HDD	8TB HDD	8TB HDD	8TB HDD	8TB HDD
Storage Capacity	Support 40TB via 4 SATA Ports	Support 40TB via 4 SATA Ports	Support 40TB via 4 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports
PoE Switch	24 Ports PoE Switch	24 Ports PoE Switch	24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch


32CH 4K PoE System $ 2469.99
32CH 4K PoE System $ 2489.99
32CH 4K PoE System $ 2499.99
32CH 4K PoE System $ 2903.99
32CH 4K PoE System $ 2815.99

Resolution	Field of View	Audio	AI Function	NVR Channels	HDD Pre-installed	Storage Capacity	PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 40TB via 4 SATA Ports	24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Two Way Audio	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 40TB via 4 SATA Ports	24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Two Way Audio	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 40TB via 4 SATA Ports	24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Two Way Audio	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
