ONWOTE

Overview

12MP

30FPS

Smart Color Night Vision

12 Million Pixels-4OOO(H)x3OOO(V)

123°(D), 95°(H), 72°(V)

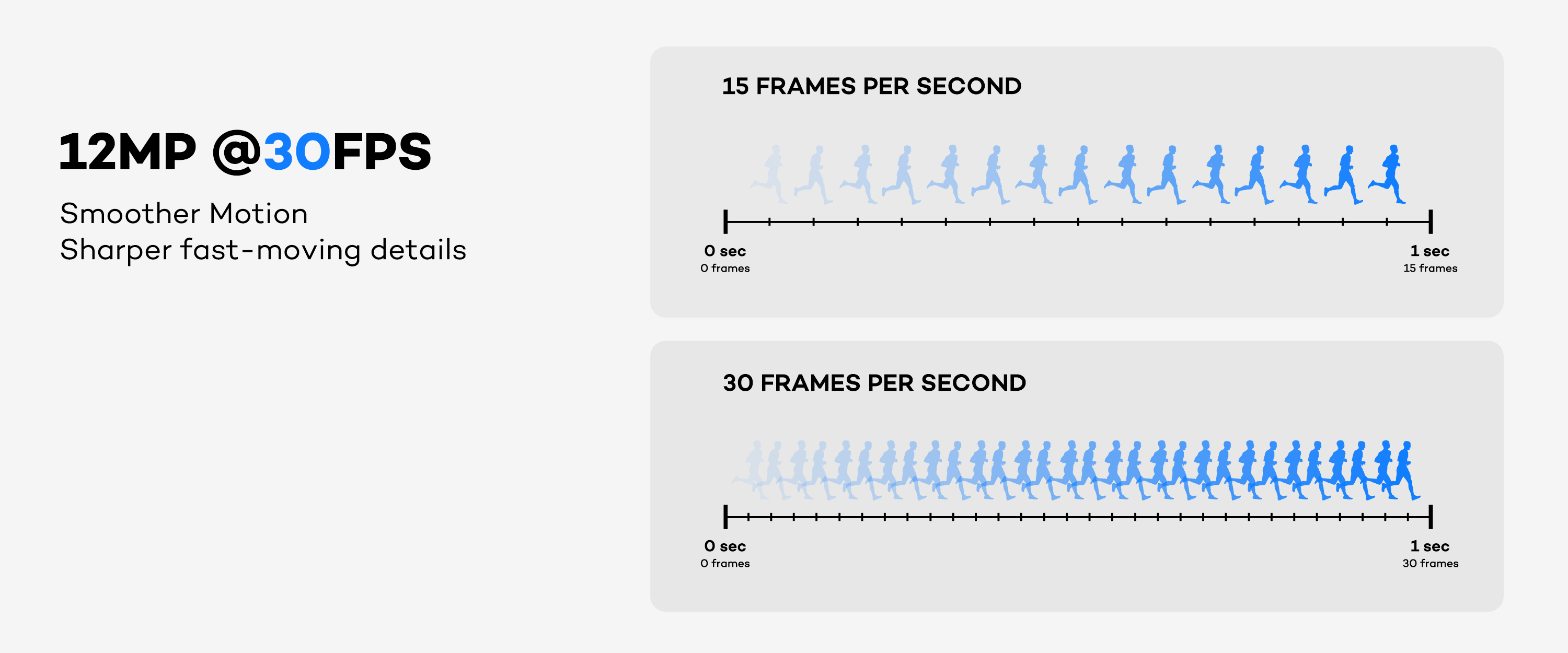

30FPS

Smoother Motion, Better Quality for Action Scenes, Enhanced Realism

Record Audio

Built-in microphone to capture audio, adding another layer of evidence.

Smart Detection & Color Night Vision

AI detection activates spotlights, enables color night vision, and triggers real-time alerts and video recordings when detecting people or vehicles.

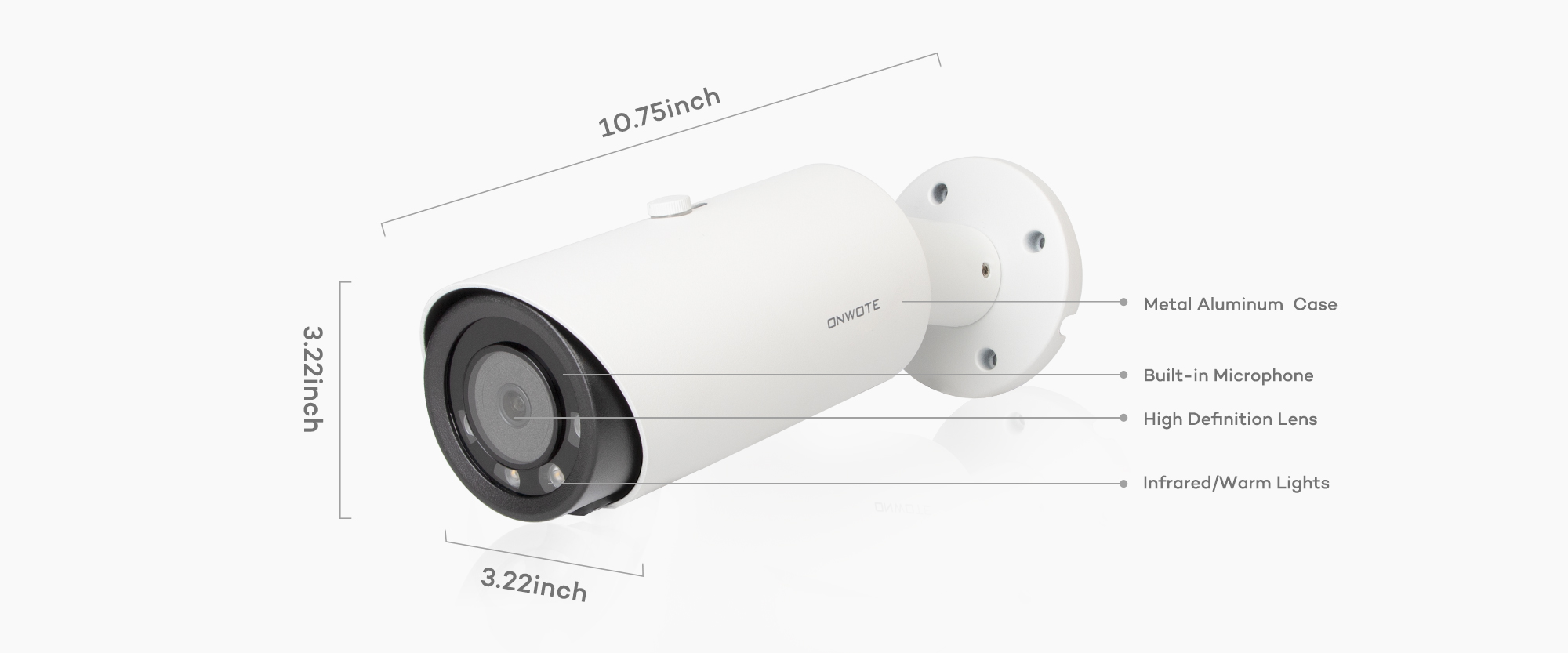

IP66-Rated Weatherproof Reliability

Durable weatherproof metal housing suitable for both indoor and outdoor use.

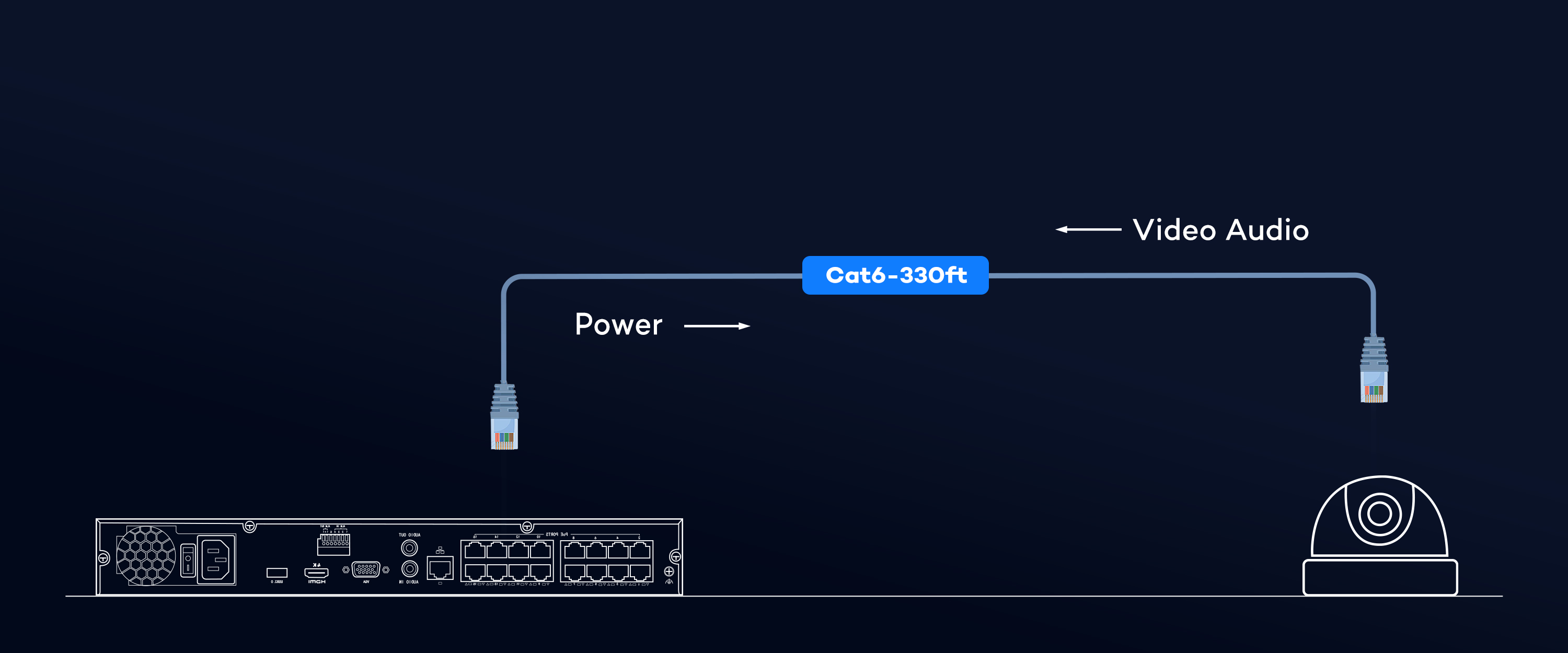

POE

Power, video and audio run through a single ethernet cable, no need for any additional power adapter.

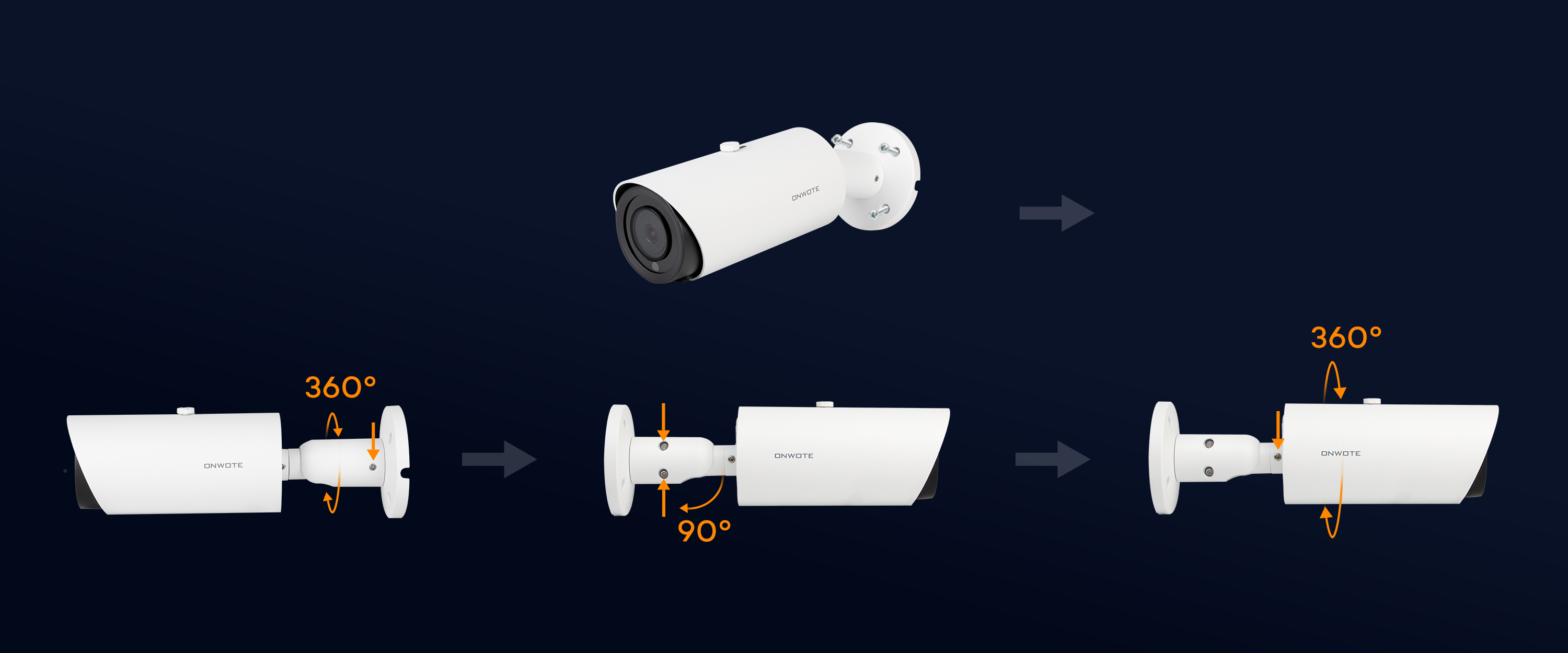

Adjust Camera Angle with Ease

Easy to adjust the camera angle manually, both horizontally and vertically.

Specification

Camera

BA12-P2L40

Video Standard

H.265

Image Sensor

1/2.3" IMX577 CMOS

Lens

4mm Fixed Lens

Effective Pixels

12 Megapixels-4000(H)×3000 (V)

Viewing Angle

123°(Diagonal), 95°(Horizontal), 72°(Vertical)

Frame per Second

30fps@12MP(4000x3000), 30fps@8MP(3840x2160)/ 6MP(3072x2048)/ 5MP(2592x1944)

AI Function

AI Human & Vehicle Detection

Audio

Built-in Microphone (10-15ft)

Image Mirror

Horizon/ Vertical/ Horizon&Vertical Adjustable

Image Adjust

Adjustable Brightness, Saturation, Sharpness, Contrast, Denoise (0-100%)

Privacy Mask

4 Areas

Light Modes

Smart AI Color Mode, Full Color Mode, Black& White Mode

Night Vision

Infrared Lights with a Range of up to 100ft

Housing

Strong Water-Proof Housing, IP67 Rated

Working Temperature

-22°F~140°F, 10%-90%RH

Power Supply

PoE 802.3af/at 48V or 12V DC ± 10%

Packing List

Videos

Add-on

Comparison

	6K/12MP PoE Camera $ 153.99	6K/12MP PoE Camera $ 153.99	PTZ20X 4K/8MP PoE Camera $ 299.99	PTZ5X 4K/8MP PoE PTZ Camera $ 169.99	4K/8MP PoE Camera $ 76.99
Resolution	12MP@30FPS	12MP@30FPS	8MP@20FPS	8MP@20FPS	8MP@20FPS
Field of View	123°(D), 95°(H),72°(V)	123°(D), 95°(H),72°(V)	125°(D), 105°(H), 56°(V)	125°(D), 105°(H), 56°(V)	125°(D), 105°(H), 56°(V)
Audio	Built-in Microphone	Two Way Audio	Two Way Audio	Two Way Audio	Built-in Microphone
AI Function	AI Human Vehicle Detection	AI Human Vehicle Detection	AI Human Vehicle Detection	AI Human Vehicle Detection	AI Human Vehicle Detection
Pan Tilt			360° Pan 95° Tilt	355° pan 92° tilt
Zoom			20X Optical Zoom	5X Optical Zoom
Key Feature	Smart Color Night Vision	Smart Color Night Vision	Auto Cruising& Human Tracking	Solid & Durable	Solid & Durable


6K/12MP PoE Camera $ 153.99
6K/12MP PoE Camera $ 153.99
PTZ20X 4K/8MP PoE Camera $ 299.99
PTZ5X 4K/8MP PoE PTZ Camera $ 169.99
4K/8MP PoE Camera $ 76.99

Resolution	Field of View	Audio	AI Function	Pan Tilt	Zoom	Key Feature
12MP@30FPS	123°(D), 95°(H),72°(V)	Built-in Microphone	AI Human Vehicle Detection			Smart Color Night Vision
12MP@30FPS	123°(D), 95°(H),72°(V)	Two Way Audio	AI Human Vehicle Detection			Smart Color Night Vision
8MP@20FPS	125°(D), 105°(H), 56°(V)	Two Way Audio	AI Human Vehicle Detection	360° Pan 95° Tilt	20X Optical Zoom	Auto Cruising& Human Tracking
8MP@20FPS	125°(D), 105°(H), 56°(V)	Two Way Audio	AI Human Vehicle Detection	355° pan 92° tilt	5X Optical Zoom	Solid & Durable
8MP@20FPS	125°(D), 105°(H), 56°(V)	Built-in Microphone	AI Human Vehicle Detection			Solid & Durable
