Overview

Pan Tilt Zoom

5X optical zoom, 355° pan 92° tilt

4K Ultra HD

3840*2160 8 Megapixels

2 Way Talk

Listen and talk back in real time through the cameras' built-in microphone and speaker.

IP66-Rated Weatherproof Reliability

Durable weatherproof metal housing suitable for both indoor and outdoor use.

AI Human & Vehicle Detection

Reduces false alarms from shadows, insects, wind, and rain, helping you save storage space.

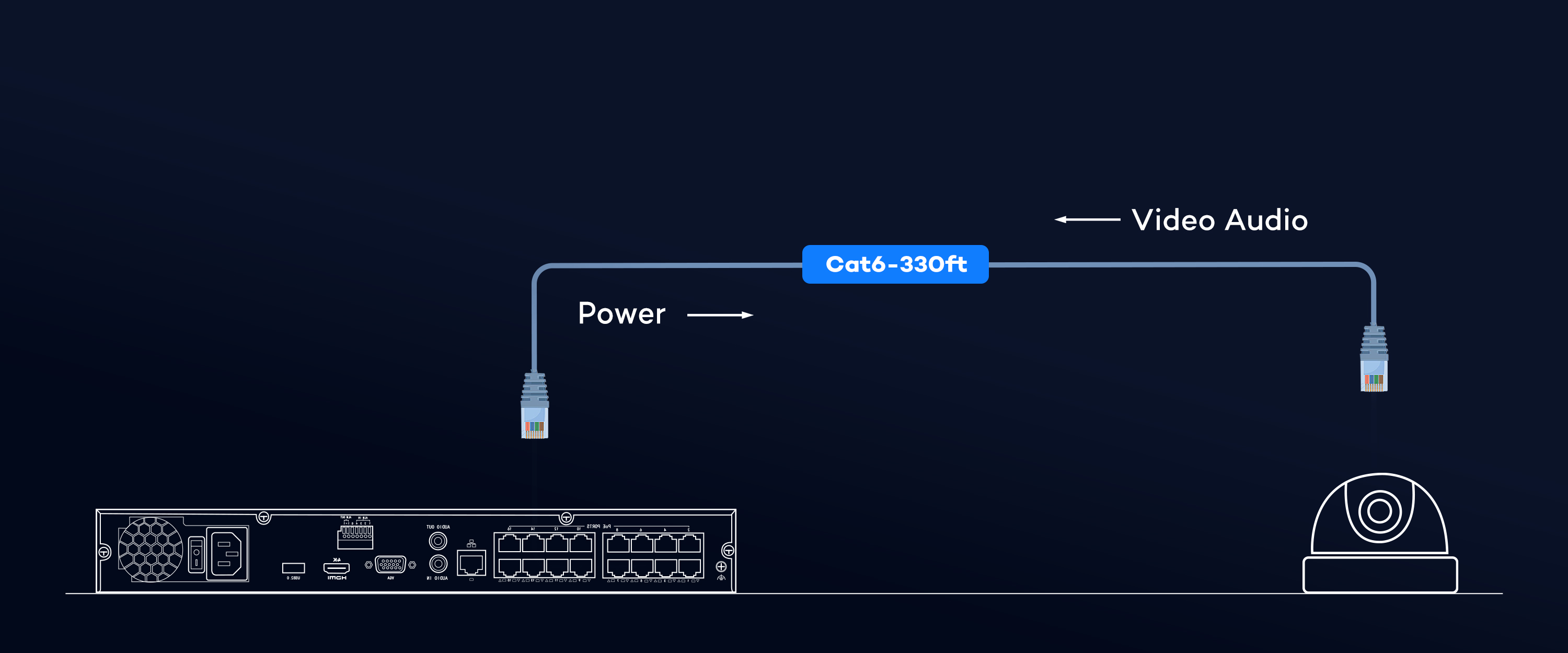

POE

Power, video and audio run through a single ethernet cable, no need for any additional power adapter.

Specification

Camera

DA80-PTZ5X

Compression Format

H.265

Image Sensor

1/2.8" IMX415 CMOS sensor

Focal length

2.7-13.5mm Motorized Lens, 5X Optical Zoom

Effective Pixels

8 Megapixels-3840(H)x2160(V)

Frame per Second

20fps@ 8MP(3840x2160), 30fps@ 6MP(3072x2048)/ 5MP(2592x1944)

Wide Dynamic Range

100dB

AI Function

AI Human & Vehicle Detection

Two Way Audio

Built-in Microphone (10-15ft) & Speaker

Pan/Tilt Range

Pan: 0°-280°; Tilt: 0°-90°；Pan: 15° /s; Tilt: 15° /s

Preset Point

10 Presets

Image Adjust

Adjustable Brightness, Saturation, Sharpness, Contrast, Denoise (0-100%)

Privacy Mask

4 Areas

Smart AI Color Mode, Full Color Mode, Black& White Mode

Night Vision

4pcs Infrared Lights with a Range of up to 100-130ft

Housing

Strong Water-Proof Housing, IP66 Rated

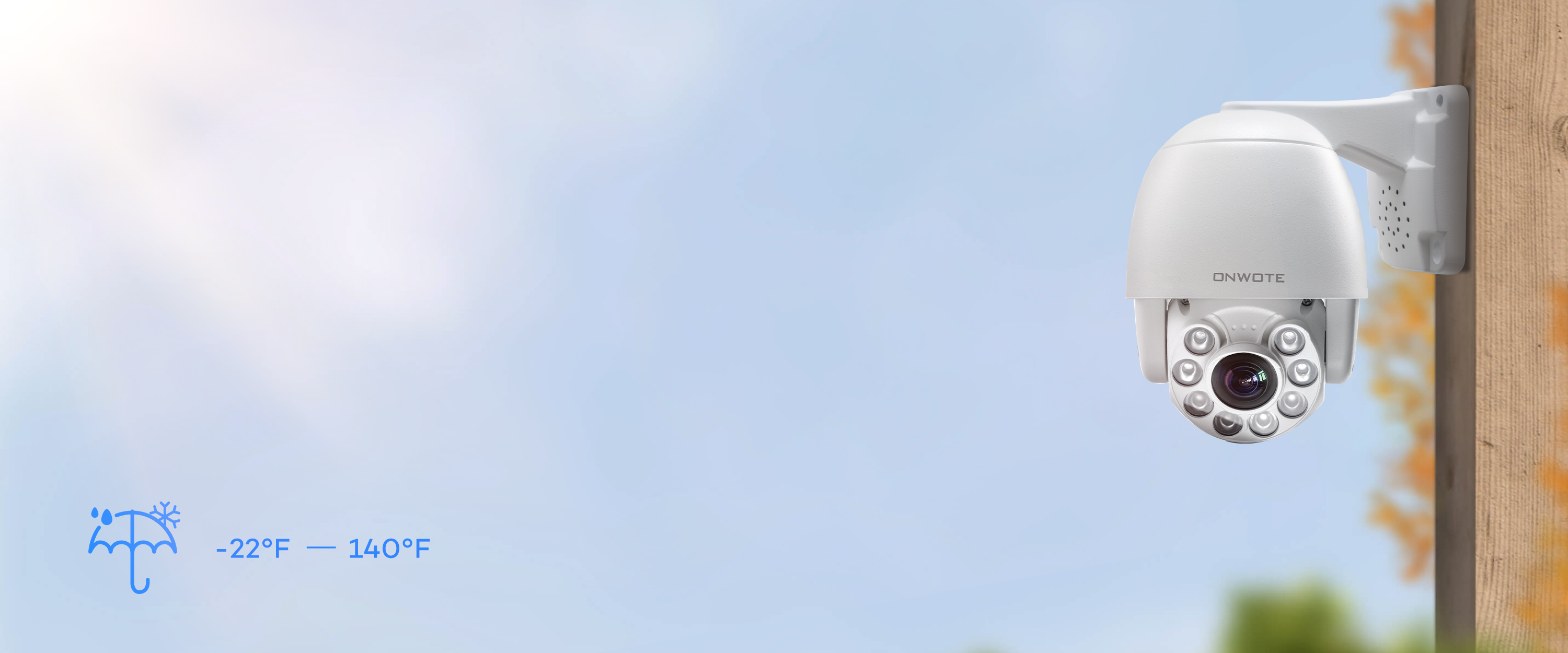

Working Temperature

-22°F~140°F, 10%-90%RH

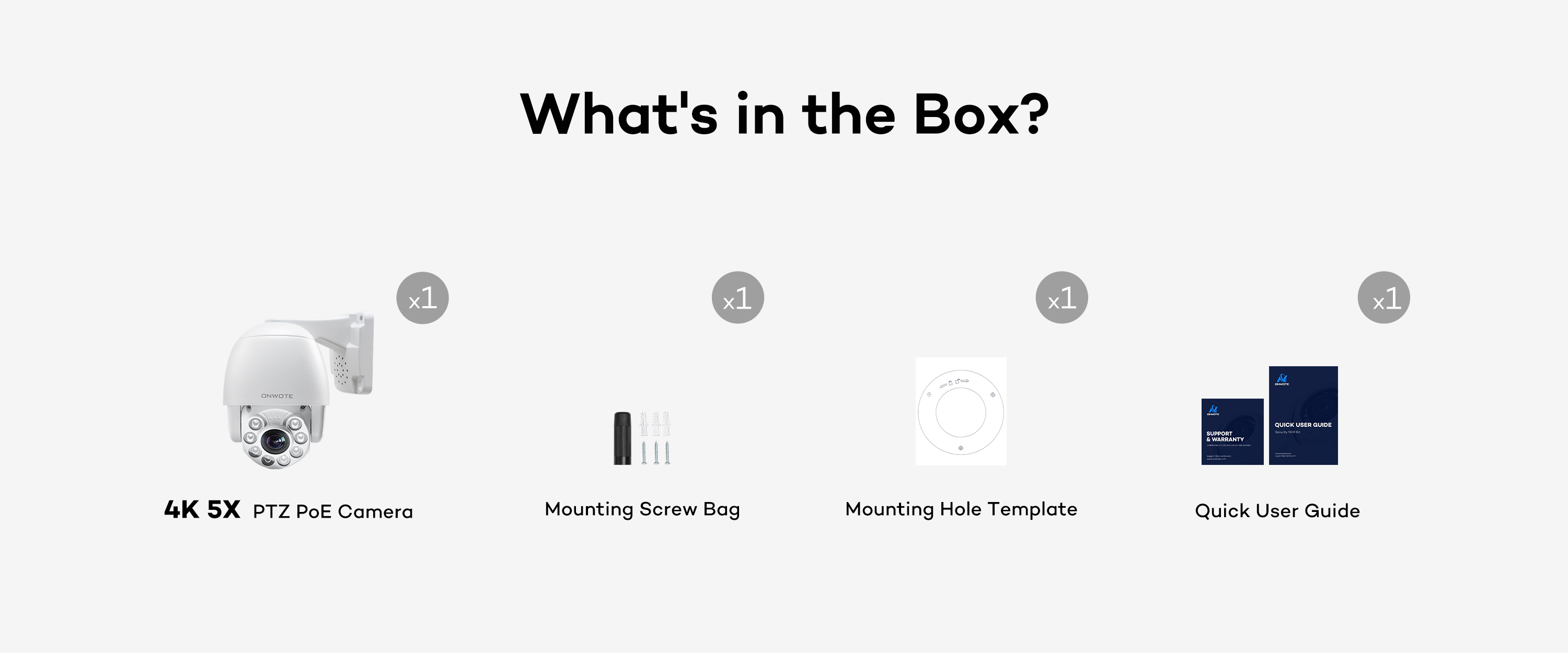

Packing List

Videos

Add-on

Comparison

	PTZ5X 4K/8MP PoE PTZ Camera $ 169.99	PTZ20X 4K/8MP PoE Camera $ 299.99	PTZ 5X 4K 8MP PoE Camera $ 149.99	PTZ 5X 4K 8MP PoE Camera $ 159.99
Resolution	8MP@20FPS	8MP@20FPS	8MP@20FPS	8MP@20FPS
Field of View	125°(D), 105°(H), 56°(V)	125°(D), 105°(H), 56°(V)	125°(D), 105°(H), 56°(V)	125°(D), 105°(H), 56°(V)
Audio	Two Way Audio	Two Way Audio	Two Way Audio	Two Way Audio
AI Function	AI Human Vehicle Detection	AI Human Vehicle Detection	AI Human Vehicle Detection	AI Human Vehicle Detection
Pan Tilt	355° pan 92° tilt	360° Pan 95° Tilt	280° Pan 90° Tilt	350° Pan 87° Tilt
Zoom	5X Optical Zoom	20X Optical Zoom	5X Optical Zoom	5X Optical Zoom
Key Feature	Solid & Durable	Auto Cruising& Human Tracking	Smart Color Night Vision	Solid & Durable, Vandalproof


PTZ5X 4K/8MP PoE PTZ Camera $ 169.99
PTZ20X 4K/8MP PoE Camera $ 299.99

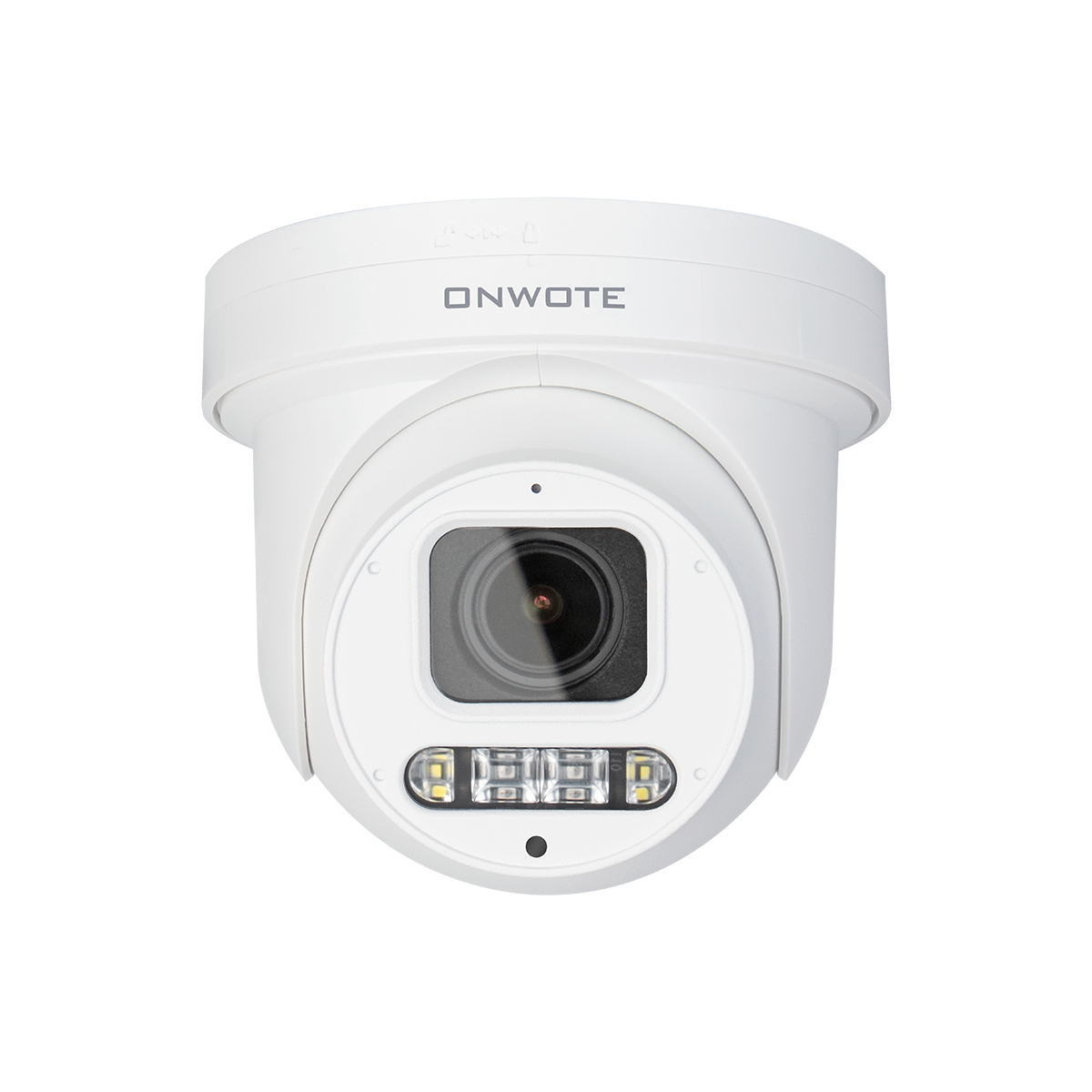

PTZ 5X 4K 8MP PoE Camera $ 149.99
PTZ 5X 4K 8MP PoE Camera $ 159.99

Resolution	Field of View	Audio	AI Function	Pan Tilt	Zoom	Key Feature
8MP@20FPS	125°(D), 105°(H), 56°(V)	Two Way Audio	AI Human Vehicle Detection	355° pan 92° tilt	5X Optical Zoom	Solid & Durable
8MP@20FPS	125°(D), 105°(H), 56°(V)	Two Way Audio	AI Human Vehicle Detection	360° Pan 95° Tilt	20X Optical Zoom	Auto Cruising& Human Tracking
8MP@20FPS	125°(D), 105°(H), 56°(V)	Two Way Audio	AI Human Vehicle Detection	280° Pan 90° Tilt	5X Optical Zoom	Smart Color Night Vision
8MP@20FPS	125°(D), 105°(H), 56°(V)	Two Way Audio	AI Human Vehicle Detection	350° Pan 87° Tilt	5X Optical Zoom	Solid & Durable, Vandalproof
