Overview

Pan Tilt Zoom

2 Way Talk

IK10 & IP67

POE

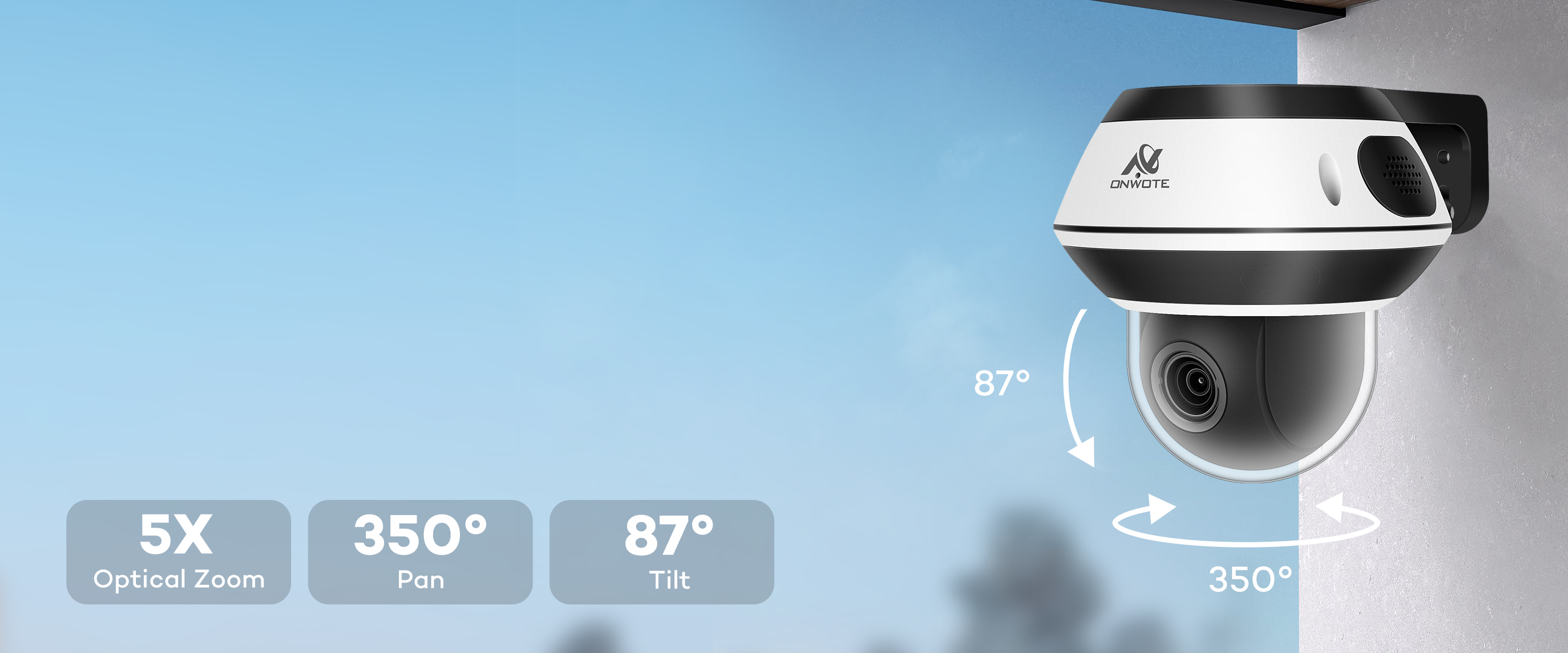

5X optical zoom, 350° pan 87° tilt.

4K Ultra HD

3840*2160 8 Megapixels.

2 Way Talk

Listen and talk back in real time through the cameras' built-in microphone and speaker.

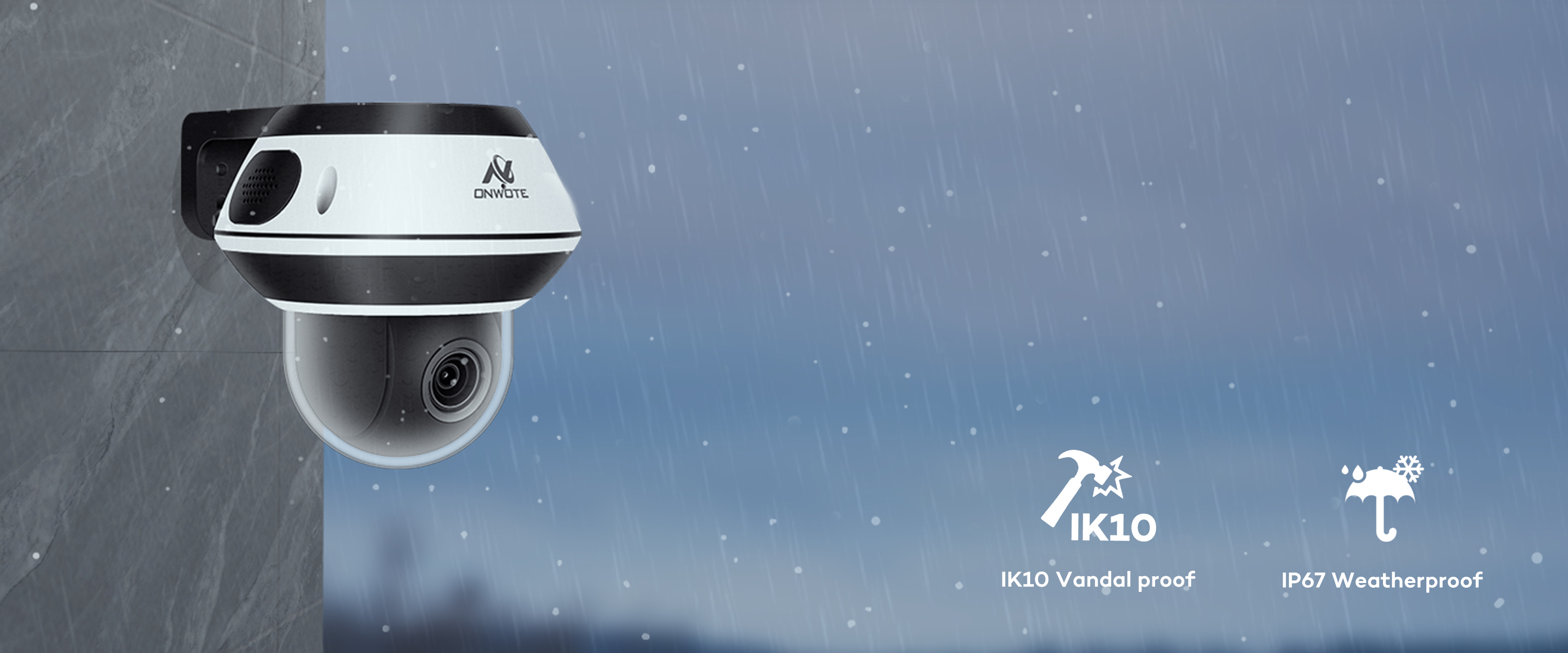

IK10 & IP67

IK10 vandal-proof for solid, durable protection. IP67 weatherproof, suitable for indoor or outdoor use in temperatures from -22℉ to 140℉

AI Function

Human Vehicle Detection

Line Crossing

Area Entry/Leaving Detection

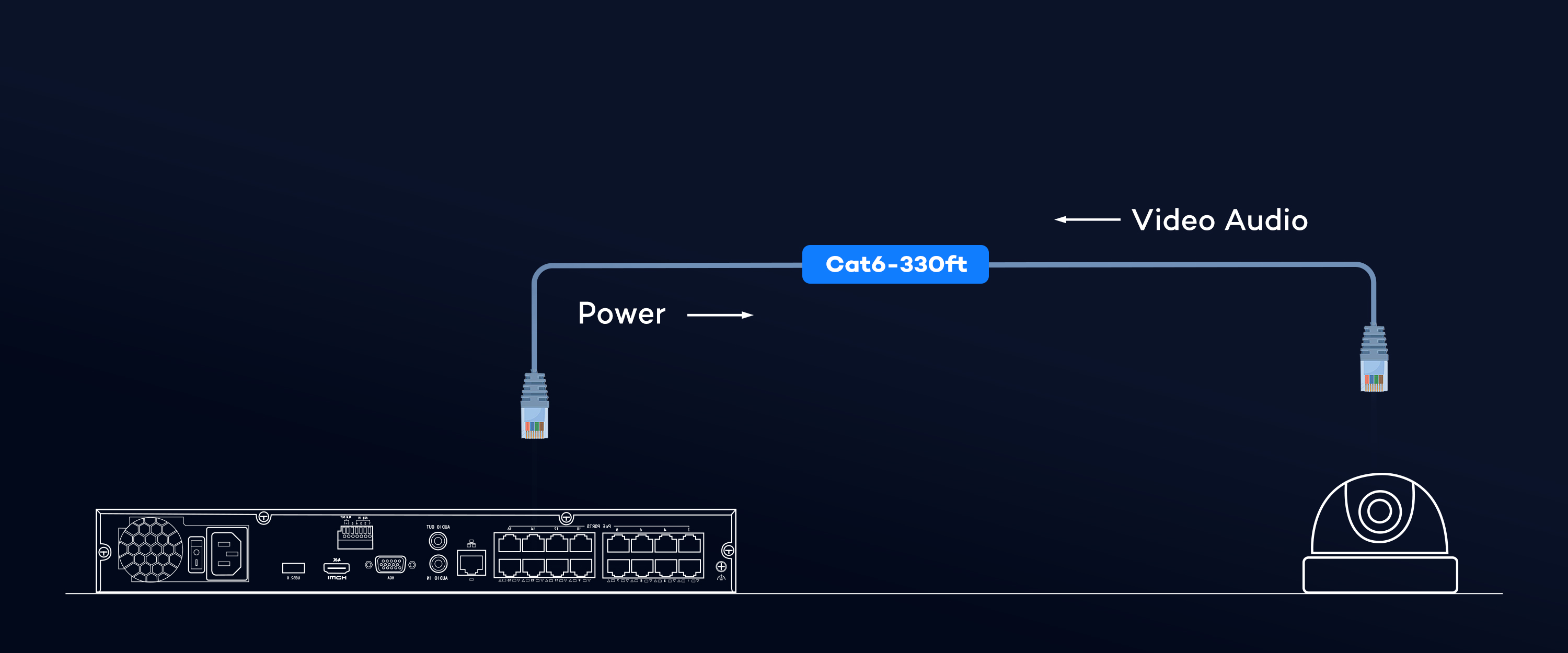

POE

Power, video and audio run through a single ethernet cable, no need for any additional power adapter

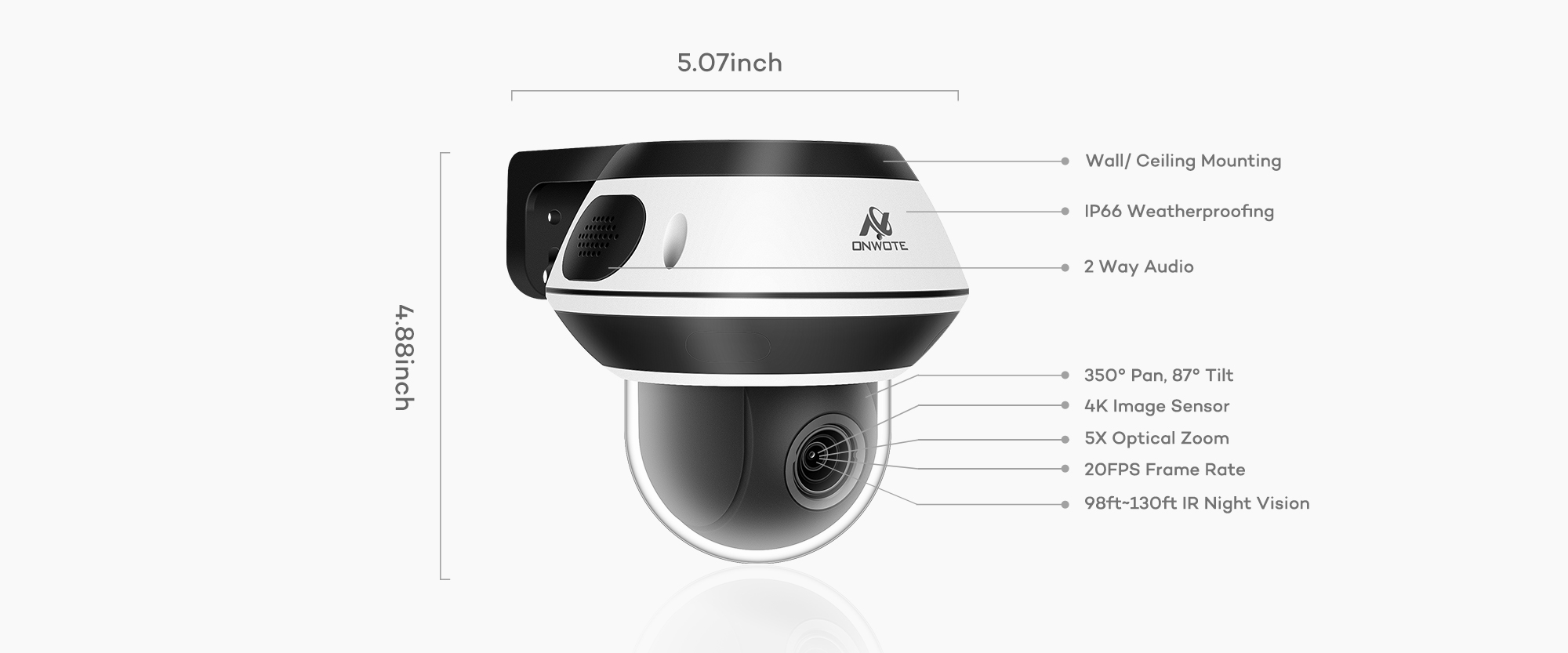

Specification

Camera

VA80-PTZ5X

Video Standard

H.265

Image Sensor

1/2.8" 8MP IMX415 CMOS

Lens

2.7-13.5mm Motorized AF Lens, 5X Optical Zoom

Effective Pixels

8 Megapixels-3840(H)×2160 (V)

Viewing Angle

133°-36.7°(Diagonal) 109.6°-32°(Horizontal), 56.2°-18°(Vertical)

Frame per Second

20fps@8MP(3840x2160), 30fps@6MP(3072x2048)/ 5MP(2592x1944)

Wide Dynamic Range

100db WDR

AI Function

Human Vehicle Detection

Two Way Audio

Built-in Microphone (10-15ft) & Speaker

Pan/Tilt Range

Pan: 0° ~ 350°; Tilt: 0° ~ 87°，50°/Sec

Privacy Mask

4 Areas

Night Vision

8pcs Array IR LEDs with a Range of up to 100-130ft

Housing

Strong Water-Proof Housing, IP67 Rated

Built-in SD Slot & Reset Button

Micro-SD Card up to 512G

Working Temperature

-22°F~140°F, 10%-90%RH

Power Supply

PoE 802.3af/at 48V or 12V DC ± 10%

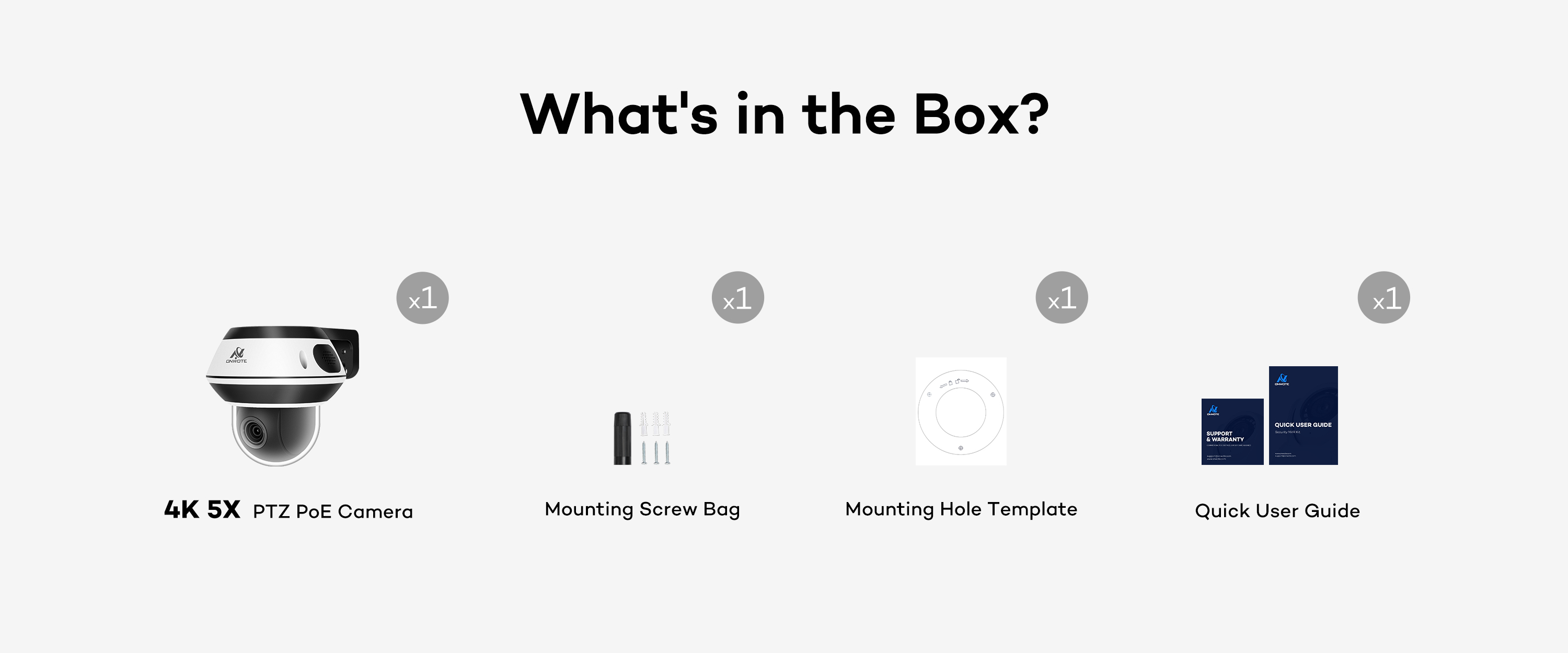

Packing List

Videos

Add-on

Comparison

	PTZ 5X 4K 8MP PoE Camera $ 159.99	PTZ 5X 4K 8MP PoE Camera $ 149.99	PTZ5X 4K/8MP PoE PTZ Camera $ 169.99	PTZ20X 4K/8MP PoE Camera $ 299.99
Resolution	8MP@20FPS	8MP@20FPS	8MP@20FPS	8MP@20FPS
Field of View	125°(D), 105°(H), 56°(V)	125°(D), 105°(H), 56°(V)	125°(D), 105°(H), 56°(V)	125°(D), 105°(H), 56°(V)
Audio	Two Way Audio	Two Way Audio	Two Way Audio	Two Way Audio
AI Function	AI Human Vehicle Detection	AI Human Vehicle Detection	AI Human Vehicle Detection	AI Human Vehicle Detection
Pan Tilt	350° Pan 87° Tilt	280° Pan 90° Tilt	355° pan 92° tilt	360° Pan 95° Tilt
Zoom	5X Optical Zoom	5X Optical Zoom	5X Optical Zoom	20X Optical Zoom
Key Feature	Solid & Durable, Vandalproof	Smart Color Night Vision	Solid & Durable	Auto Cruising& Human Tracking


PTZ 5X 4K 8MP PoE Camera $ 159.99
PTZ 5X 4K 8MP PoE Camera $ 149.99
PTZ5X 4K/8MP PoE PTZ Camera $ 169.99
PTZ20X 4K/8MP PoE Camera $ 299.99

Resolution	Field of View	Audio	AI Function	Pan Tilt	Zoom	Key Feature
8MP@20FPS	125°(D), 105°(H), 56°(V)	Two Way Audio	AI Human Vehicle Detection	350° Pan 87° Tilt	5X Optical Zoom	Solid & Durable, Vandalproof
8MP@20FPS	125°(D), 105°(H), 56°(V)	Two Way Audio	AI Human Vehicle Detection	280° Pan 90° Tilt	5X Optical Zoom	Smart Color Night Vision
8MP@20FPS	125°(D), 105°(H), 56°(V)	Two Way Audio	AI Human Vehicle Detection	355° pan 92° tilt	5X Optical Zoom	Solid & Durable
8MP@20FPS	125°(D), 105°(H), 56°(V)	Two Way Audio	AI Human Vehicle Detection	360° Pan 95° Tilt	20X Optical Zoom	Auto Cruising& Human Tracking
