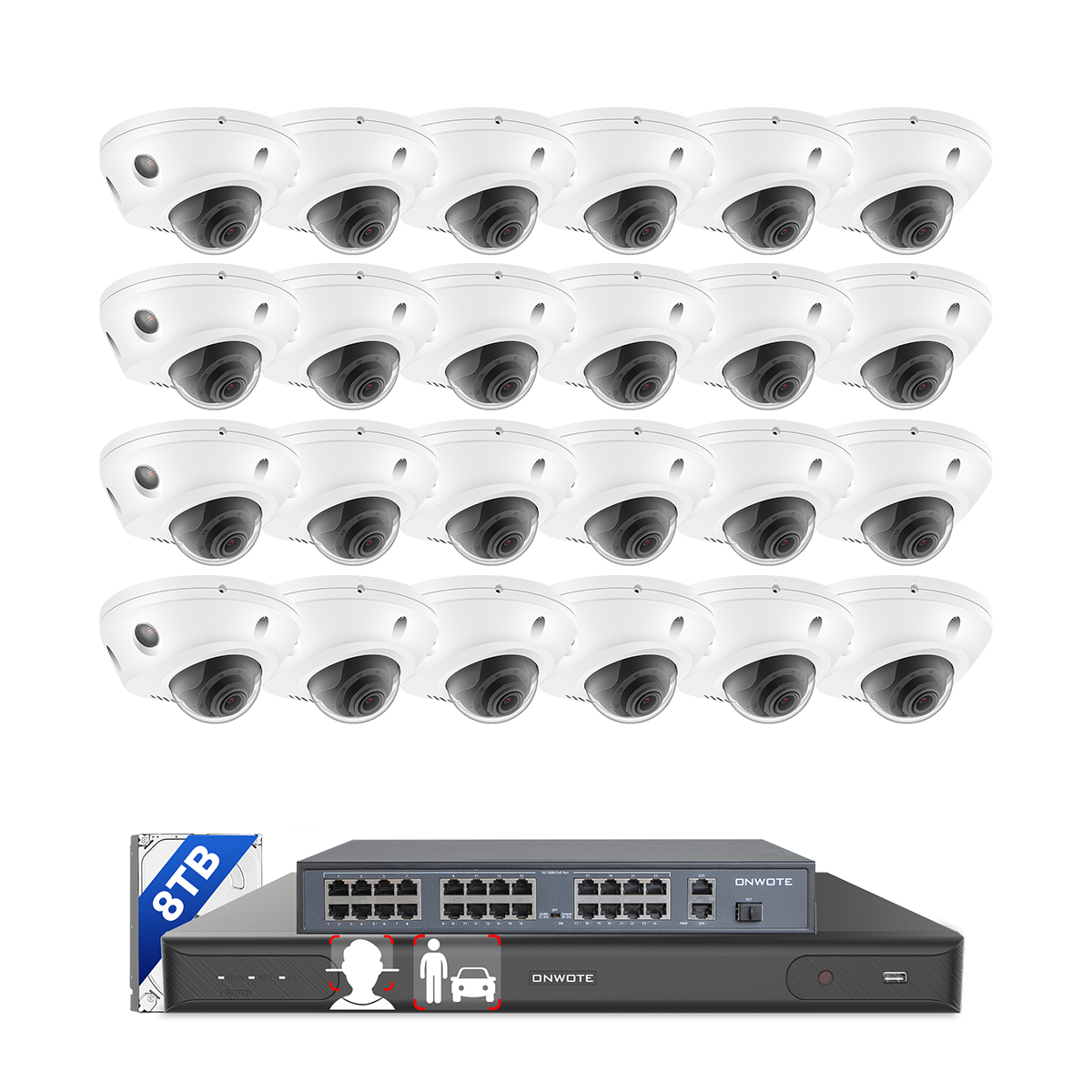

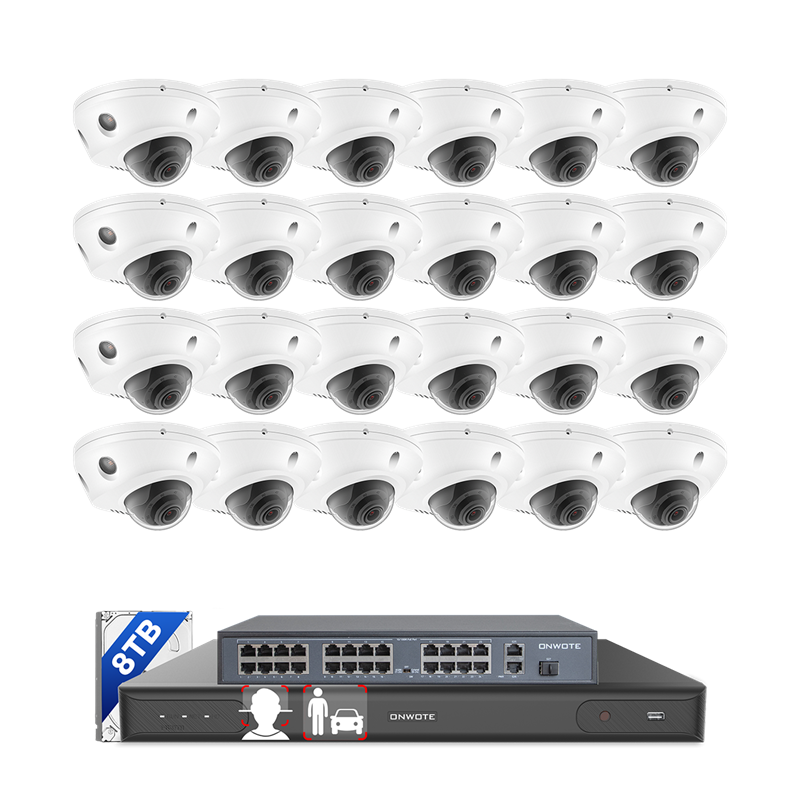

Overview

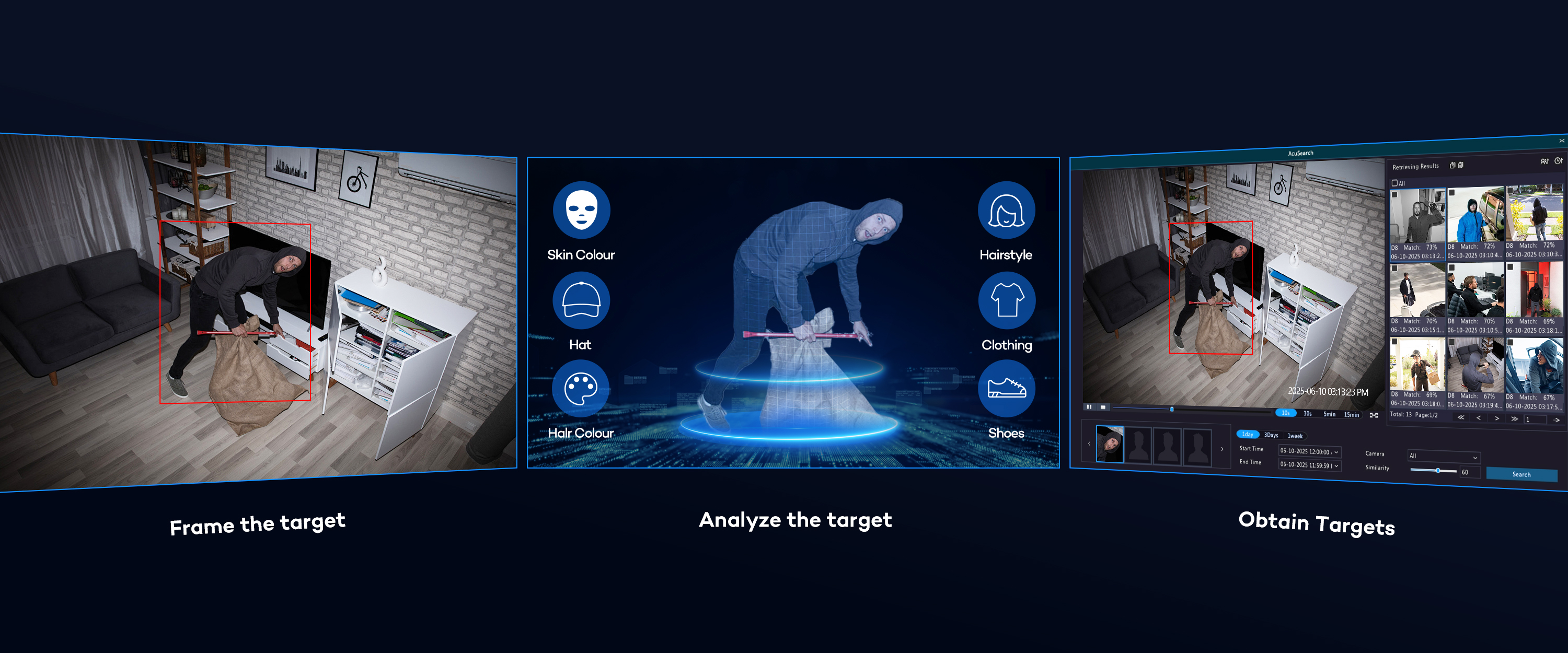

AcuSearch Technology

Precise suspect location. Instant video search. Rapid criminal tracking

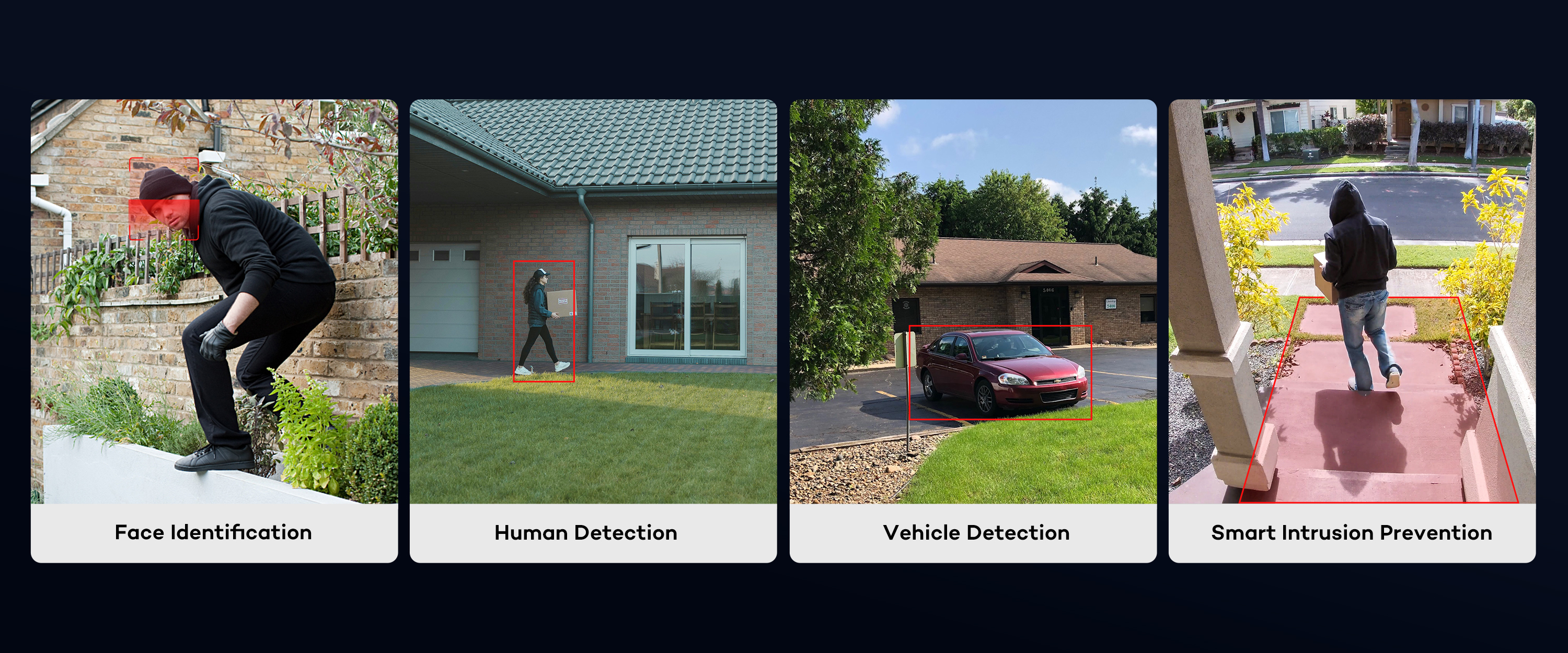

Smart Detection & Analysis

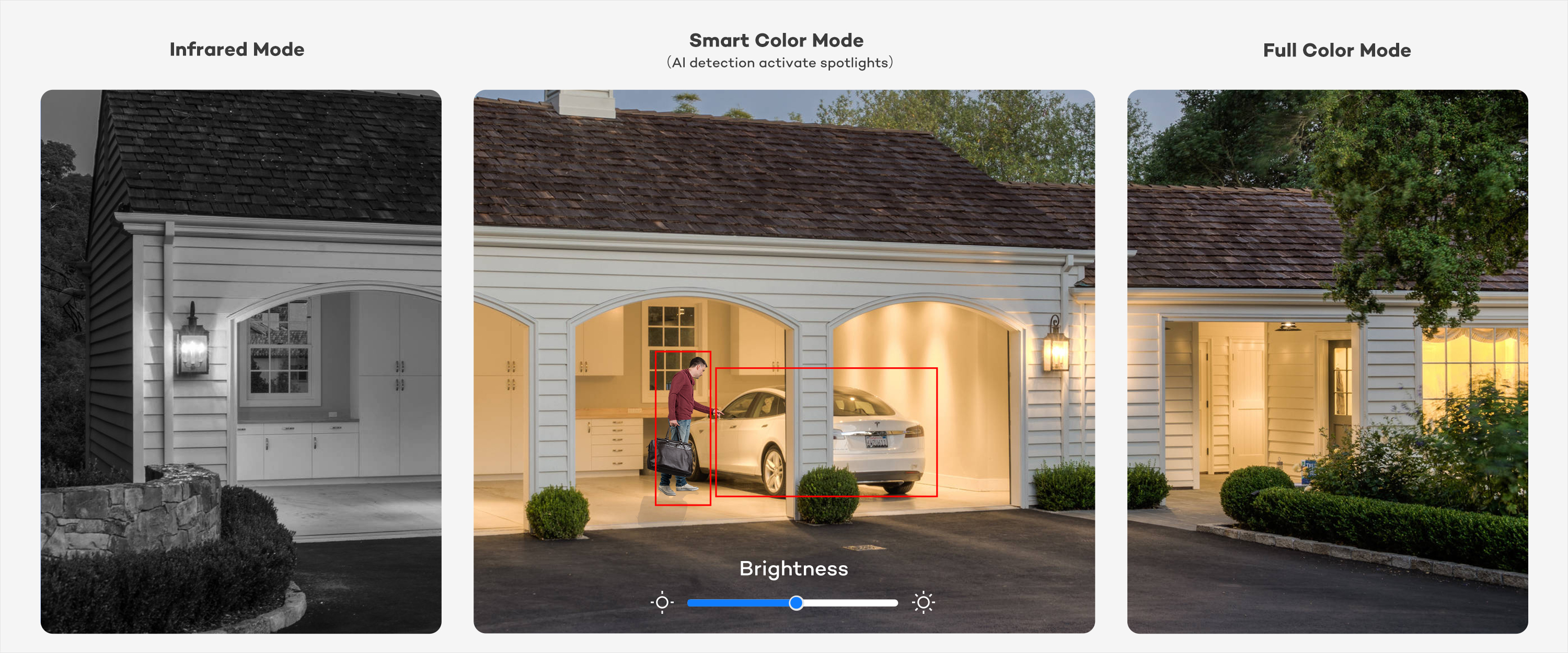

3 Night Vision Modes

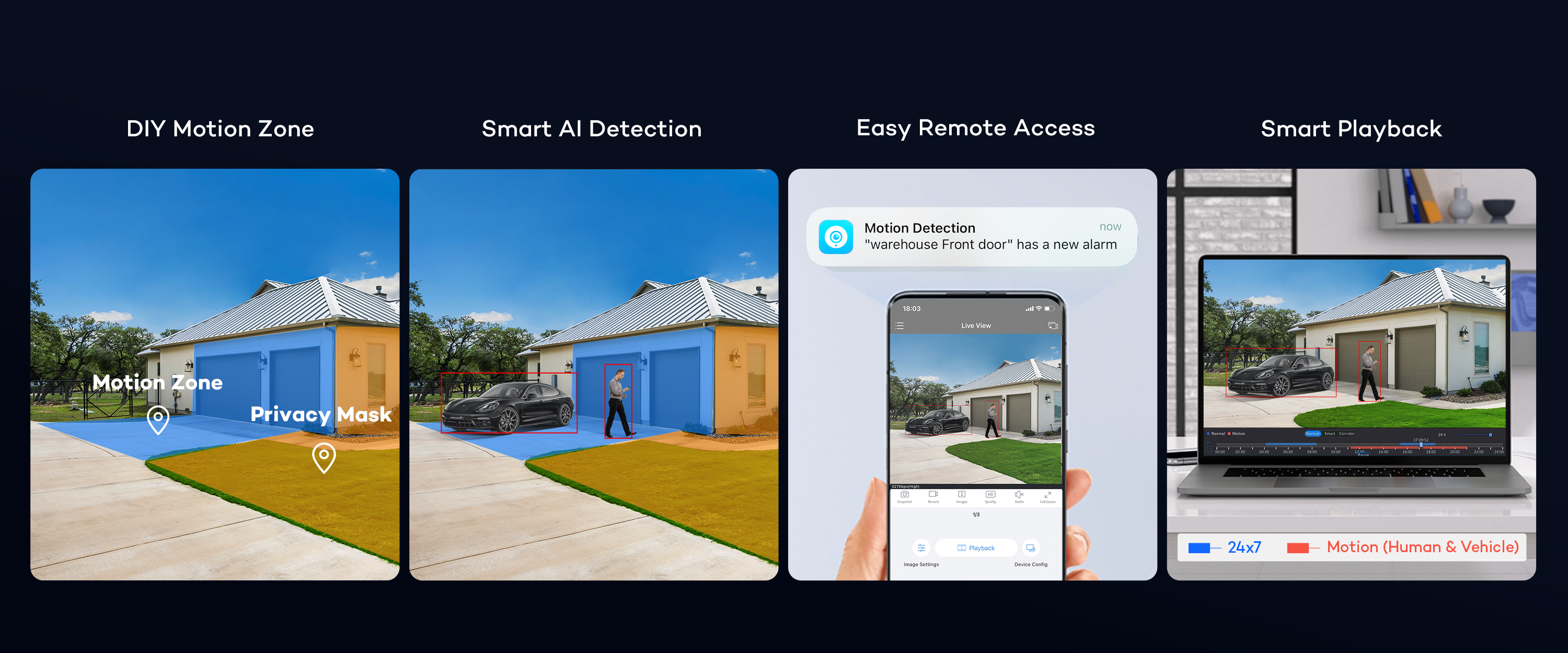

From Discovery to Playback

Access Anywhere Anytime

Two- Way Audio

Listen and talk in real time through the cameras’ built-in microphone and speaker using the free ONWOTE app.

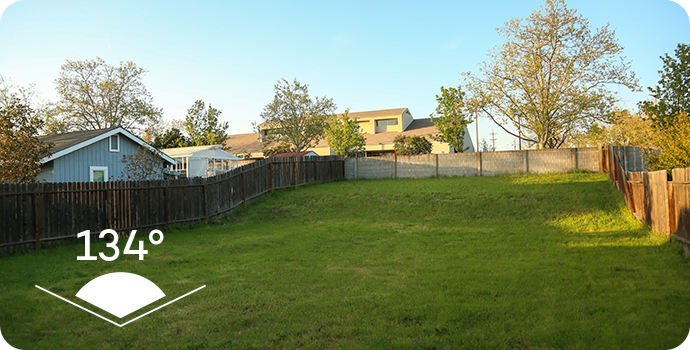

Wide Field of View

134° Diagonal, 111° Horizontal, 59° Vertical

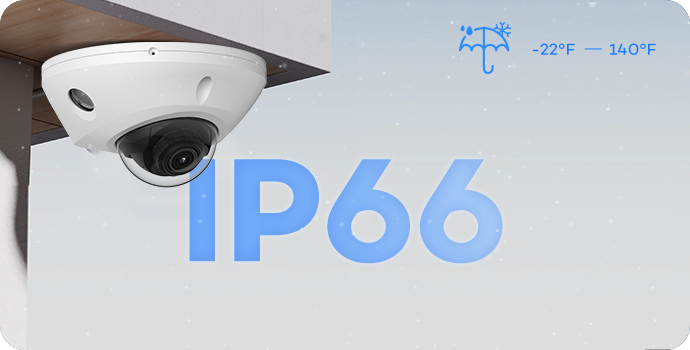

IP66-Rated Weatherproof Reliability

IP66-rated aluminum housing offers 1400x better heat dissipation than plastic ABS.

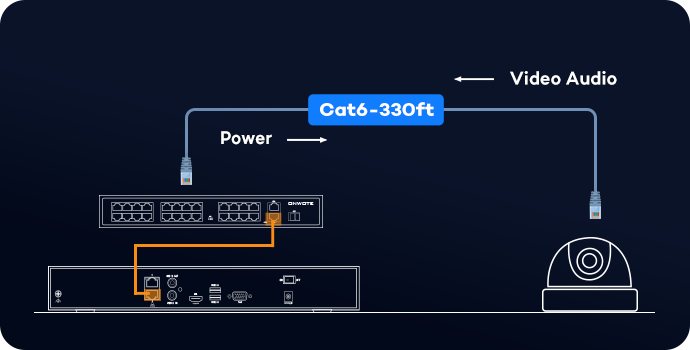

Power over Ethernet

All-in-one cable:‌ Transmits video, audio, and power over a single Cat5 cable.
True plug & play:‌ Simpler wiring than traditional DVR systems.

40TB Storage Capacity

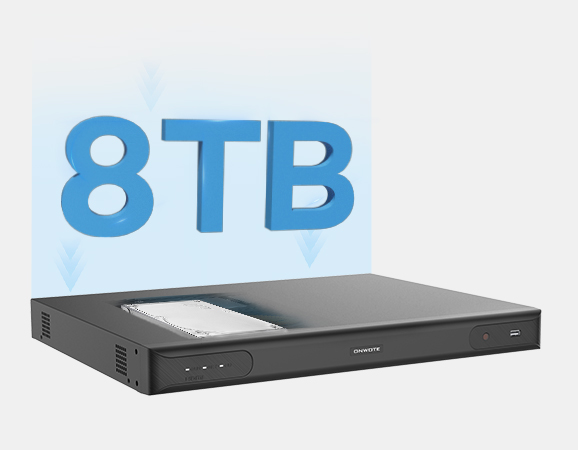

8TB Storage Pre-Installed

8TB hard drive is pre-installed in the nvr for free local storage.

Expandable Up to 40TB

4pcs 3.5" SATA hard drive ports, 10TB for each, storage capacity up to 40TB.

Specification

Camera NVR POE Switch

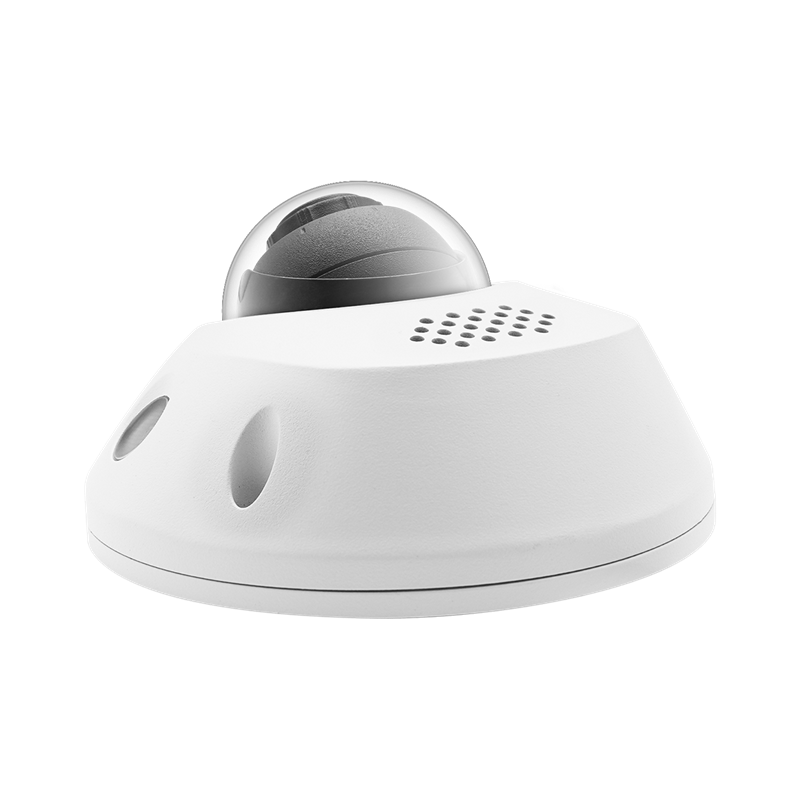

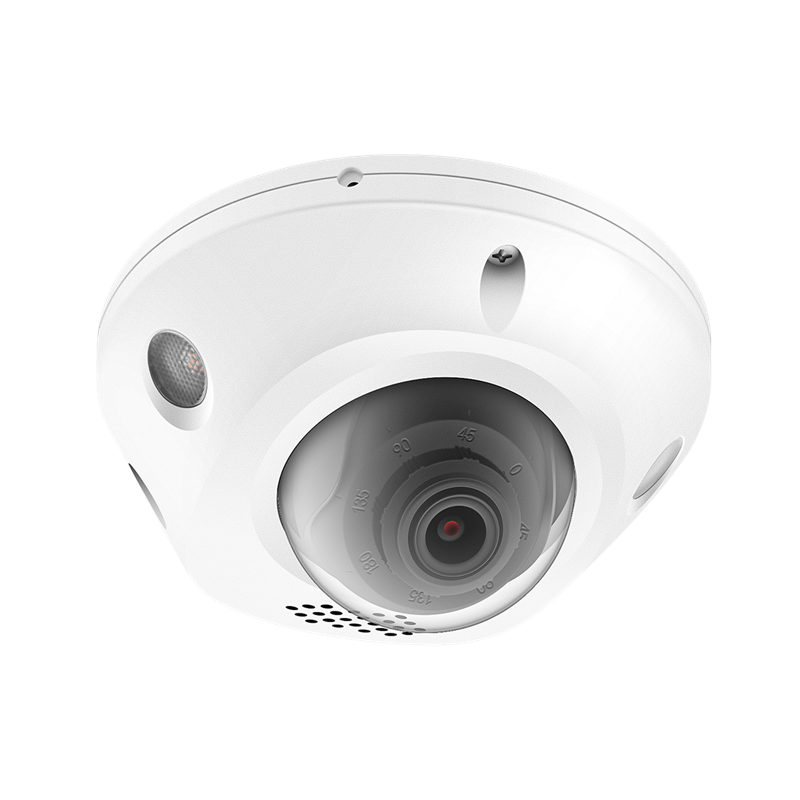

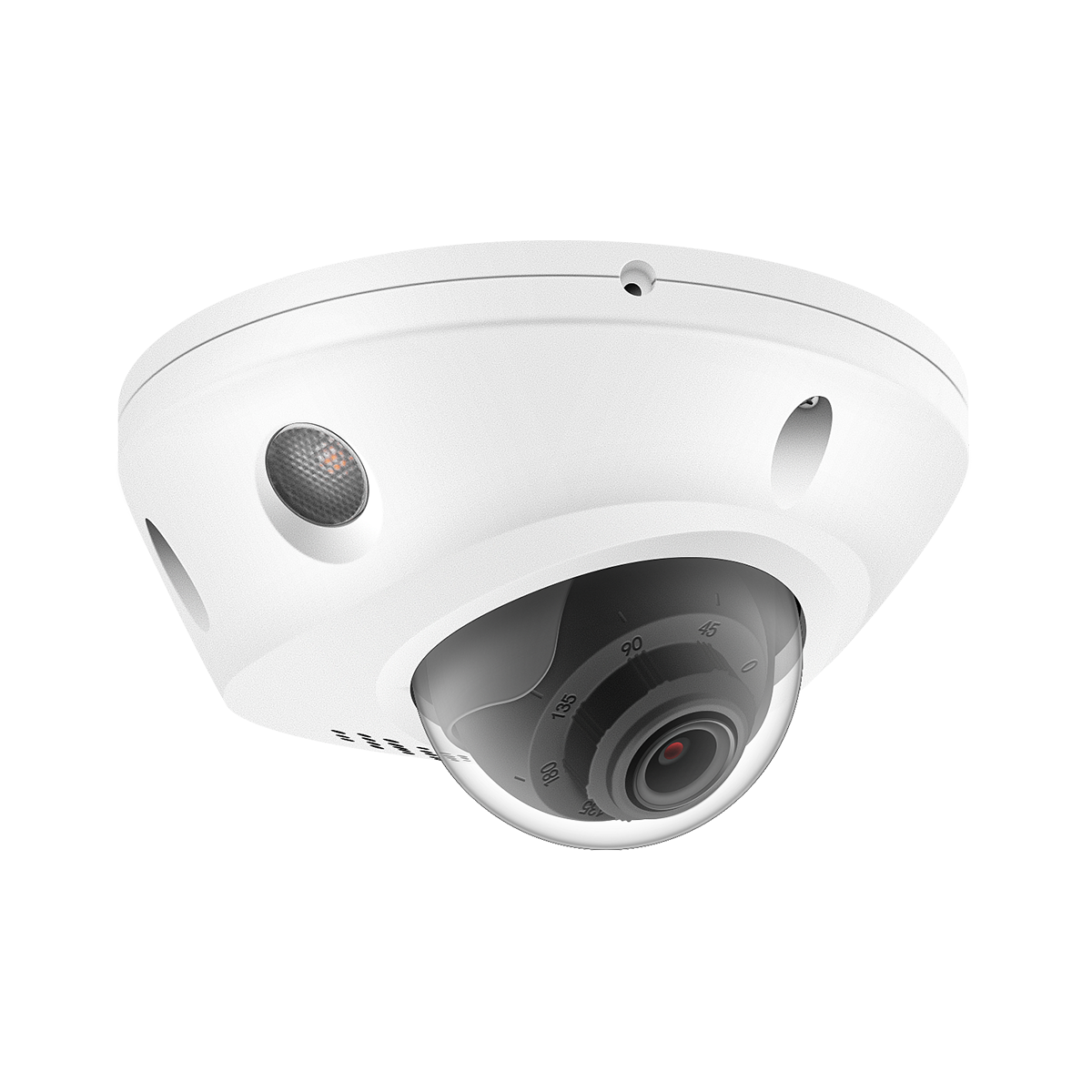

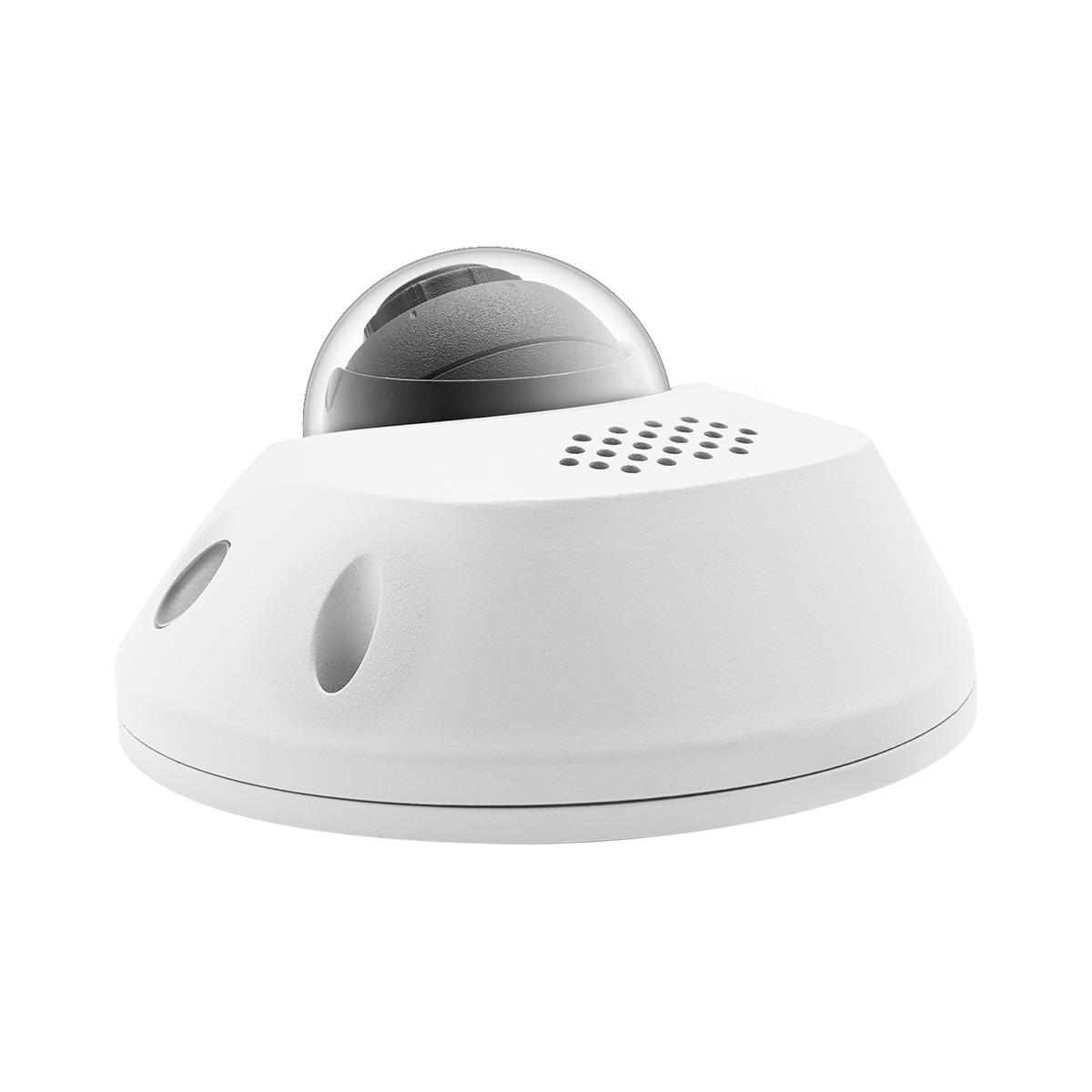

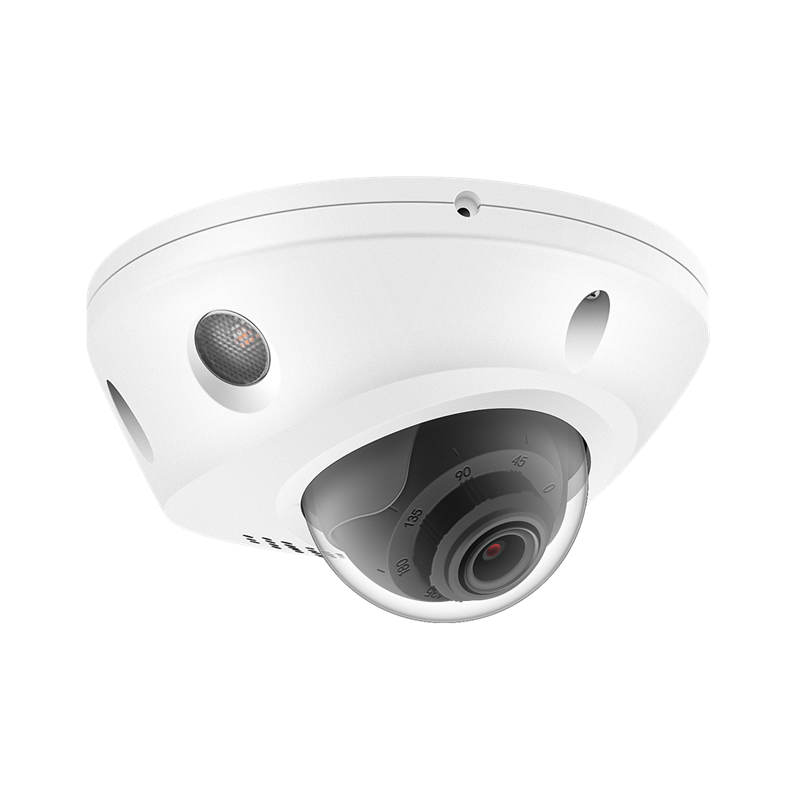

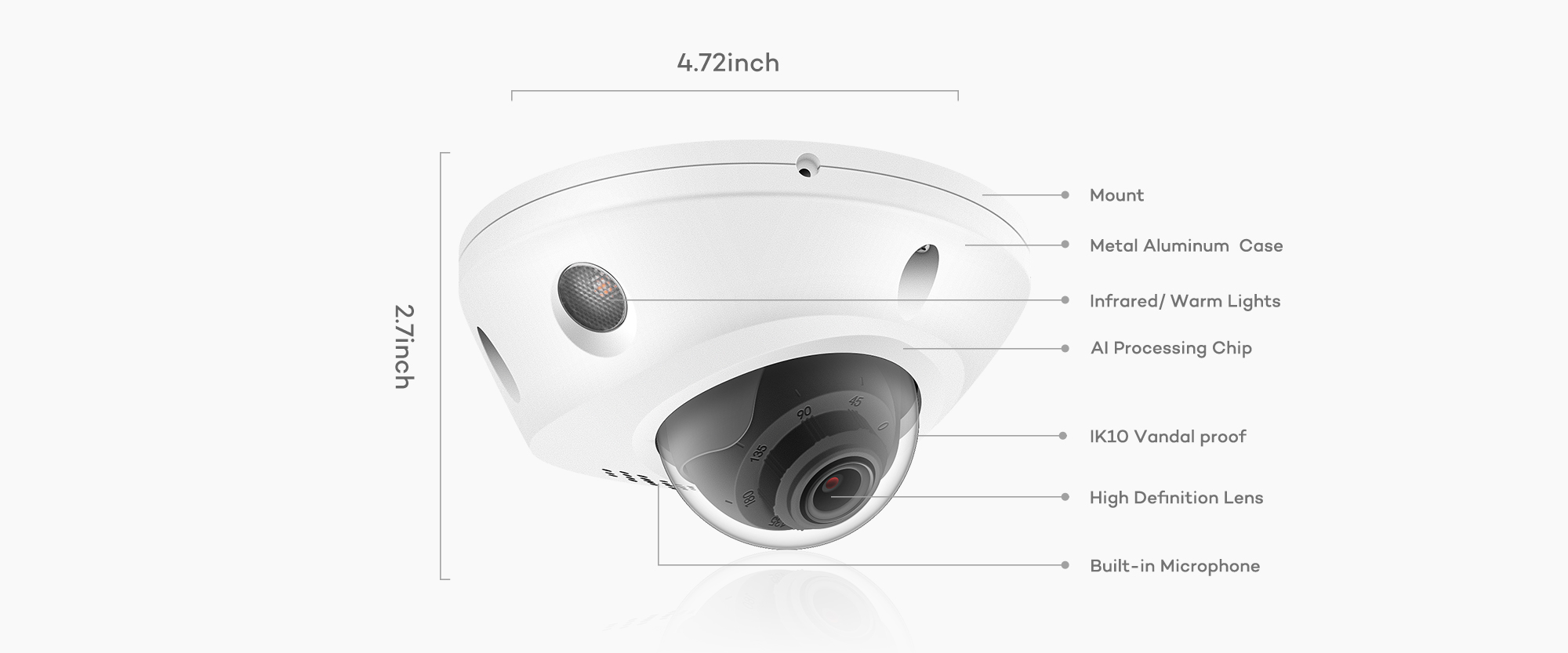

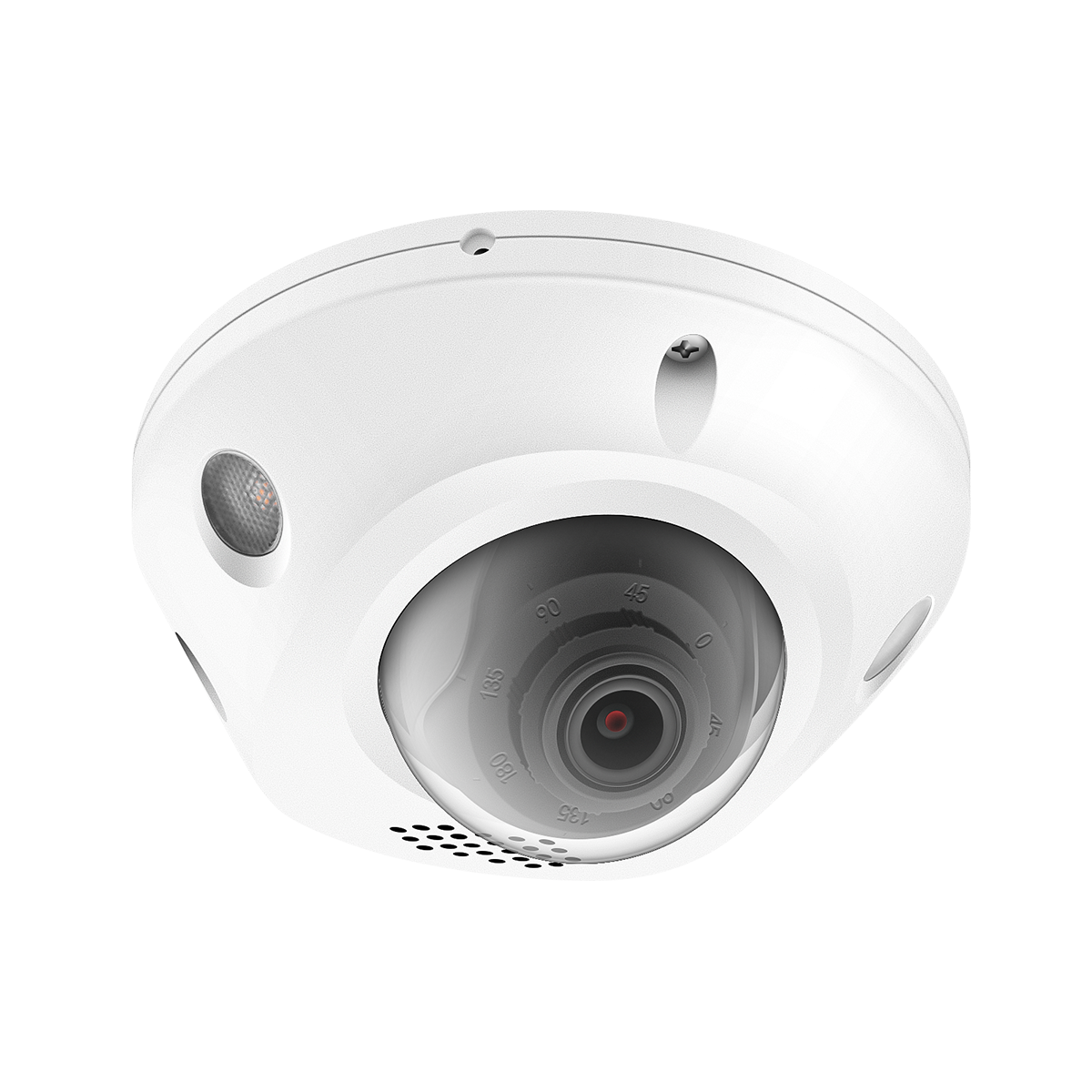

VA80-P28

4K Ultra HD Camera

8 Megapixels-3840(H) x 2160(V) @20FPS

Viewing Angle

134°(Diagonal), 111°(Horizontal), 59°(Vertical)

AI Function

Face Detection, Human Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area）

Two Way Audio

Built-in Microphone (10-15ft) and Speaker

Night Mode

Smart AI Color Mode/ Full Color Mode/ Black& White Mode

IP66 Metal Housing

Aluminum Alloy, Indoors & Outdoors

Operating Temperature

-22°F~140°F, 10%-90%RH

Power Supply

PoE 802.3af/at 48V; 12V DC ± 10%

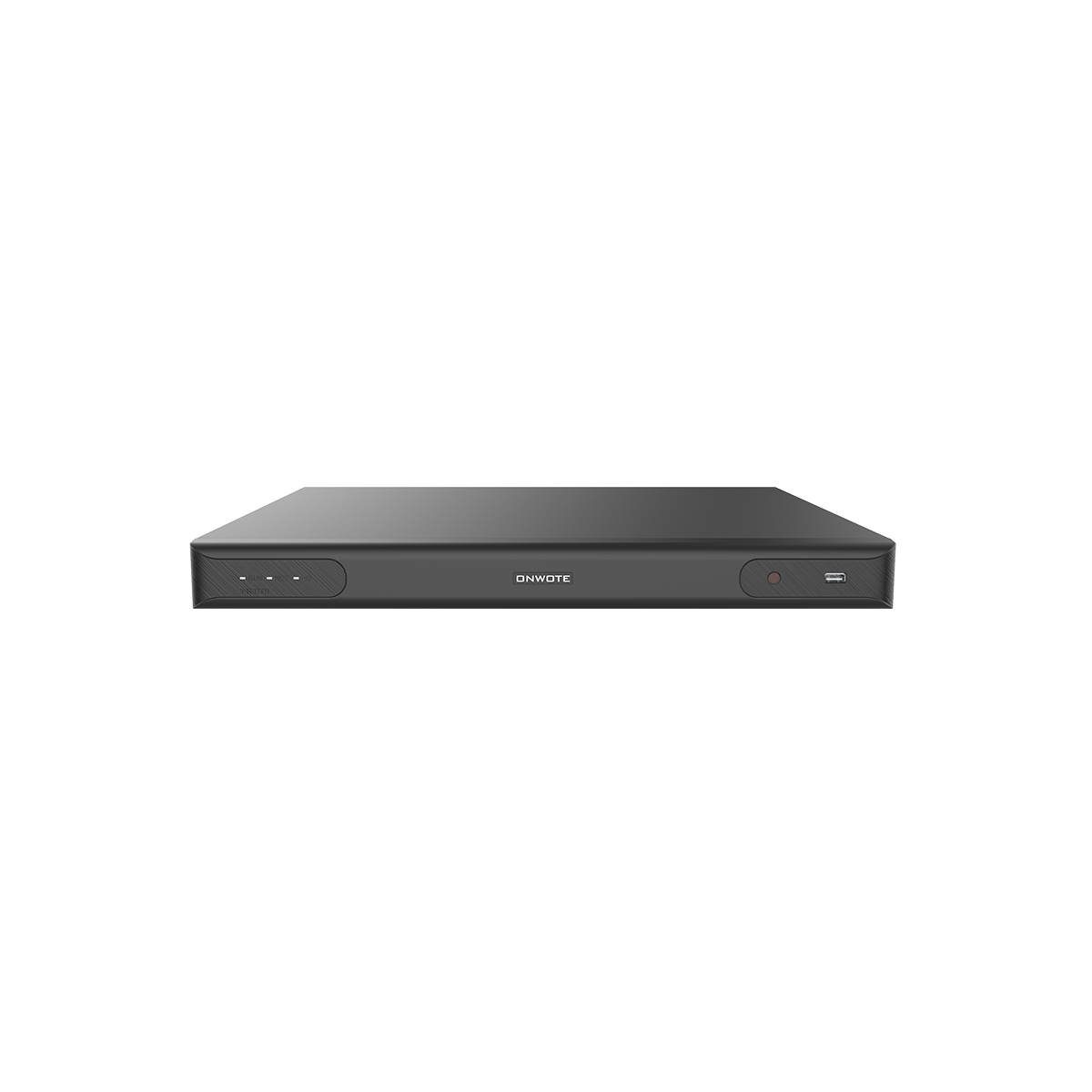

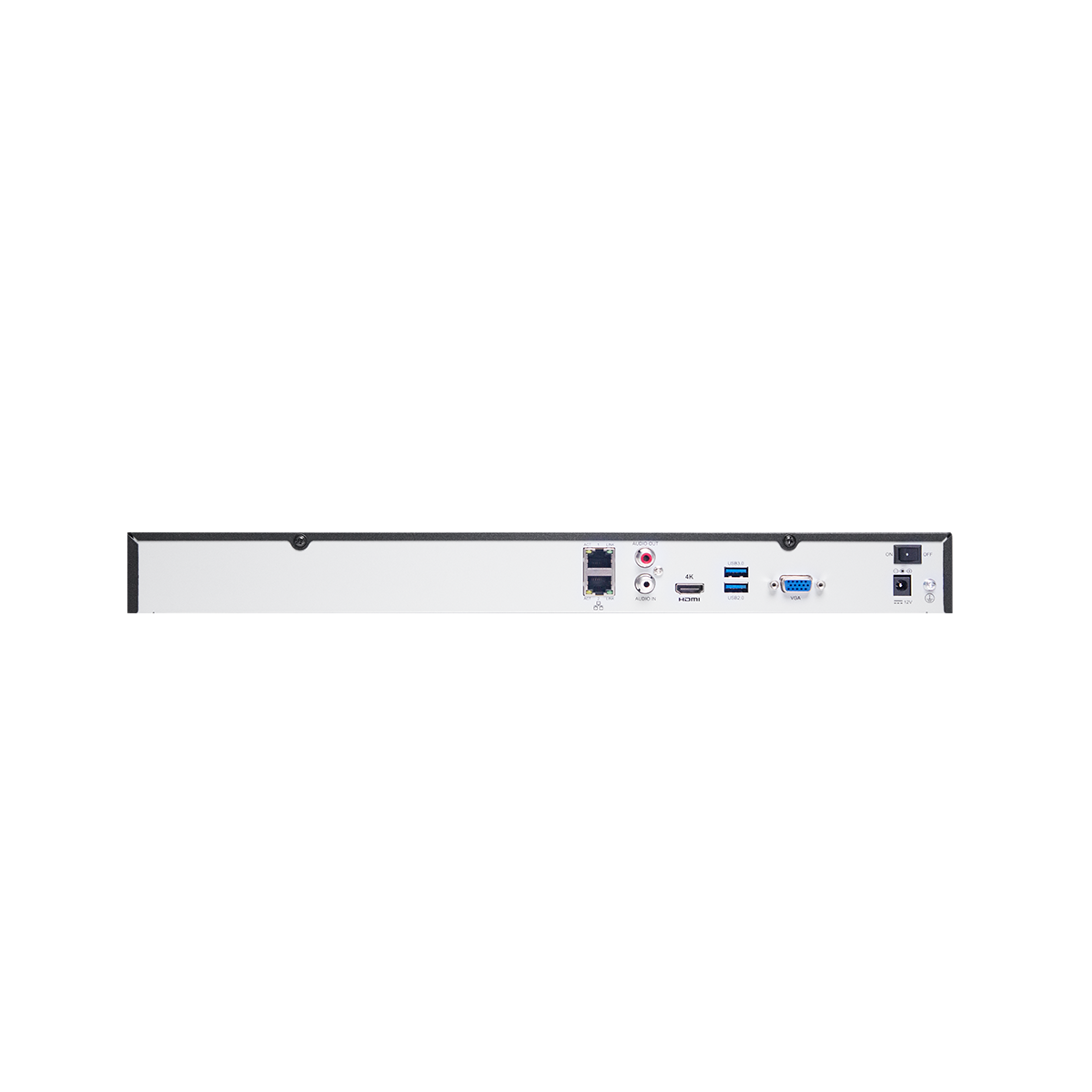

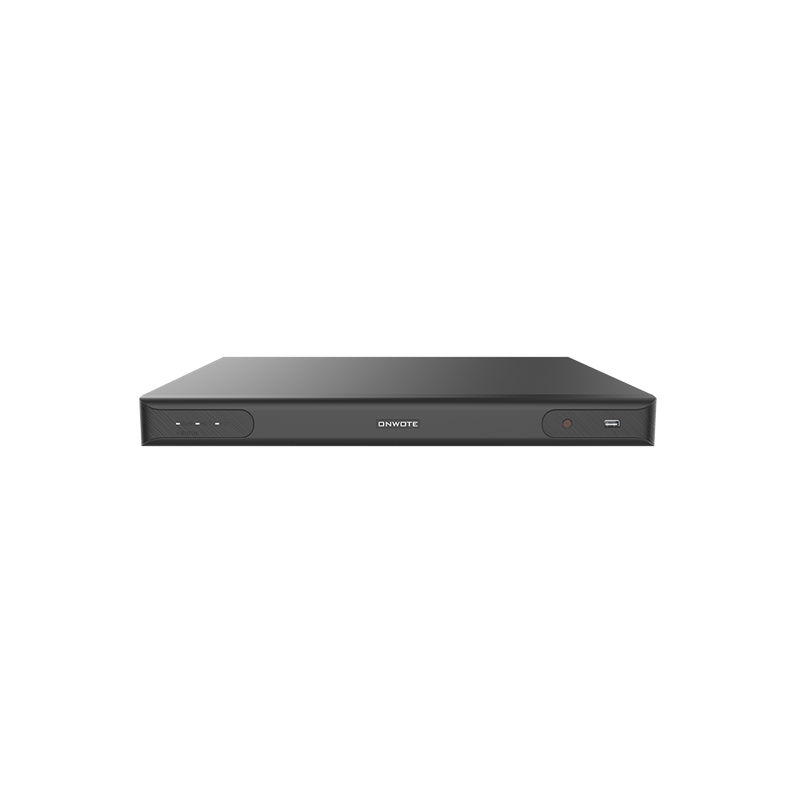

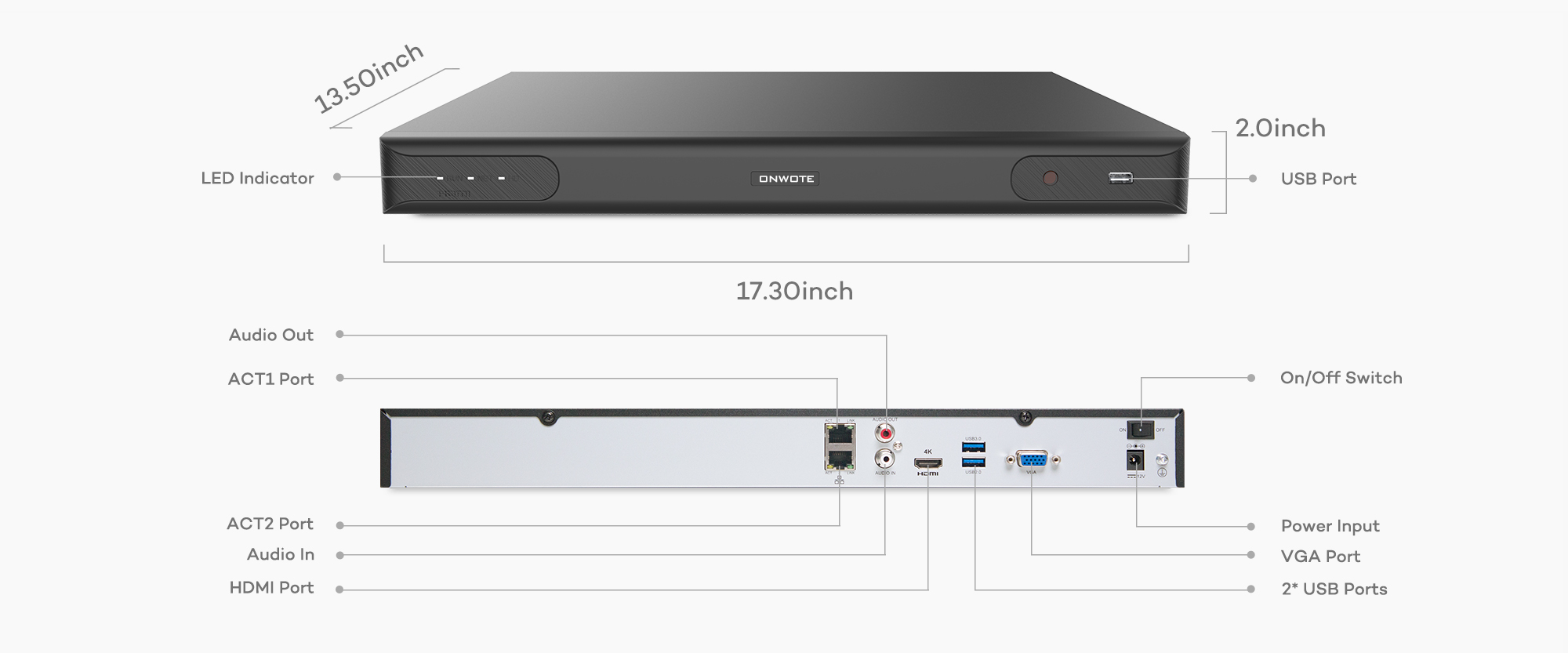

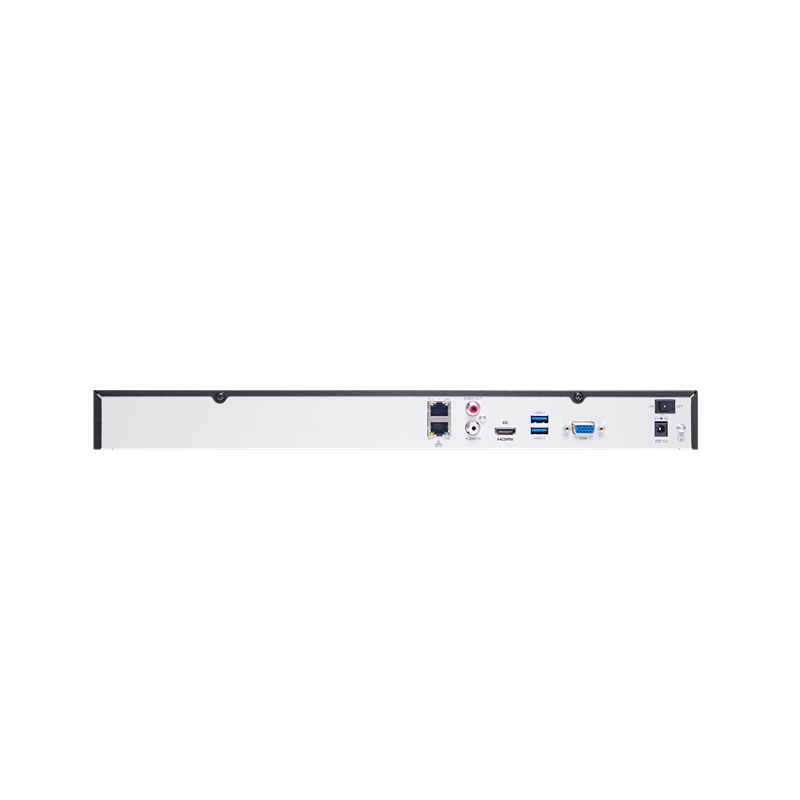

PNA-1232

32CH 6K 12MP NVR

Incoming-160Mbps; outgoing-128Mbps

Video Audio Input

32CH IPC, 20CH 12MP, 26CH 8MP/6MP/5MP, 32CH 4MP

Video Audio Output

AI Function

Smart by NVR: Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) VCA Search: Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch

Remote Access

128 remote users; Mobile (iPhone/ Android); PC (Windows/ Mac)

Storage Capacity

Built-in 8TB HDD, 4 SATA interfaces support up to 40TB

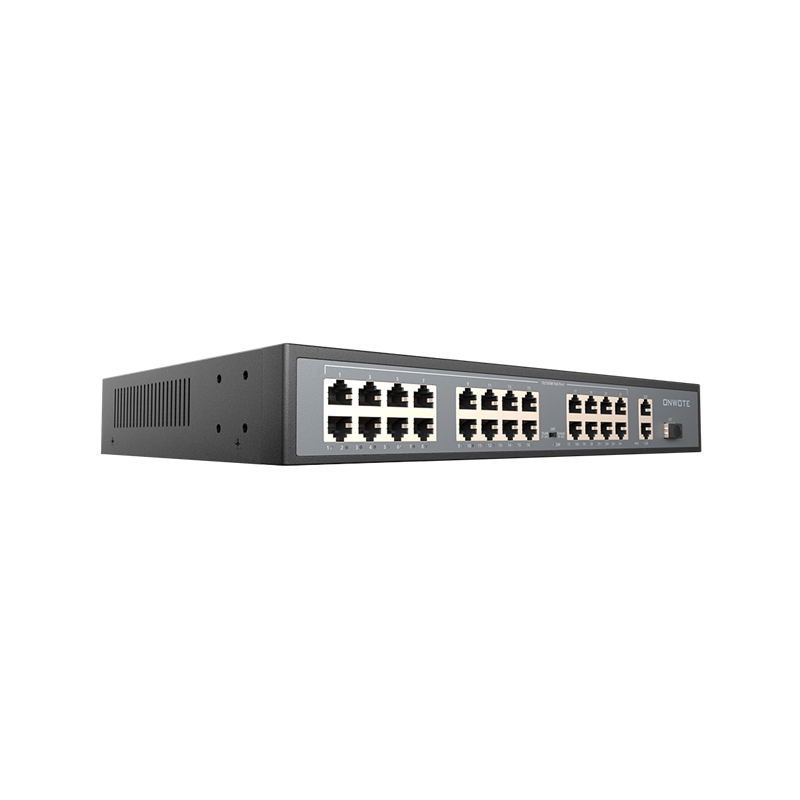

24 Ports & 8 Ports PoE Switch

24 Ports: 24* 100M ports+ 2* gigabit ports+ 2* combo SFP Slots; 8 Ports: 8* 100M ports+ 2* gigabit ports

Operating Temperature

'-10°C～ 55°C, 14°F~131°F, 10% ～ 90%RH(non-condensing)

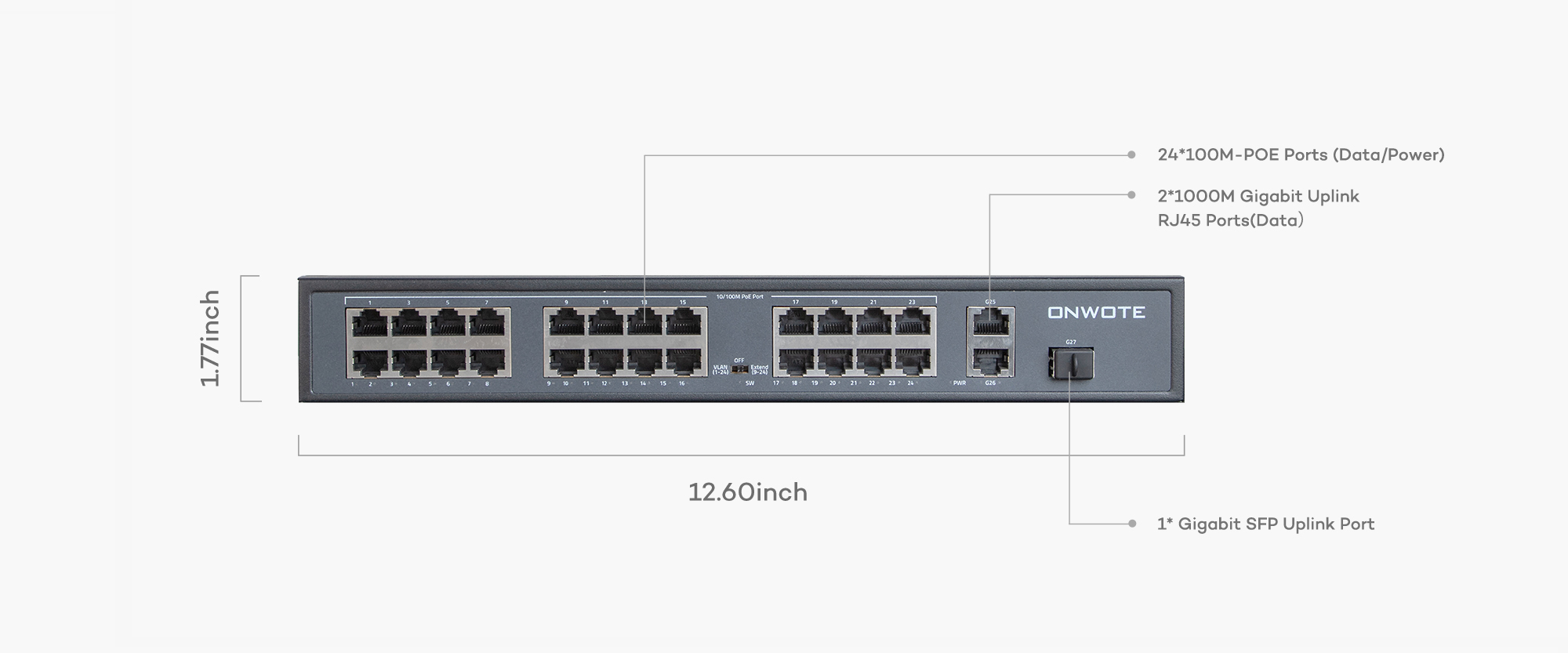

PS-24M2G1S

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

300W

PoE Protocol

IEEE802.3af(15.4W); IEEE802.3at(30W)

PoE Ports

24 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports; 1* Gigabit SFP Uplink Port

Transfer Mode

Store and forward

Switching Capacity

10.8Gbps

Forwarding Rate

8.03Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting:Powered; Un-Light:No Power

Switch Mode

Lighting: VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-27 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

Product Dimensions

12.60*8.15*1.77inch

Net Weight

3.95lbs

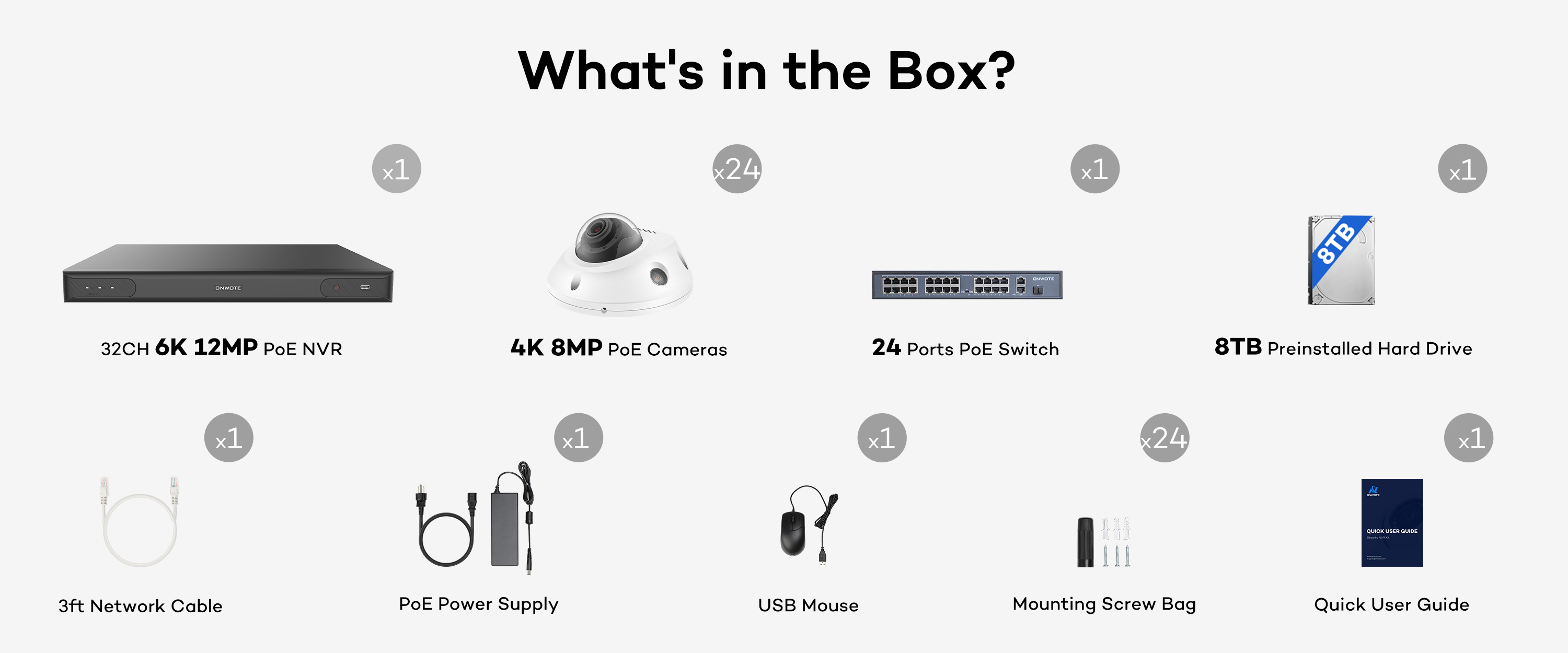

Package List

1x 24 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

Packing List

Videos

Add-on

PTZ20X 4K/8MP PoE Camera

$275.99 Save 8%
PTZ 5X 4K 8MP PoE Camera

$137.99 Save $12.00
PTZ 5X 4K 8MP PoE Camera

$147.19 Save 8%
$112.99
180° Dual-Lens 4K 8MP PoE Camera

$165.59 Save 8%
180° Dual-Lens 4K 8MP PoE Camera

$165.59 Save 8%
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
6K/12MP PoE Camera

$153.99
6K/12MP PoE Camera

$141.67 Save 8%
PTZ 3X 6MP PoE Camera

$138.99
156° 6MP PoE Camera

$89.99
4K/8MP PoE Camera (Black)

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00

Comparison

	32CH 4K PoE System $ 2499.99	32CH 4K PoE System $ 2369.99	32CH 4K PoE System $ 2903.99	32CH 4K PoE System $ 2815.99	32CH 5MP PoE System $ 1563.99
Resolution	8MP@20FPS	8MP@20FPS	8MP@20FPS	8MP@20FPS	5MP@30FPS
Field of View	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)	122°(D), 102°(Hl), 55°(V)
Audio	Two Way Audio	Two Way Audio	Two Way Audio	Built-in Microphone	Built-in Microphone
AI Function	Face Recognition& AcuSearch	Face Recognition& AcuSearch	Face Recognition& AcuSearch	Face Recognition& AcuSearch	Face Recognition& AcuSearch
NVR Channels	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR
HDD Pre-installed	8TB HDD	8TB HDD	8TB HDD	8TB HDD	8TB HDD
Storage Capacity	Support 40TB via 4 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports
PoE Switch	24 Ports PoE Switch	24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch	24 Ports PoE Switch


32CH 4K PoE System $ 2499.99
32CH 4K PoE System $ 2369.99
32CH 4K PoE System $ 2903.99
32CH 4K PoE System $ 2815.99
32CH 5MP PoE System $ 1563.99

Resolution	Field of View	Audio	AI Function	NVR Channels	HDD Pre-installed	Storage Capacity	PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Two Way Audio	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 40TB via 4 SATA Ports	24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Two Way Audio	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Two Way Audio	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
5MP@30FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	24 Ports PoE Switch
