Overview

Enjoy ultra-clear 5MP HD video at 25fps

Experience high-quality visuals with 5 million pixels at 30 frames per second—ensuring smoother playback and sharper images

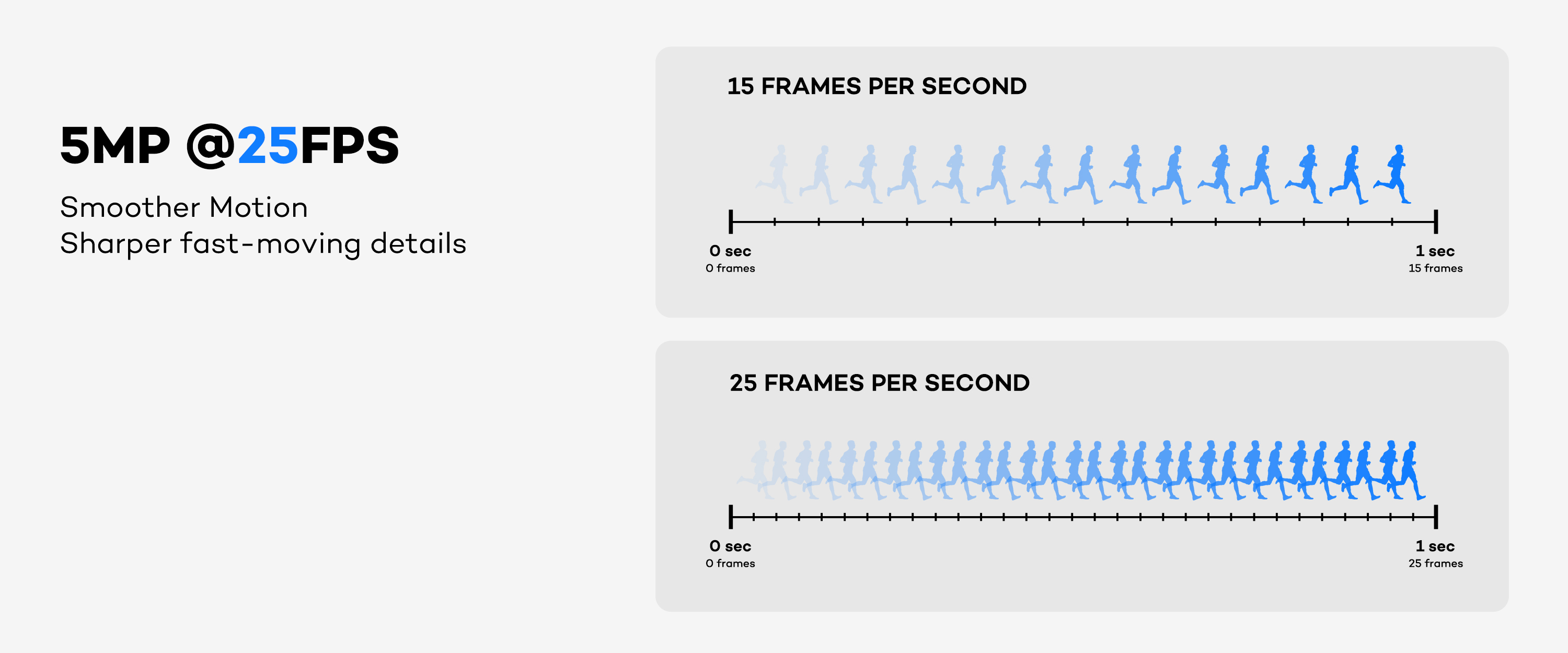

25FPS

With 25fps video output, enjoy smooth and reliable real-time surveillance. Reduced motion blur and stutter ensure every detail is captured clearly—boosting both clarity and security performance

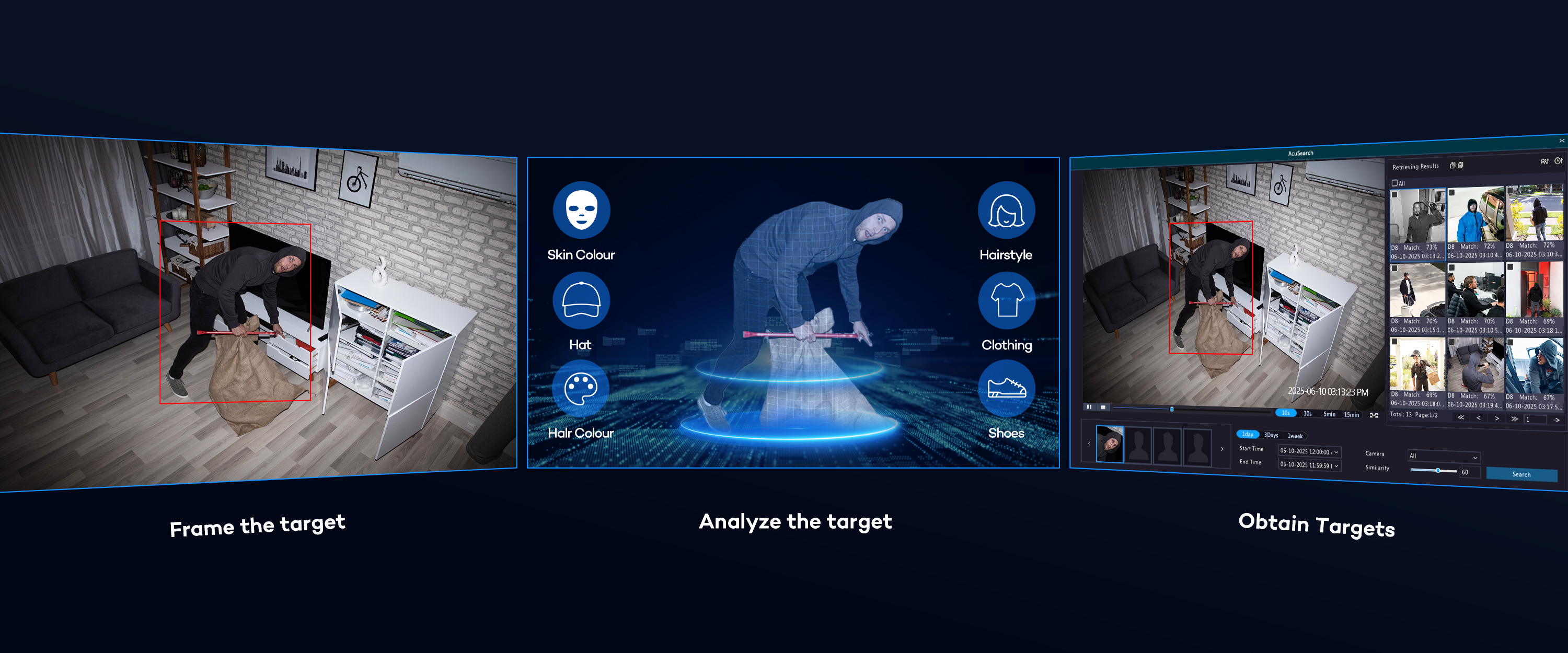

AcuSearch Technology

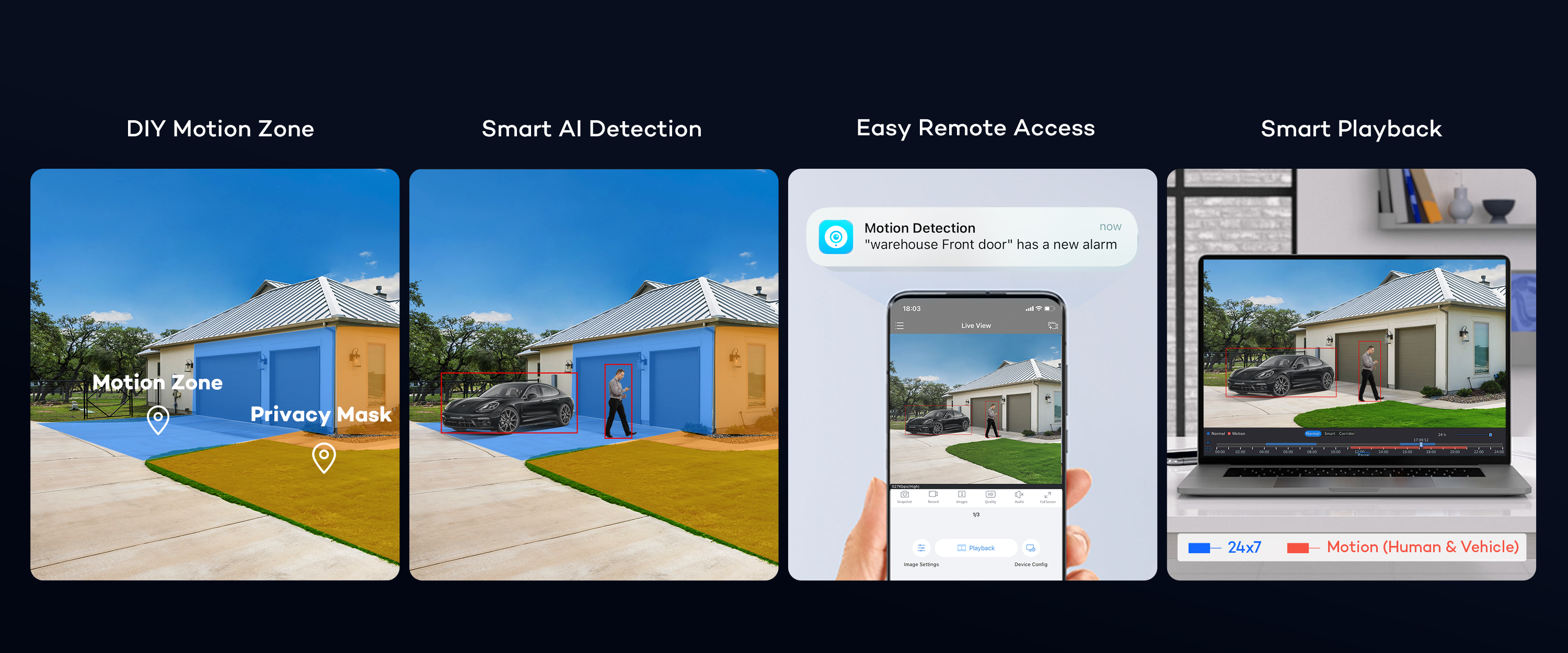

Smart Detection & Analysis

Access

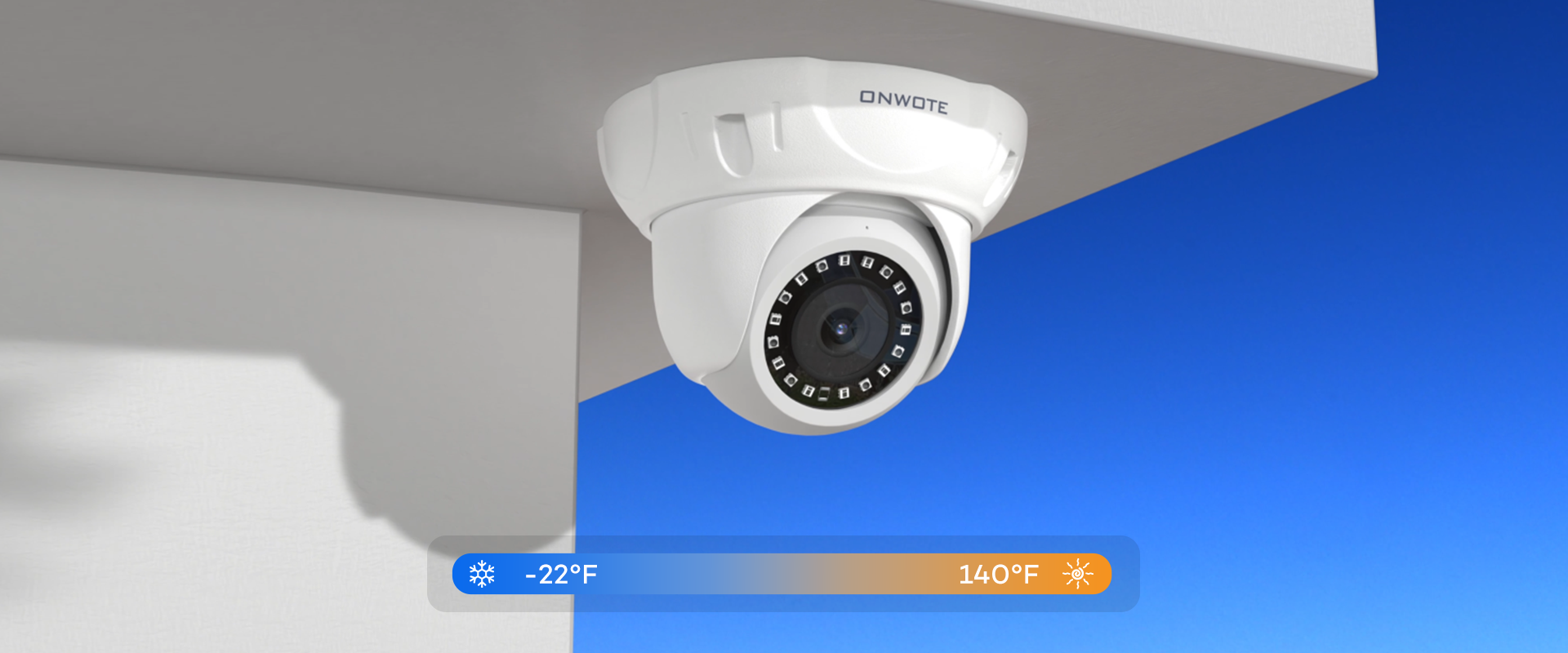

IP66-Rated Weatherproof Reliability

Durable weatherproof metal housing suitable for both indoor and outdoor use

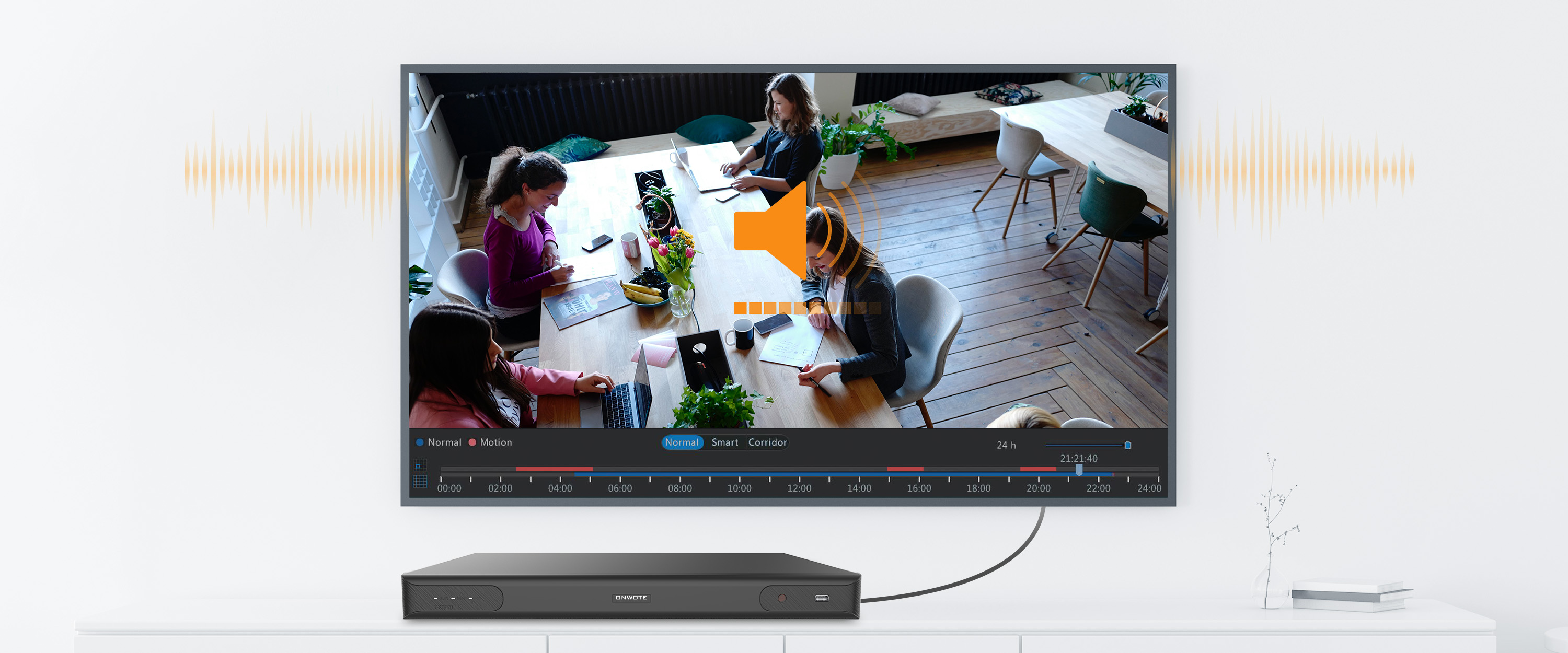

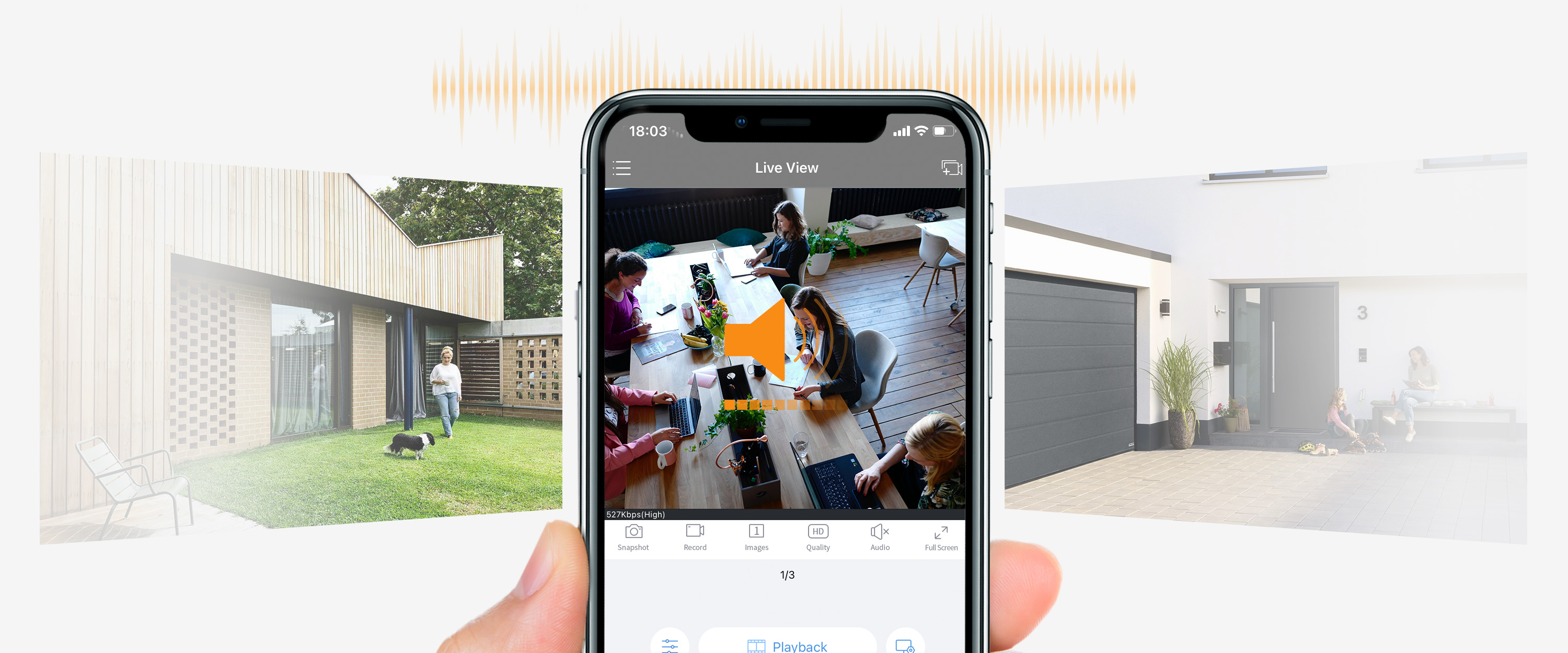

Capture & Record Audio

Cameras capture audio, recorded by the NVR for playback on an HD TV or mobile app

Audio Capture Mobile App Playback HD TV Output

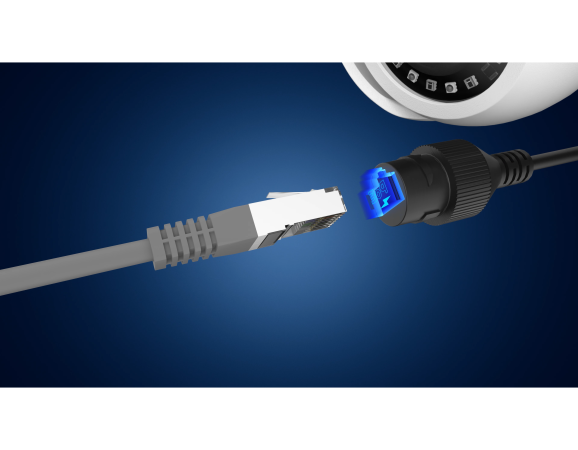

Effortless Setup — One Ethernet Cable Does It All

PoE technology allows a single Cat5 Ethernet cable to transmit video, audio, and power—making installation simpler than traditional DVR systems. Just plug and play.

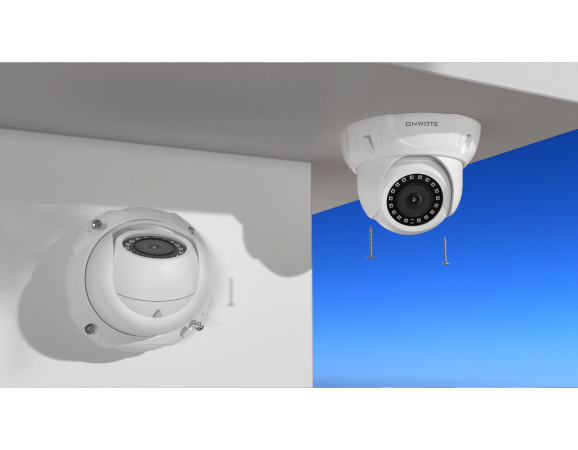

Hassle-Free Installation

Our cameras are designed with simplicity in mind. Whether you're a professional installer or a first-time user, setting up your surveillance system has never been easier.

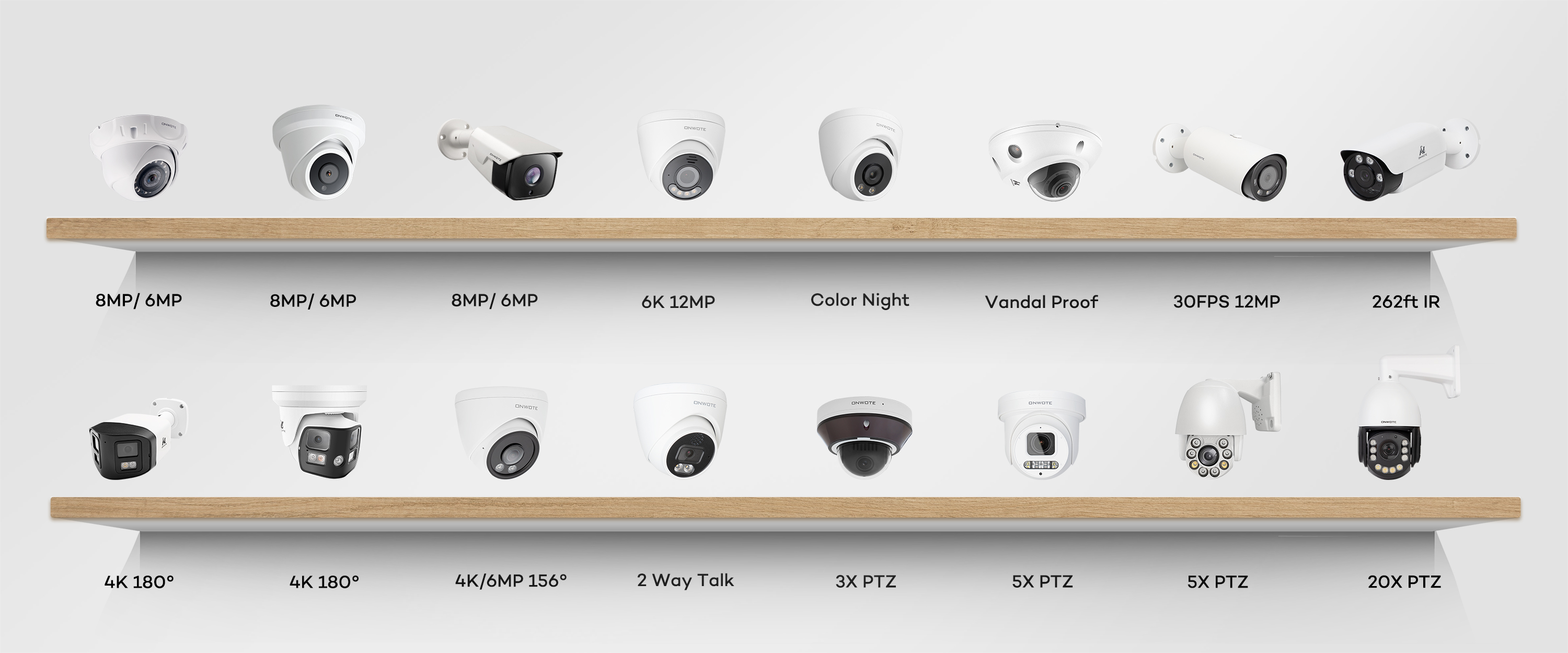

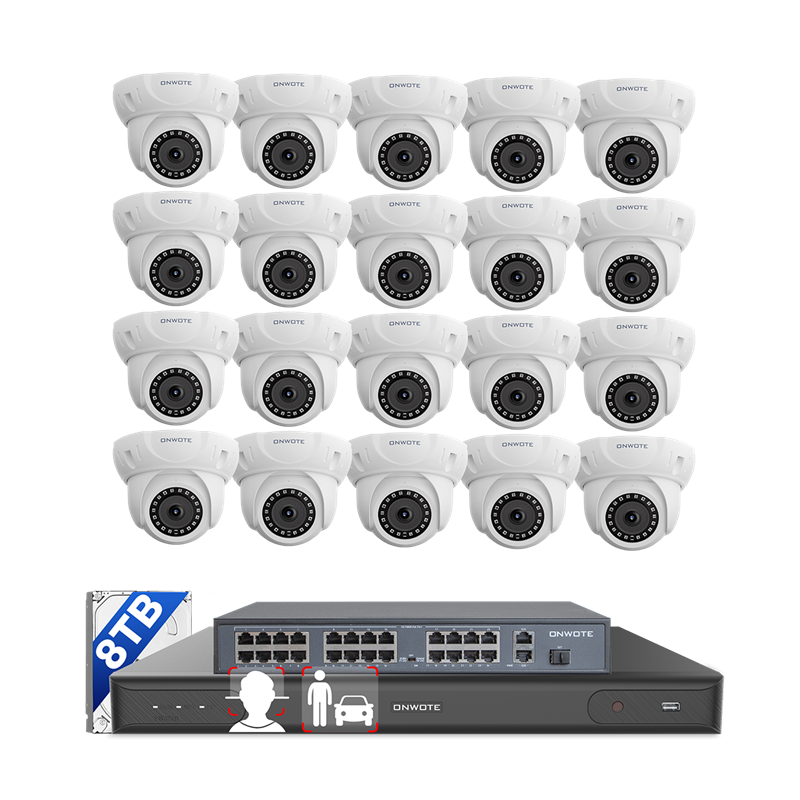

One-Stop DIY Solution

The NVR supports up to 32 cameras, with resolution options of 6K (12MP) or 4K (8MP).
A variety of add-ons are available, including pan-tilt-zoom and two-way audio cameras

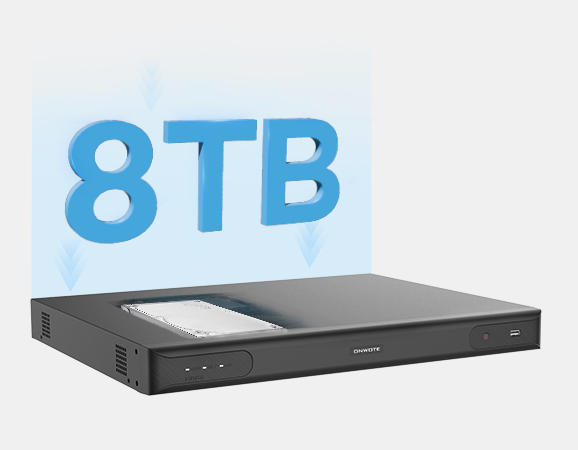

8TB Storage Pre-Installed

An 8TB hard drive comes pre-installed in the NVR, offering free local storage. HEVC advanced encoding helps reduce file sizes and save space.

Expandable Up to 40TB

With four 4 ports, the system supports up to 40TB of total storage capacity.

Specification

Camera NVR POE Switch

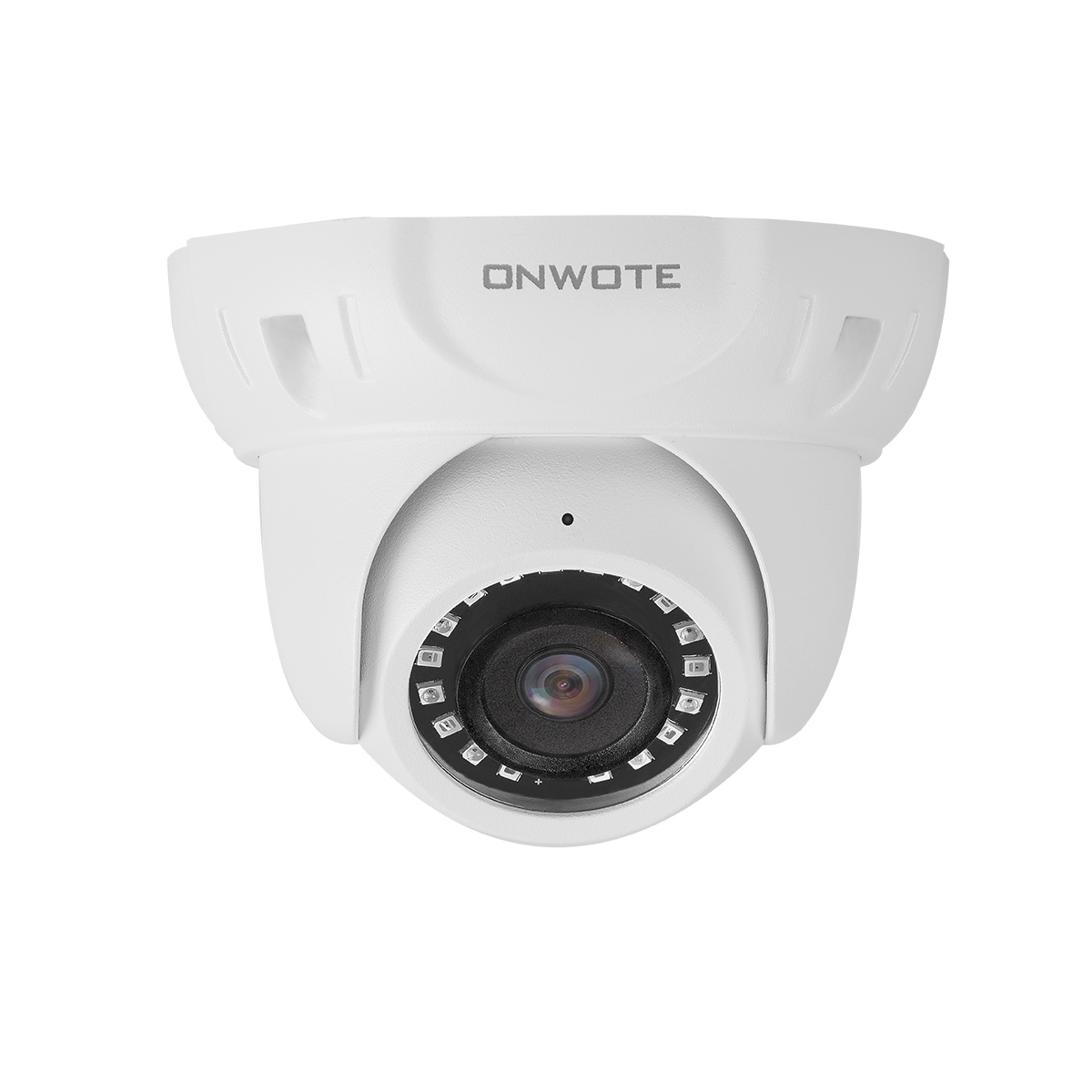

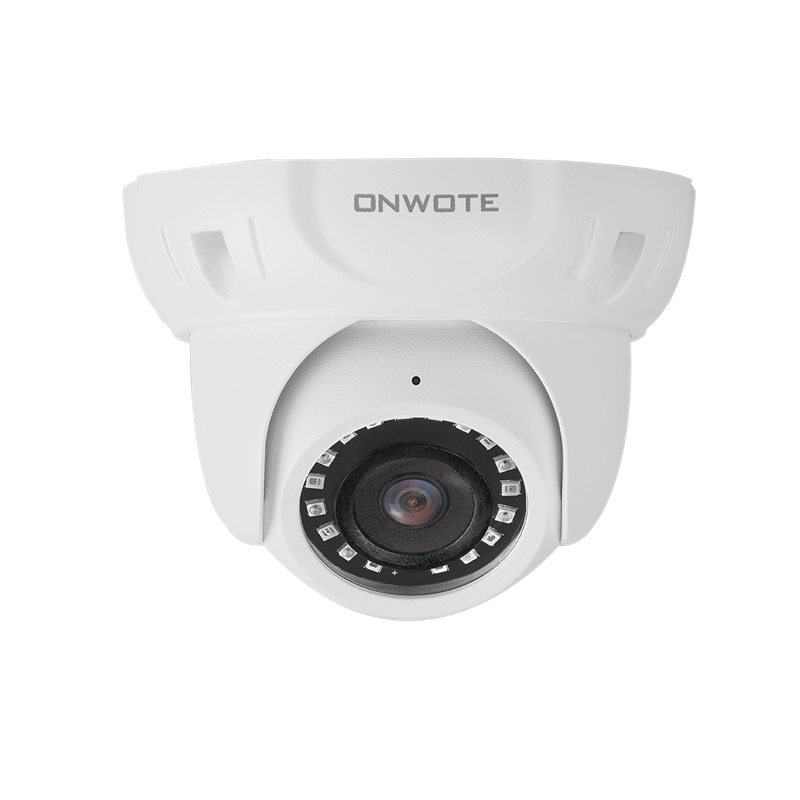

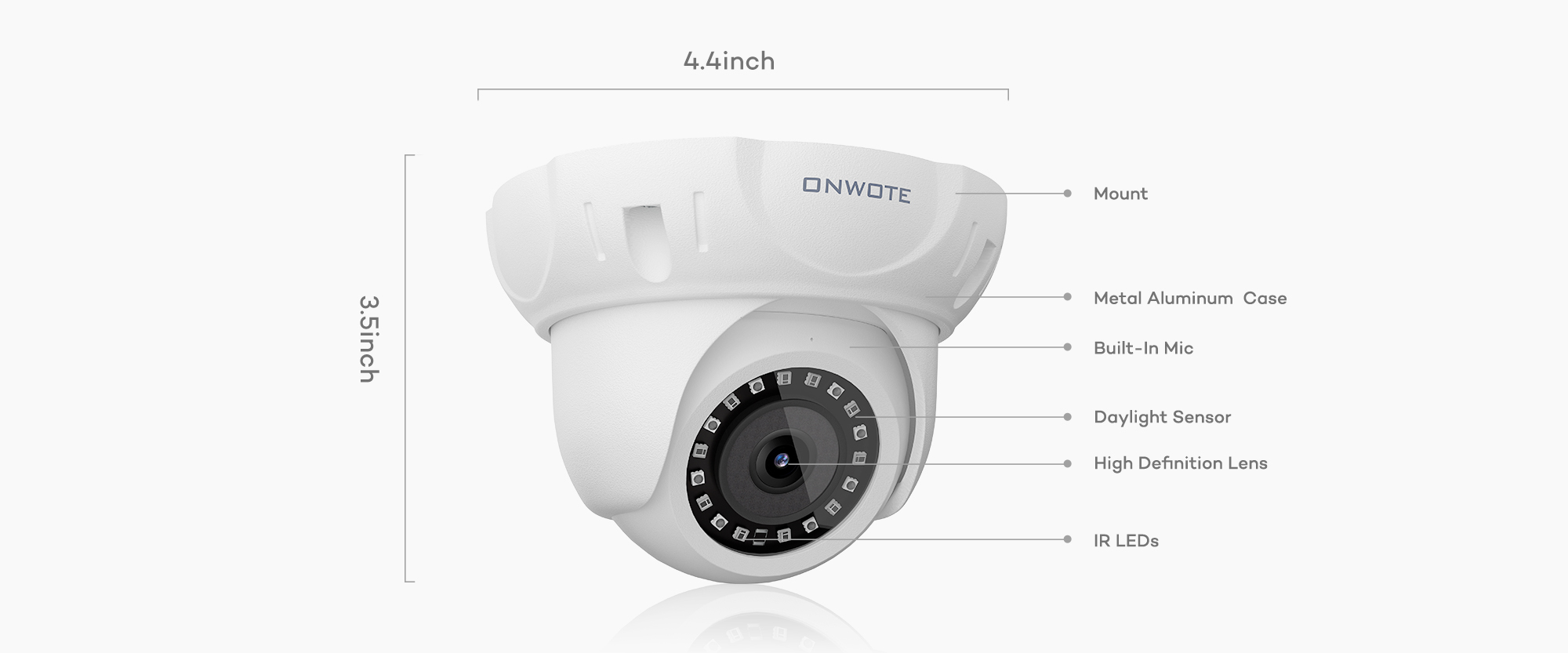

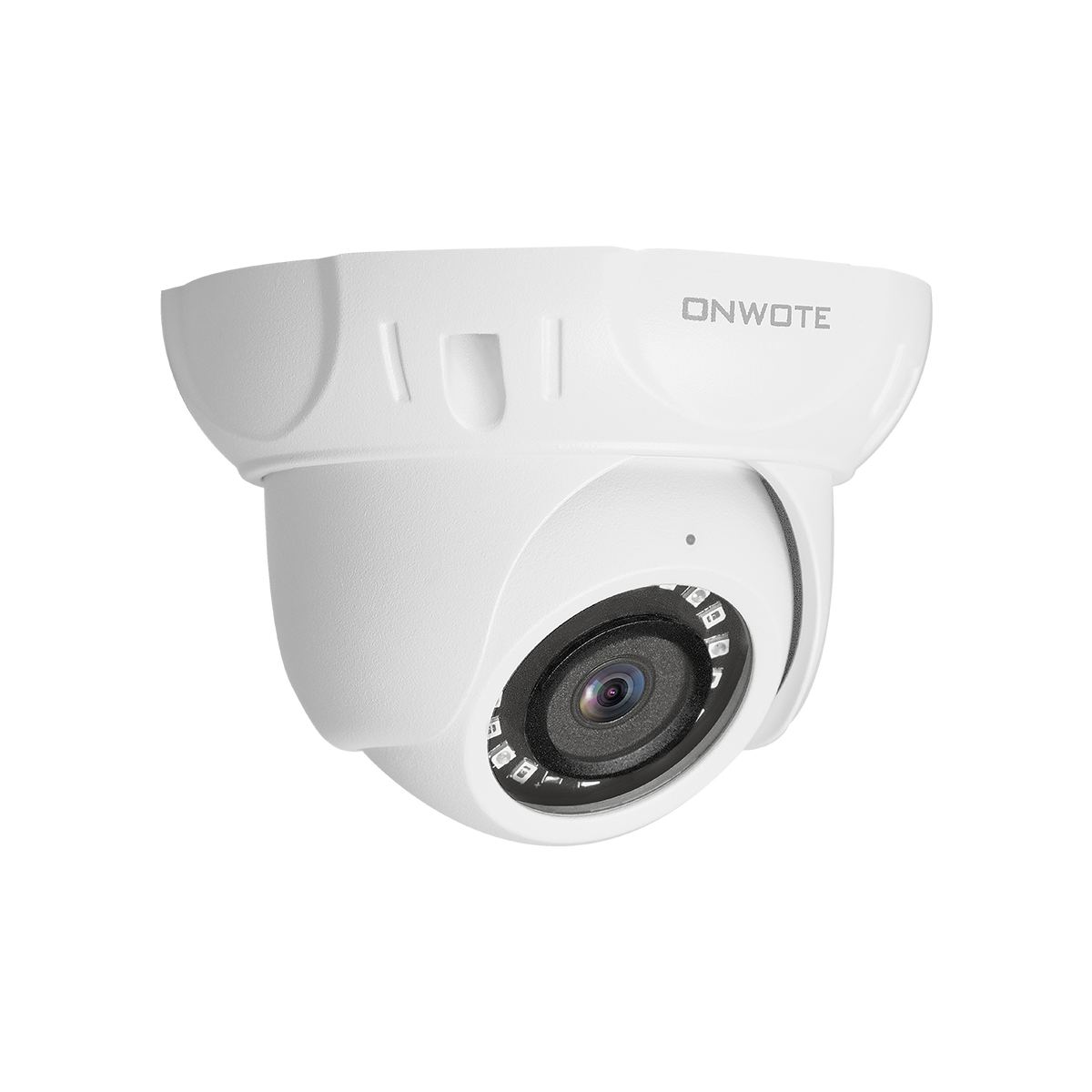

MRA50

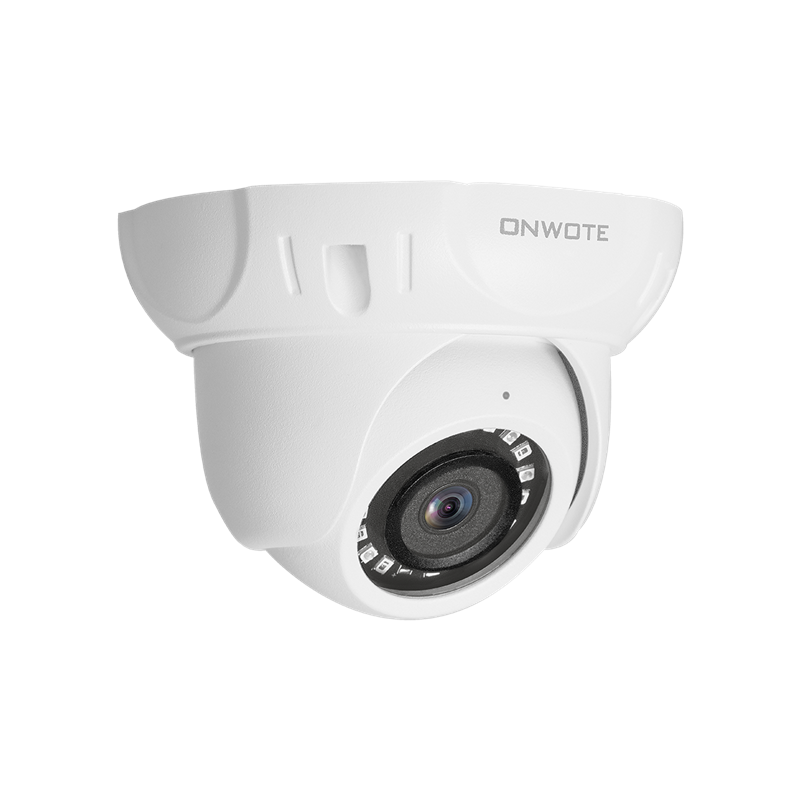

5MP HD Camera

5 Megapixels-2592(H) x 1944(V)

30FPS

30 Frames Per Second

Viewing Angle

122°(Diagonal), 102°(Horizontal), 55°(Vertical)

AI Function

AI-Powered Face Recognition, Face Detection, Human Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area）

Audio

Built-in Microphone (10-15ft)

Night Mode

Smart AI Color Mode/ Full Color Mode/ Black& White Mode

Indoors & Outdoors

IP66 Metal Housing, -22°F~140°F, 10%-90%RH

Power Supply

PoE 802.3af/at 48V; 12V DC ± 10%

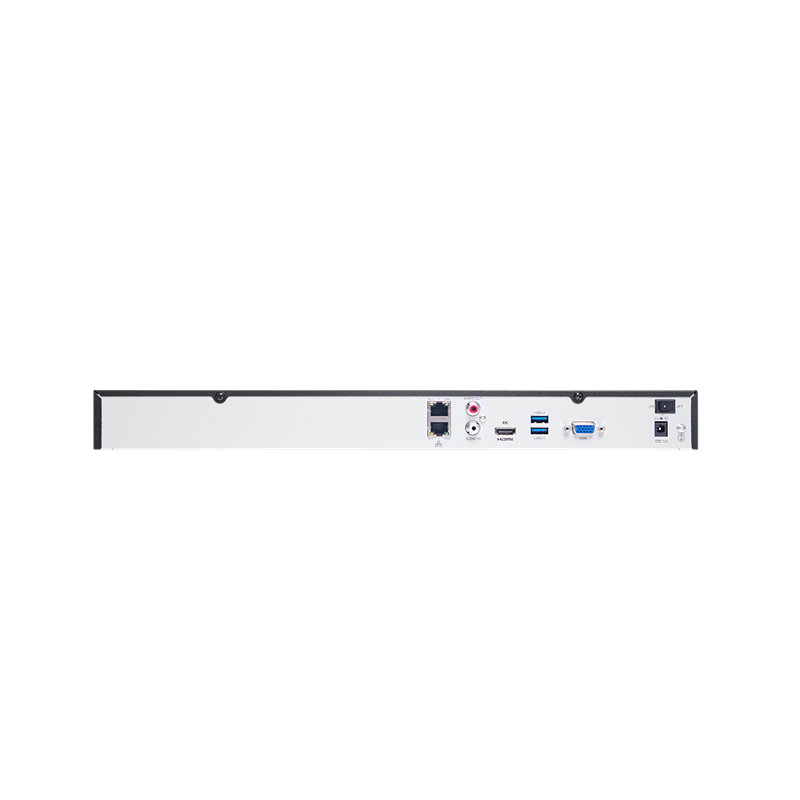

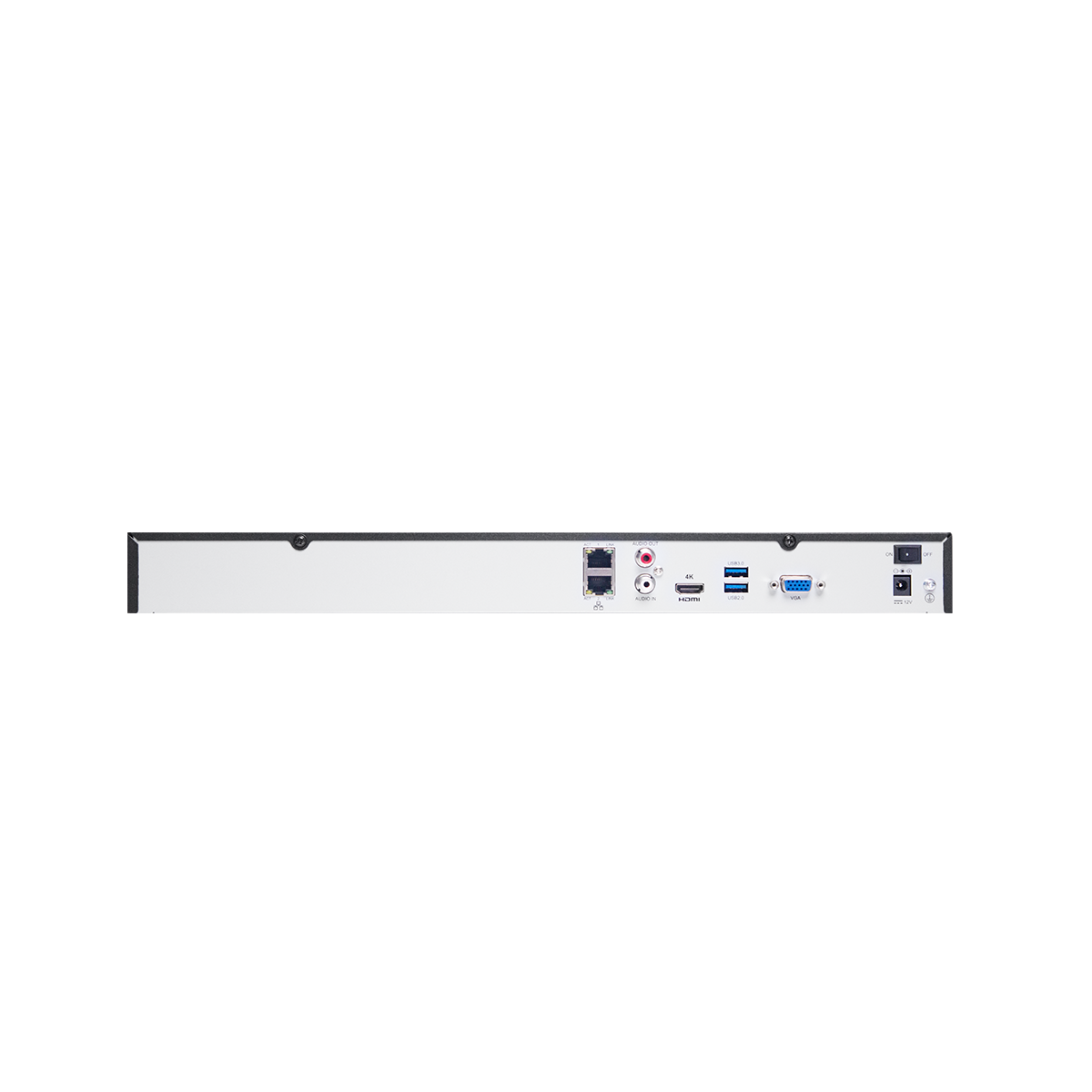

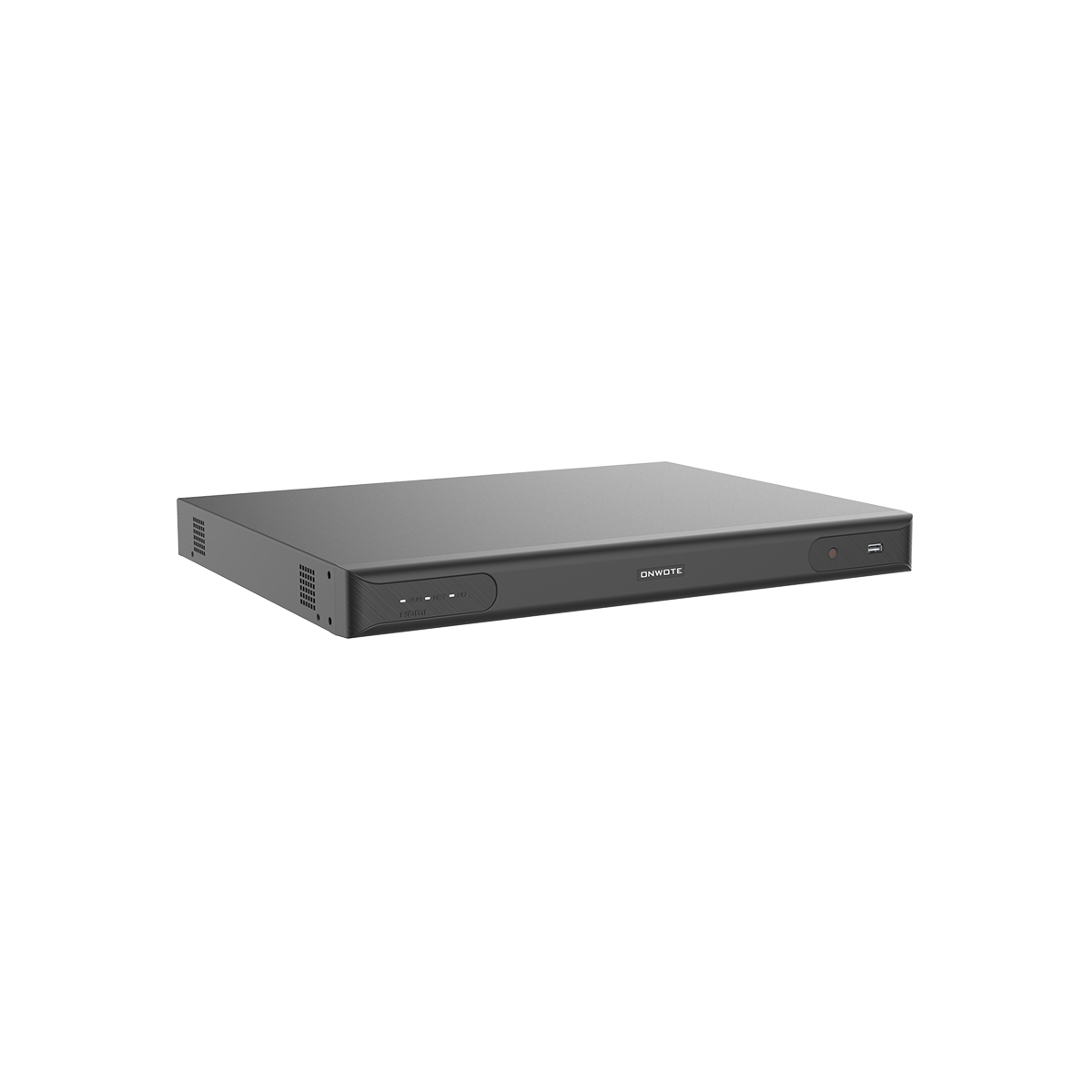

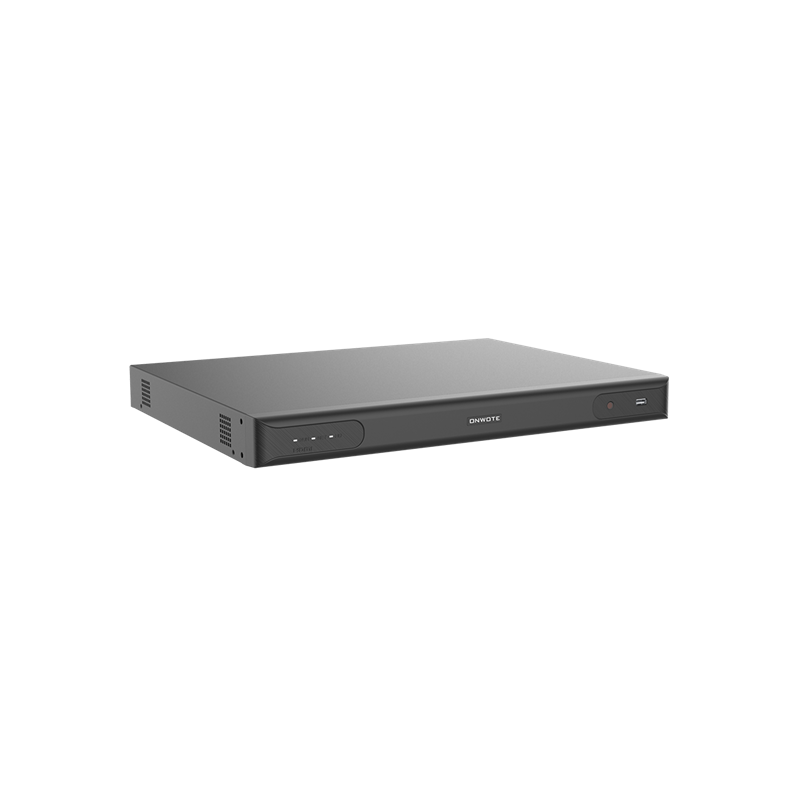

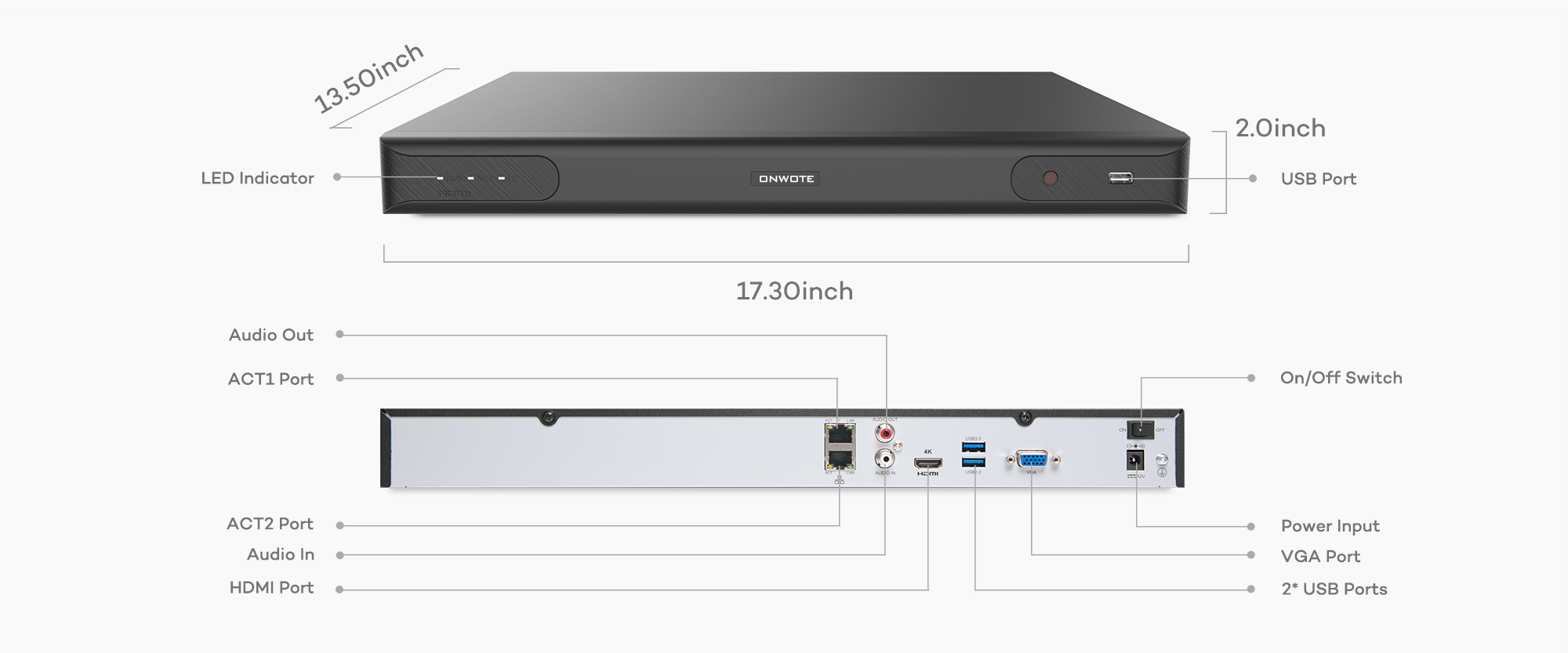

PNA-1232

32CH 6K 12MP NVR

Incoming-160Mbps; outgoing-128Mbps

Video Audio Input

32CH IPC, 20CH 12MP, 26CH 8MP/6MP/5MP, 32CH 4MP

Video Audio Output

AI Function

Smart by NVR: Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) VCA Search: Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch

Remote Access

128 remote users; Mobile (iPhone/ Android); PC (Windows/ Mac)

Storage Capacity

Built-in 8TB HDD, 4 SATA interfaces support up to 40TB

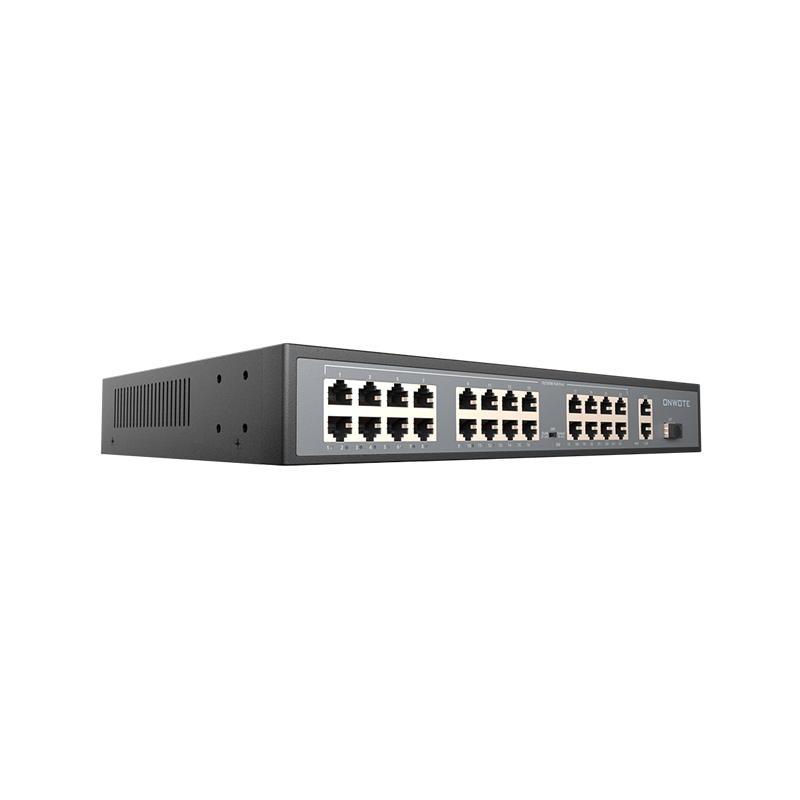

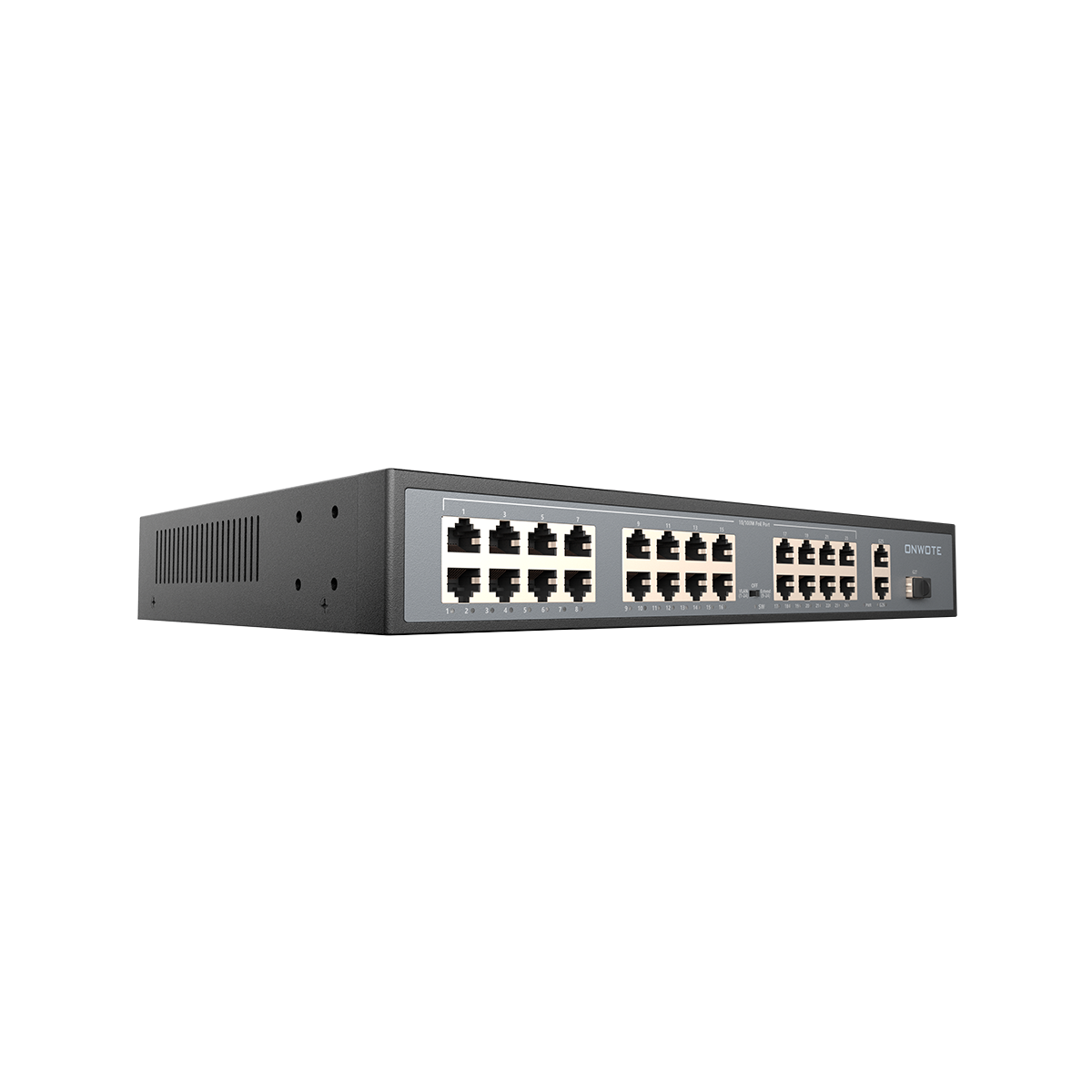

24 Ports & 8 Ports PoE Switch

24 Ports: 24* 100M ports+ 2* gigabit ports+ 2* combo SFP Slots; 8 Ports: 8* 100M ports+ 2* gigabit ports

Operating Temperature

'-10°C～ 55°C, 14°F~131°F, 10% ～ 90%RH(non-condensing)

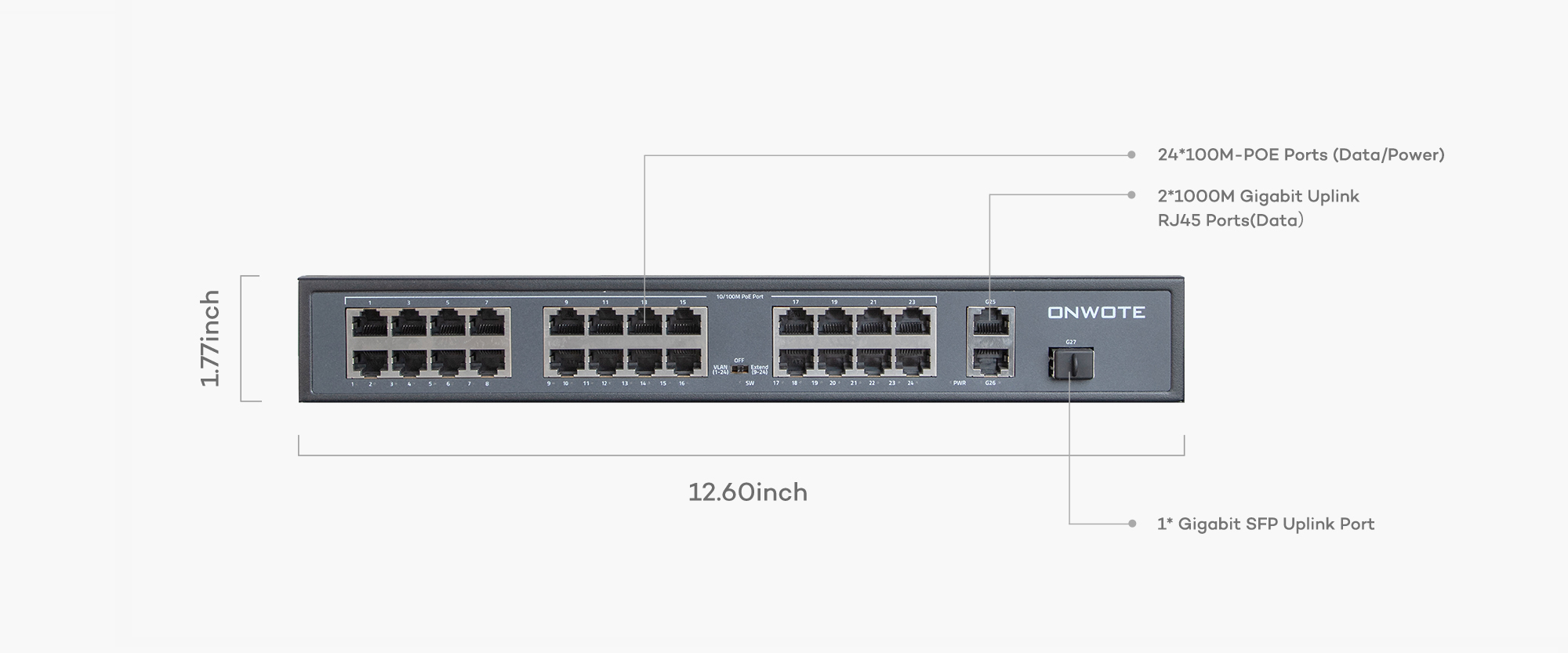

PS-24M2G1S

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

300W

PoE Protocol

IEEE802.3af(15.4W); IEEE802.3at(30W)

PoE Ports

24 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports; 1* Gigabit SFP Uplink Port

Transfer Mode

Store and forward

Switching Capacity

10.8Gbps

Forwarding Rate

8.03Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting:Powered; Un-Light:No Power

Switch Mode

Lighting: VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-27 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

Product Dimensions

12.60*8.15*1.77inch

Net Weight

3.95lbs

Package List

1x 24 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

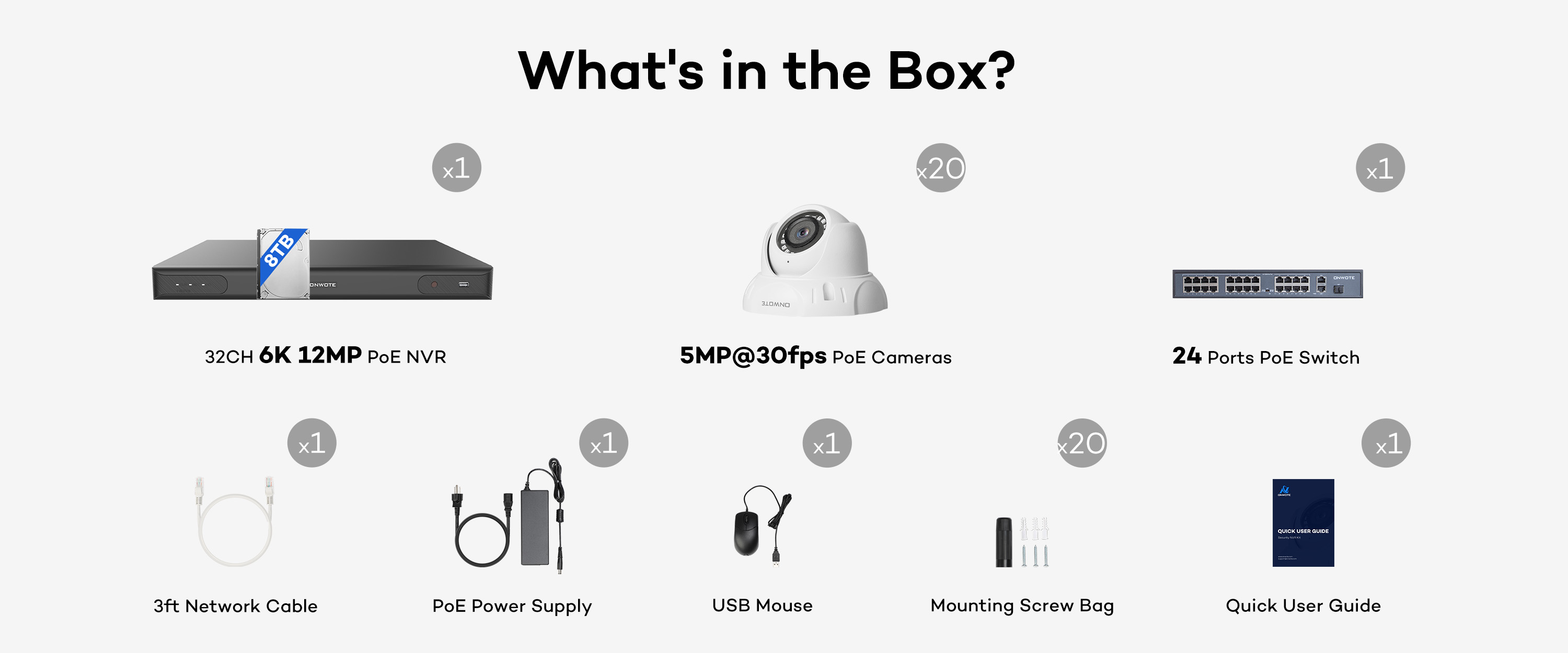

Packing List

Videos

Add-on

PTZ 5X 4K 8MP PoE Camera

$134.39 Save $15.60
PTZ 5X 4K 8MP PoE Camera

$143.99 Save $16.00
180° Dual-Lens 4K 8MP PoE Camera

$163.19 Save $26.80
180° Dual-Lens 4K 8MP PoE Camera

$163.19 Save $26.80
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
6K/12MP PoE Camera

$138.23 Save $21.76
6K/12MP PoE Camera

$138.23 Save $21.76
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60

Comparison

	32CH 5MP PoE System $ 1519.99	32CH 5MP PoE System $ 1709.99	32CH 6MP PoE System $ 1899.99	32CH 4K PoE System $ 2279.99
Resolution	5MP@25FPS	5MP@30FPS	6MP@25FPS	8MP@20FPS
Field of View	122°(D), 102°(Hl), 55°(V)	122°(D), 102°(Hl), 55°(V)	122°(D), 102°(Hl), 55°(V)	134°(D), 111°(H), 59°(V)
Audio	Built-in Microphone	Built-in Microphone	Built-in Microphone	Two Way Audio
AI Function	Human & Vehicle Detection	Human & Vehicle Detection	Face Recognition & AcuSearch	Face Recognition& AcuSearch
NVR Channels	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR
HDD Pre-installed	8TB HDD	8TB HDD	8TB HDD	8TB HDD
Storage Capacity	Support 20TB via 2 SATA Ports	Support 40TB via 4 SATA Ports	Support 40TB via 4 SATA Ports	Support 20TB via 2 SATA Ports
PoE Switch	24 Ports PoE Switch	24 Ports PoE Switch	24 Ports PoE Switch	24 Ports PoE Switch


32CH 5MP PoE System $ 1519.99
32CH 5MP PoE System $ 1709.99
32CH 6MP PoE System $ 1899.99
32CH 4K PoE System $ 2279.99

Resolution	Field of View	Audio	AI Function	NVR Channels	HDD Pre-installed	Storage Capacity	PoE Switch
5MP@25FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	Human & Vehicle Detection	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	24 Ports PoE Switch
5MP@30FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	Human & Vehicle Detection	32-CH 6K 12MP NVR	8TB HDD	Support 40TB via 4 SATA Ports	24 Ports PoE Switch
6MP@25FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	Face Recognition & AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 40TB via 4 SATA Ports	24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Two Way Audio	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	24 Ports PoE Switch
