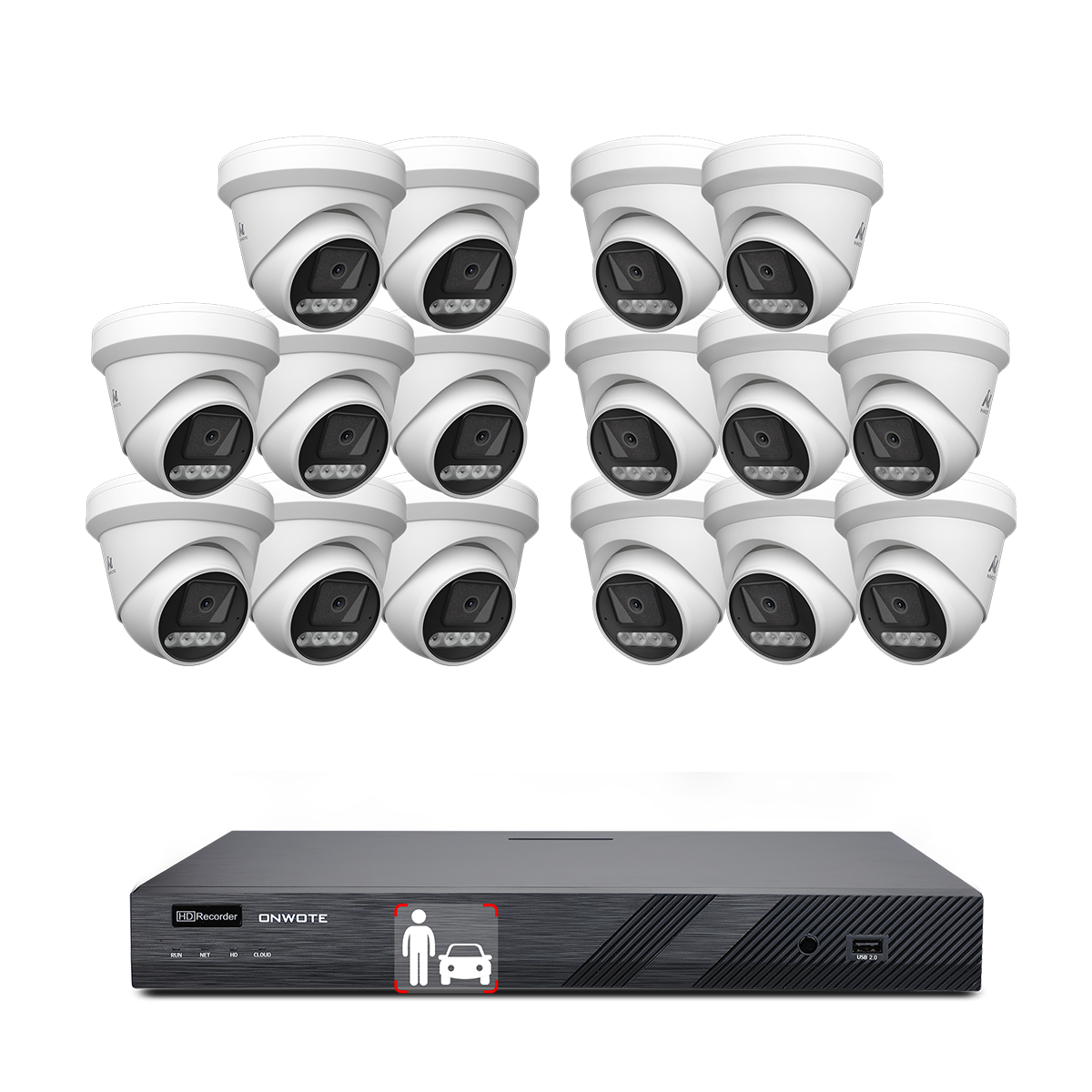

ONWOTE

Overview

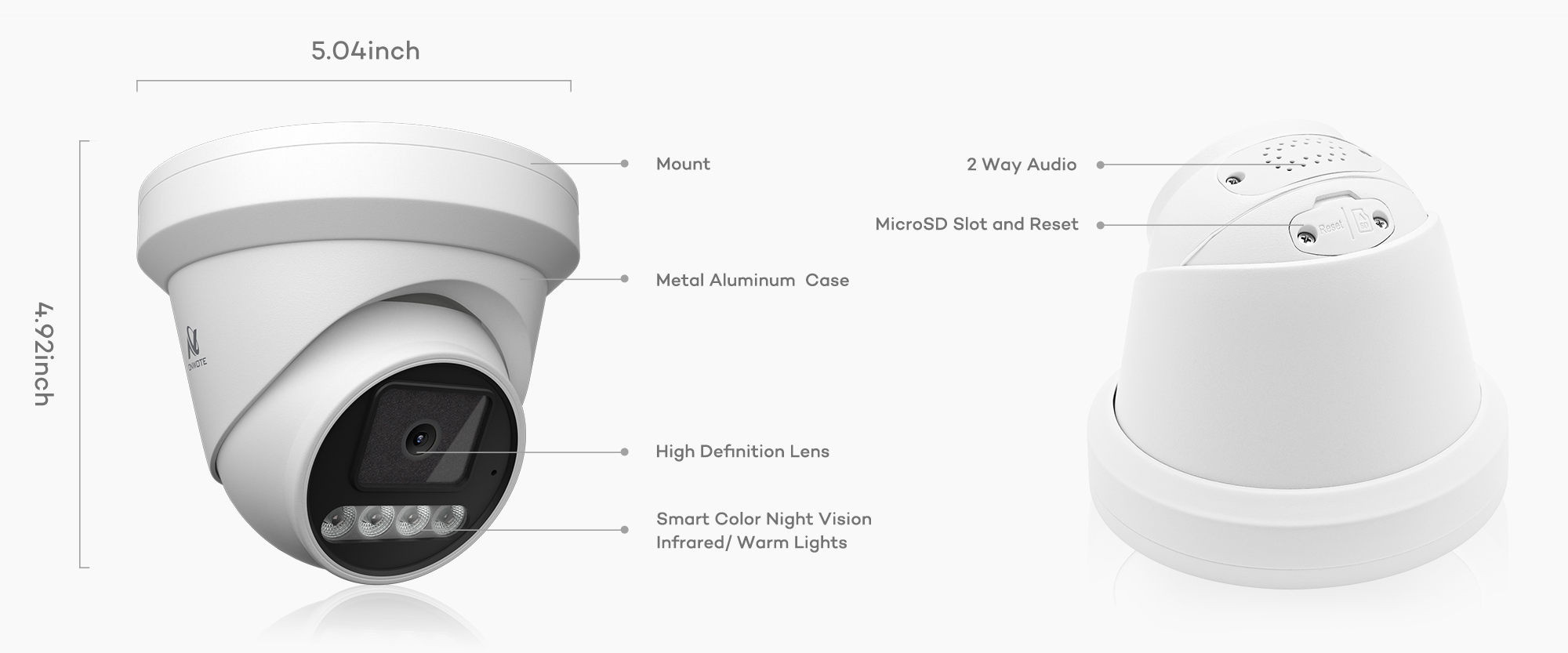

8MP Super HD Resolution & Installation Demo

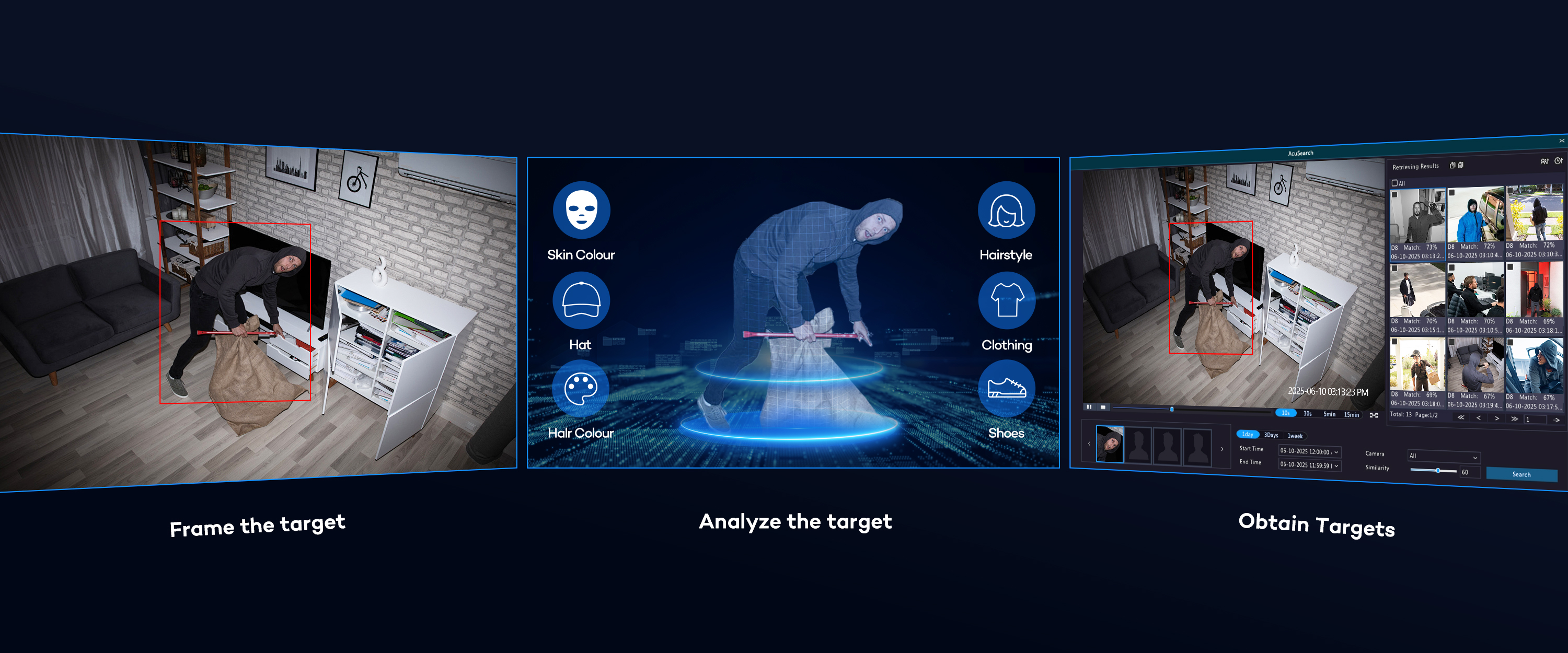

AcuSearch Technology

Smart Detection & Analysis

3 Night Vision Modes

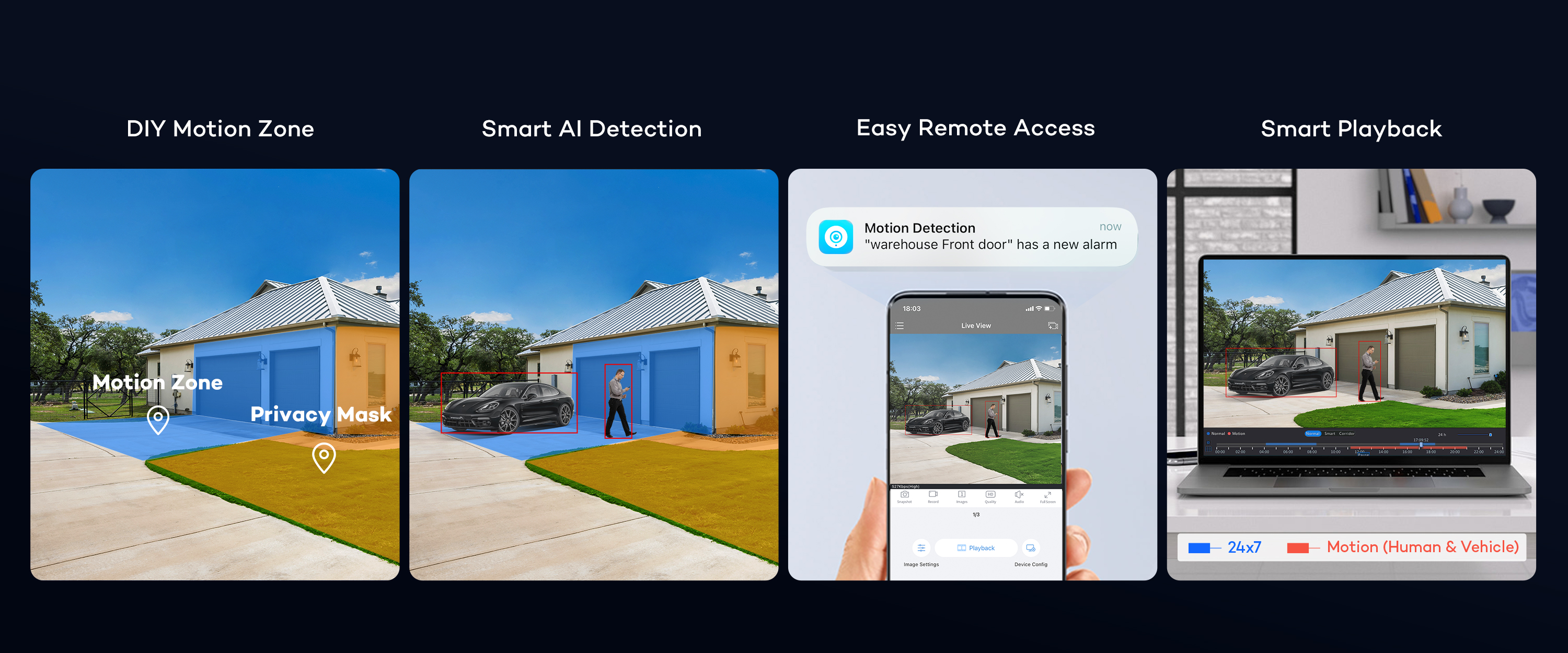

Discovery &Playback

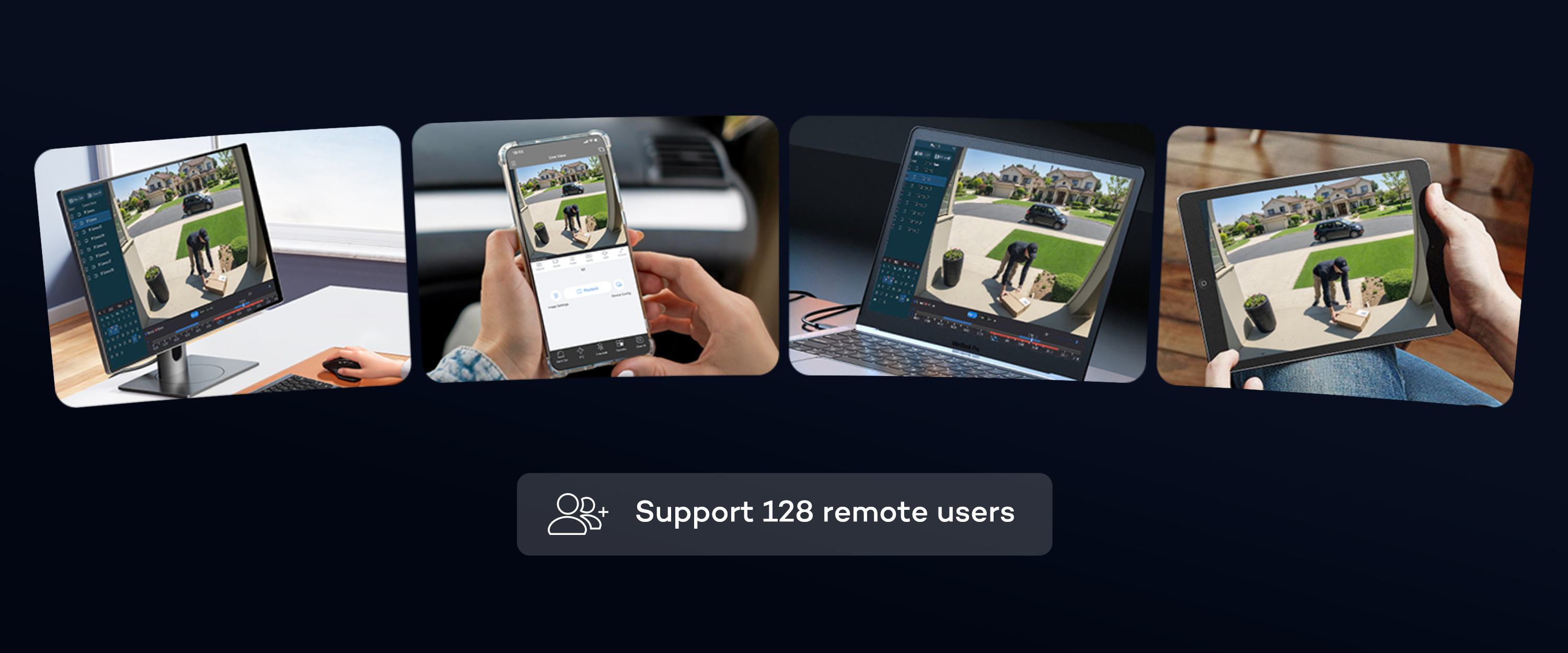

Access Anywhere Anytime

Two- Way Audio

Listen and talk in real time through the cameras’ built-in microphone and speaker using the free ONWOTE app.

Wide Field of View

134° Diagonal, 111° Horizontal, 59° Vertical

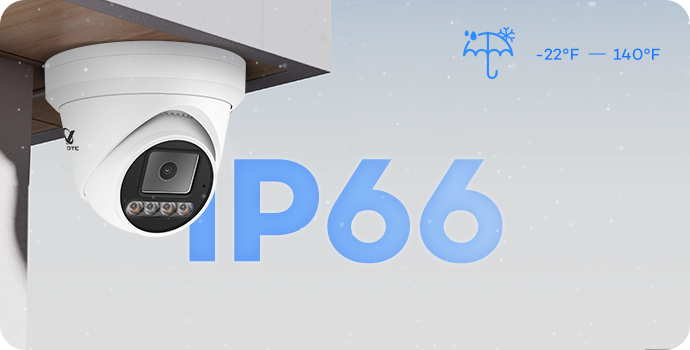

IP66-Rated Weatherproof Reliability

IP66-rated aluminum housing offers 1400x better heat dissipation than plastic ABS.

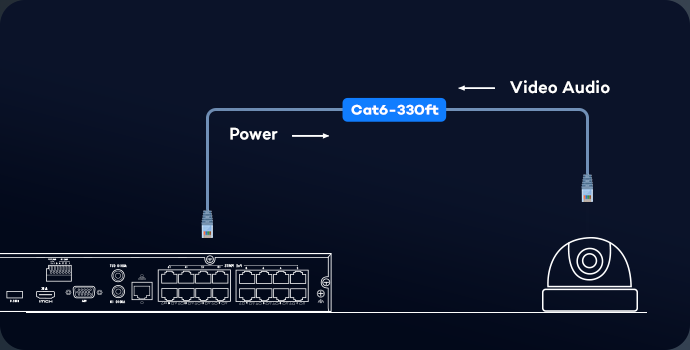

Power over Ethernet

All-in-one cable:‌ Transmits video, audio, and power over a single Cat5 cable.
True plug & play:‌ Simpler wiring than traditional DVR systems.

20TB Storage Capacity

Note: No Hard Drive Included

2pcs 3.5" SATA hard drive ports, 10TB for each, storage capacity up to 20TB.

Specification

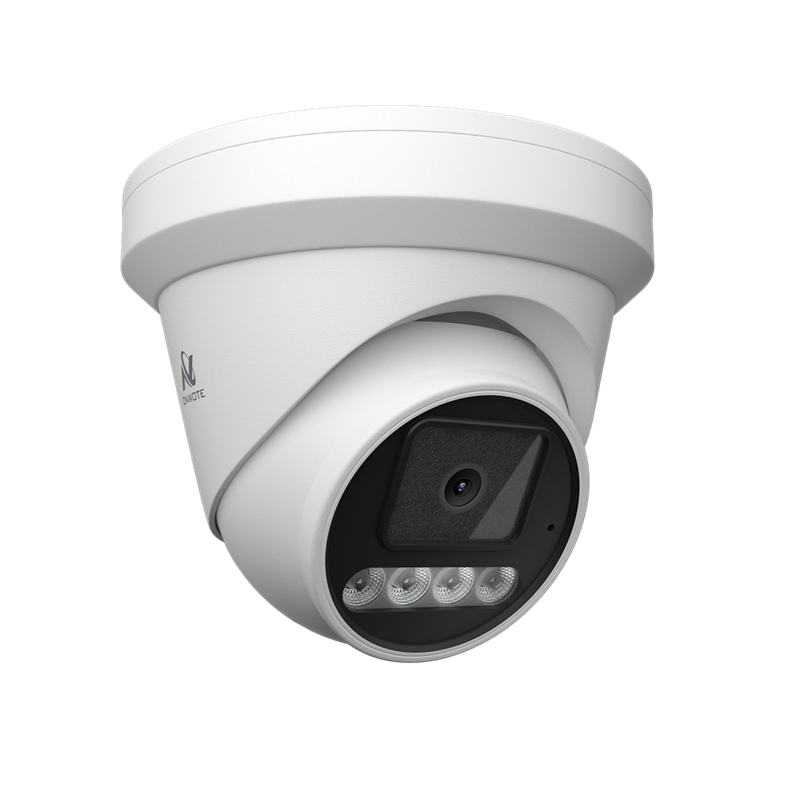

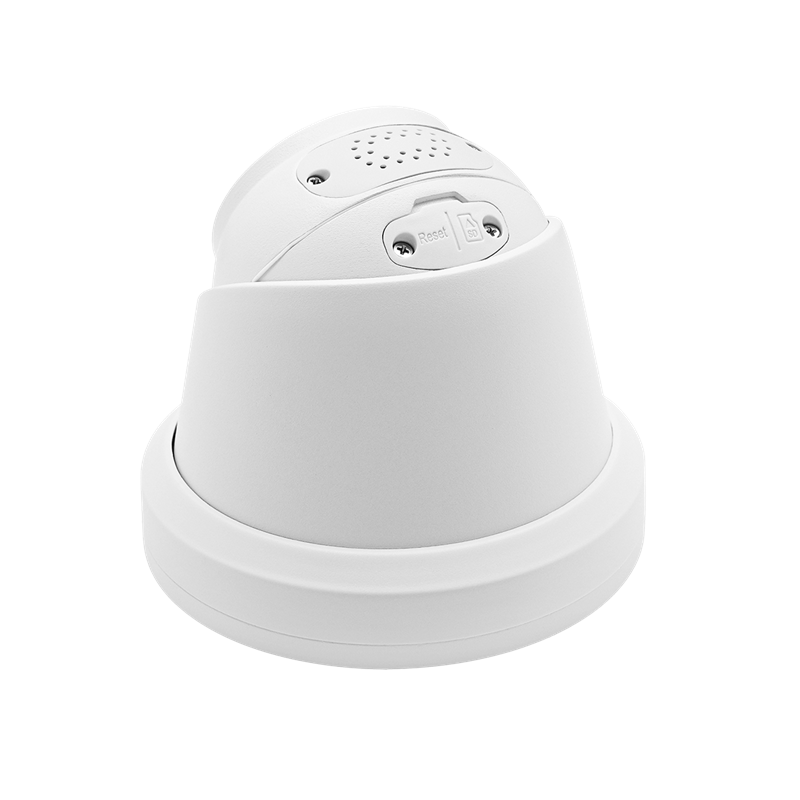

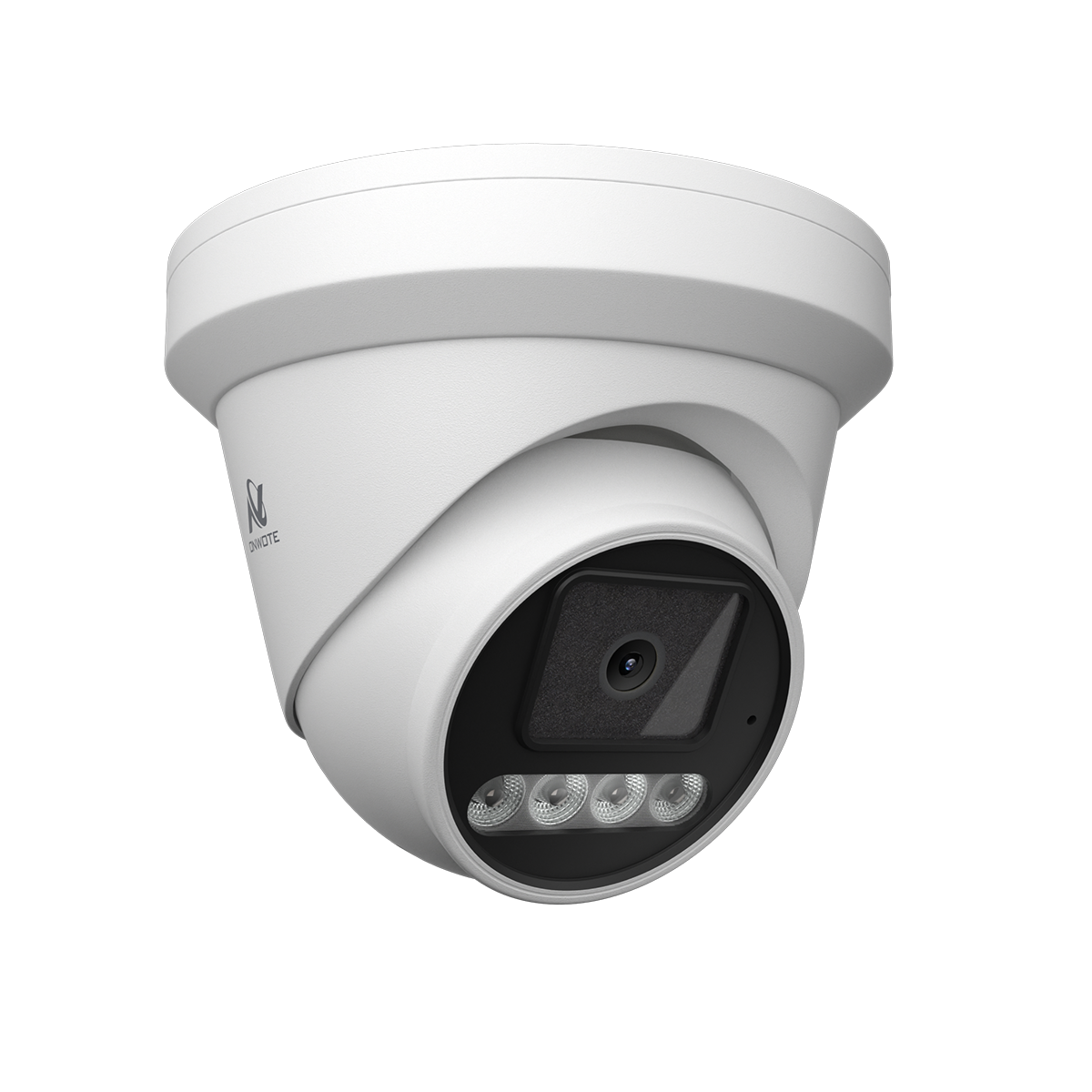

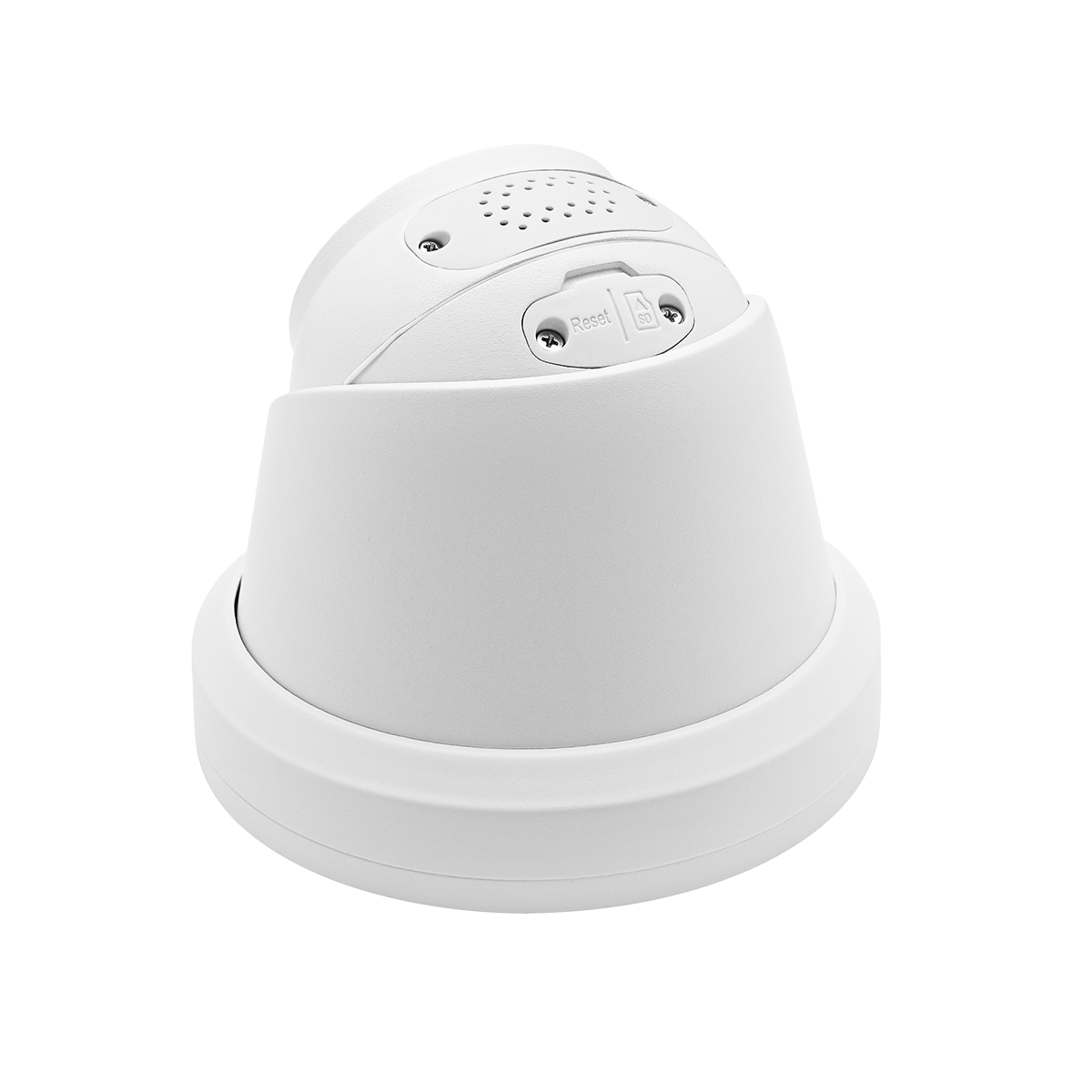

Camera NVR

H2A80-P28

Video Standard

H.265

Image Sensor

1/2.7" 8MP CMOS

Lens

2.8 mm Fixed Lens

Effective Pixels

8 Megapixels-3840(H) x 2160(V)

Viewing Angle

134°(Diagonal), 111°(Horizontal), 59°(Vertical)

Frame per Second

20fps@ 8MP(3840x2160), 30fps@ 6MP(3072x2048)/ 5MP(2592x1944)

AI Function

AI-Powered Face Recognition, Face Detection, Human Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area）

Audio

Two Way Audio

Image Rotation

Flip Vertical, Flip Horizontal, 180°, 90° Clockwise (CW), 90° Counterclockwise (CCW)

Image Adjust

Adjustable Brightness, Saturation, Sharpness, Contrast, Denoise (0-100%)

Privacy Mask

4 Areas

Night Mode

Black& White Mode

Night Vision

Infrared Lights with a Range of up to 100ft

Housing

Strong Water-Proof Housing, IP66 Rated

Working Temperature

-22°F~140°F, 10%-90%RH

Power Supply

PoE 802.3af/at 48V or 12V DC ± 10%

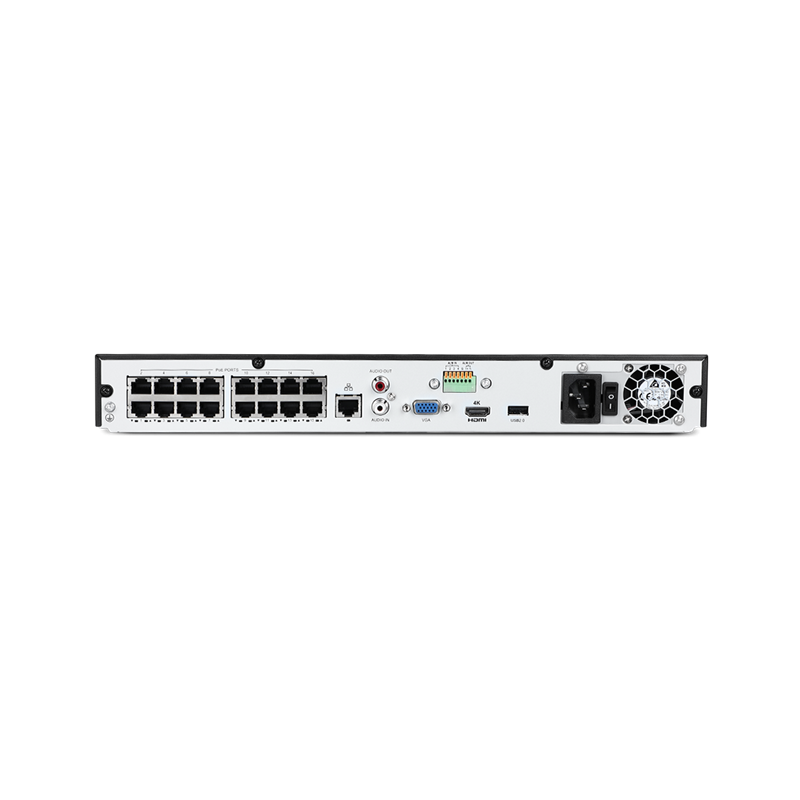

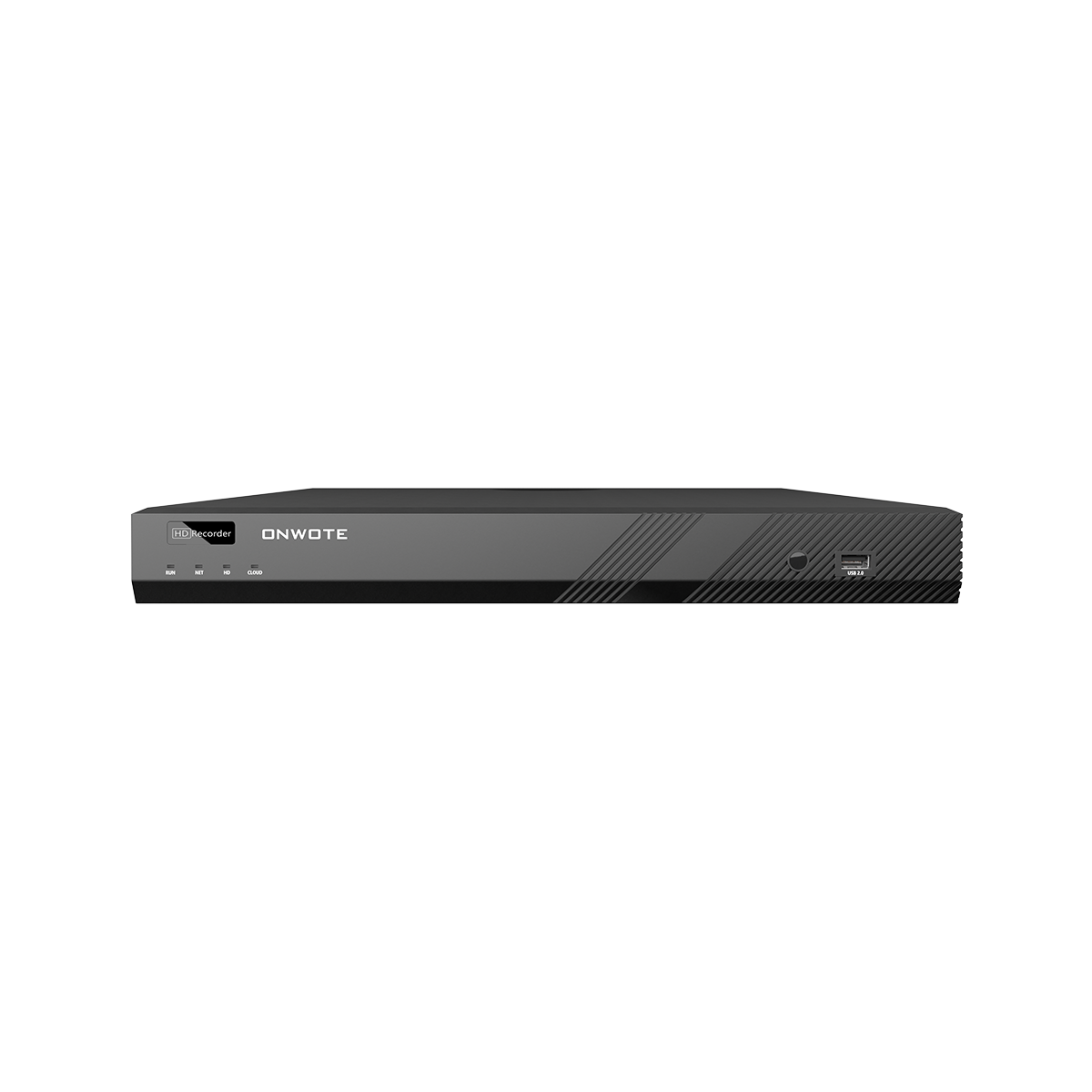

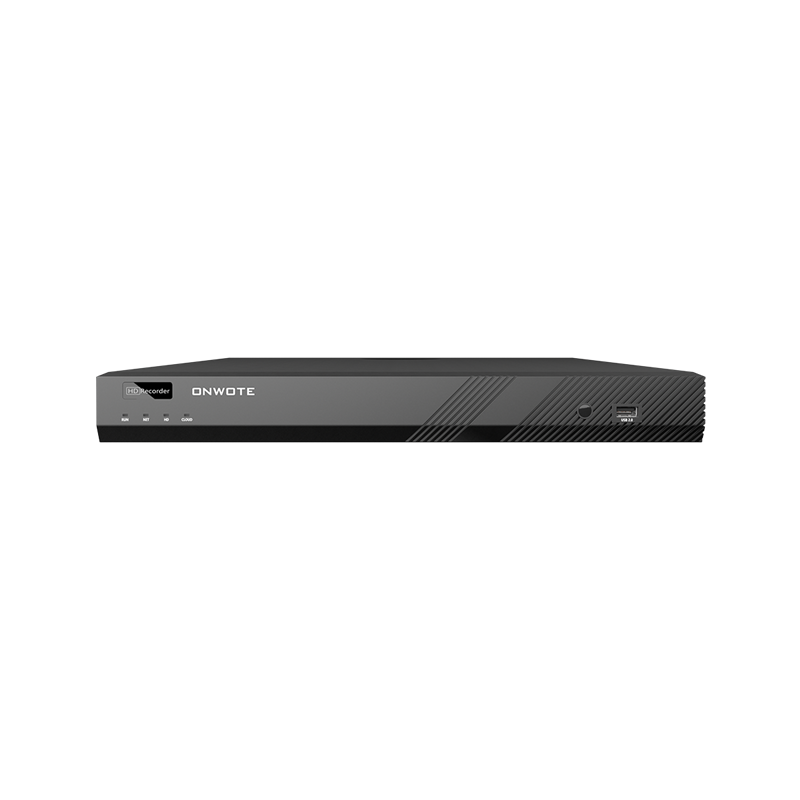

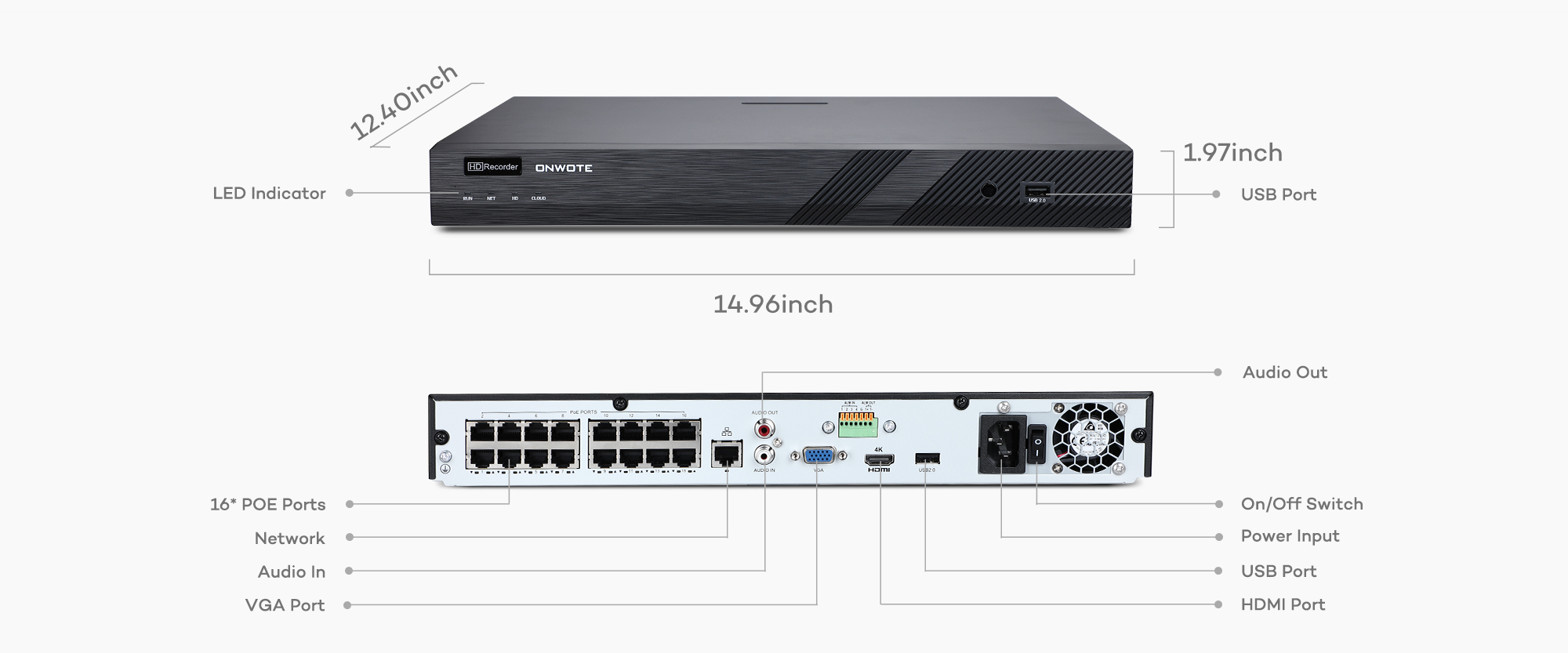

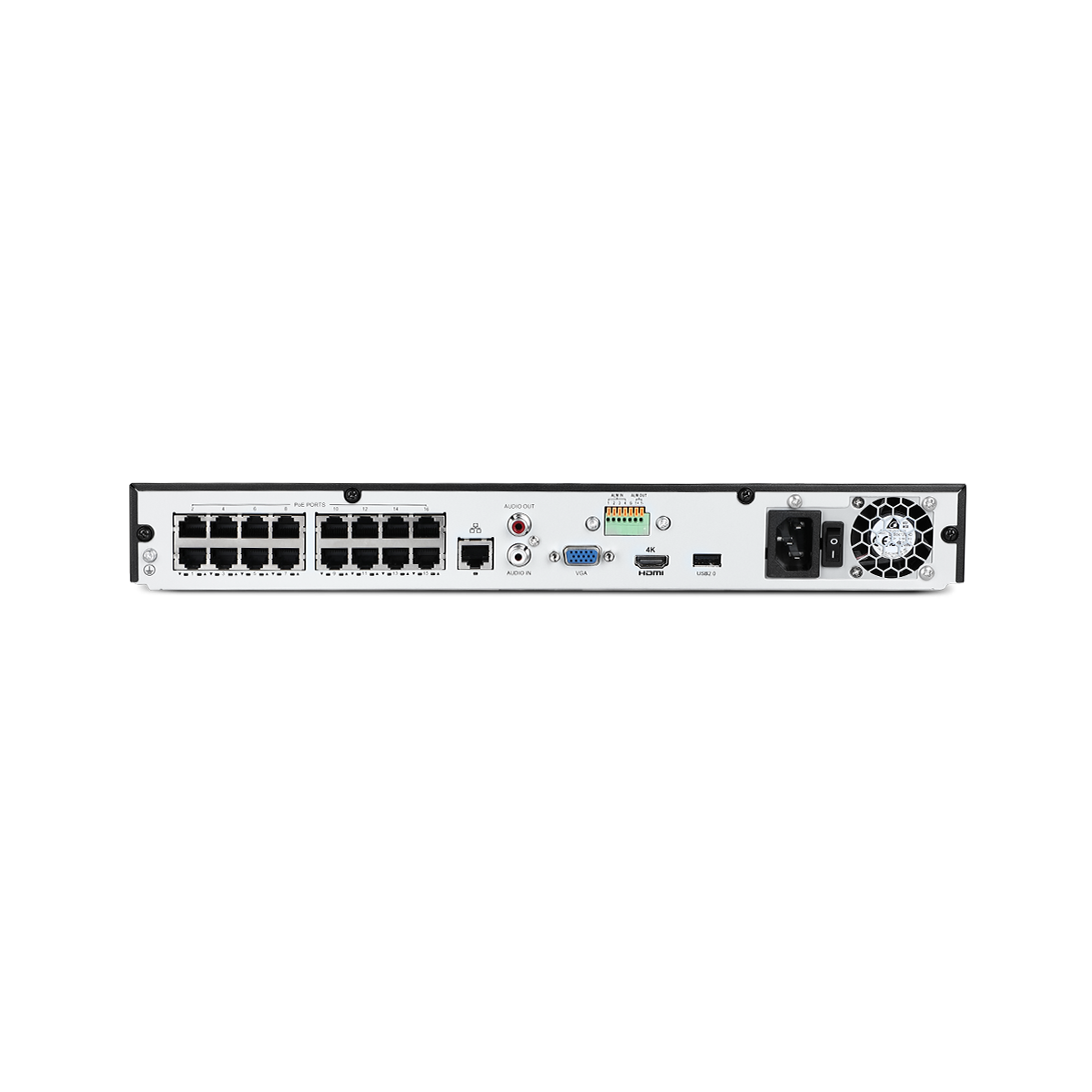

PNS-1216

16CH 6K 12MP NVR

Dual Stream Technology & Advanced HEVC Video Compression

Video Audio Input

16CH IPC, 12MP/ 8MP/ 6MP/ 5MP

Video Audio Output

1-CH HDMI up to 4K, 1-CH VGA up to 1080P

Storage Capacity

Built-in 4TB HDD, 2 SATA interfaces support up to 20TB

4 Optional Recording Modes

24/7 recording; motion detection recording; schedule recording; recycle recording

Synchronous Playback

Playback 16 cameras simultaneously on HD monitor or computer

Remote Access

Mobile (iPhone/ Android); PC (Windows/ Mac)

Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

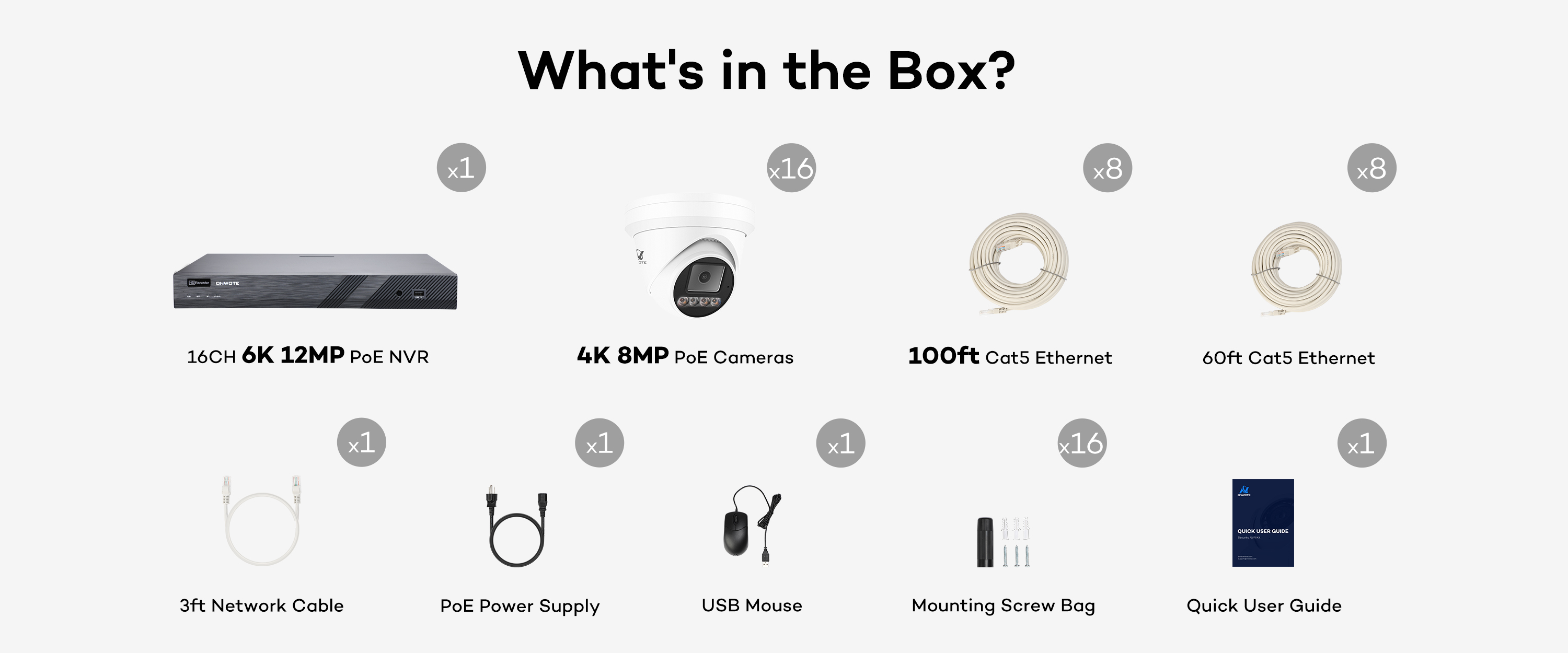

Packing List

Videos

Add-on

PTZ20X 4K/8MP PoE Camera

$275.99 Save 8%
PTZ5X 4K/8MP PoE PTZ Camera

$169.99
PTZ 5X 4K 8MP PoE Camera

$137.99 Save $12.00
PTZ 5X 4K 8MP PoE Camera

$147.19 Save 8%
$112.99
180° Dual-Lens 4K 8MP PoE Camera

$165.59 Save 8%
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
156° 4K 8MP PoE Camera

$112.99
6K/12MP PoE Camera

$153.99
6K/12MP PoE Camera

$141.67 Save 8%
16MP PoE Camera

$192.99
4K/8MP PoE Camera (Black)

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00

Comparison

	16CH 4K PoE System $ 1269.99	16CH 4K PoE System $ 1379.99	16CH 4K PoE System $ 1344.99	16CH 4K PoE System $ 1339.99	16CH 4K PoE System $ 774.59
Resolution	8MP@20FPS	8MP@20FPS	8MP@20FPS	8MP@20FPS	8MP@20FPS
Field of View	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)
Audio	Two Way Audio	Two Way Audio	Built-in Microphone	Built-in Microphone	Built-in Microphone
AI Function	Face Recognition& AcuSearch	Face Recognition & AcuSearch	AI Human Vehicle Detection	AI Human Vehicle Detection	AI Human Vehicle Detection
NVR Channels	16-CH 6K 12MP NVR	16-CH 6K 12MP NVR	16-CH 6K 12MP NVR	16-CH 6K 12MP NVR	16-CH 6K 12MP NVR
HDD Pre-installed	/	4TB HDD	4TB HDD	4TB HDD	4TB HDD
Storage Capacity	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports
PoE Switch	/	/	/	/	/


16CH 4K PoE System $ 1269.99
16CH 4K PoE System $ 1379.99
16CH 4K PoE System $ 1344.99
16CH 4K PoE System $ 1339.99
16CH 4K PoE System $ 774.59

Resolution	Field of View	Audio	AI Function	NVR Channels	HDD Pre-installed	Storage Capacity	PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Two Way Audio	Face Recognition& AcuSearch	16-CH 6K 12MP NVR	/	Support 20TB via 2 SATA Ports	/
8MP@20FPS	134°(D), 111°(H), 59°(V)	Two Way Audio	Face Recognition & AcuSearch	16-CH 6K 12MP NVR	4TB HDD	Support 20TB via 2 SATA Ports	/
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	AI Human Vehicle Detection	16-CH 6K 12MP NVR	4TB HDD	Support 20TB via 2 SATA Ports	/
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	AI Human Vehicle Detection	16-CH 6K 12MP NVR	4TB HDD	Support 20TB via 2 SATA Ports	/
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	AI Human Vehicle Detection	16-CH 6K 12MP NVR	4TB HDD	Support 20TB via 2 SATA Ports	/
