Overview

5MP

40TB Storage Capacity

Smart Search & Playback

Commercial Grade

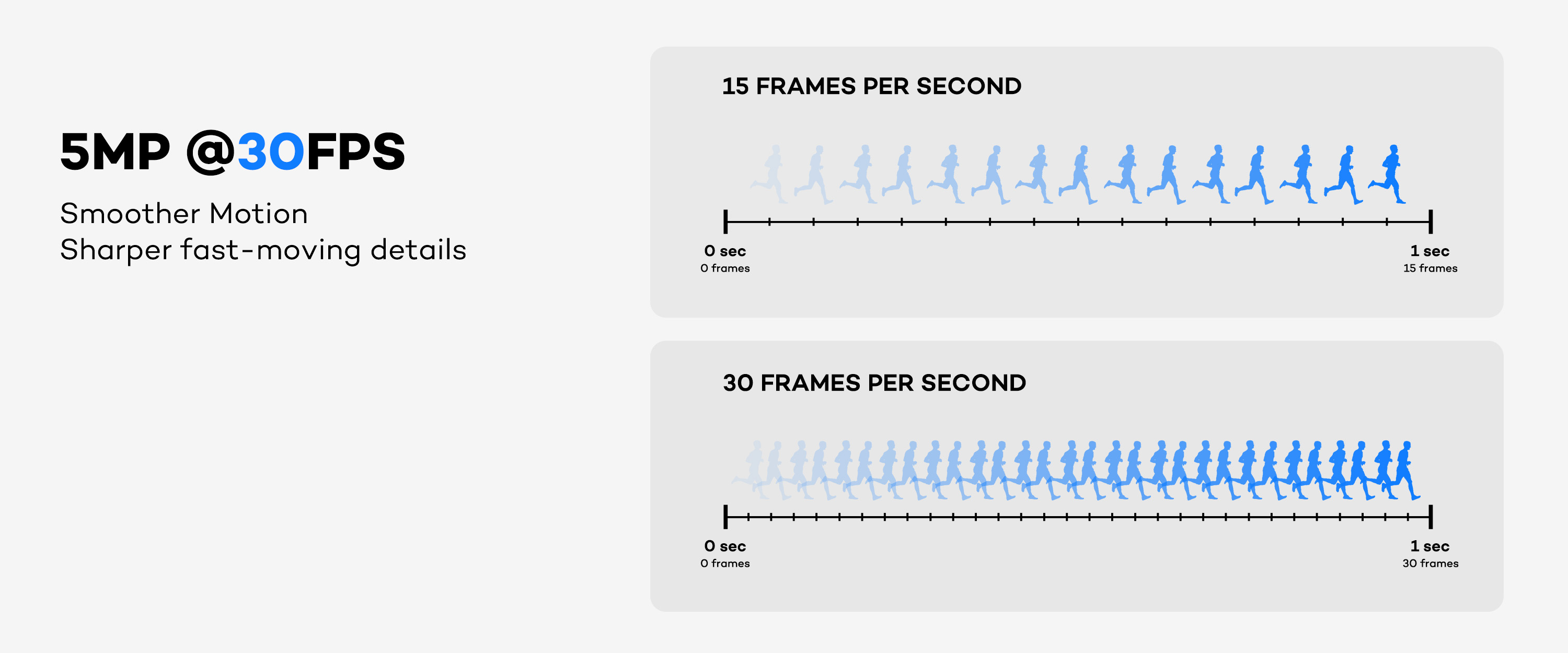

Enjoy ultra-clear 5MP HD video at 30fps

Experience high-quality visuals with 5 million pixels at 30 frames per second—ensuring smoother playback and sharper images

30FPS

With 30fps video output, enjoy smooth and reliable real-time surveillance. Reduced motion blur and stutter ensure every detail is captured clearly—boosting both clarity and security performance

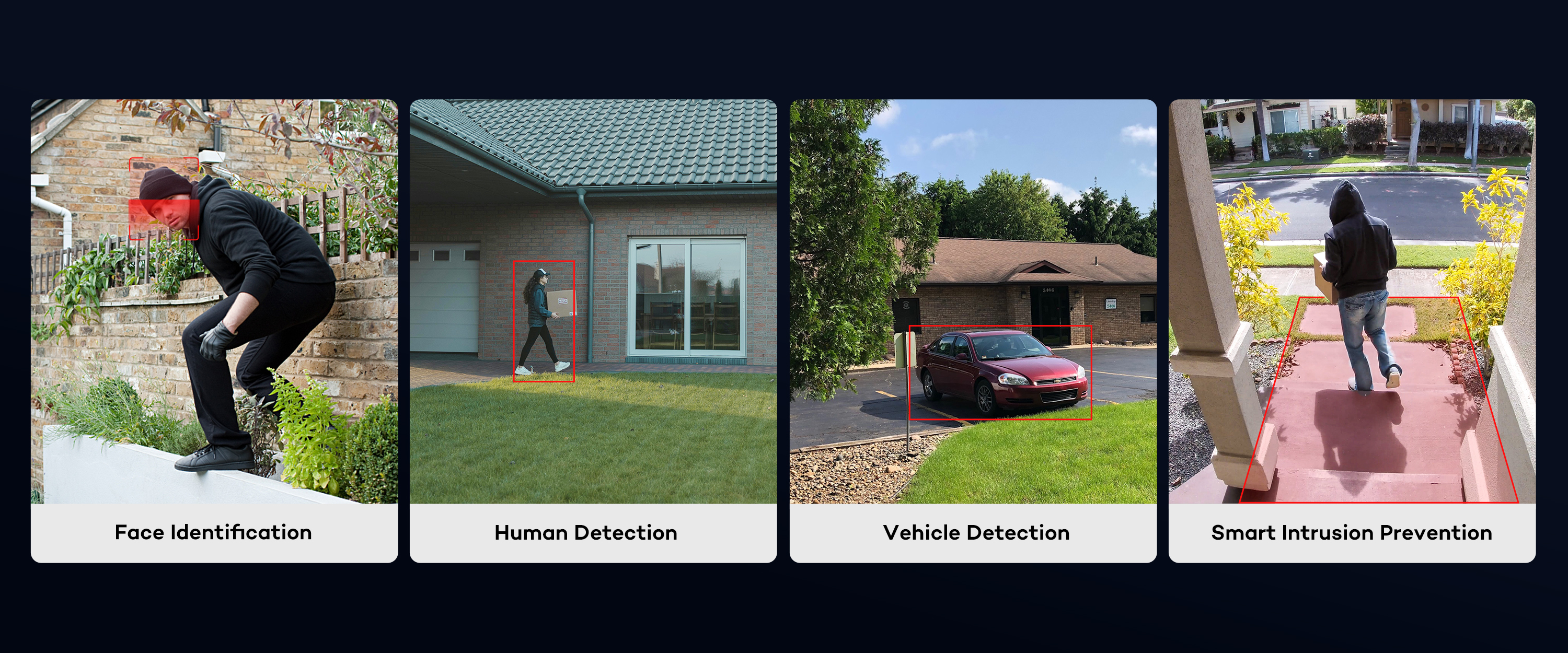

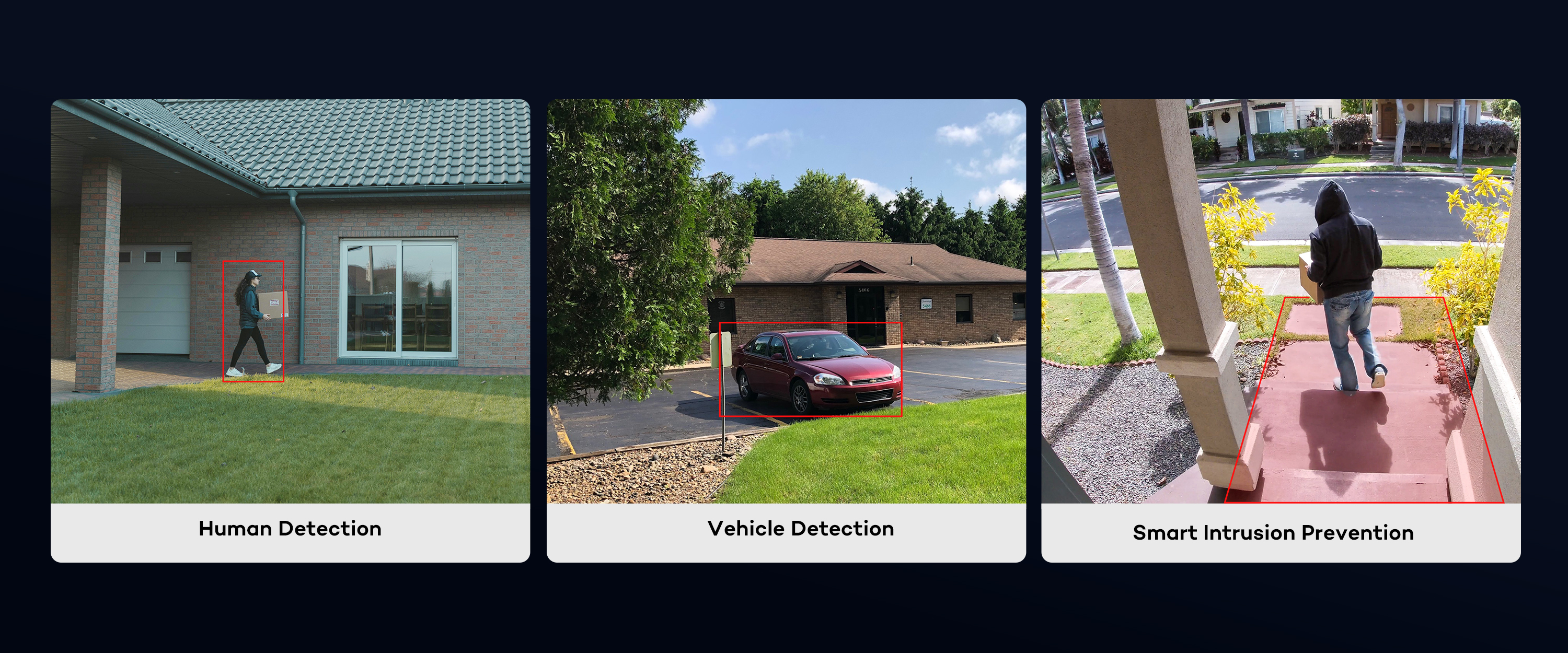

AI Human & Vehicle Detection

Reduces false alarms from shadows, insects, wind, and rain, helping you save storage space.

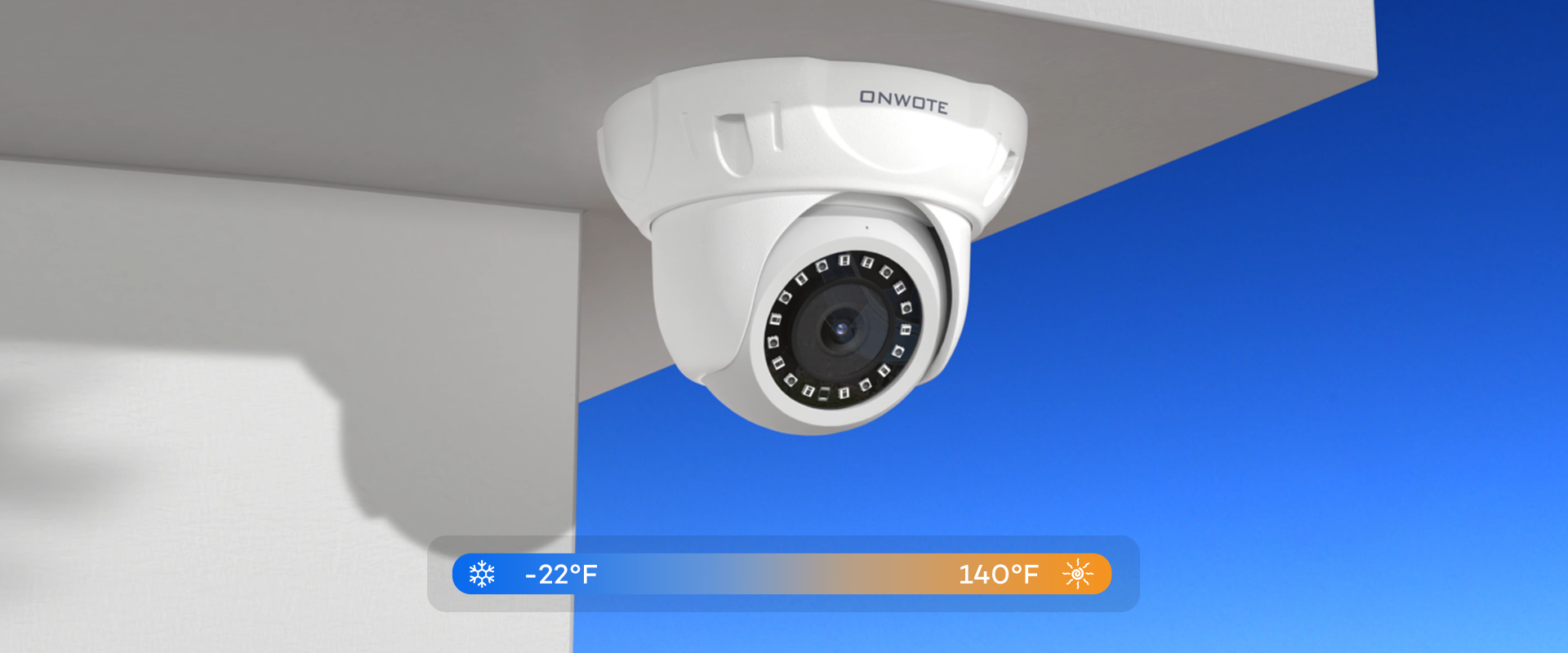

IP66-Rated Weatherproof Reliability

Durable weatherproof metal housing suitable for both indoor and outdoor use

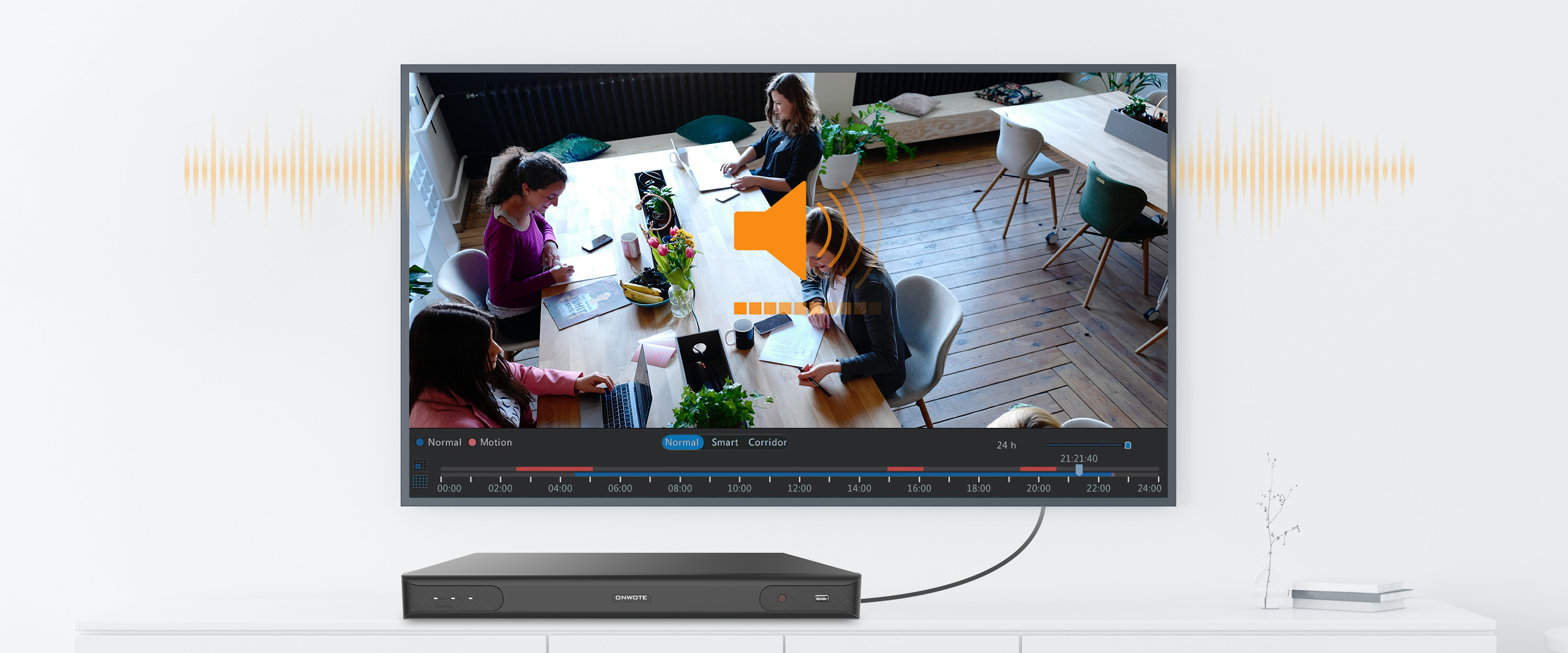

Capture & Record Audio

Cameras capture audio, recorded by the NVR for playback on an HD TV or mobile app.

Audio Capture Mobile App Playback HD TV Output

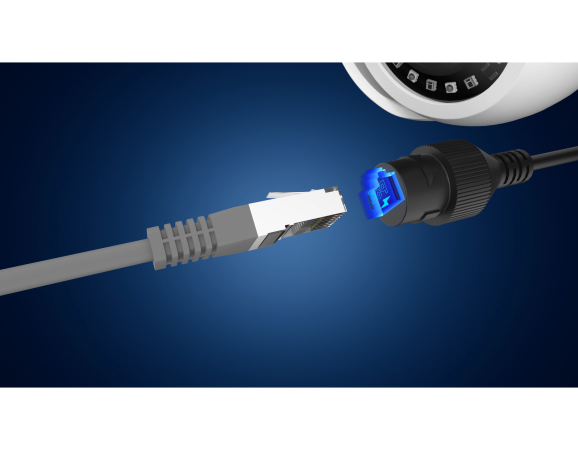

Effortless Setup —A Ethernet Cable Does It All

PoE technology allows a single Cat5 Ethernet cable to transmit video, audio, and power—making installation simpler than traditional DVR systems. Just plug and play.

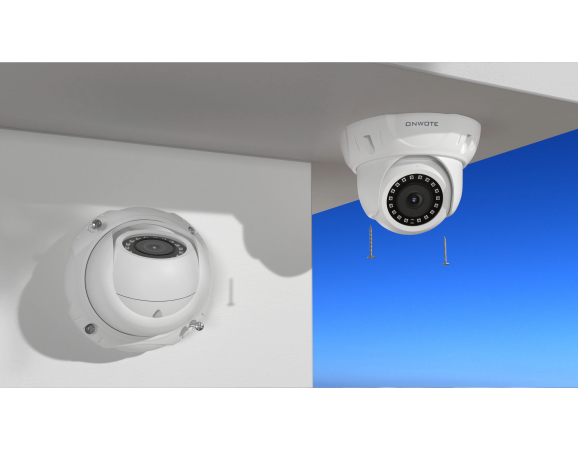

Hassle-Free Installation

Our cameras are designed with simplicity in mind. Whether you're a professional installer or a first-time user, setting up your surveillance system has never been easier.

One stop DIY

The NVR supports up to 16 cameras, with resolution options of 6K (12MP) or 4K (8MP). A variety of add-ons are available, including pan-tilt-zoom and two-way audio cameras

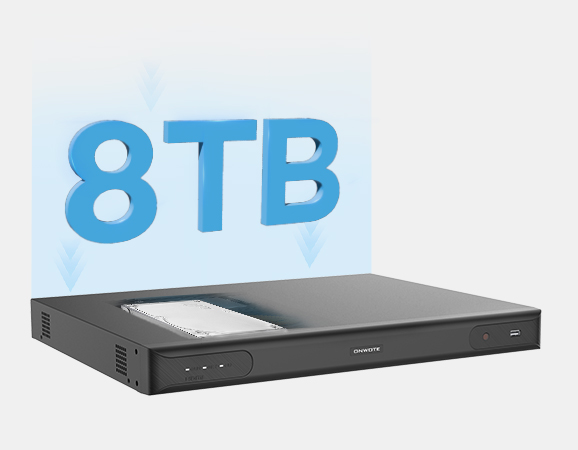

8TB Storage Pre-Installed

An 8TB hard drive comes pre-installed in the NVR, offering free local storage. HEVC advanced encoding helps reduce file sizes and save space.

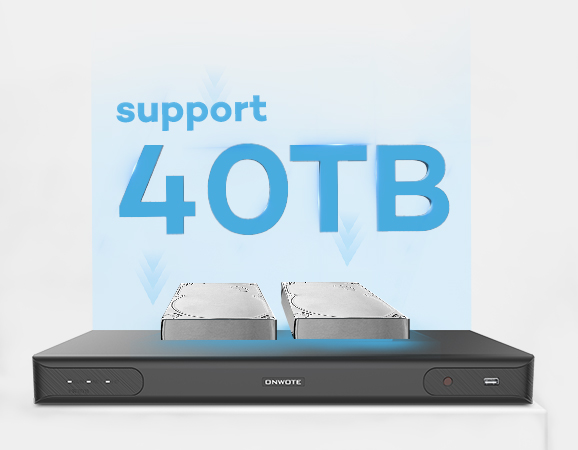

Expandable Up to 40TB

With four 4 ports, the system supports up to 40TB of total storage capacity.

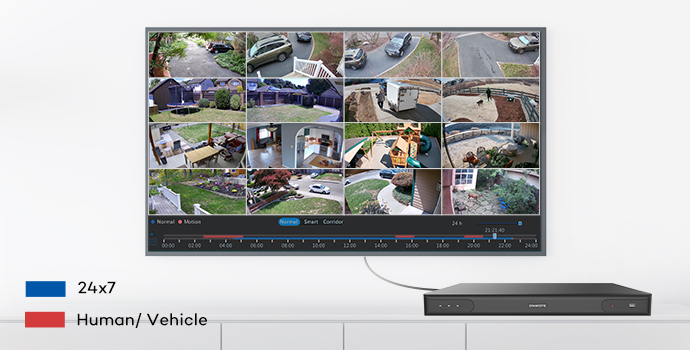

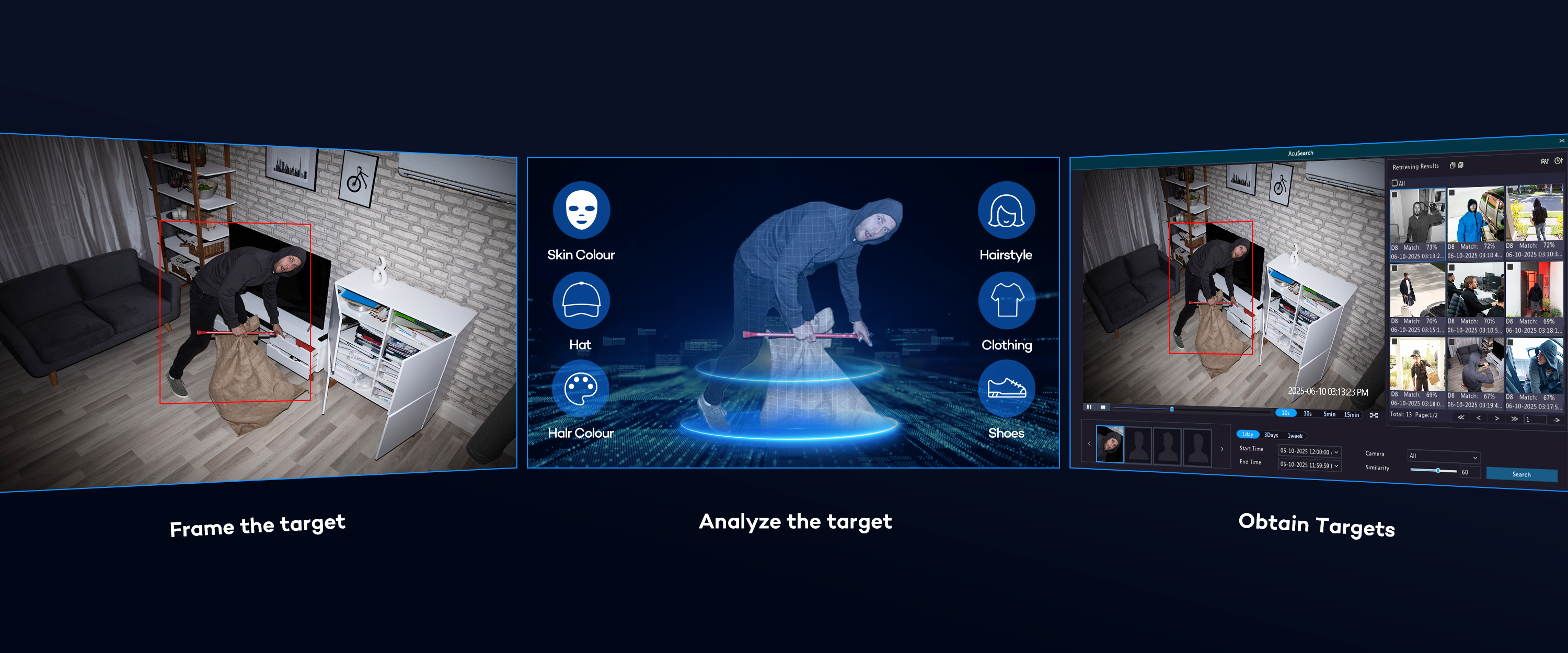

Smart Search & Playback

Quickly locate footage using smart person/vehicle event filters. Play back recordings from up to 16 cameras simultaneously on an HD monitor or computer.

Professional

2000+ Installer‘s Choice

Commerce

15 Years in Business POE commercial grade

Technical Support

10+ Years of experience technical support

Specification

Camera NVR POE Switch

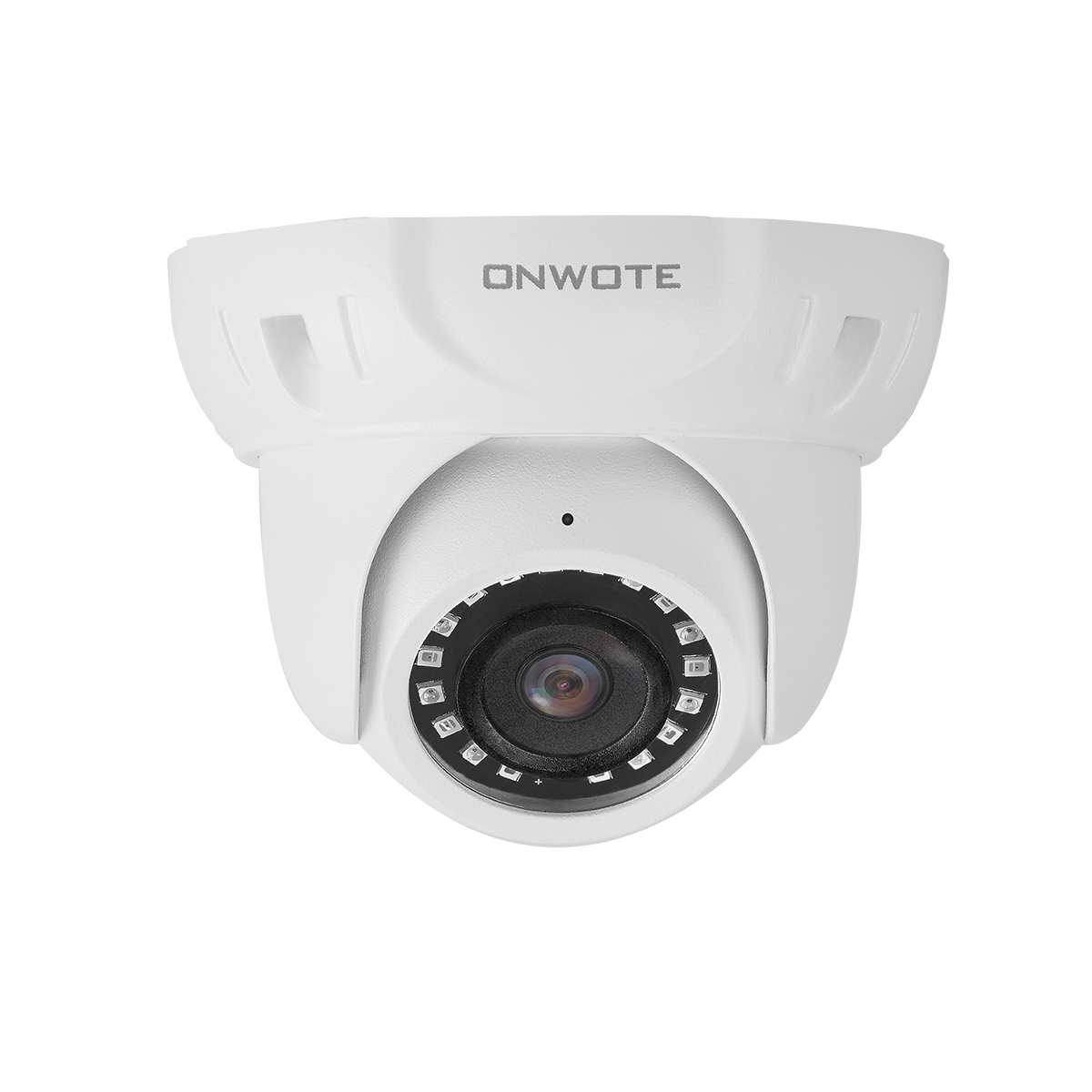

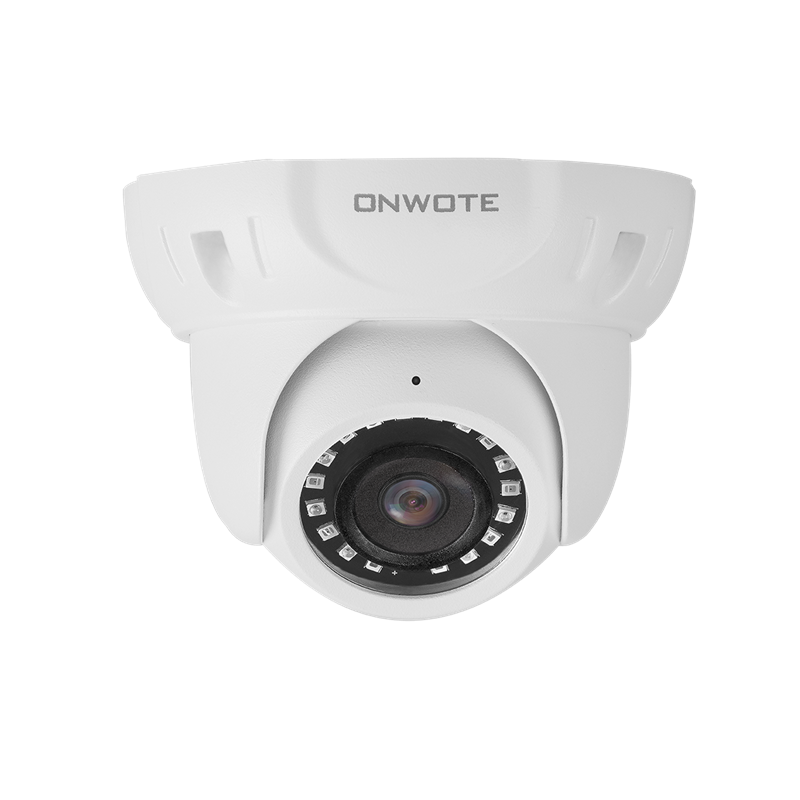

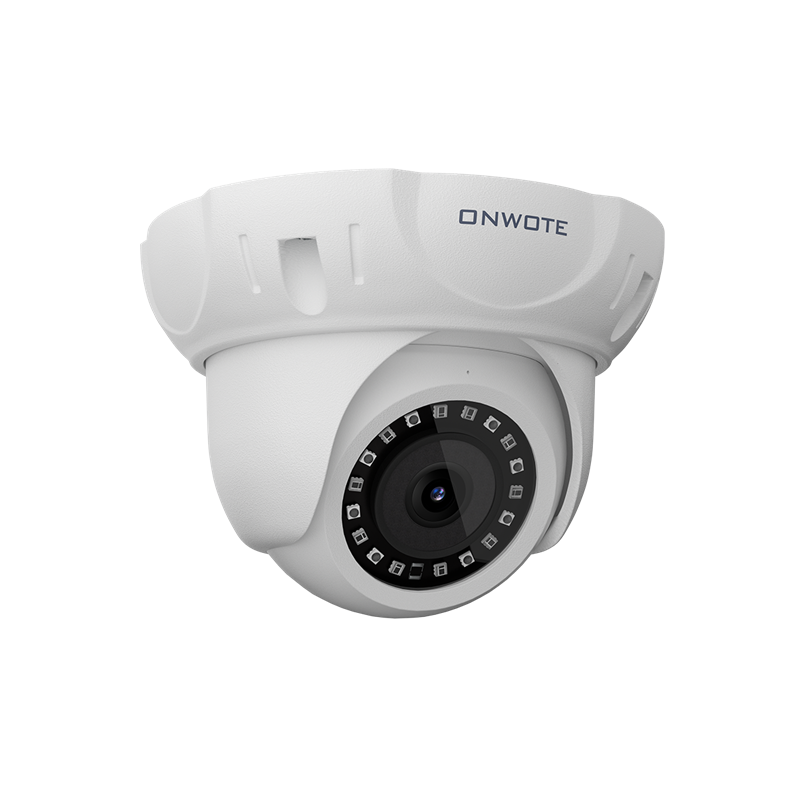

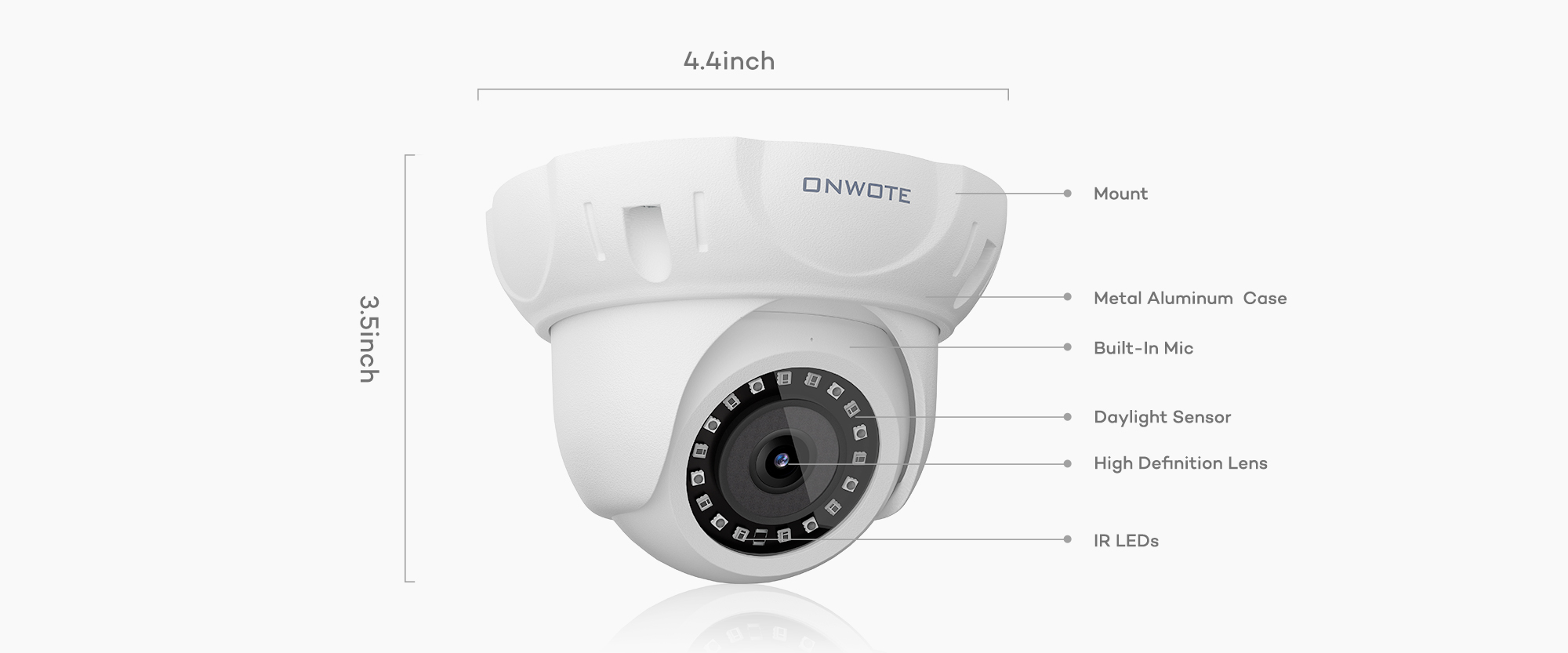

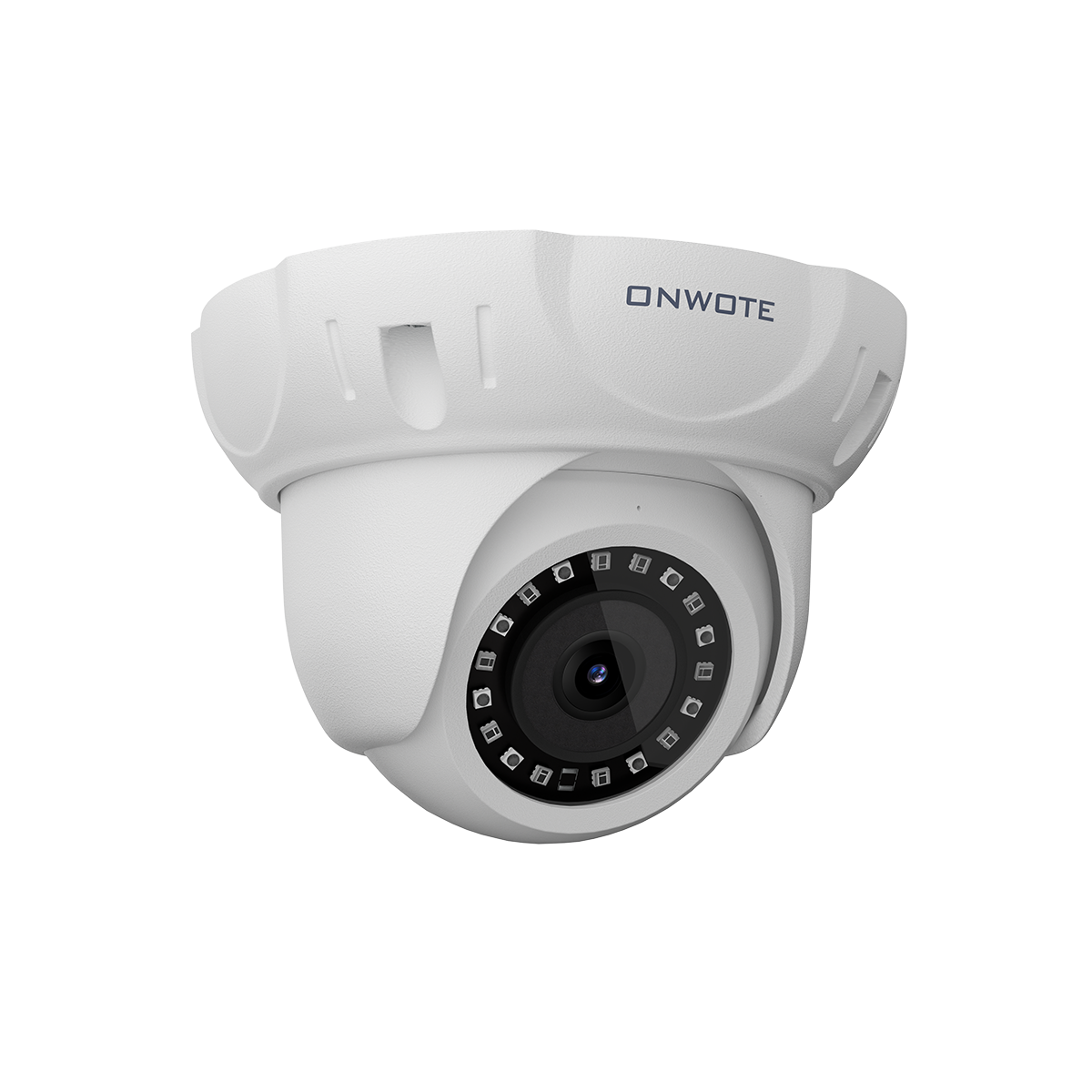

MRA50

5MP HD Camera

5 Megapixels-2592(H) x 1944(V)

30FPS

30 Frames Per Second

Viewing Angle

122°(Diagonal), 102°(Horizontal), 55°(Vertical)

AI Function

Face Detection, Human Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area）

Audio

Built-in Microphone (10-15ft)

Night Mode

Smart AI Color Mode/ Full Color Mode/ Black& White Mode

Indoors & Outdoors

IP66 Metal Housing, -22°F~140°F, 10%-90%RH

Power Supply

PoE 802.3af/at 48V; 12V DC ± 10%

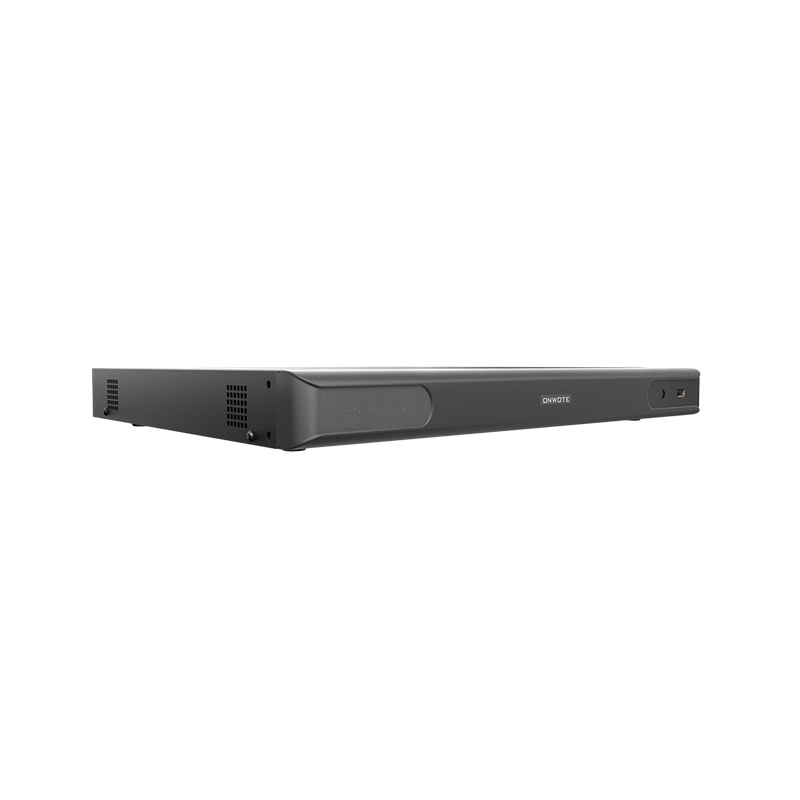

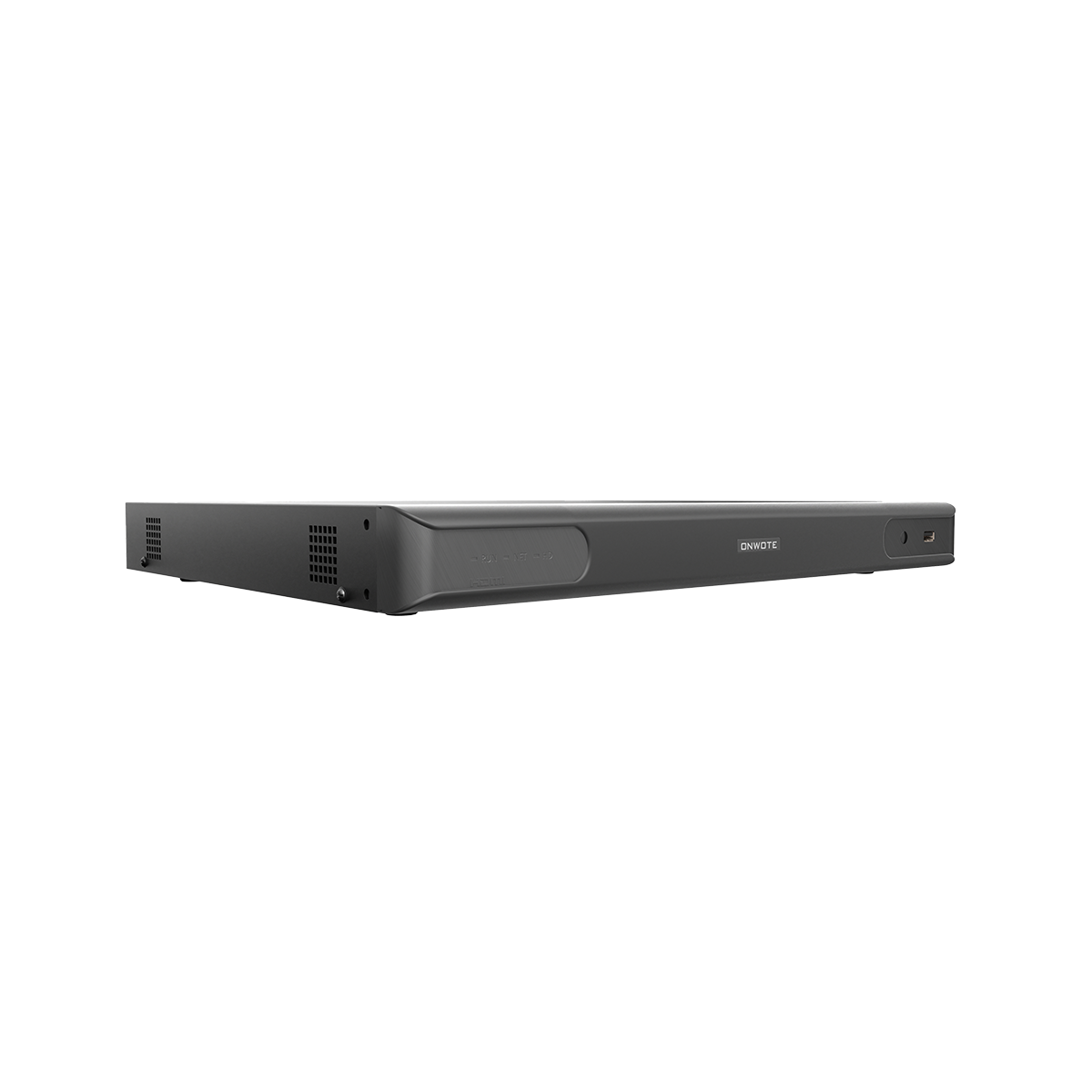

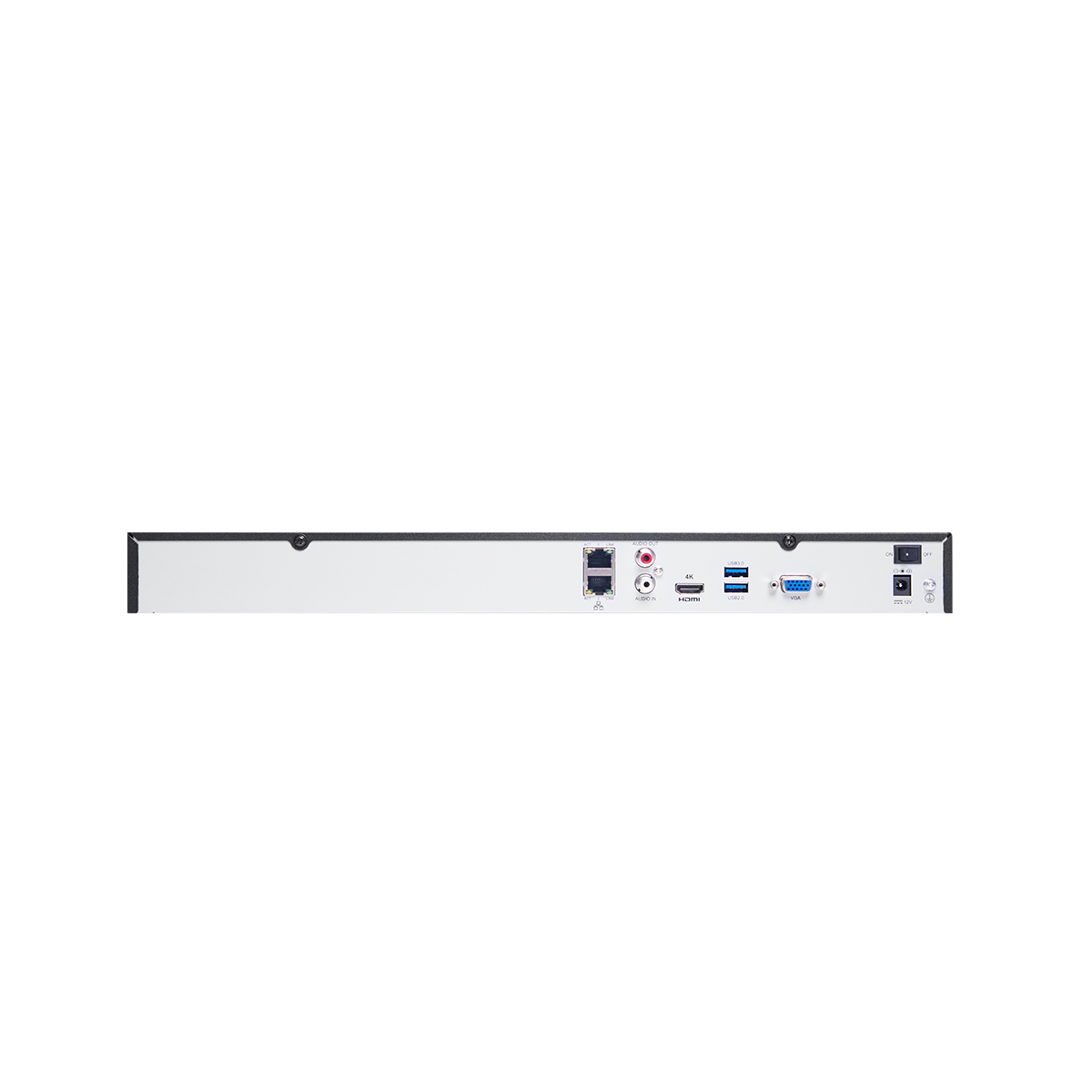

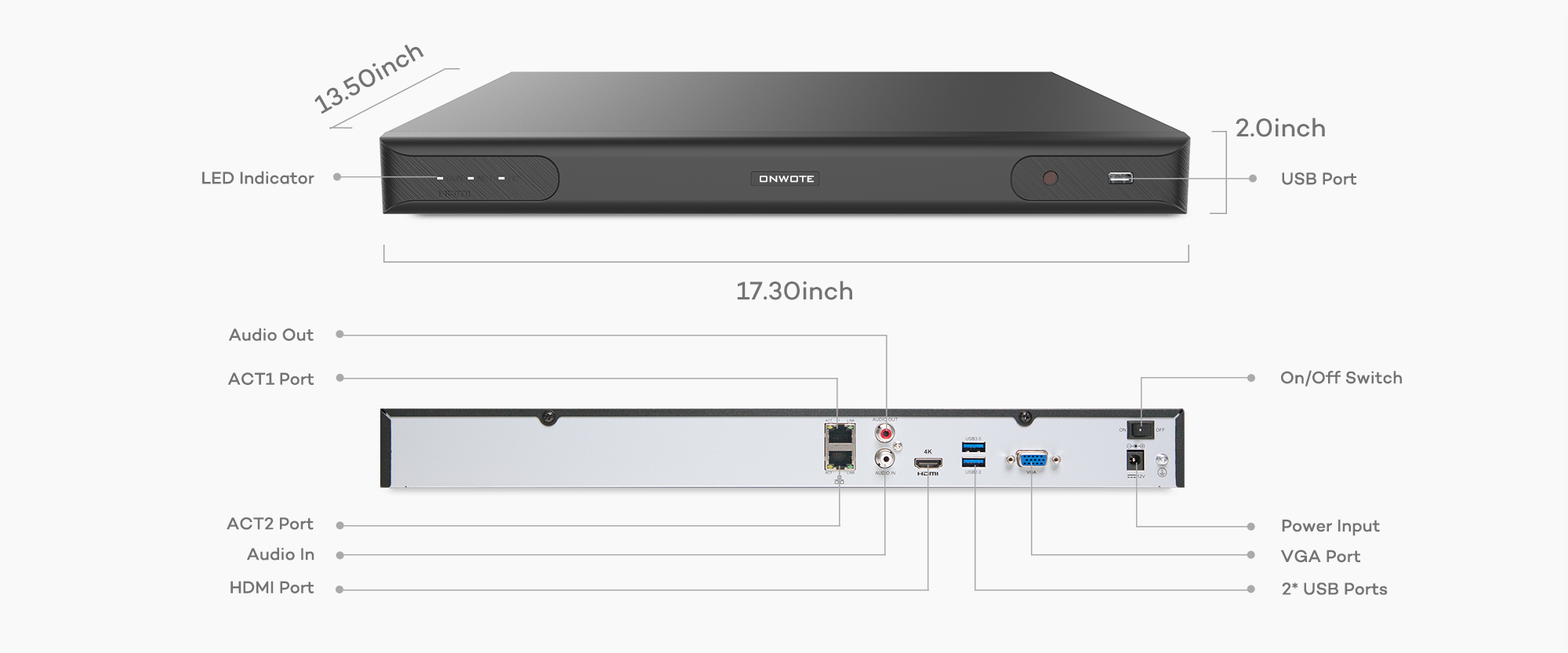

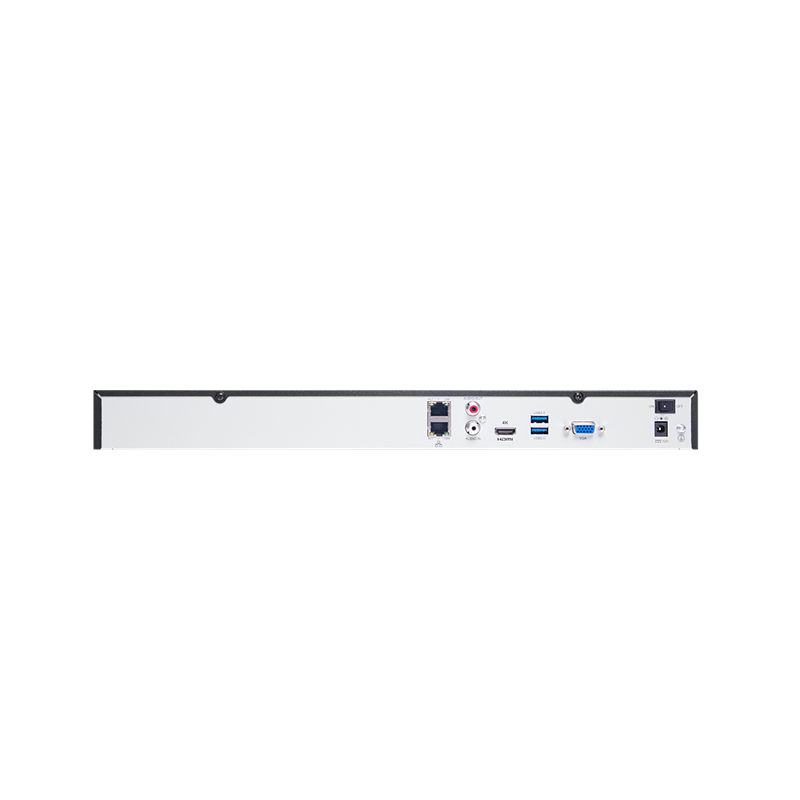

PNA-1232

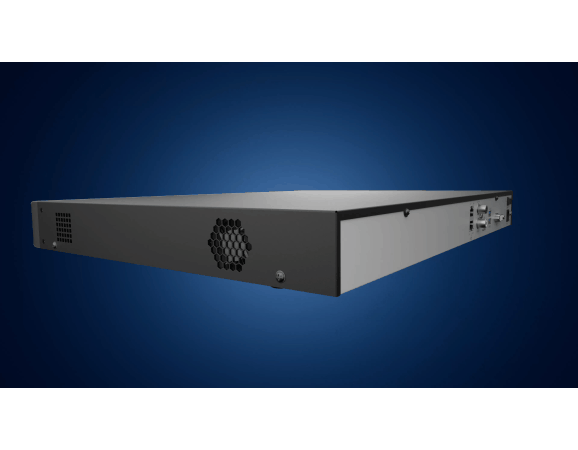

32CH 6K 12MP NVR

Incoming-160Mbps; outgoing-128Mbps

Video Audio Input

32CH IPC, 20CH 12MP, 26CH 8MP/6MP/5MP, 32CH 4MP

Video Audio Output

AI Function

Smart by NVR: Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) VCA Search: Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch

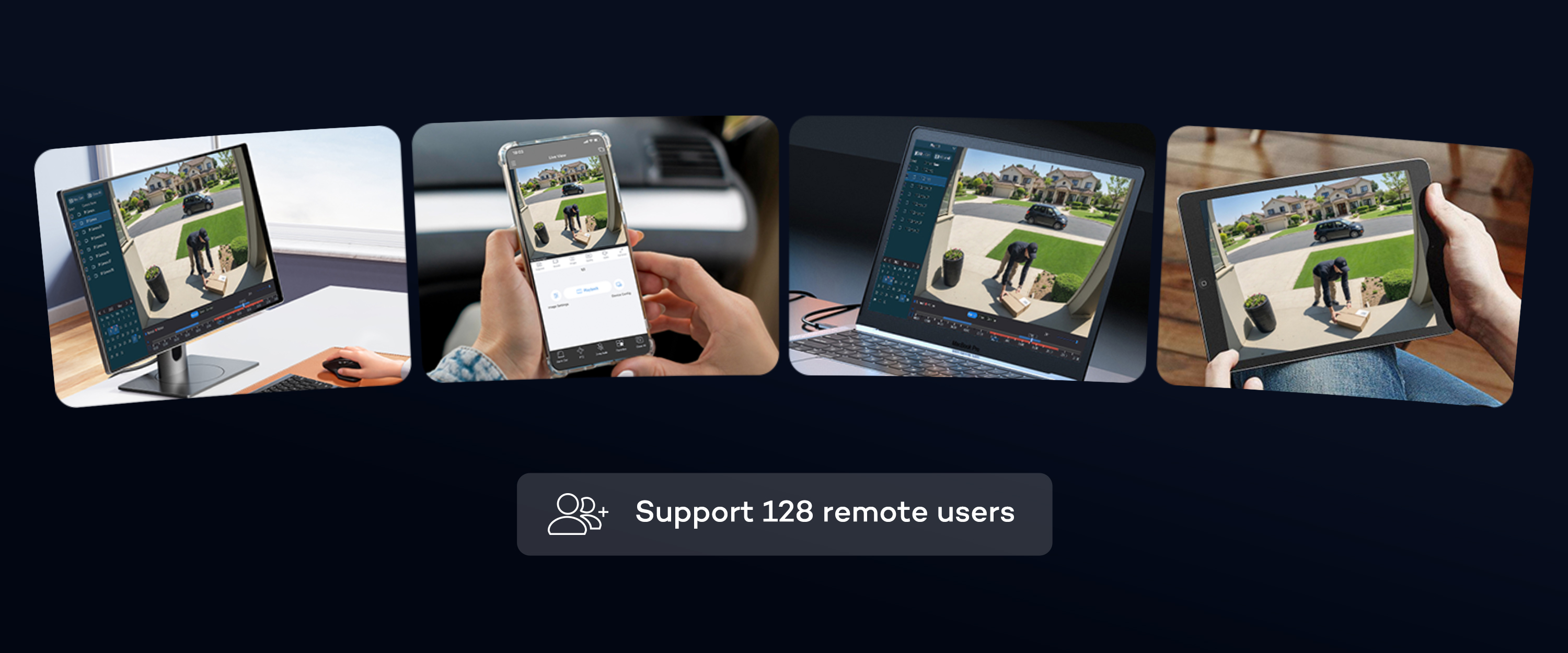

Remote Access

128 remote users; Mobile (iPhone/ Android); PC (Windows/ Mac)

Storage Capacity

Built-in 8TB HDD, 4 SATA interfaces support up to 40TB

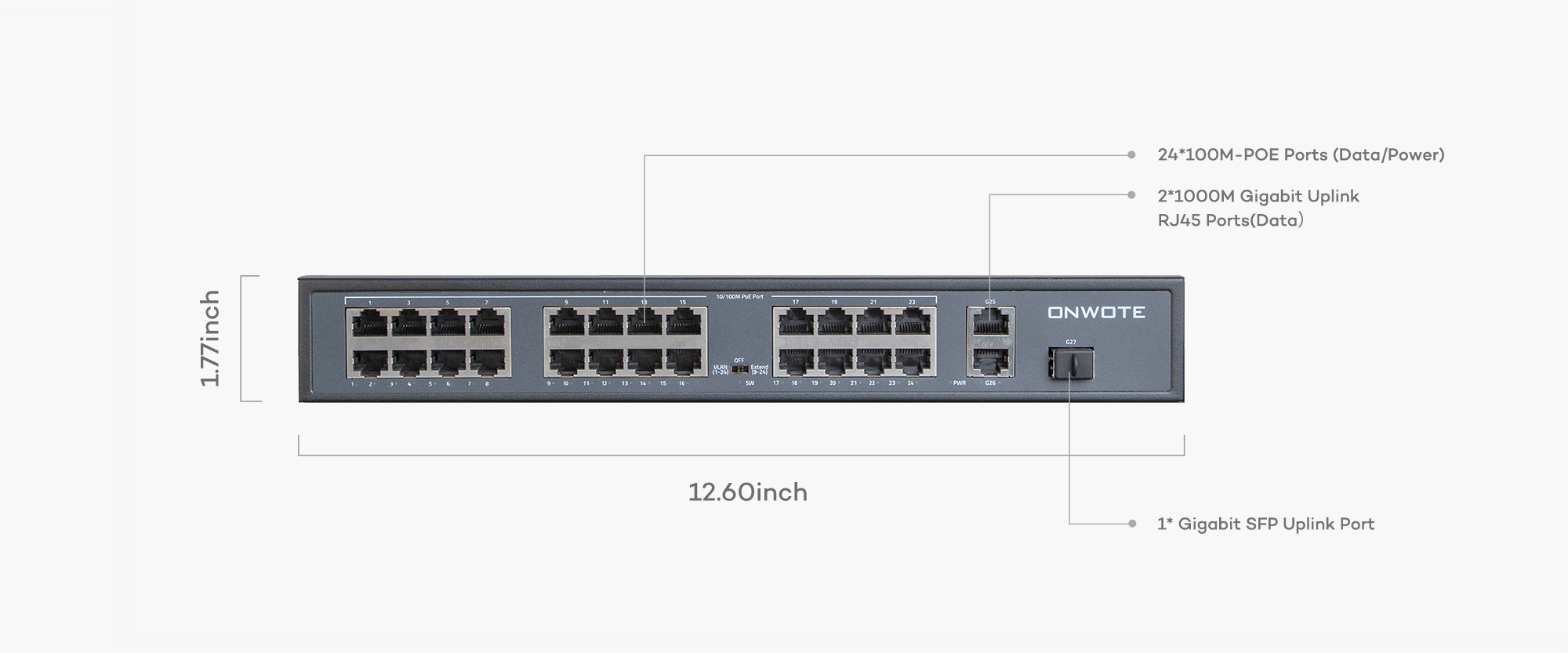

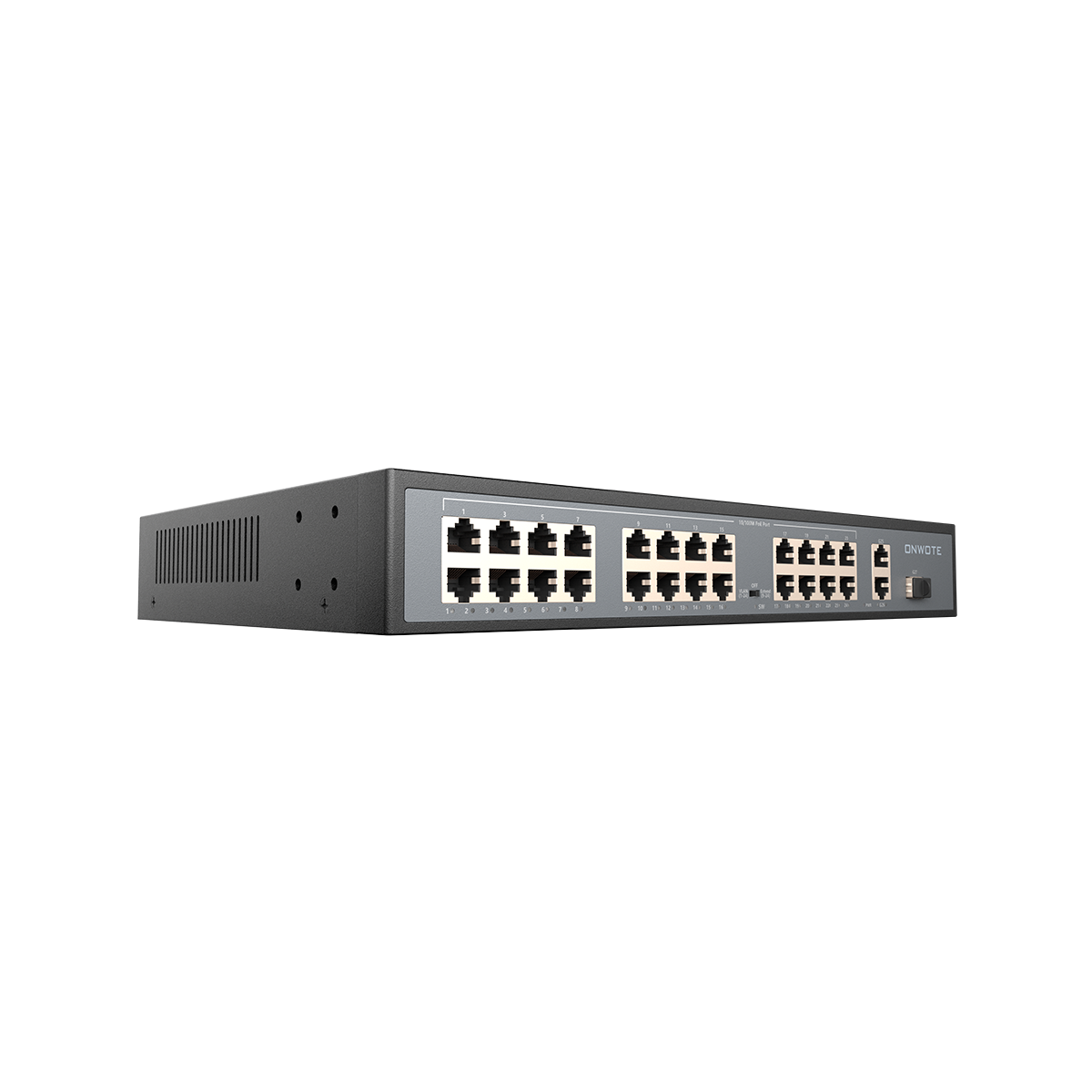

24 Ports & 8 Ports PoE Switch

24 Ports: 24* 100M ports+ 2* gigabit ports+ 2* combo SFP Slots; 8 Ports: 8* 100M ports+ 2* gigabit ports

Operating Temperature

'-10°C～ 55°C, 14°F~131°F, 10% ～ 90%RH(non-condensing)

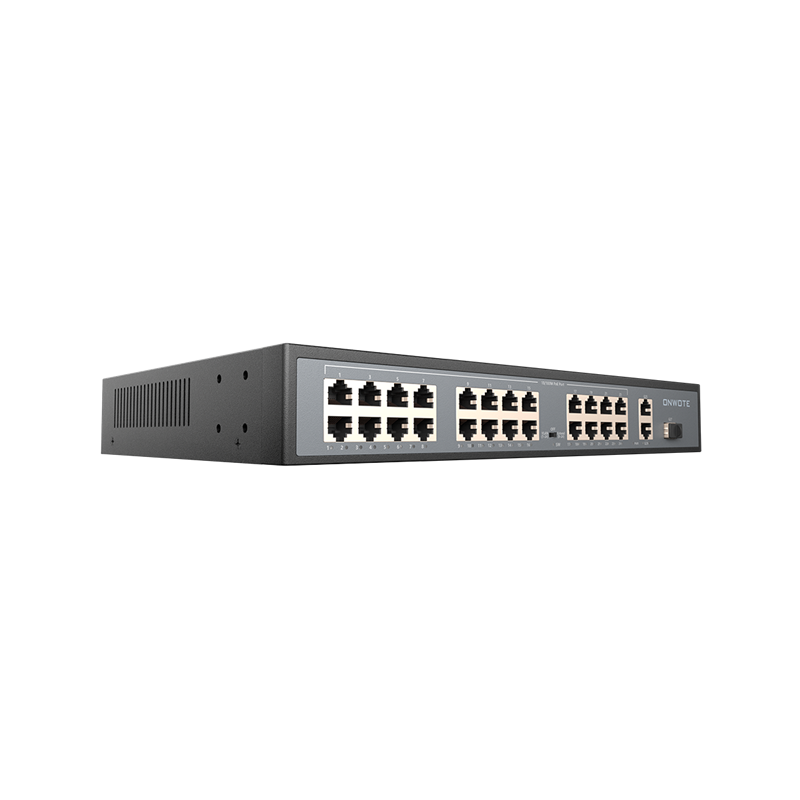

PS-24M2G1S

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

300W

PoE Protocol

IEEE802.3af(15.4W); IEEE802.3at(30W)

PoE Ports

24 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports; 1* Gigabit SFP Uplink Port

Transfer Mode

Store and forward

Switching Capacity

10.8Gbps

Forwarding Rate

8.03Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting:Powered; Un-Light:No Power

Switch Mode

Lighting: VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-27 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

Product Dimensions

12.60*8.15*1.77inch

Net Weight

3.95lbs

Package List

1x 24 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

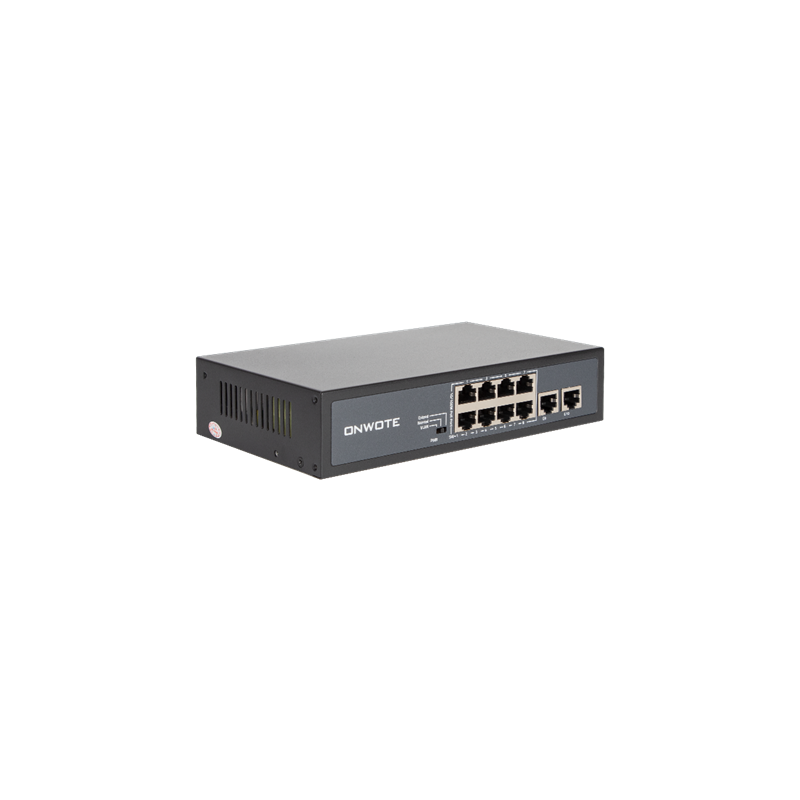

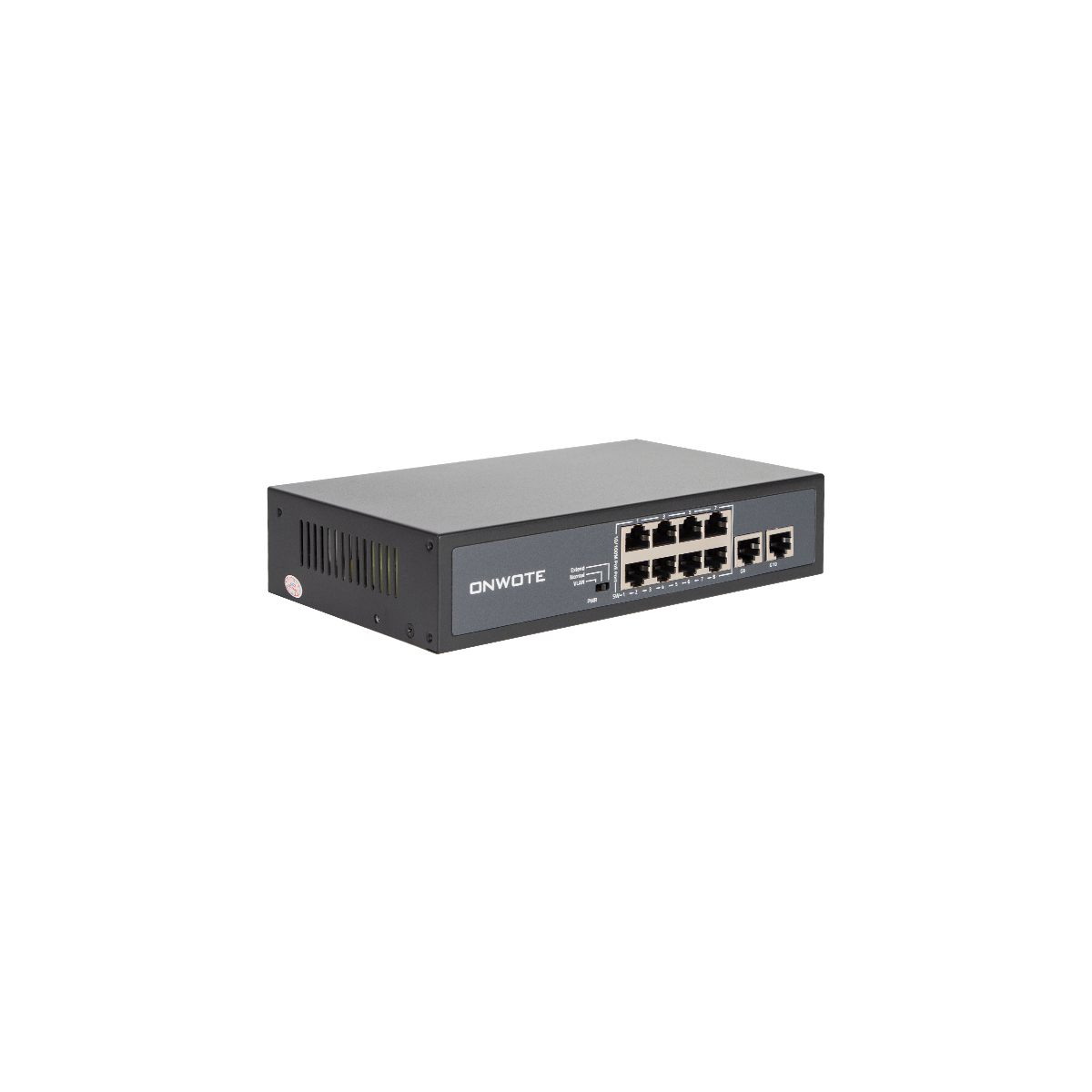

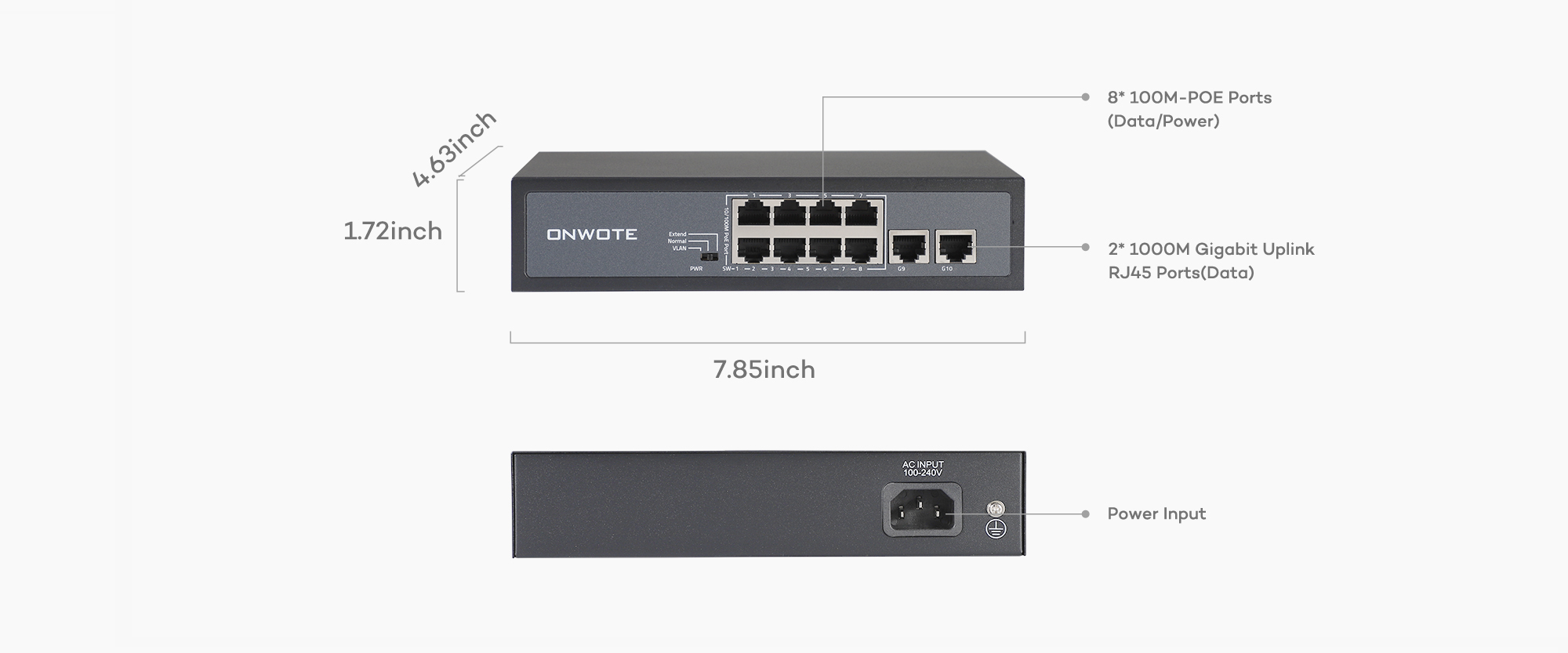

PS-8M2G

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

120W

PoE Protocol

IEEE802.3af (15.4W); IEEE802.3at (30W)

PoE Ports

8 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports

Transfer Mode

Store and forward

Switching Capacity

5.6Gbps

Forwarding Rate

4.166Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting: Powered; Un-Light: No Power

Switch Mode

Lighting:VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-10 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

Product Dimensions

7.87*4.65*1.73inch

Net Weight

1.36lbs

Package List

1x 8 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

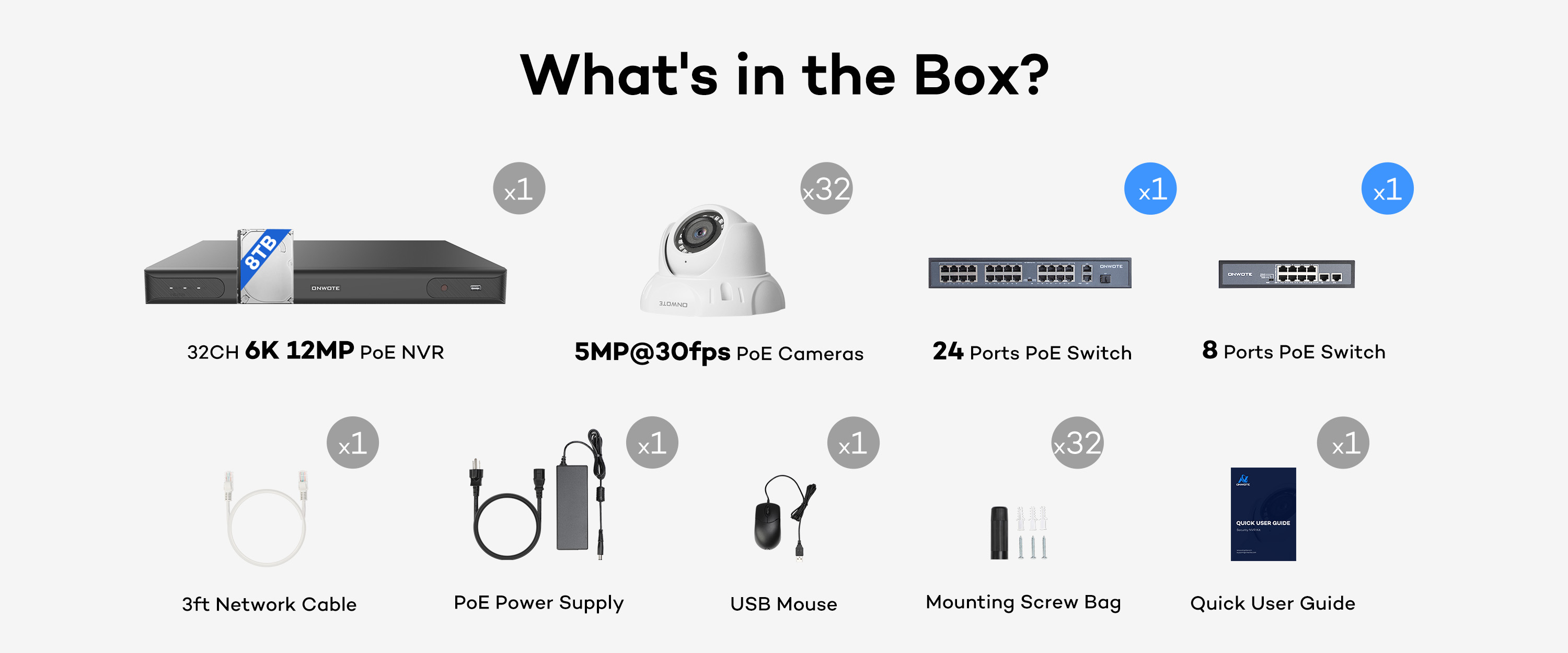

Packing List

Videos

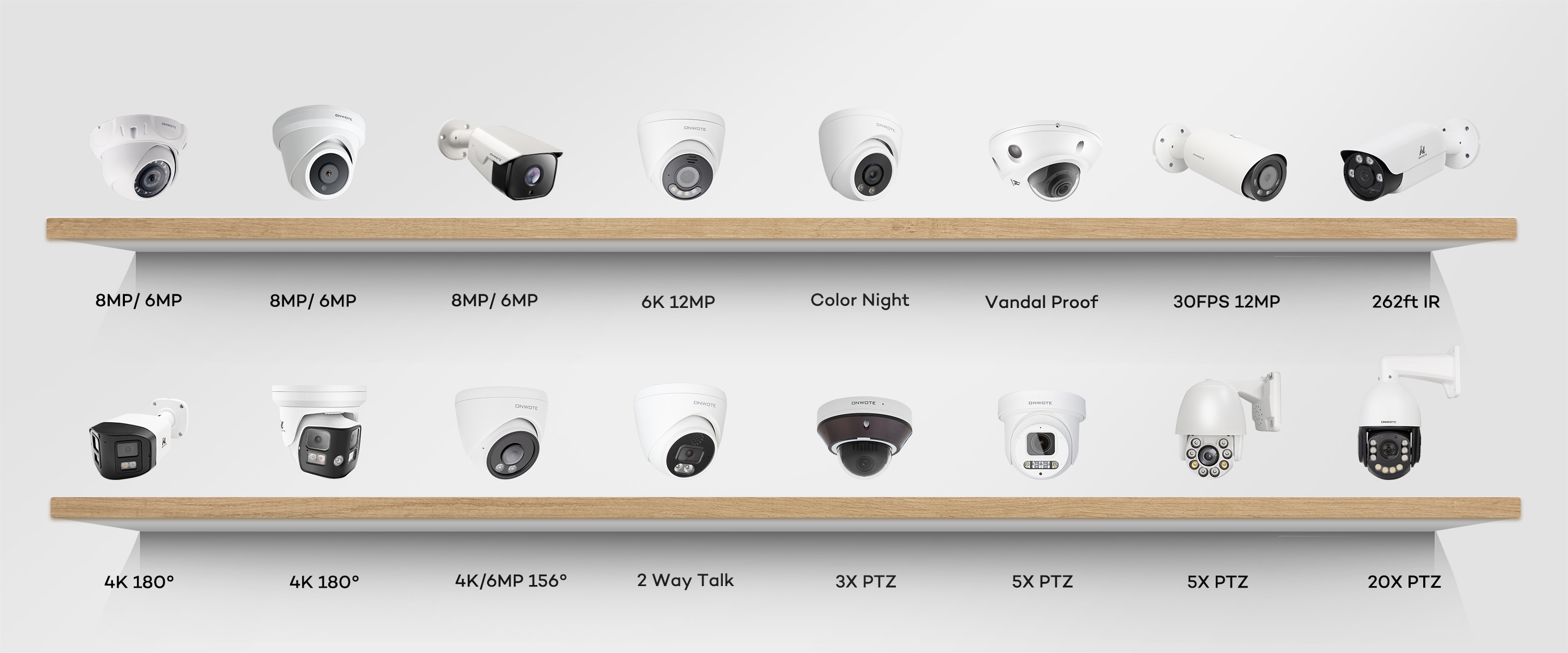

Add-on

PTZ20X 4K/8MP PoE Camera

$299.99
PTZ5X 4K/8MP PoE PTZ Camera

$169.99
PTZ 5X 4K 8MP PoE Camera

$149.99
$112.99
180° Dual-Lens 4K 8MP PoE Camera

$179.99
4K/8MP PoE Camera

$76.99 Save $13.00
156° 4K 8MP PoE Camera

$112.99
6K/12MP PoE Camera

$153.99
6K/12MP PoE Camera

$153.99
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00

Comparison

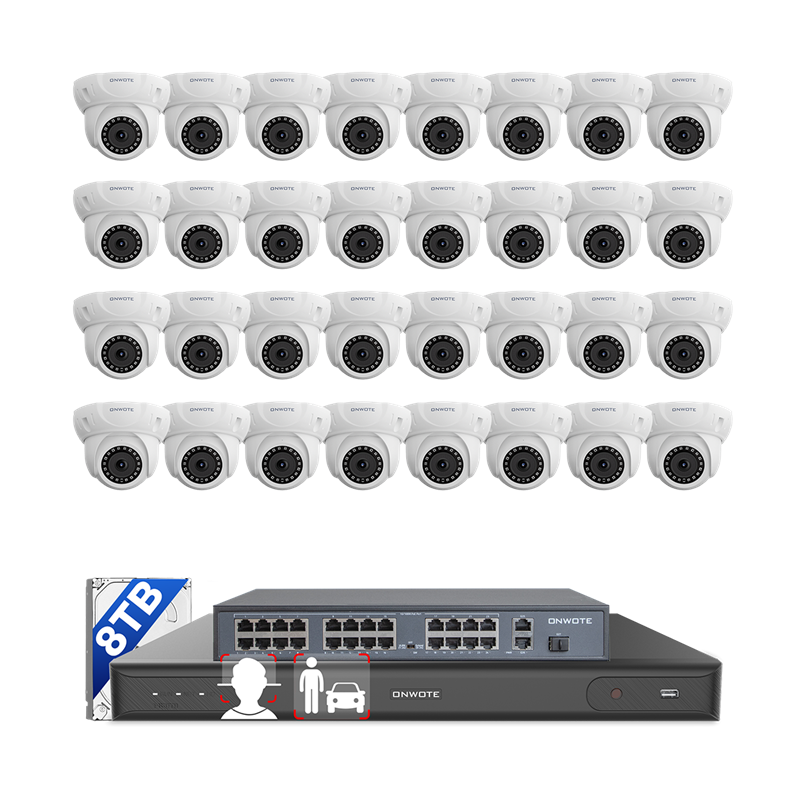

	32CH 5MP PoE System $ 2389.99	32CH 5MP PoE System $ 2669.99	32CH 4K PoE System $ 3199.99
Resolution	5MP@30FPS	5MP@30FPS	8MP@20FPS
Field of View	122°(D), 102°(Hl), 55°(V)	122°(D), 102°(Hl), 55°(V)	134°(D), 111°(H), 59°(V)
Audio	Built-in Microphone	Two Way Audio	Built-in Microphone
AI Function	Face Recognition& AcuSearch	Face Recognition& AcuSearch	Face Recognition& AcuSearch
NVR Channels	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR
HDD Pre-installed	8TB HDD	8TB HDD	8TB HDD
Storage Capacity	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports
PoE Switch	8 Ports + 24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch


32CH 5MP PoE System $ 2389.99
32CH 5MP PoE System $ 2669.99
32CH 4K PoE System $ 3199.99

Resolution	Field of View	Audio	AI Function	NVR Channels	HDD Pre-installed	Storage Capacity	PoE Switch
5MP@30FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
5MP@30FPS	122°(D), 102°(Hl), 55°(V)	Two Way Audio	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
