NVR 30...Series
H.265+/ H.265/ H.264 decoding format
Decoding Capability
Smart Off: 2x12MP@30, 2x4K@30, 4x4MP@30, 10x1080P@30, 20x720P@30, 32xD1 Smart On: 2x4K@30, 4x4MP@30, 8x1080P@30, 16x720P@30, 32xD1
Video Audio Input
32-ch IPC, 26-ch 12MP, 32-ch 8MP/6MP/5MP/4MP
Video Audio Output
Video: 1-ch HDMI (up to 4K), 1-ch VGA (up to 1080p) Audio: 1-ch HDMI & 1-ch RCA

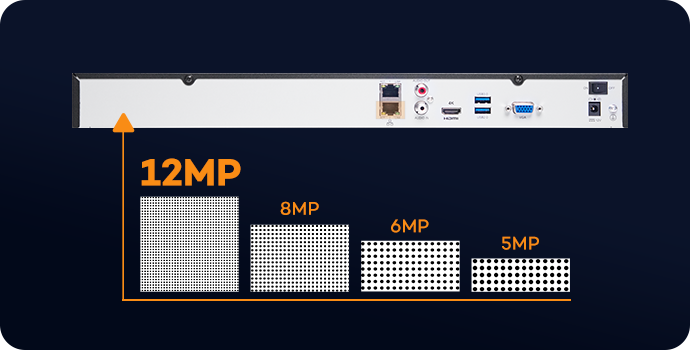

Recording Resolution
12MP/8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

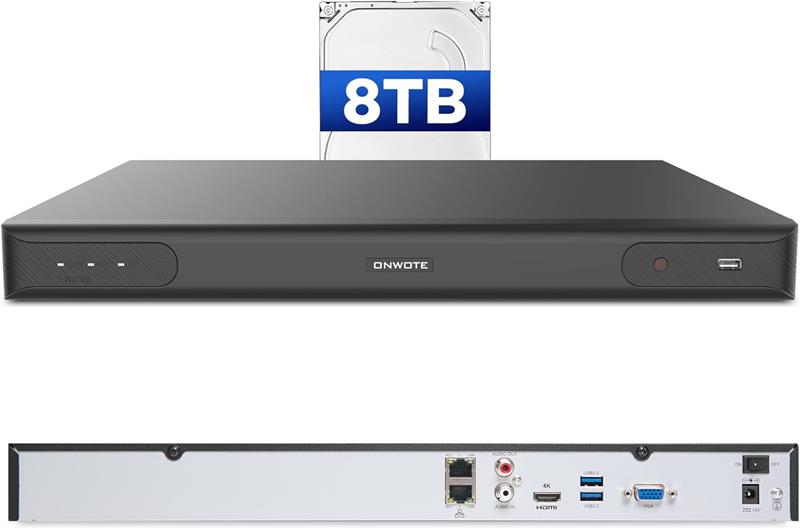

Storage Capacity
8TB HDD is pre-installed; 4×SATA interfaces, max 10TB/HDD, total 40TB (HDD not included)

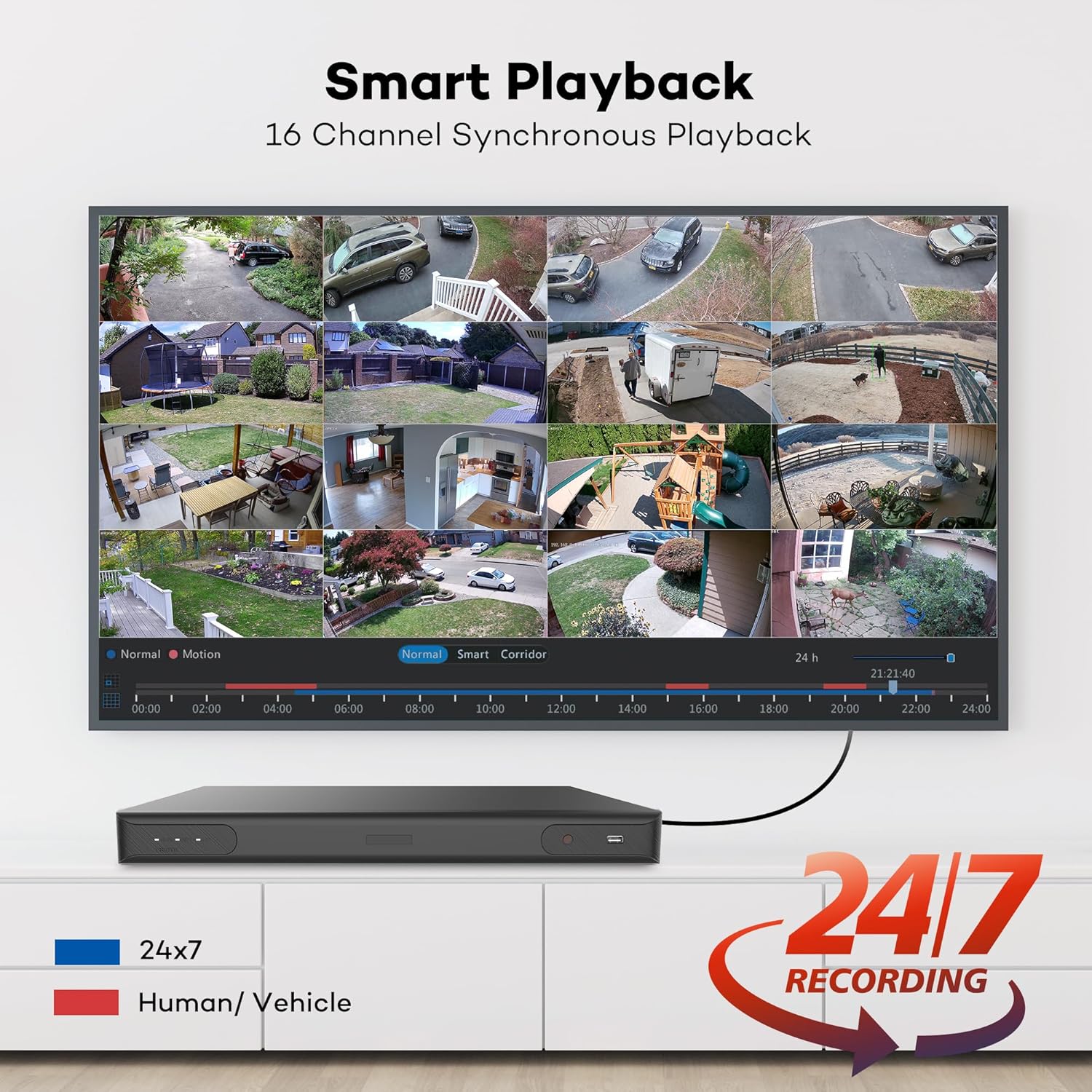

Local Synchronous Playback
16-ch simultaneous playback
Smart AI (Camera Must Support)

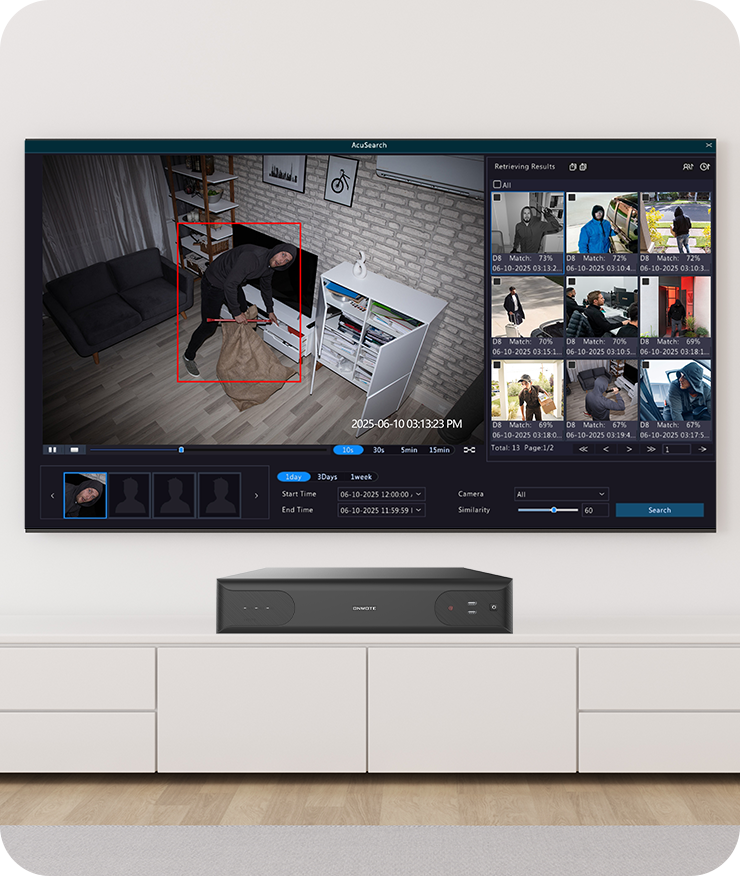

Smart by NVR: Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) VCA Search: Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch
Bandwidth
Incoming-160Mbps; outgoing-128Mbps

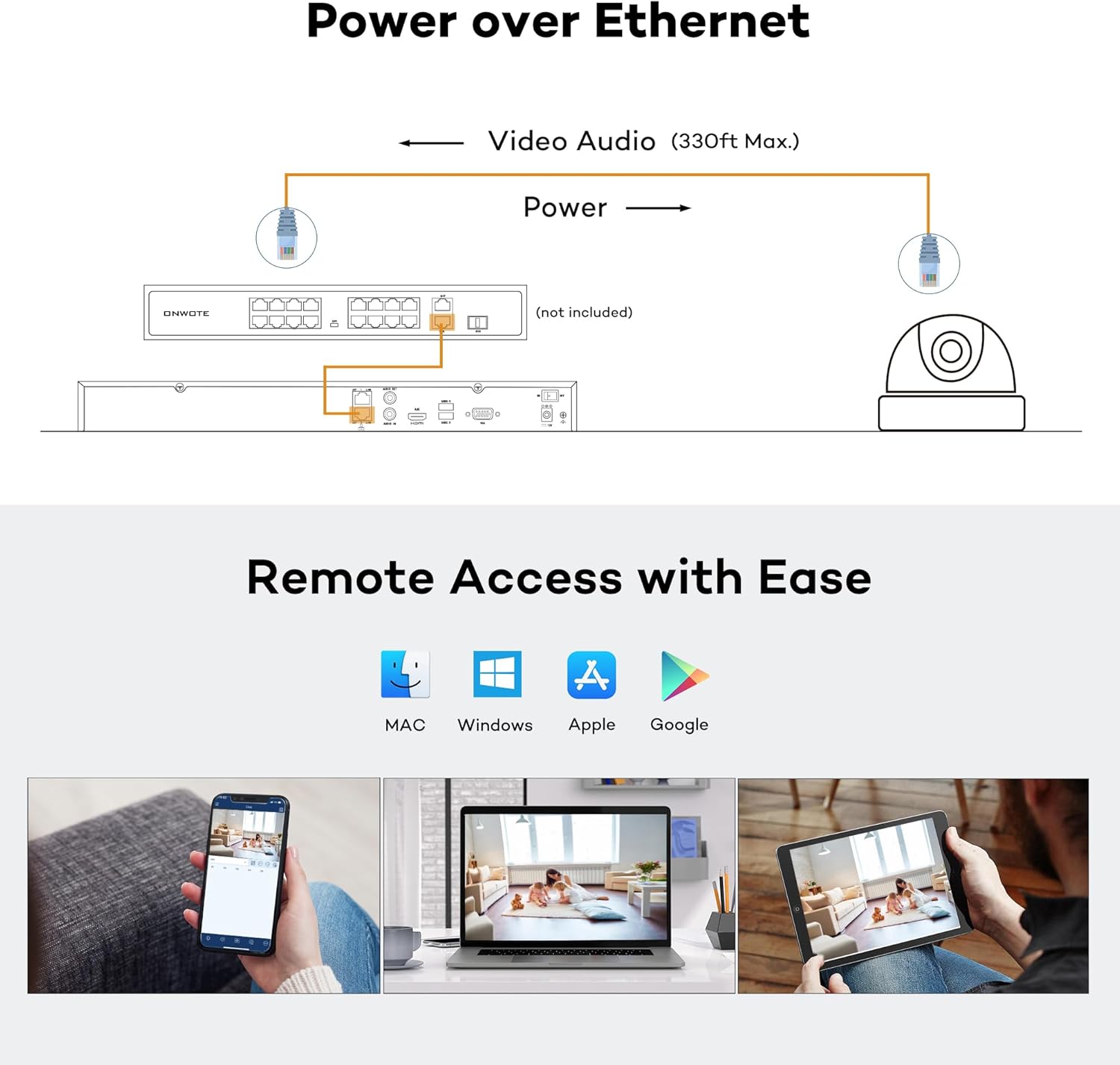

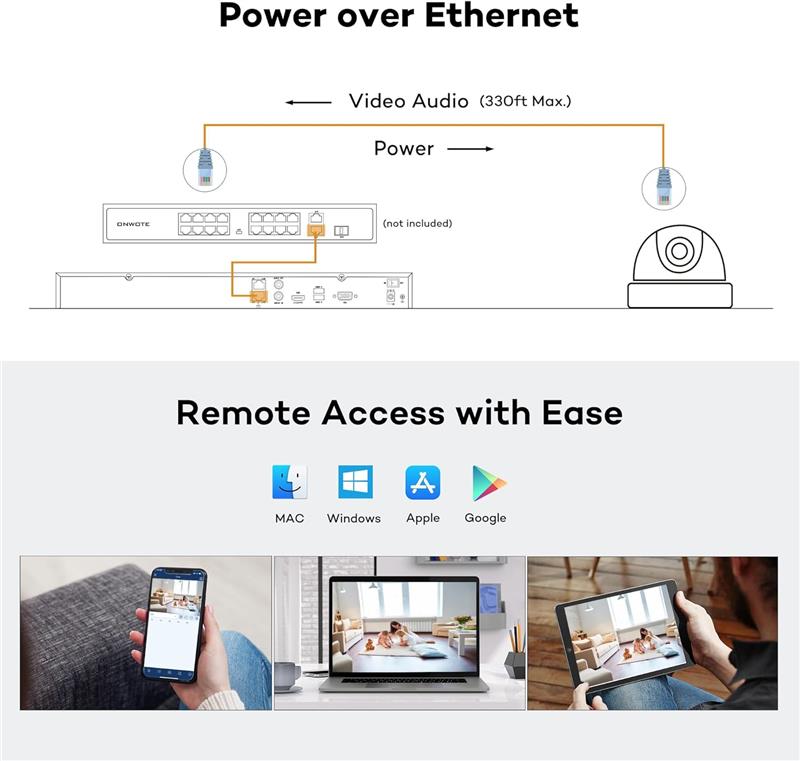

Remote Access
128 users; Mobile (iOS/Android); PC (Windows/macOS)
Protocols
TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4

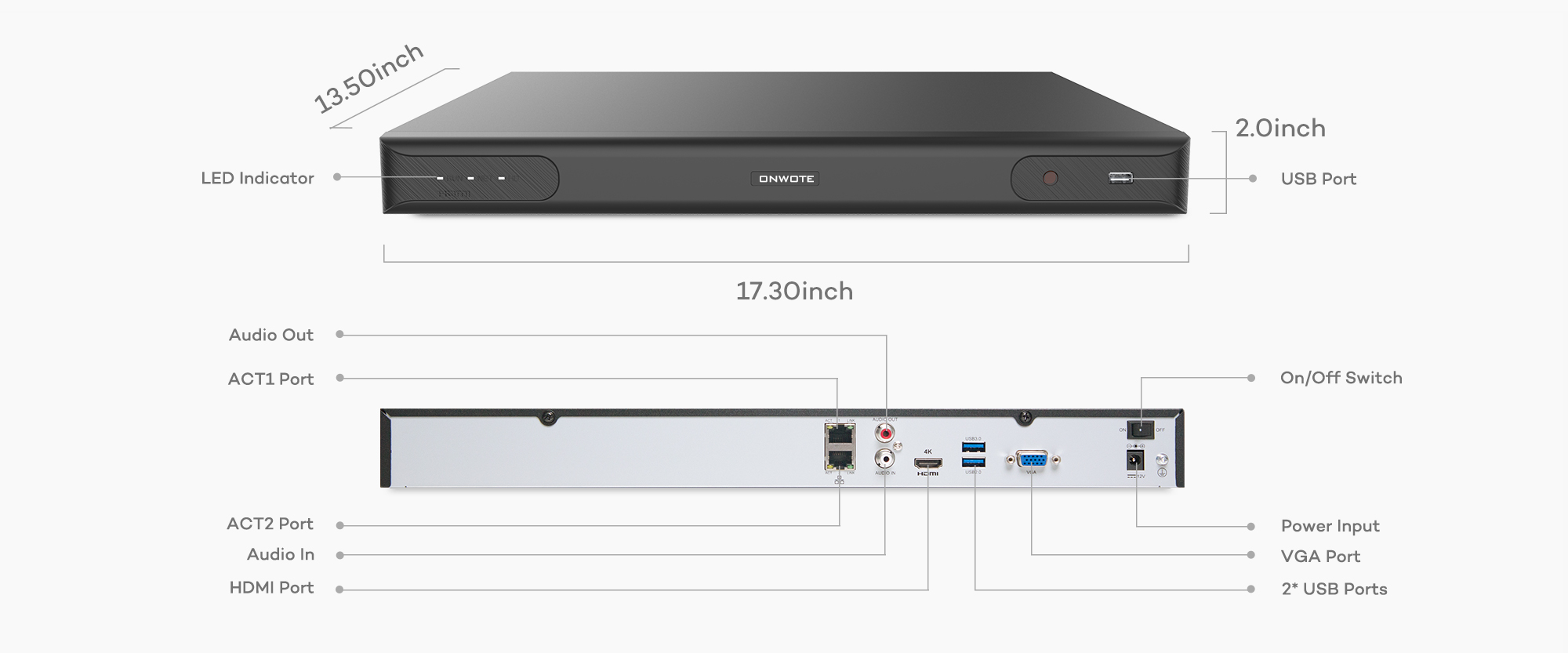

Network/ USB Interface
2 RJ-45 10M/100M/1000M self-adaptive ethernet interfaces. Front: 2×USB 2.0; rear: 1×USB 3.0
Power Supply
12V DC; Power consumption: ≤15W (without HDD)
Working Environment
Temperature: -10°C to +55°C (+14°F to +131°F); Humidity: ≤90% RH (non-condensing)

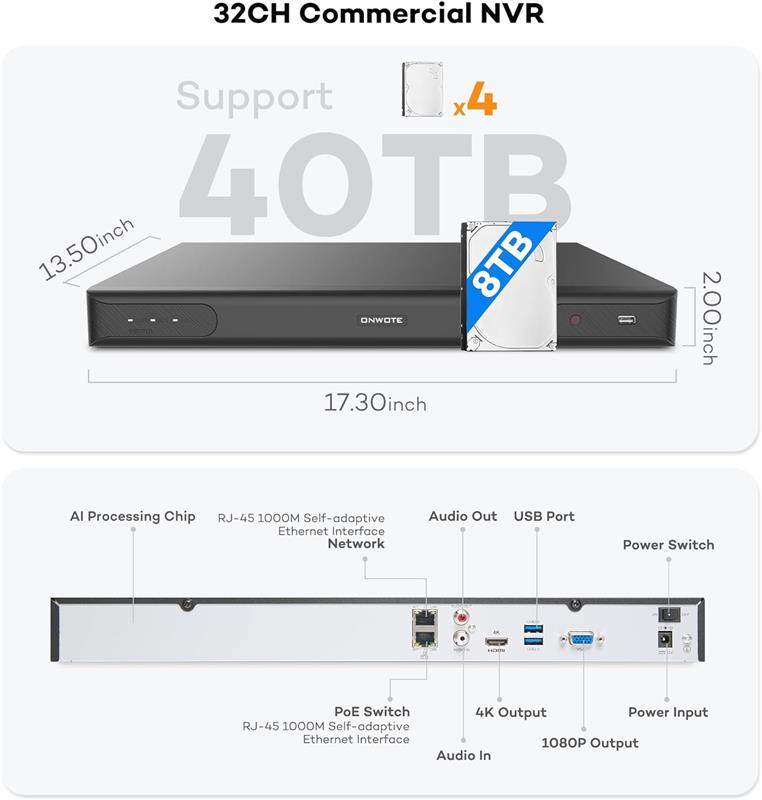

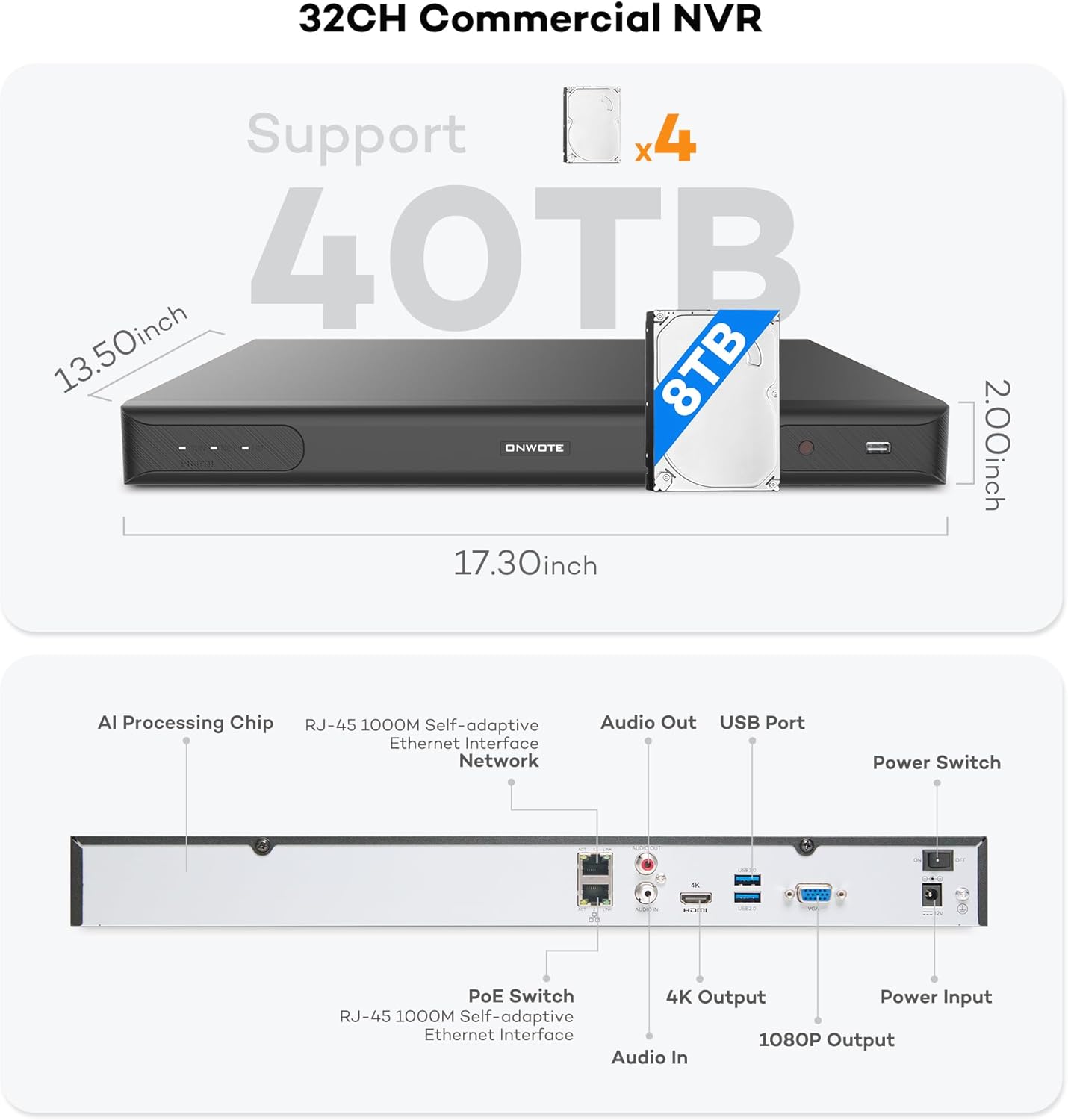

Dimensions & Weight
440mm×350mm×48mm (17.3"×13.8"×1.9"); Weight: ≤4.12kg (9.08lb)

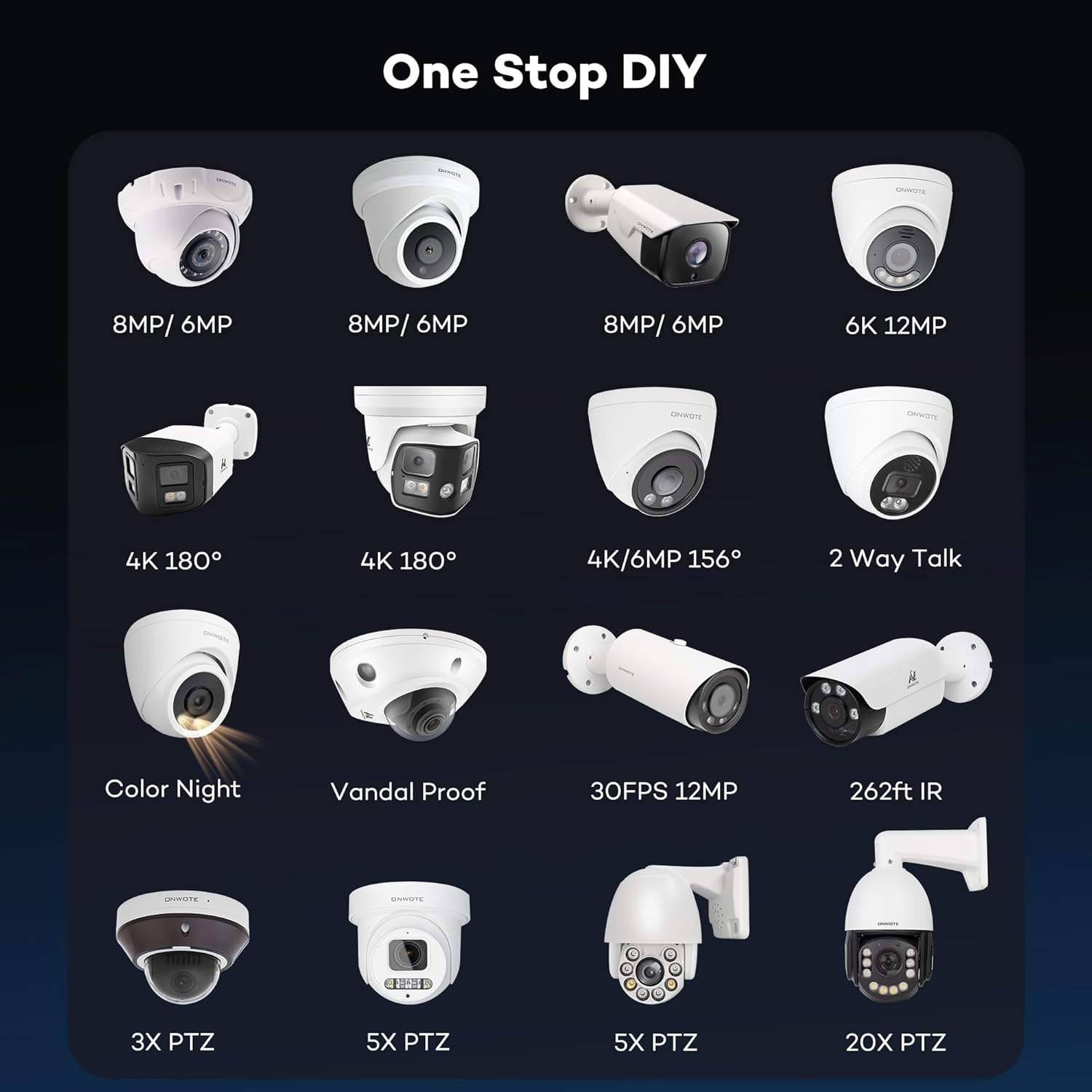

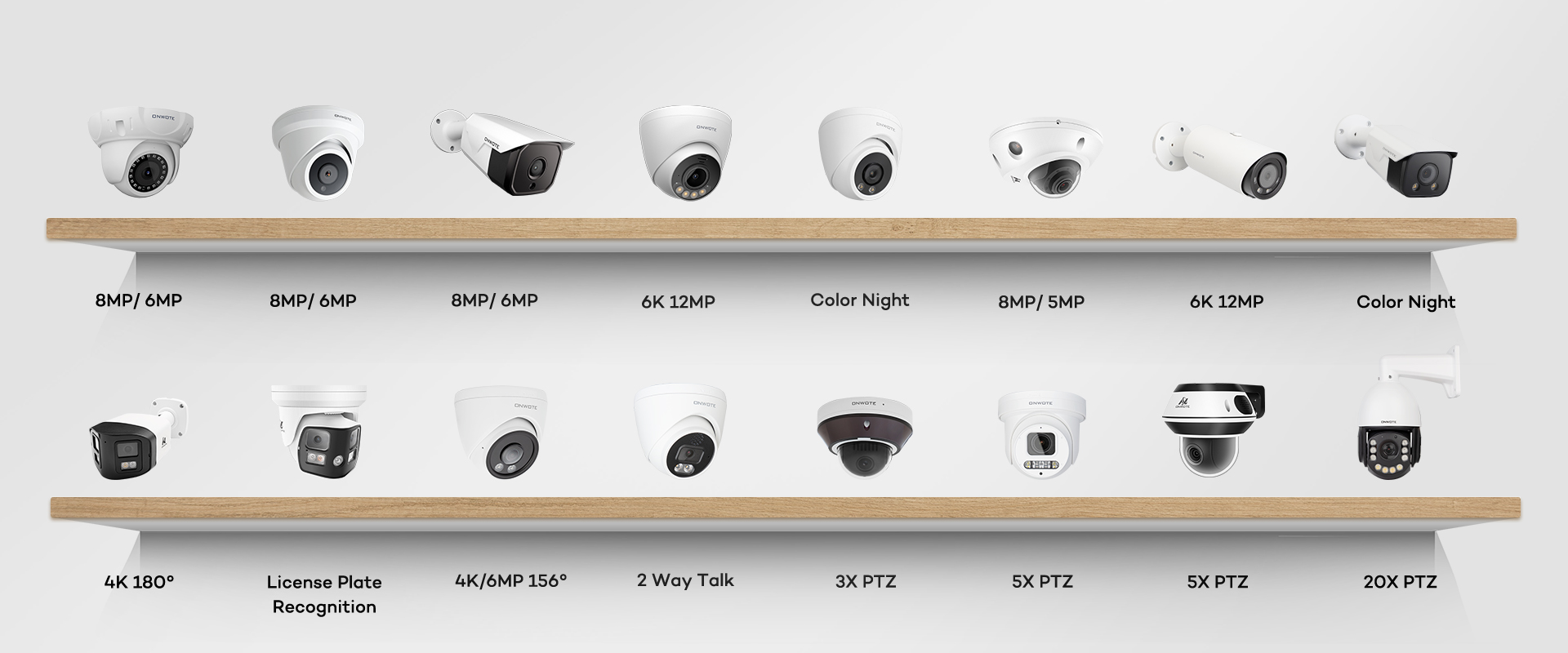

Compatibility
Not plug-and-play with third-party cameras; requires ONWOTE PoE IP cameras (12MP/8MP/6MP/5MP/4MP)
