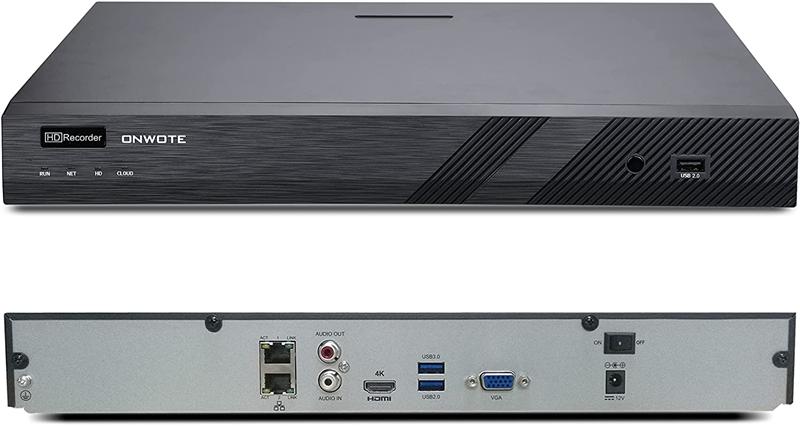

32 Channel 4K 8MP Commercial Grade PoE NVR for Business

Video Input
32-CH (The NVR does not come with PoE ports)

Corridor Mode Screen
3/4/5/7/9/10/12/16/32

Video Output
HDMI/VGA Output: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz

Audio Input/ Output
1-CH, RCA; 1-CH, RCA

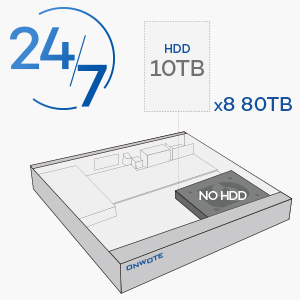

Storage Capacity
2 SATA interfaces；up to 10TB for each disk

Bandwidth
Incoming bandwidth: 160Mbps; Outgoing bandwidth: 64Mbps

Network Interface
2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces

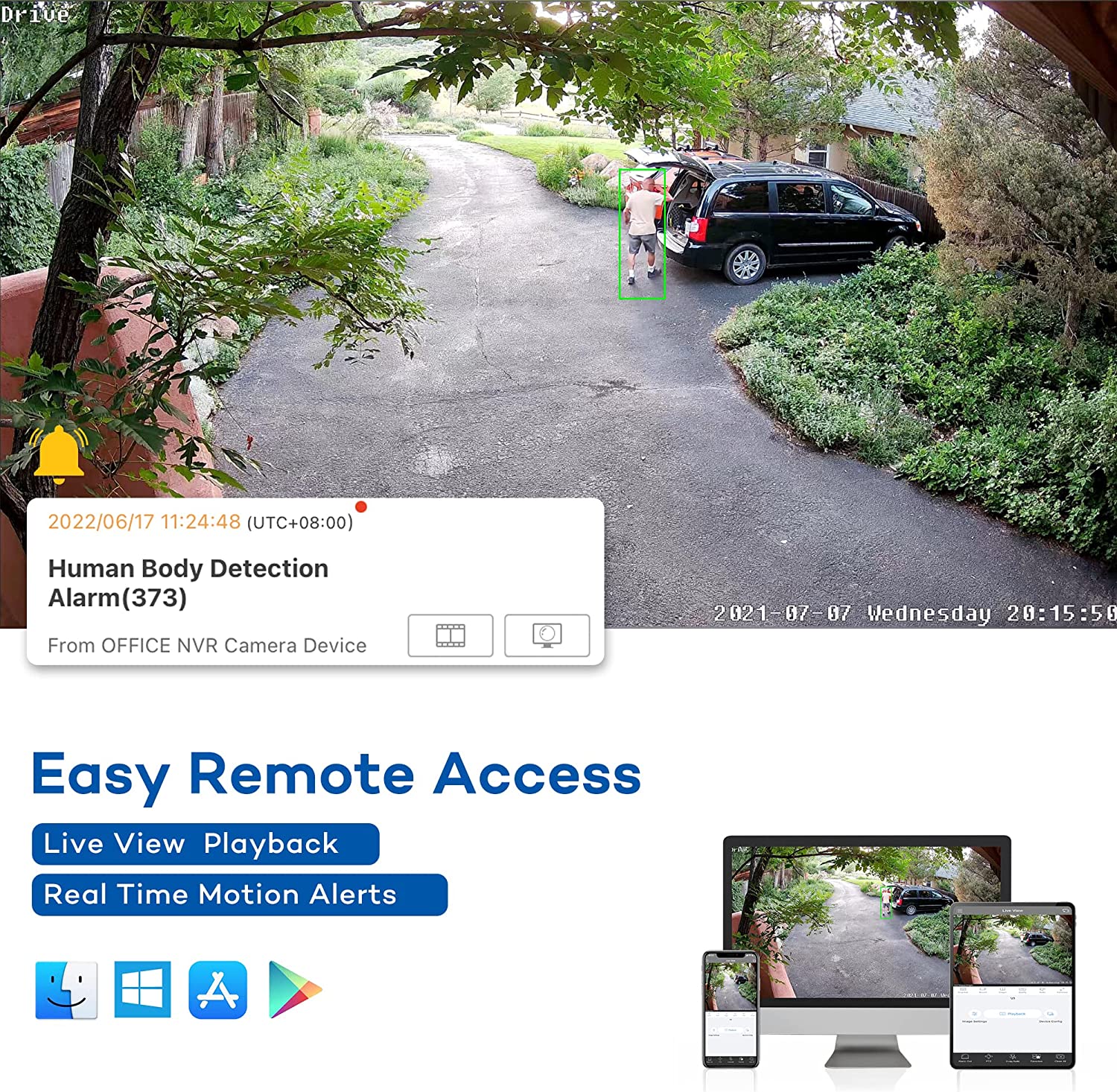

Remote Users
128

USB Interface
Rear panel：1 x USB2.0, 1 x USB3.0； Front panel：1 x USB2.0

Protocols
P2P, UPnP, NTP, DHCP, PPPoE

Power Supply
12V DC；Power Consumption: ≤ 15W( without HDD )

Recording Resolution
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/C

Working Environment
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

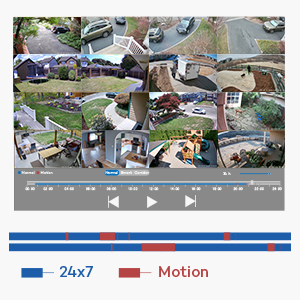

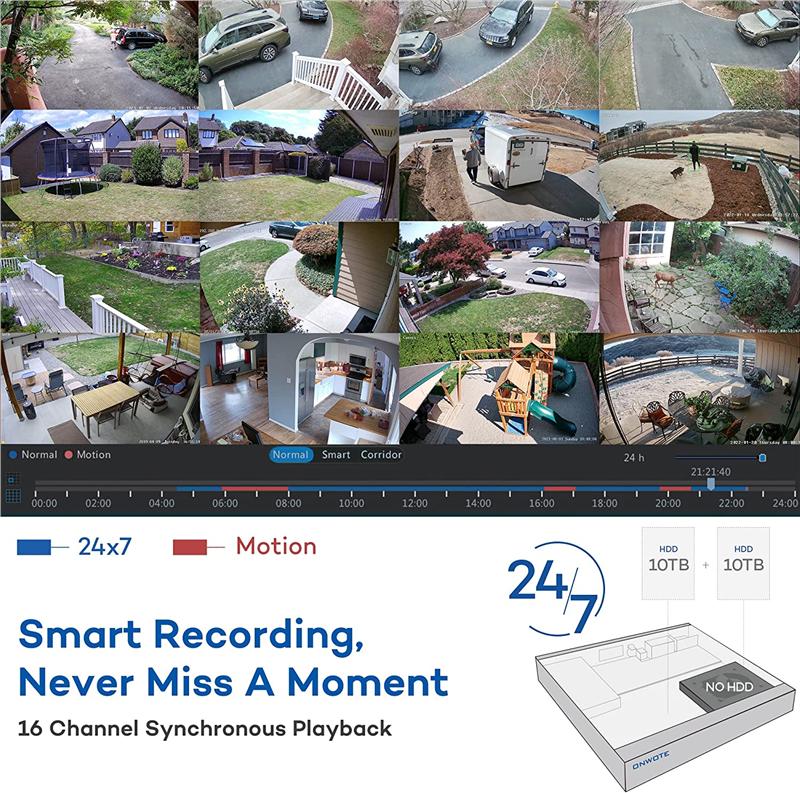

Synchronous Playback
16-CH (SD)

Dimensions(W×D×H)
15.0" × 12.4" ×1.9" ; Weight ( without HDD )≤ 2.48 Kg (5.47 lb )

Packing List

PACKING LIST

1x 32 Channel 4K 8MP HD PoE NVR
1x DC 12V 3.33A Power Adapter for 32CH PoE NVR
1x Mouse
1x Quick User Guide

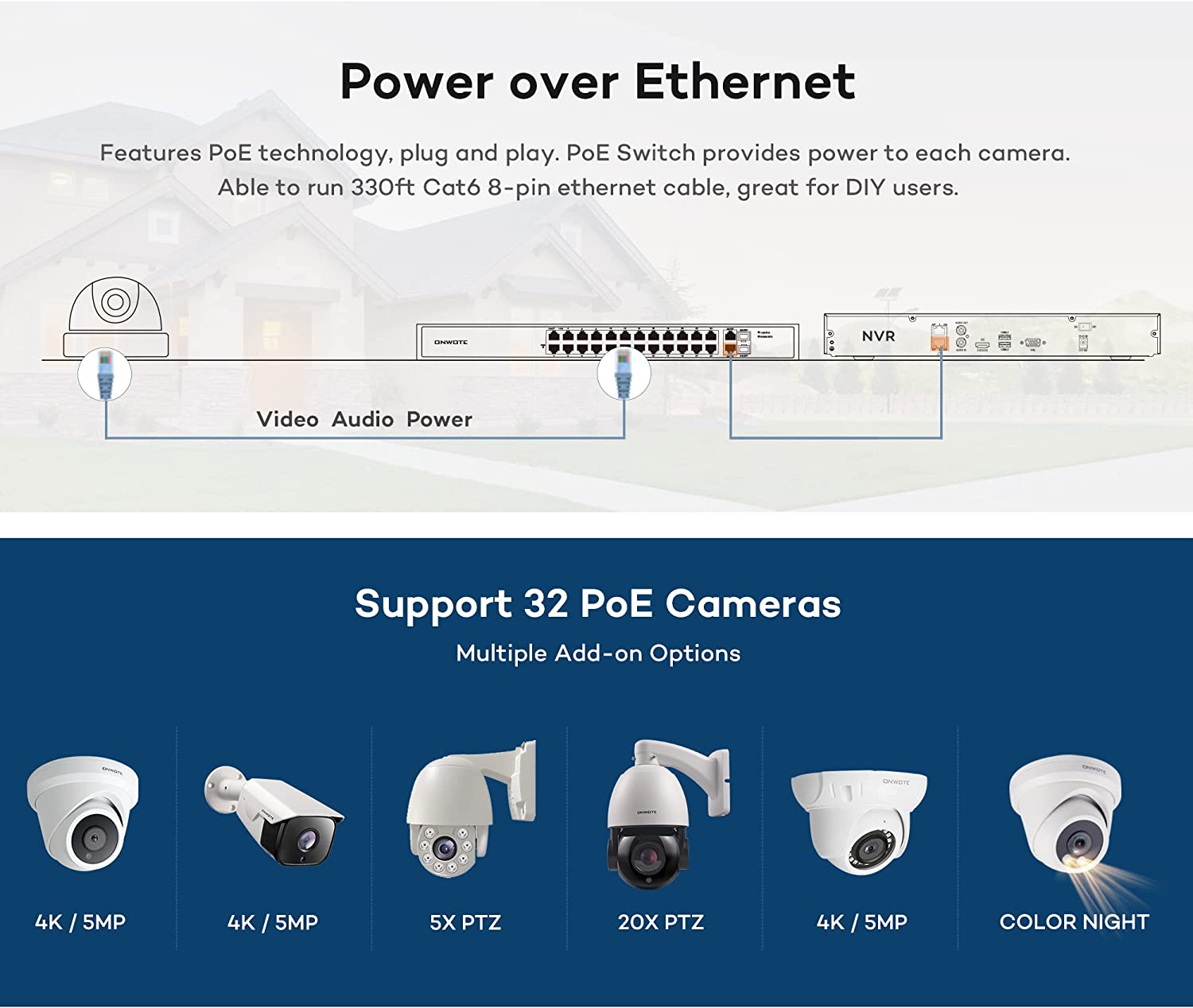

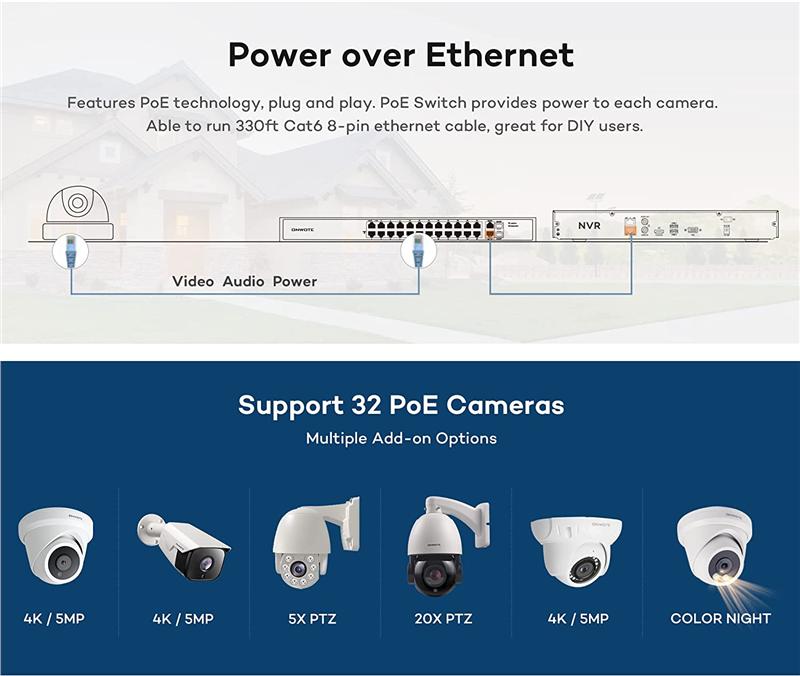

Note: The NVR does not come with PoE ports, please add a 48-54V Standard PoE Switch to connect cameras.
