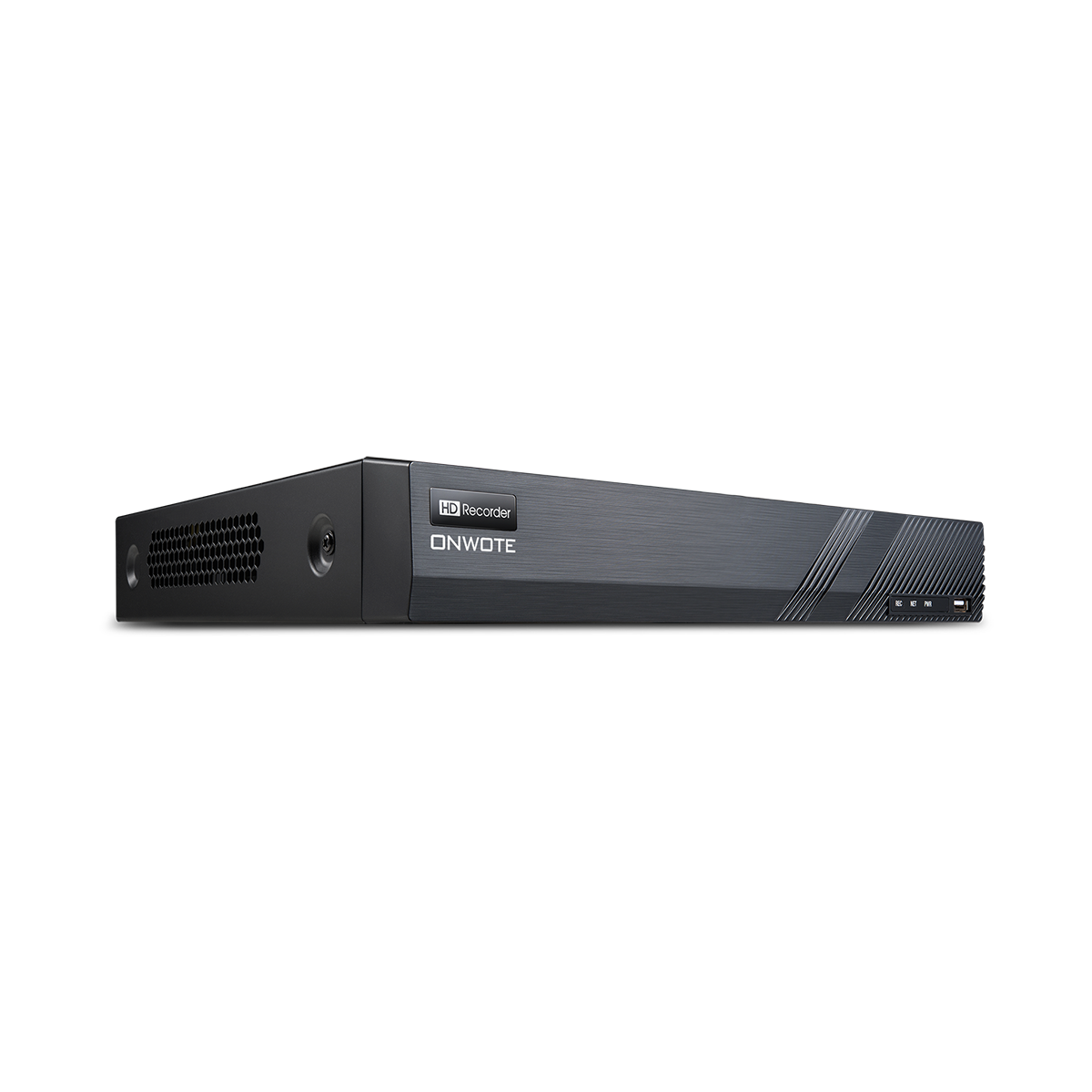

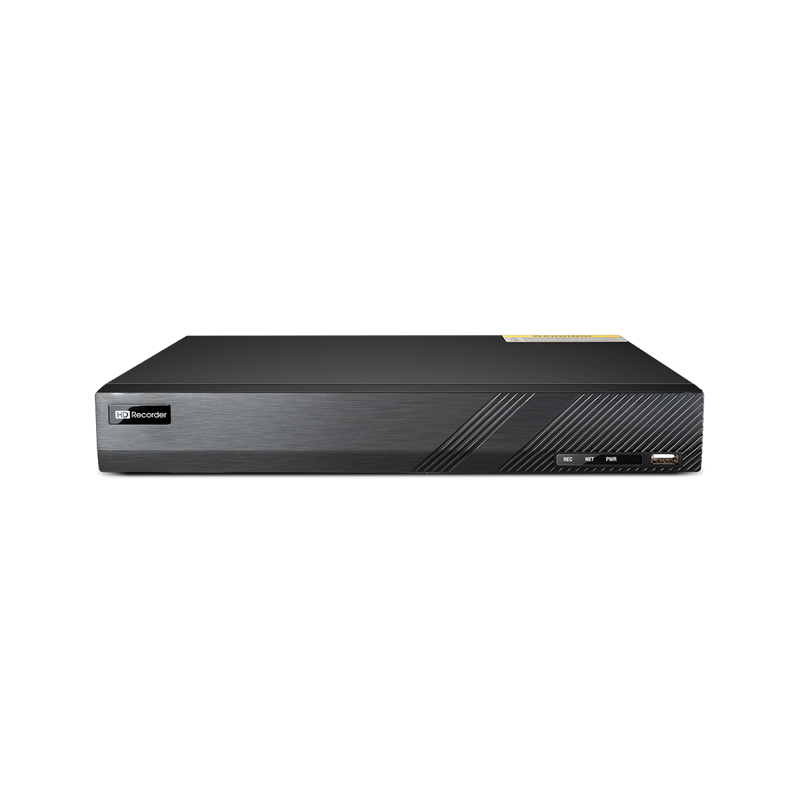

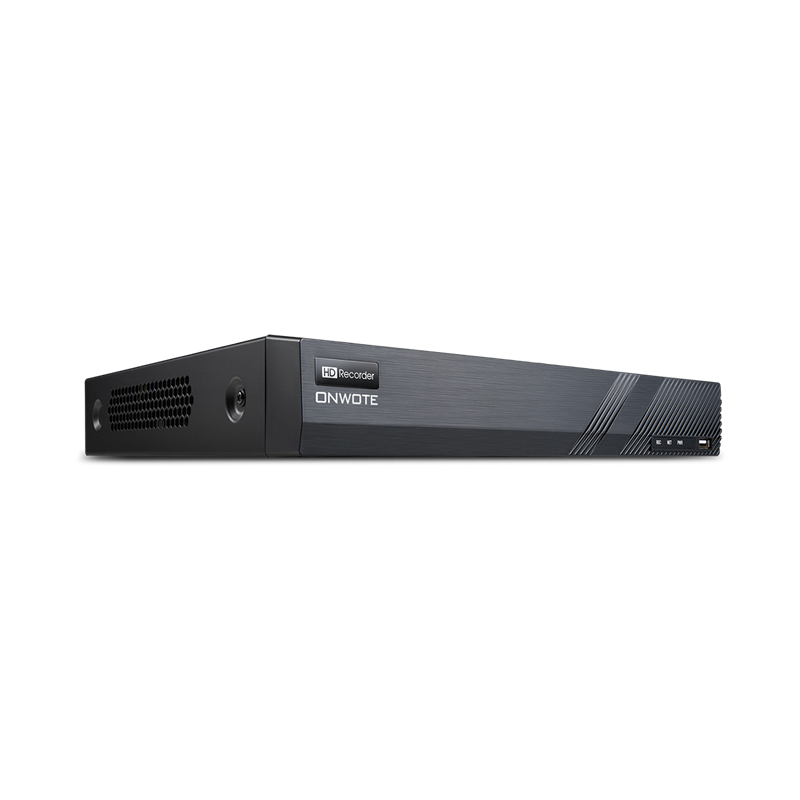

NVR TD...Series
H.265S/ H.265+/ H.265/ H.264 decoding format
Decoding Capability
1×8MP@30fps; 6×1080P@30fps
Video Audio Input

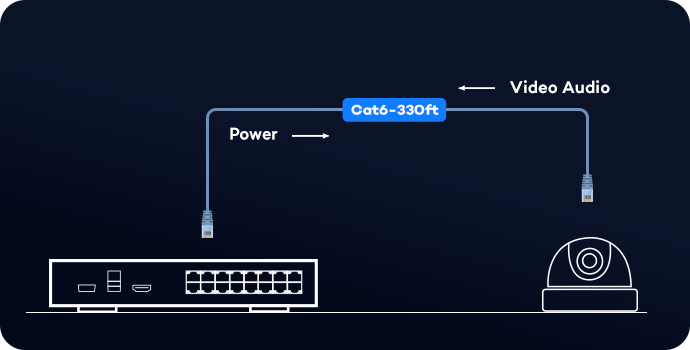

16ch IPC, 8MP/ 6MP/ 5MP
Video Audio Output
Video: 1-ch HDMI (up to 4K), 1-ch VGA (up to 1080p); Audio: 1-ch HDMI & 1-ch RCA
Recording Resolution
8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

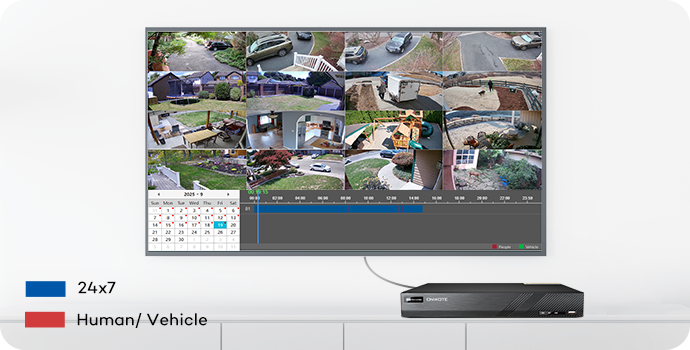

Multi-Mode Recording
Manual/ timed/ motion/ sensor/ POS/ AI recording
Storage Capacity
2×SATA interfaces, max 10TB/HDD, total 20TB (HDD not included)
Local Synchronous Playback

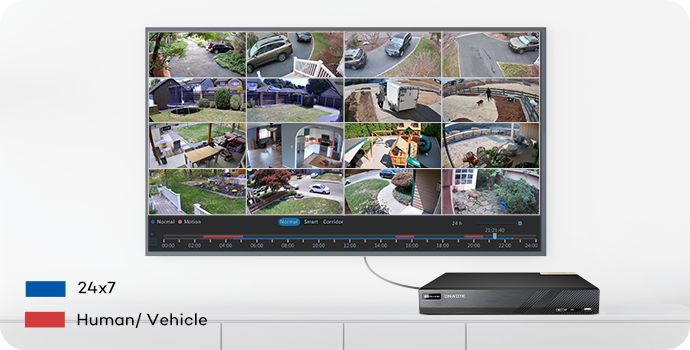

16-ch simultaneous playback
Bandwidth
Incoming-160Mbps; outgoing-160Mbps
Remote Access
Max. 64 users access; Mobile (iOS/Android); PC (Windows/macOS); Remote control via Web or CMS
Protocols
TCP/IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, SMTP, HTTPs, 802. 1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP

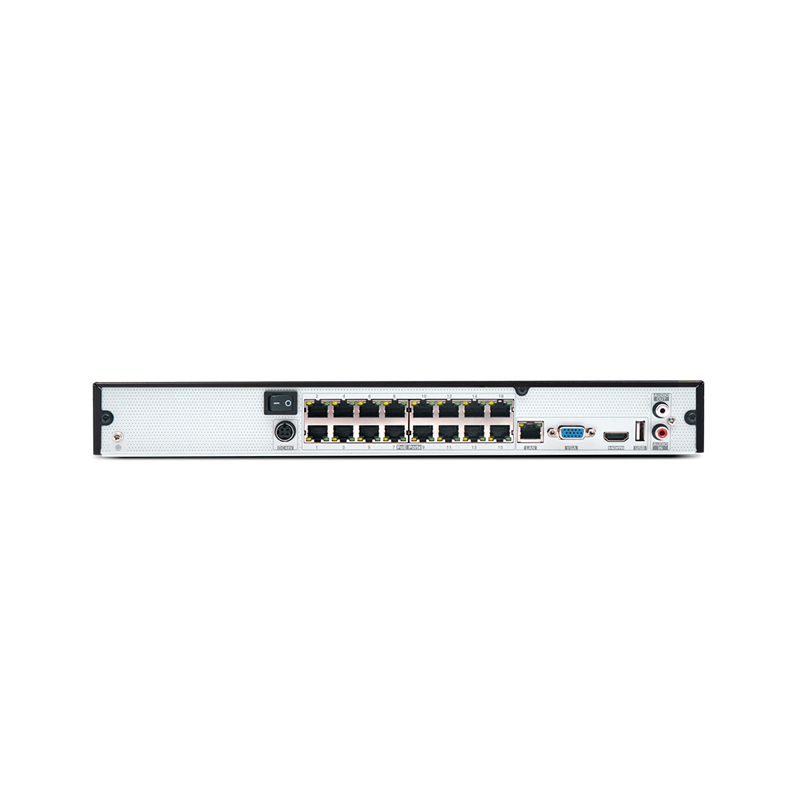

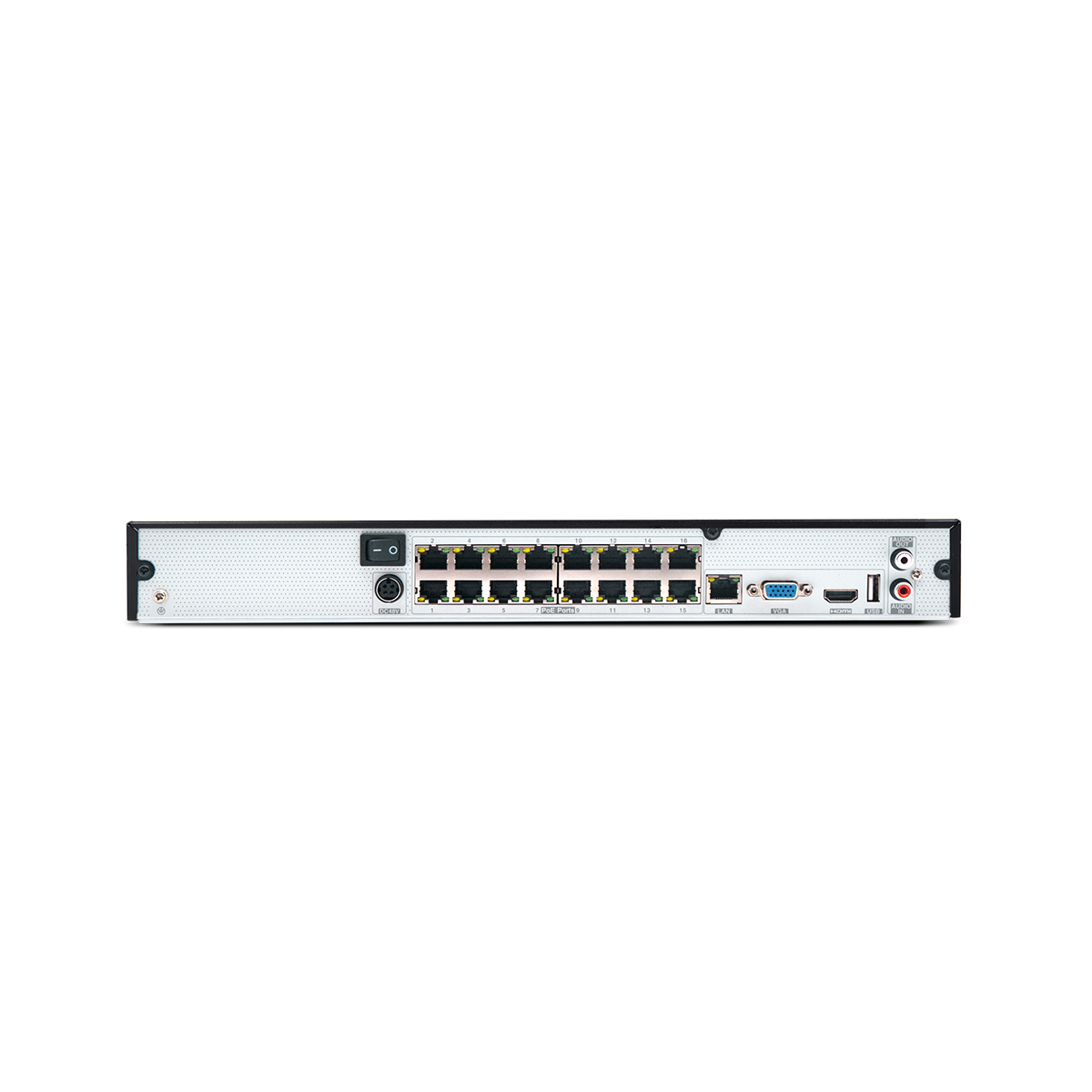

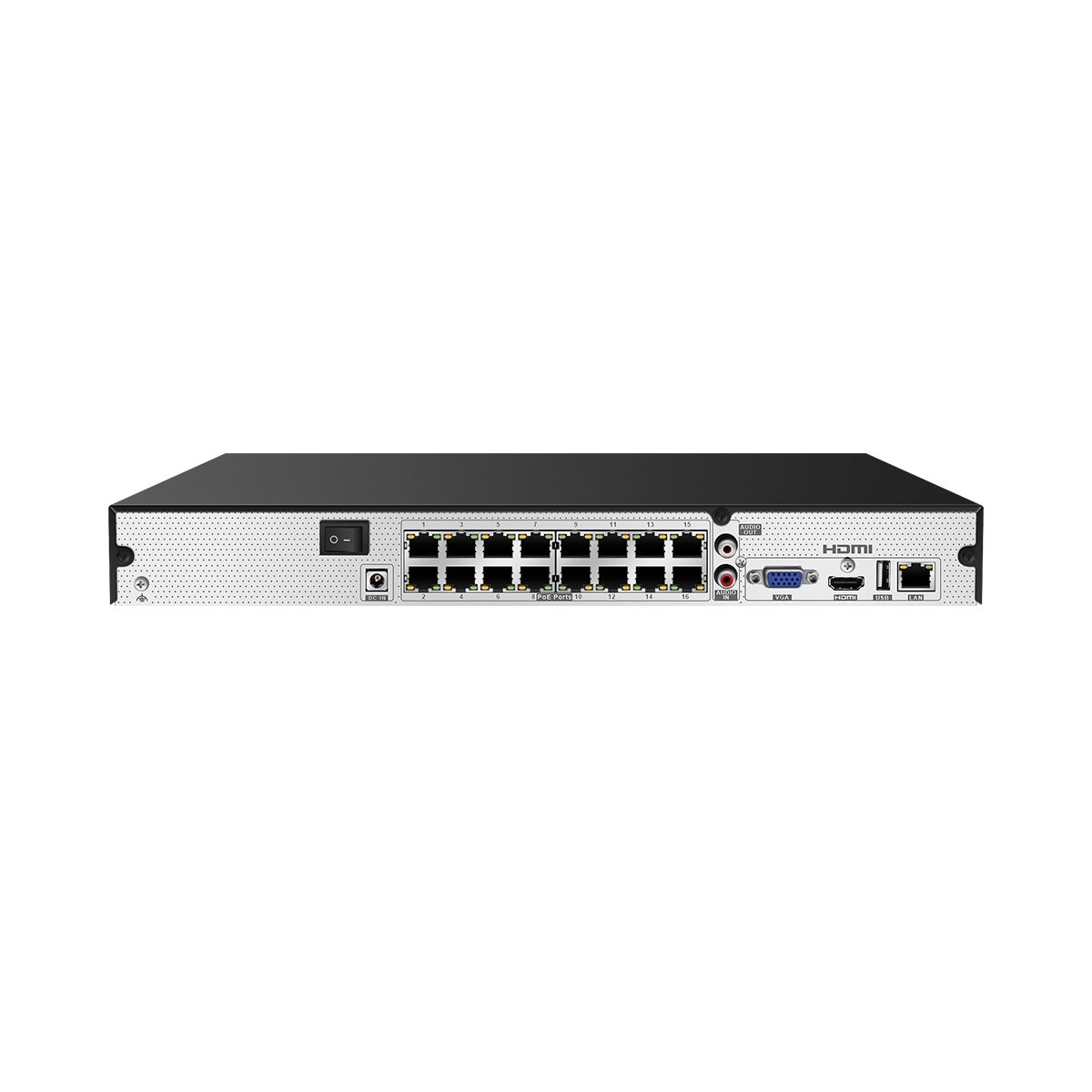

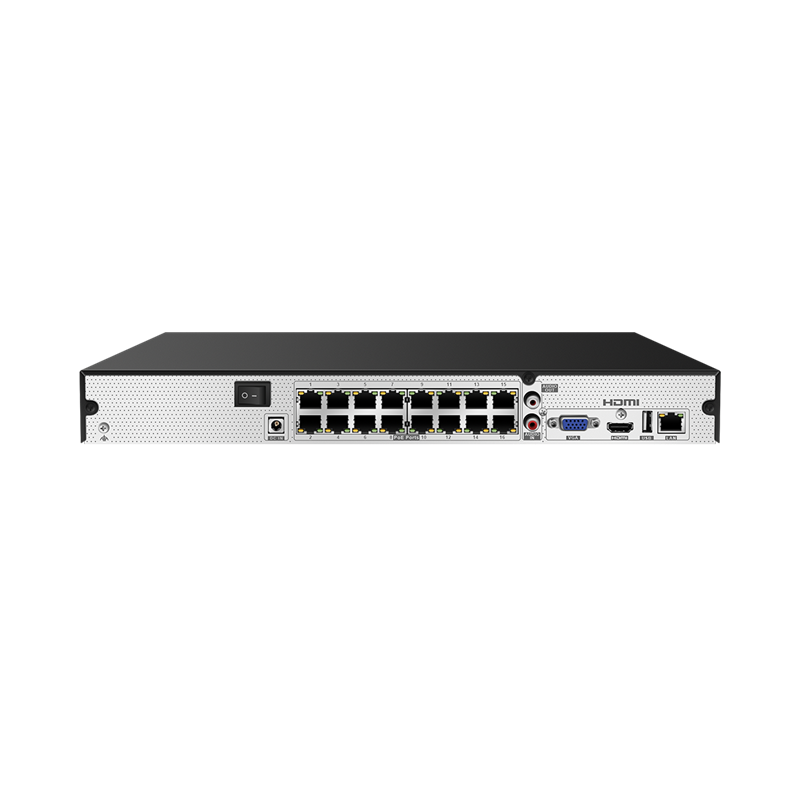

Interface
1 RJ-45 10M/100M/1000M self-adaptive ethernet interface; 2 USB 2.0 interfaces
Power Supply
DC 48V/3.75A; Power consumption: ≤10W (without HDD)
Working Environment
Temperature: -10°C to +50°C (+14°F to +122°F); Humidity: ≤90% RH (non-condensing)

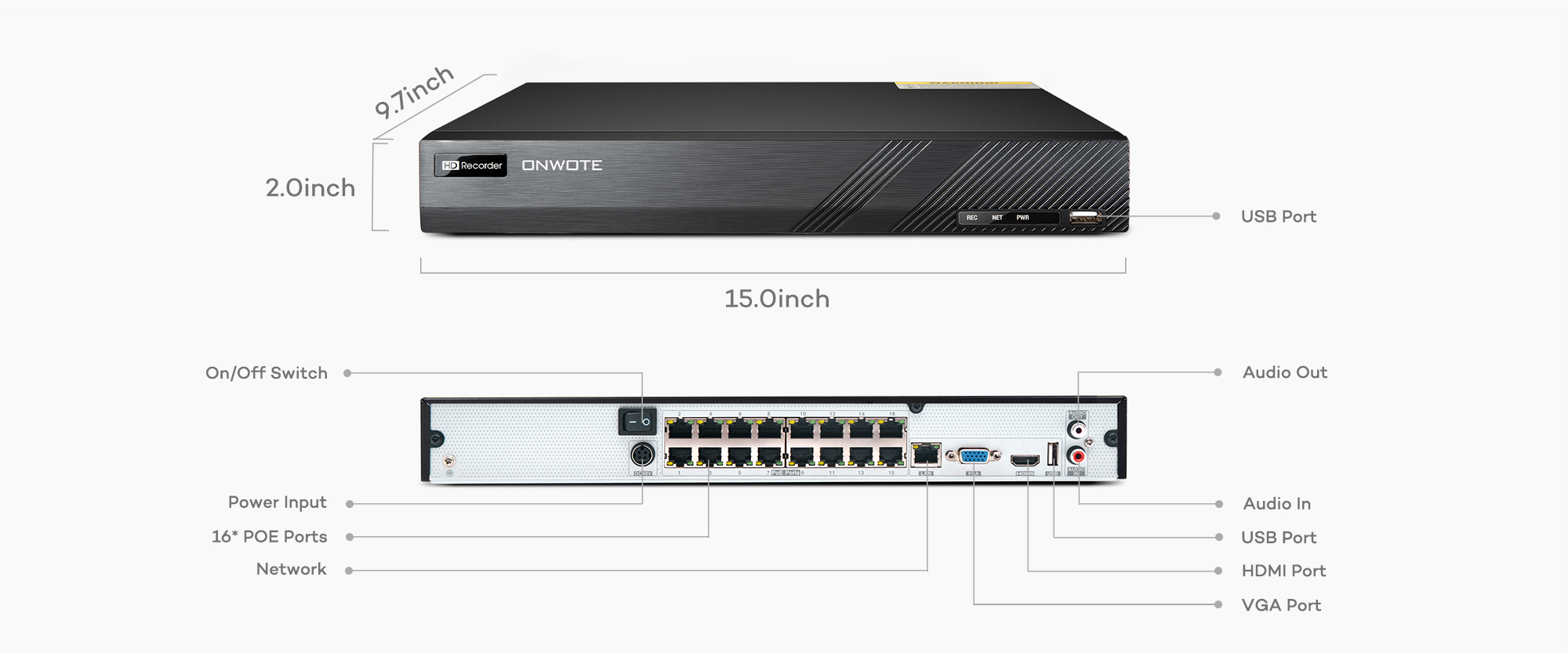

Dimensions & Weight
380mm×268mm×45mm (14.96"×10.55"×1.77"); Weight (without HDD): ≤3.17kg (6.99lb)
Compatibility

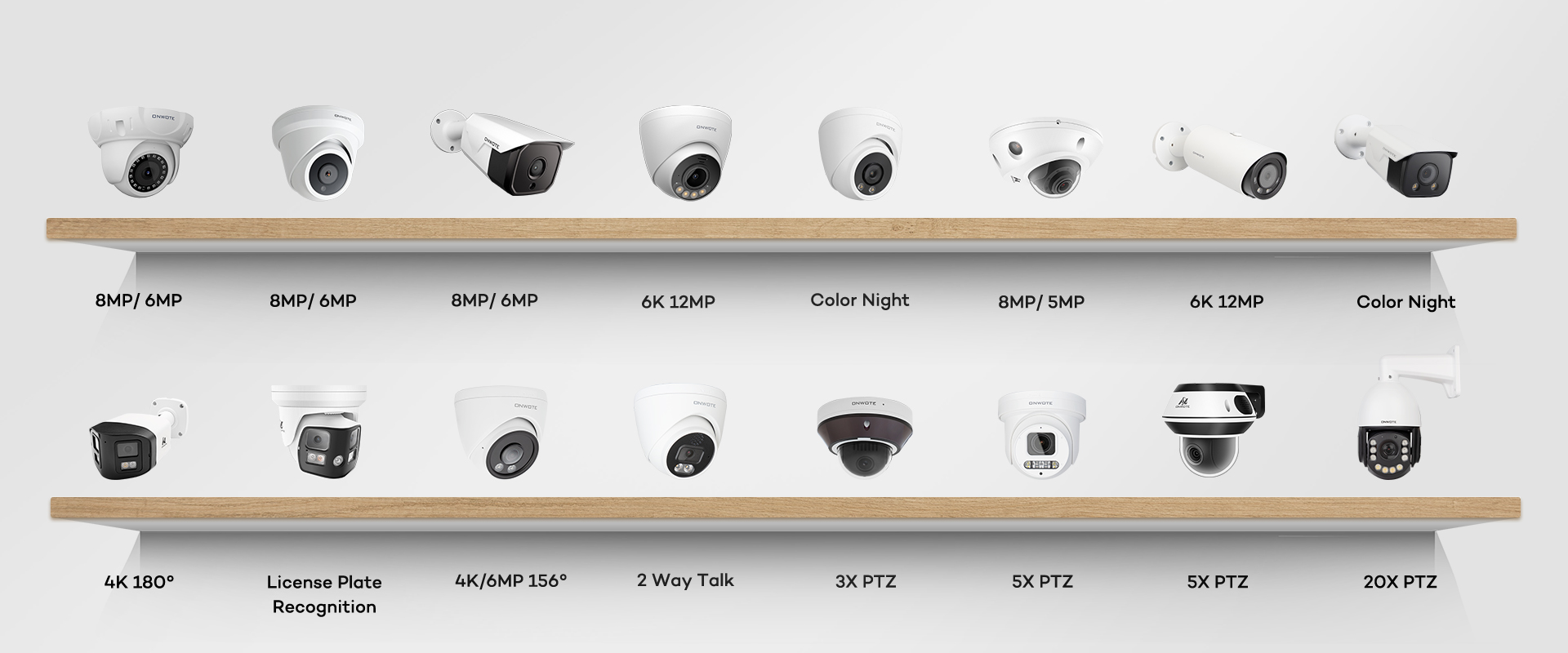

Not plug-and-play with third-party cameras; requires ONWOTE PoE IP cameras (8MP/6MP/5MP)
