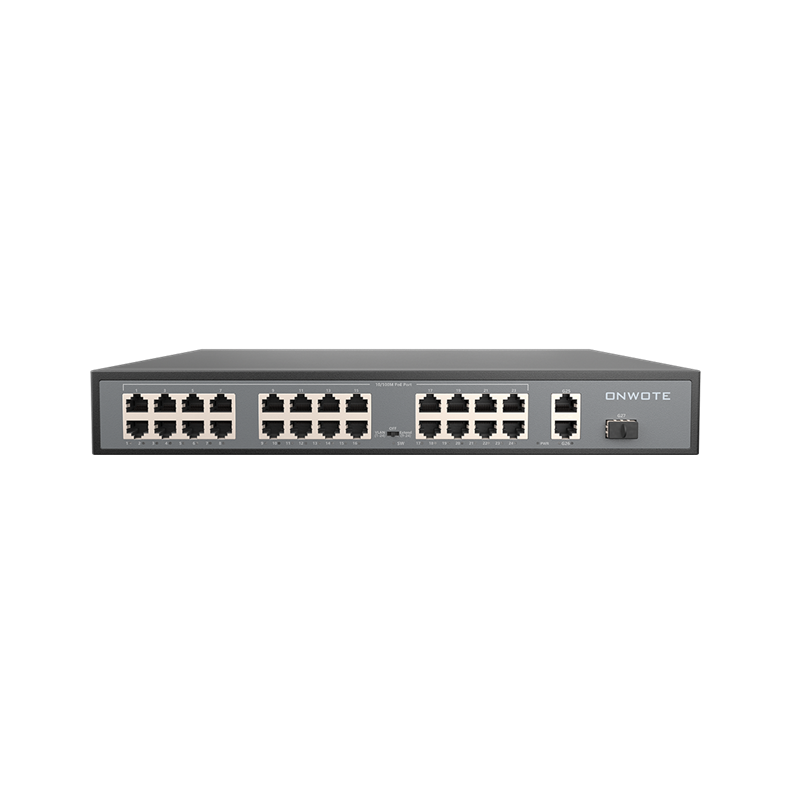

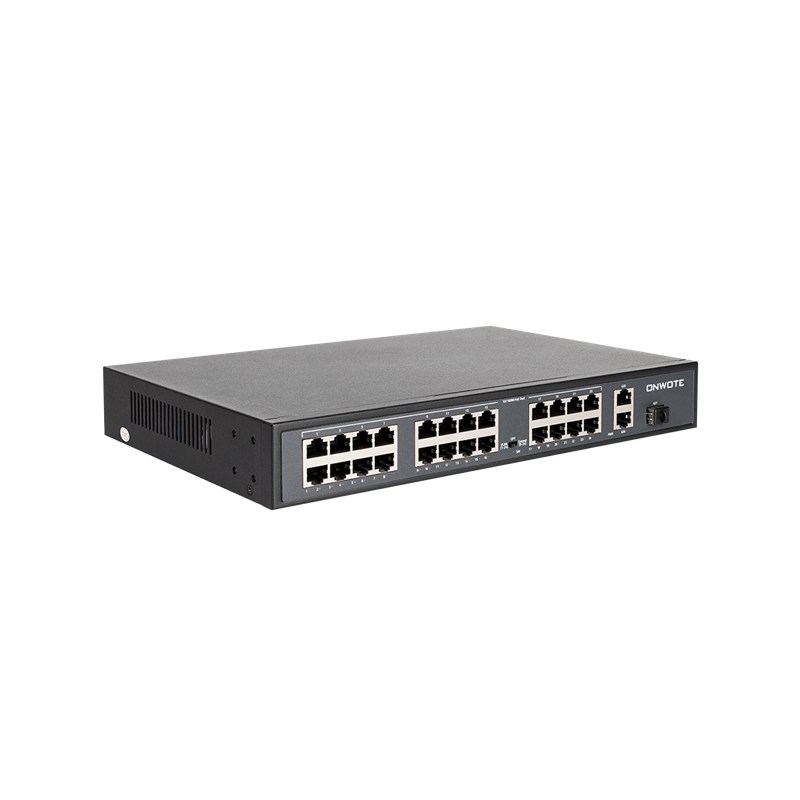

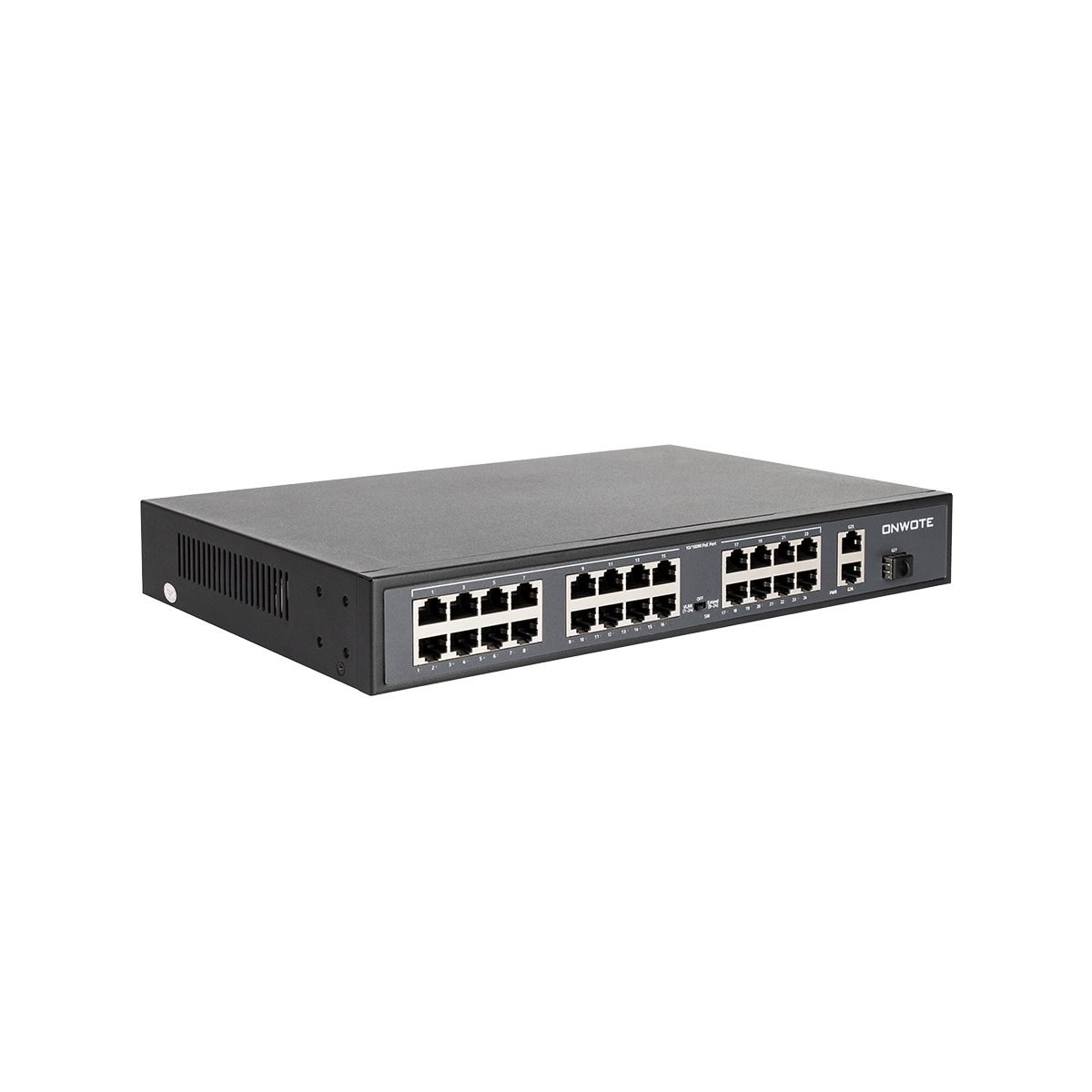

ONWOTE 24 Ports Ethernet PoE Switch @300W, 2X Uplink Gigabit RJ45 Ports, 1X SFP Slots, Support 4K 8MP 5MP 1080P IP Security Cameras, Add-on Injector to NVR System

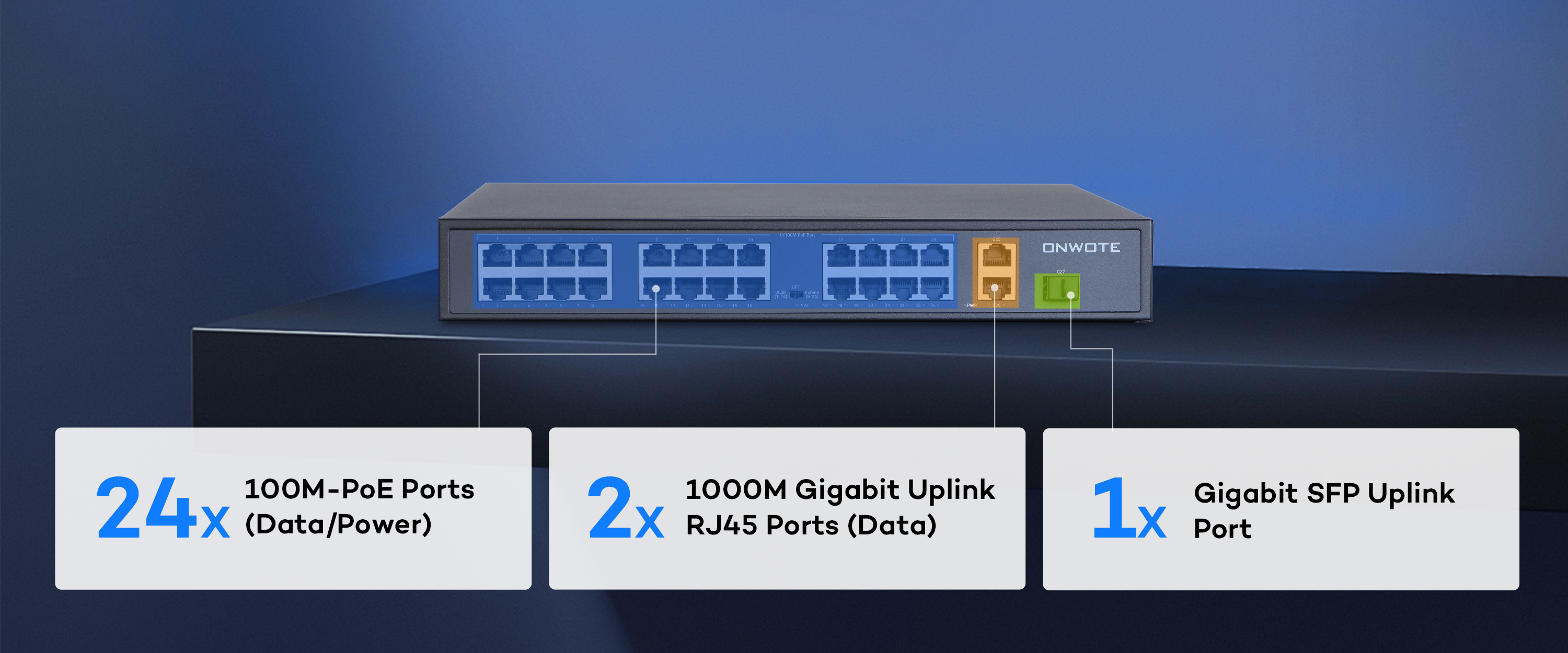

24x 10/100Base- PoE Ports (Data/Power)
2x 10/100/1000M Ethernet Uplink ports (Data)
1x Gigabit SFP Uplink Port
Total Power Input Voltage: 300W(AC100-240V), MAX/ Average Power Per Port: 30W/ 15.4W
Troubleshoot Technical Issues-- We offer 24/7 professional technical support- Amazon Messages or 0.5-2h PHONE support.

~~$159.99~~

$147.19 Save 8%

Only 6 Left

Shop Now

Overview

Gigabit PoE Port

Plug-and-Play

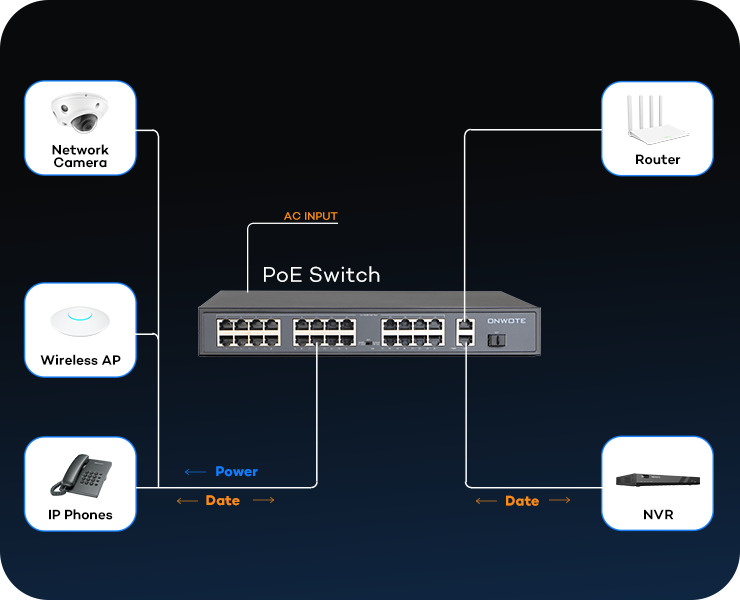

A PoE switch delivers both power and network through a single Ethernet cable. Devices such as cameras, wireless access points, and IP phones can operate normally by connecting to the PoE ports.

One Stop DIY

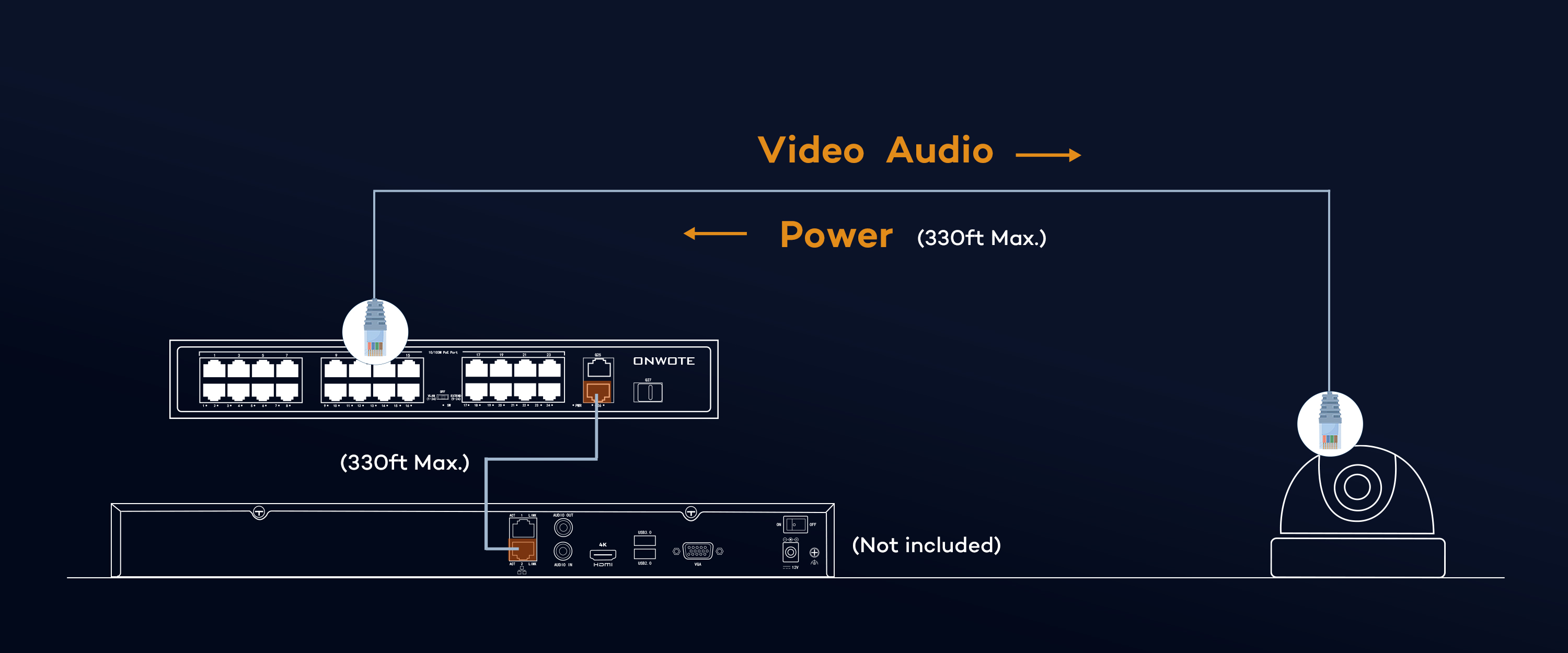

Work with ONWOTE 64/ 32/16/ 8CH NVRs and 12MP/ 8MP/ 6MP poe cameras

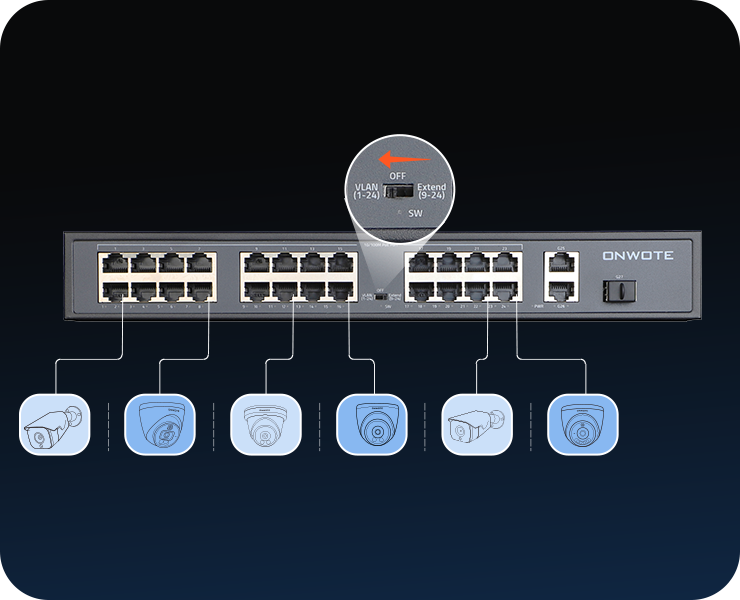

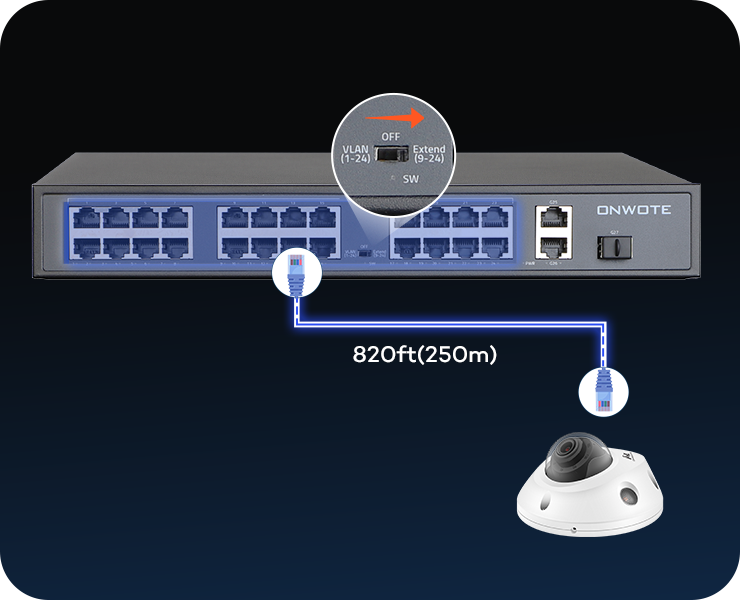

Isolation Mode & Extension Mode

Specification

POE Switch

PS-24M2G1S

Power Supply

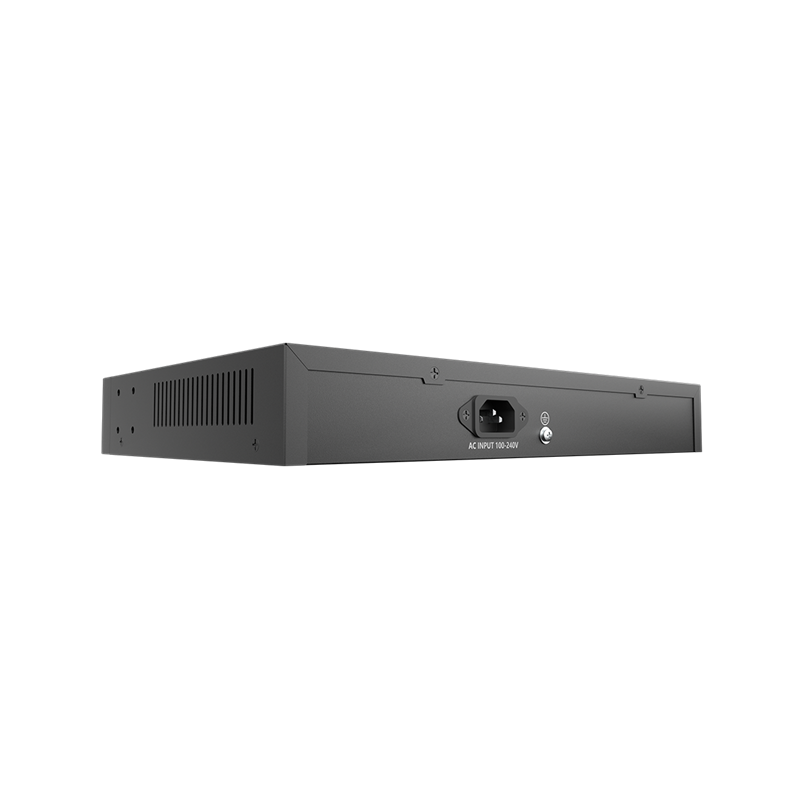

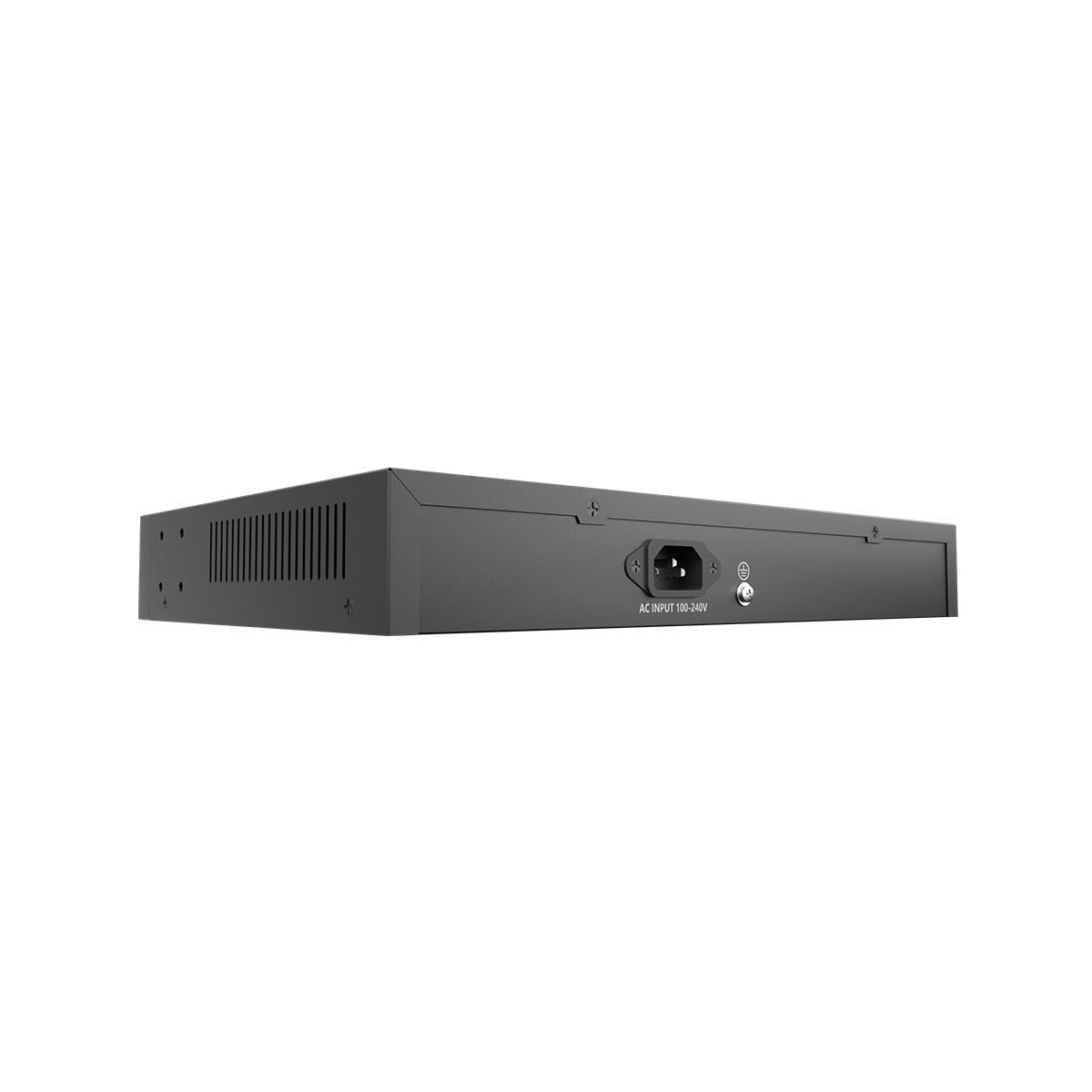

Input: AC 100-240V, 50/60Hz

Total Power Budget

300W

PoE Protocol

IEEE802.3af(15.4W); IEEE802.3at(30W)

PoE Ports

24 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports; 1* Gigabit SFP Uplink Port

Transfer Mode

Store and forward

Switching Capacity

10.8Gbps

Forwarding Rate

8.03Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting:Powered; Un-Light:No Power

Switch Mode

Lighting: VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-27 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

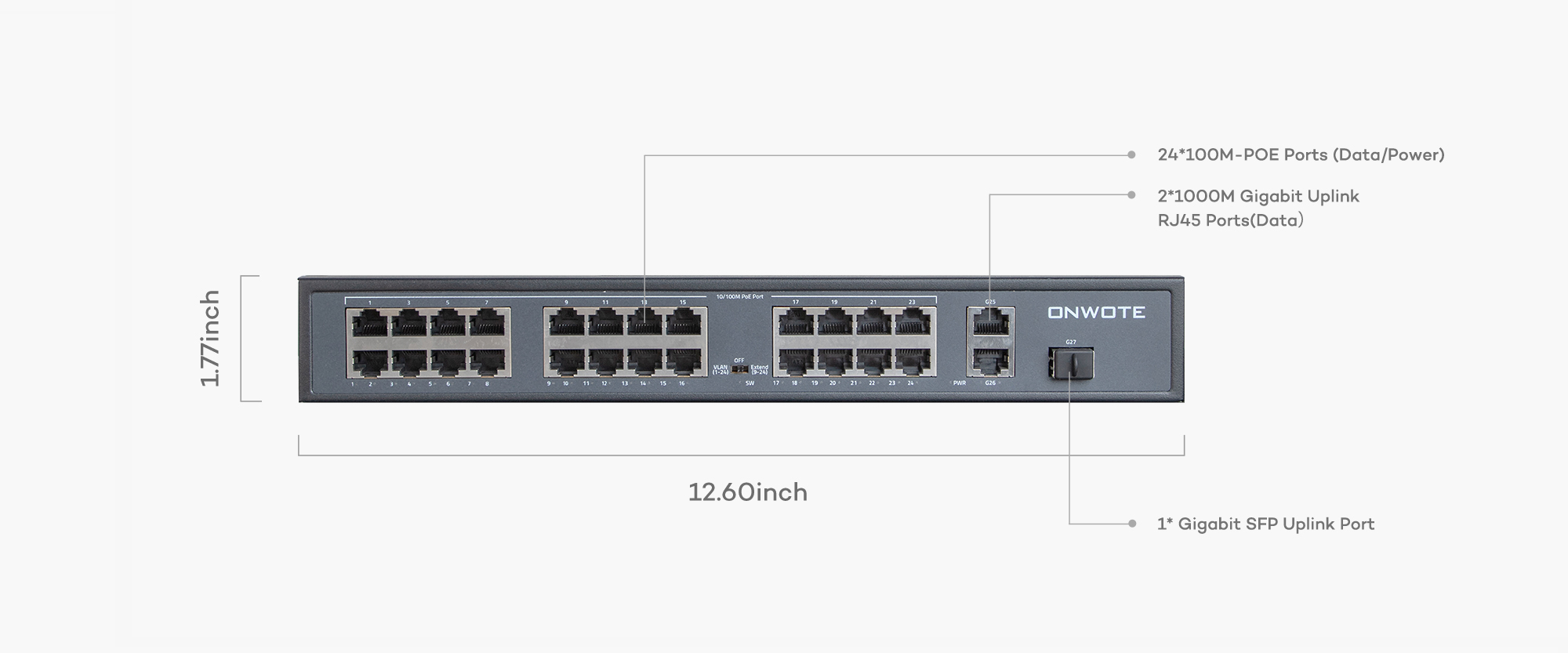

Product Dimensions

12.60*8.15*1.77inch

Net Weight

3.95lbs

Package List

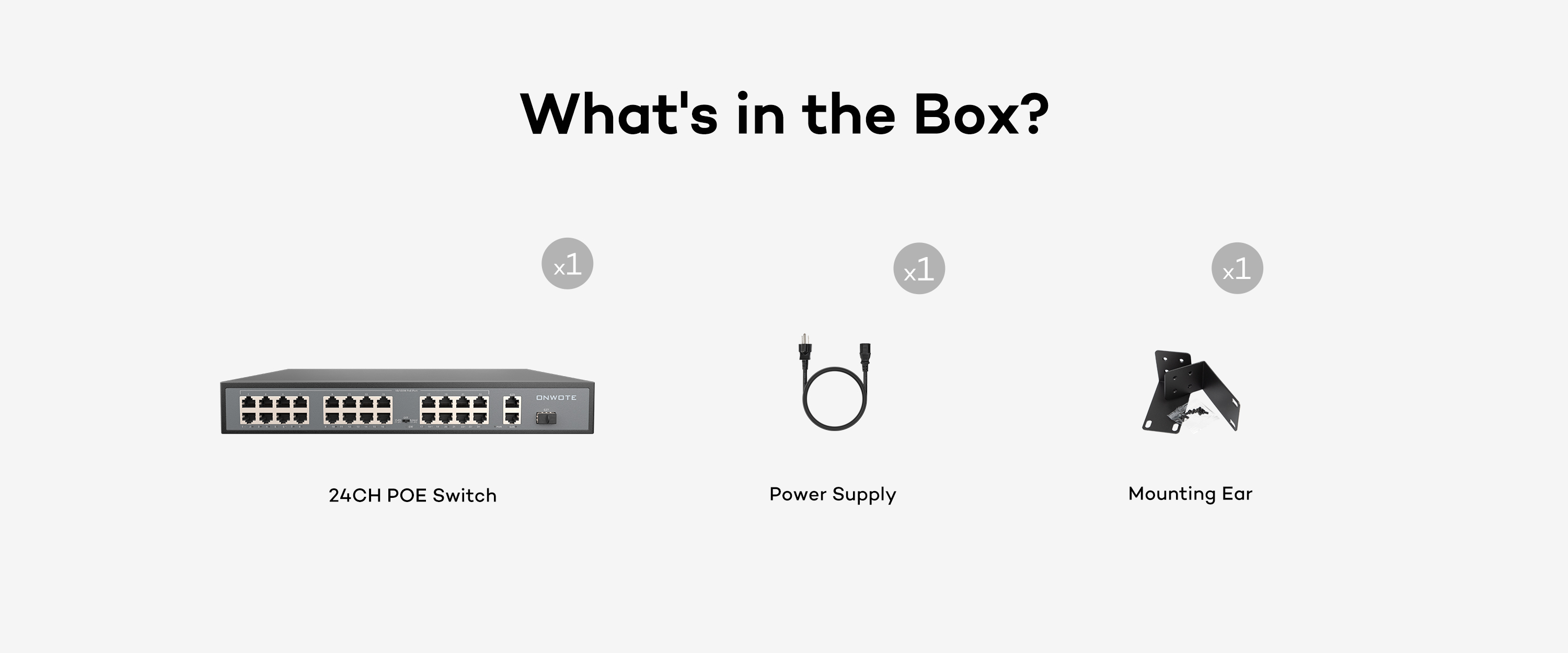

1x 24 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual
